VCK40L-TRSSKA (1999)

Toyota Tundra

Production Feb 1999 - Aug 2002
Engine 5VZFE
Transmission 4HC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9902-0208)

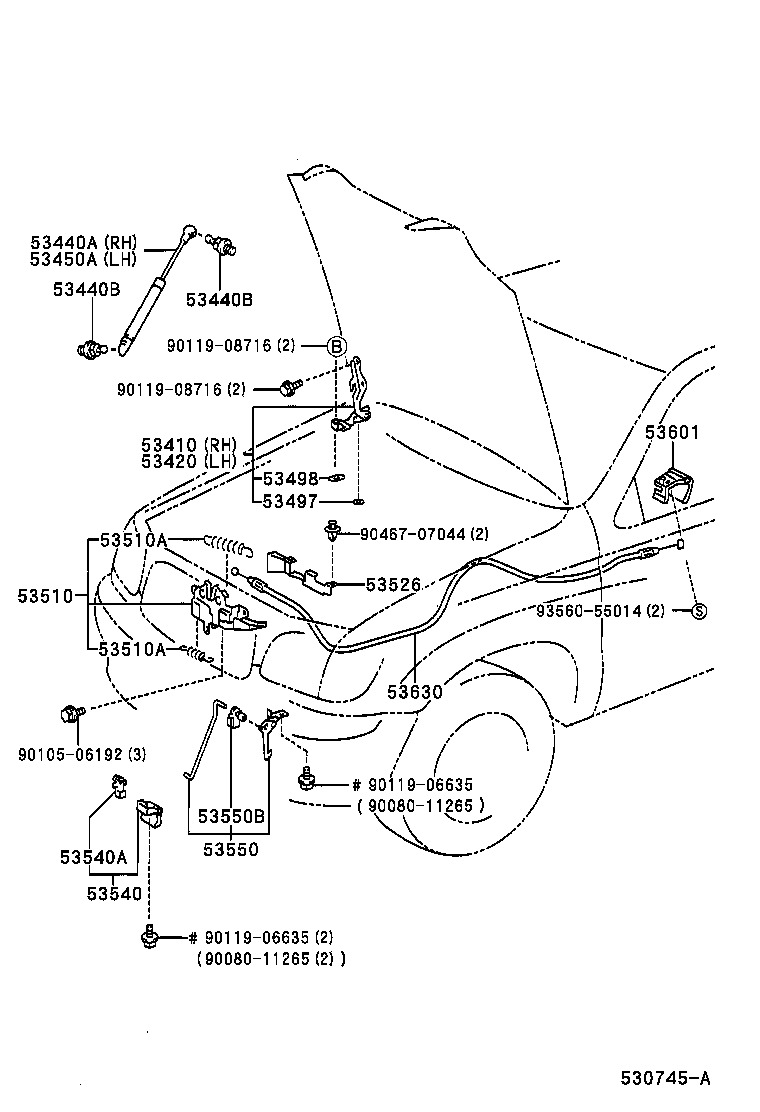

Click highlighted areas on diagram

diagram 53410 53420 53440A 53440B 53440B 53450A 53497 53498 53510 53510A 53510A 53526 53540 53540A 53550 53550B 53601 53630 9008011265 9008011265 9010506192 9011906635 9011906635 9011908716 9011908716 9046707044 9356055014
Part # Description Qty Price
53410 - HINGE ASSY, HOOD, RH
53410-0C010

UCK30,40,VCK30,40

 1
53420 - HINGE ASSY, HOOD, LH
53420-0C010

UCK30,40,VCK30,40

 1
53440A - SUPPORT ASSY, HOOD, RH
53440-0C010

UCK30,40,VCK30,40

 1
53440-0C011

UCK30,40,VCK30,40

 1
53440B - BOLT, HOOD SUPPORT, NO.1
68961-34010

UCK30,40,VCK30,40

 4
53440B - BOLT, HOOD SUPPORT, NO.1
68961-34010

UCK30,40,VCK30,40

 4
53450A - SUPPORT ASSY, HOOD, LH
53450-0C010

UCK30,40,VCK30,40

 1
53450-0C011

UCK30,40,VCK30,40

 1
53497 - PAD, HOOD HINGE, NO.1
53497-0C010

UCK30,40,VCK30,40

 2
53498 - PAD, HOOD HINGE, NO.2
53497-0C010

UCK30,40,VCK30,40

 2
53510 - LOCK ASSY, HOOD
53510-0C010

UCK30,40,VCK30,40

 1
53510A - SPRING, TENSION(FOR HOOD LOCK)
90080-50100

UCK30,40,VCK30,40

WD=0.9,CW=21

 1
90080-50175

UCK30,40,VCK30,40

WD=2.0,CW=15

 1
53510A - SPRING, TENSION(FOR HOOD LOCK)
90080-50100

UCK30,40,VCK30,40

WD=0.9,CW=21

 1
90080-50175

UCK30,40,VCK30,40

WD=2.0,CW=15

 1
53526 - PROTECTOR, HOOD LOCK RELEASE LEVER, NO.2
53526-0C010

UCK30,40,VCK30,40

 1
53540 - LEVER ASSY, AUXILIARY CATCH RELEASE
53540-0C010

UCK30,40,VCK30,40

 1
53540A - SNAP, AUXILIARY CATCH RELEASE LEVER CONTROL LINK
69759-0C020

UCK30,40,VCK30,40

 1
53550 - HOOK ASSY, HOOD AUXILIARY CATCH
53550-0C010

UCK30,40,VCK30,40

 1
53550B - SNAP, HOOD AUXILIARY CATCH HOOK CONTROL LINK
69759-0C010

UCK30,40,VCK30,40

 1
53601 - LEVER SUB-ASSY, HOOD LOCK CONTROL
53601-01020B4

UCK30,40,VCK30,40..LIMD,SR5

DK.CHARCOAL,TRIM11

 1
53601-01020B3

UCK30,40,VCK30,40..LIMD,SR5

MD.MOON MIST,TRIM10

 1
53601-01020E3

UCK30,40,VCK30,40

OAK,TRIM4#

 1
53630 - CABLE ASSY, HOOD LOCK CONTROL
53630-0C010

UCK30,40,VCK30,40

 1
Common parts
90080-11265
90105-06192
90119-06635
90119-08716
90467-07044
93560-55014
