VCK40L-TRSSKA (1999)

Toyota Tundra

Production Feb 1999 - Aug 2002
Engine 5VZFE
Transmission 4HC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9902- )GSK30,UCK30,40,VCK30,40

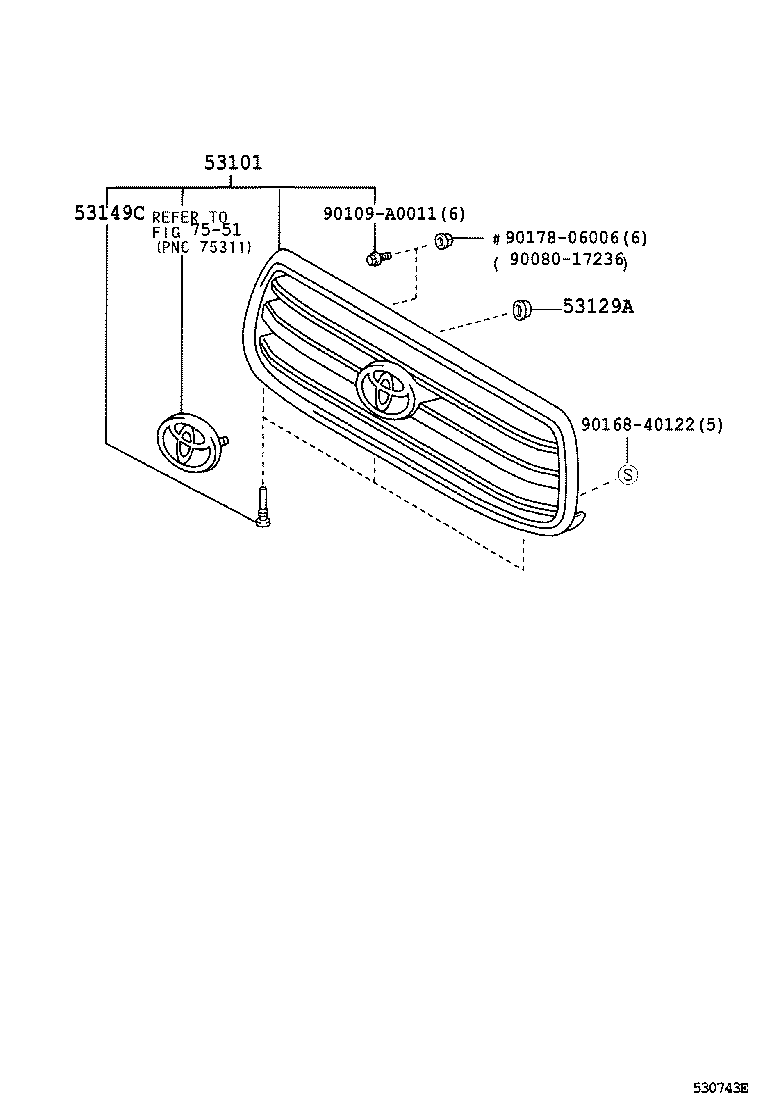

Click highlighted areas on diagram

diagram 53101 53129A 53149C 7551 9008017236 90109A0011 9016840122 9017806006
Part # Description Qty Price
53101 - GRILLE SUB-ASSY, RADIATOR
53100-0C010

UCK30,40,VCK30,40..DLX,SR5

PAINTED

 1
53100-0C020

UCK30,40,VCK30,40..LIMD,SR5

CHROME PLATED

 1
53129A - PIPE, RADIATOR GRILLE
53129-50010

UCK30,40,VCK30,40

 1
53149C - PROTECTOR, RADIATOR GRILLE, NO.2
53149-0C010

UCK30,40,VCK30,40

 3
Common parts
90080-17236
90109-A0011
90168-40122
90178-06006
Linked diagrams
7551
