VCK40L-TRSSKA (1999)
Toyota Tundra
Production
Feb 1999
-
Aug 2002
Engine
5VZFE
Transmission
4HC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(9902- )SD

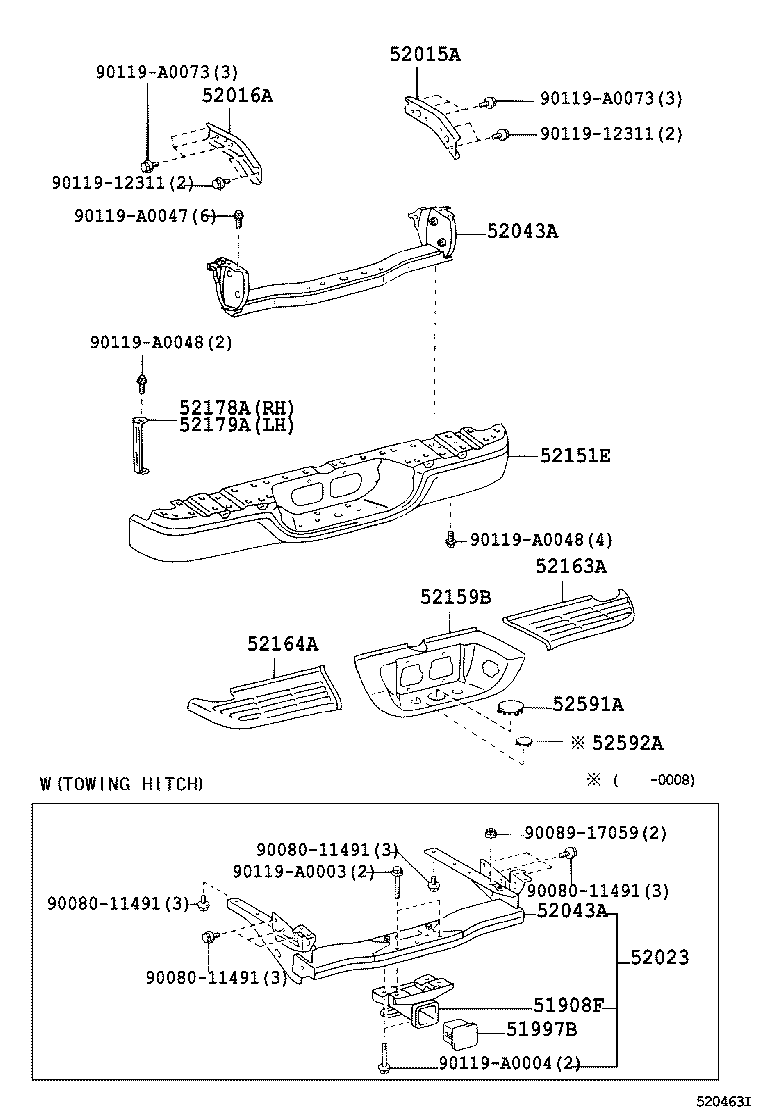

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52015A - ARM SUB-ASSY, REAR BUMPER, RH | ||||
| 52015-0C010 |
UCK30,40,VCK30,40 |
1 | ||
| 52016A - ARM SUB-ASSY, REAR BUMPER, LH | ||||
| 52016-0C010 |
UCK30,40,VCK30,40 |
1 | ||
| 52043A - REINFORCEMENT SUB-ASSY, REAR BUMPER BAR NO.2 | ||||
| 52043-0C010 |
UCK30,40,VCK30,40 |
1 | ||
| 52043A - REINFORCEMENT SUB-ASSY, REAR BUMPER BAR NO.2 | ||||
| 52043-0C010 |
UCK30,40,VCK30,40 |
1 | ||
| 52151E - BAR, REAR BUMPER | ||||
| 52151-0C010 |
UCK30,40,VCK30,40..DLX,SR5 |
1 | ||
| 52151-0C020 |
UCK30,40,VCK30,40..LIMD,SR5 CHROME PLATED |
1 | ||
| 52151-0C900 |
UCK30,40,VCK30,40 PAINTED |
1 | ||
| 52159B - PLATE, REAR BUMPER | ||||
| 52159-0C010 |
UCK30,40,VCK30,40 |
1 | ||
| 52163A - PLATE, REAR BUMPER, RH | ||||
| 52163-0C010 |
UCK30,40,VCK30,40 |
1 | ||
| 52164A - PLATE, REAR BUMPER, LH | ||||
| 52164-0C010 |
UCK30,40,VCK30,40 |
1 | ||
| 52178A - REINFORCEMENT, REAR BUMPER BAR CORNER, RH | ||||
| 52178-0C010 |
UCK30,40,VCK30,40 |
1 | ||
| 52179A - REINFORCEMENT, REAR BUMPER BAR CORNER, LH | ||||
| 52178-0C010 |
UCK30,40,VCK30,40 |
1 | ||
| 52591A - SEAL, REAR BUMPER | ||||
| 52591-0C010 |
UCK30,40,VCK30,40 |
1 | ||
| 52592A - SEAL, REAR BUMPER | ||||
| 52592-0C010 |
UCK30,40,VCK30,40 |
2 | ||
| Common parts | ||||
| 90080-11491 | ||||
| 90089-17059 | ||||
| 90119-12311 | ||||
| 90119-A0003 | ||||
| 90119-A0004 | ||||
| 90119-A0047 | ||||
| 90119-A0048 | ||||
| 90119-A0073 | ||||
