VCK40L-TRSSKA (1999)
Toyota Tundra
Production
Feb 1999
-
Aug 2002
Engine
5VZFE
Transmission
4HC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(9902- )GSK30,UCK30,40,VCK30,40

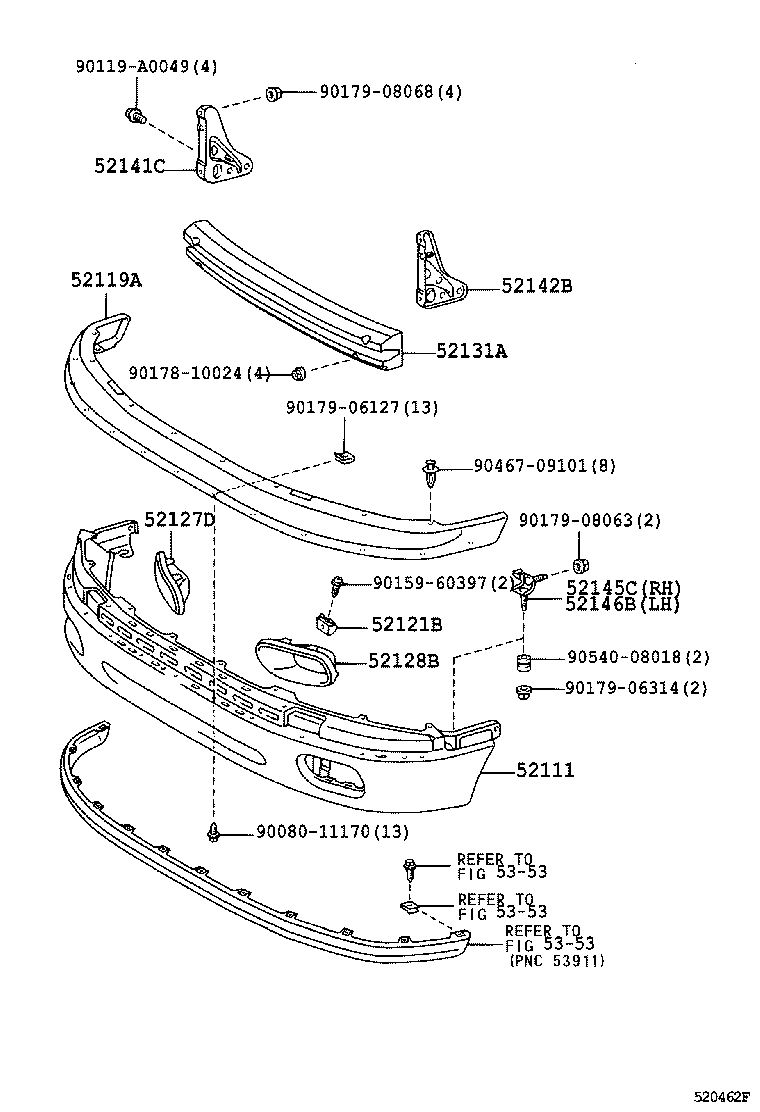

Click highlighted areas on diagram
STEEL BUMPER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52111 - BUMPER ASSY, FRONT | ||||
| 52101-0C020 |
UCK30,40,VCK30,40..LIMD,SR5 CHROME PLATED |
1 | ||
| 52101-0C010 |
UCK30,40,VCK30,40..DLX,SR5 |
1 | ||
| 52101-0C020 |
UCK40..USA;UCK30..LIMD;UCK30..SR5..USA;UCK40..LIMD..CND;VCK30,40..LIMD,SR5 CHROME PLATED |
1 | ||
| 52119A - COVER, FRONT BUMPER | ||||
| 52119-0C010 |
VCK30,40;UCK40..RCB;UCK30,40..LIMD;UCK30,40..ACB..SR5..USA STEEL BUMPER |
1 | ||
| 52119-0C010 |
UCK30,40,VCK30,40 STEEL BUMPER |
1 | ||
| 52119-0C010 |
VCK30,40;UCK30,40..USA STEEL BUMPER |
1 | ||
| 52121B - BRACKET, FRONT LICENCE PLATE MOUNTING | ||||
| 52121-0C010 |
UCK30,40,VCK30,40 |
2 | ||
| 52127D - COVER, FRONT BUMPER HOLE, RH | ||||
| 52127-0C010 |
UCK30,40,VCK30,40..DLX,SR5 W(STEEL BUMPER) |
1 | ||
| 52128B - COVER, FRONT BUMPER HOLE, LH | ||||
| 52128-0C010 |
UCK30,40,VCK30,40..DLX,SR5 W(STEEL BUMPER) |
1 | ||
| 52131A - REINFORCEMENT, FRONT BUMPER | ||||
| 52131-0C010 |
UCK30,40,VCK30,40 |
1 | ||
| 52141C - ARM, FRONT BUMPER, RH | ||||
| 52141-0C010 |
UCK30,40,VCK30,40 |
1 | ||
| 52142B - ARM, FRONT BUMPER, LH | ||||
| 52142-0C010 |
UCK30,40,VCK30,40 |
1 | ||
| 52145C - BRACKET, FRONT BUMPER SIDE MOUNTING, RH | ||||
| 52145-0C010 |
UCK30,40,VCK30,40 |
1 | ||
| 52146B - BRACKET, FRONT BUMPER SIDE MOUNTING, LH | ||||
| 52146-0C010 |
UCK30,40,VCK30,40 |
1 | ||
| Common parts | ||||
| 90080-11170 | ||||
| 90119-A0049 | ||||
| 90159-60397 | ||||
| 90178-10024 | ||||
| 90179-06127 | ||||
| 90179-06314 | ||||
| 90179-08063 | ||||
| 90179-08068 | ||||
| 90467-09101 | ||||
| 90540-08018 | ||||
| Linked diagrams | ||||
| 5353 | ||||
