VCK40L-TRSSKA (1999)

Toyota Tundra

Production Feb 1999 - Aug 2002
Engine 5VZFE
Transmission 4HC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9902-0208)

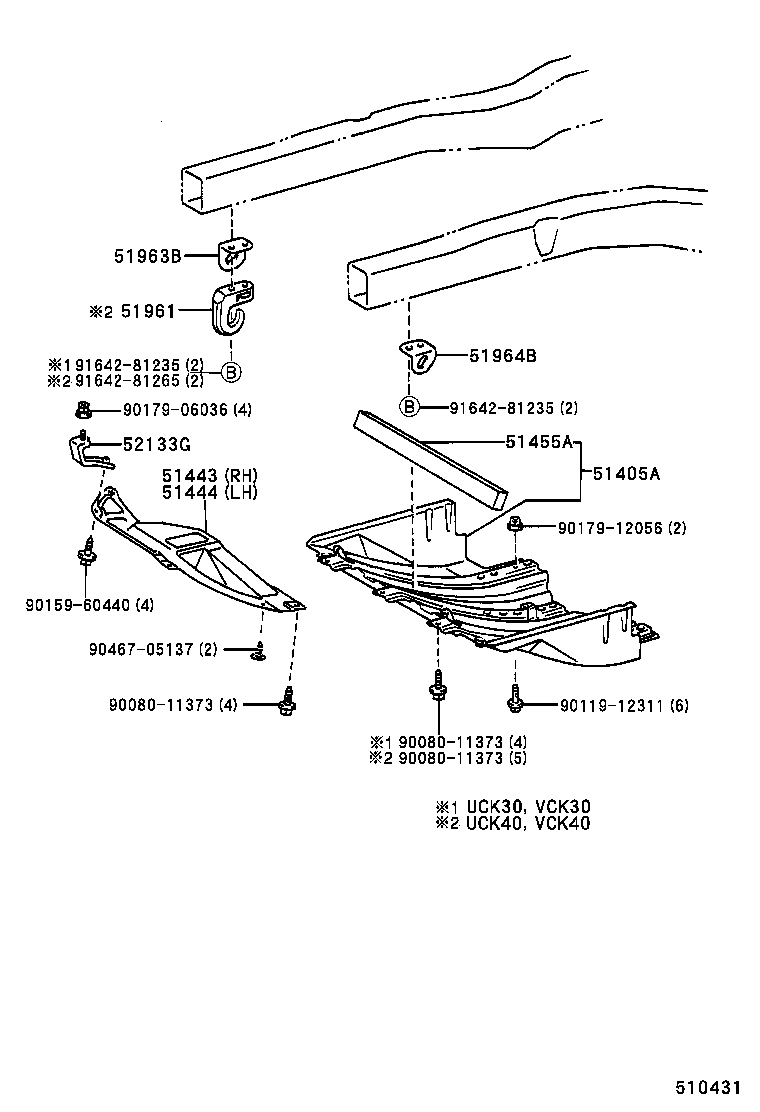

Click highlighted areas on diagram

diagram 51405A 51443 51444 51455A 51961 51963B 51964B 52133G 9008011373 9008011373 9008011373 9011912311 9015960440 9017906036 9017912056 9046705137 9164281235 9164281235 9164281265
Part # Description Qty Price
51405A - COVER SUB-ASSY, ENGINE UNDER, NO.1
51405-34010

UCK40,VCK40

 1
51443 - COVER, ENGINE UNDER, REAR RH
51443-34010

UCK30,40,VCK30,40

 1
51444 - COVER, ENGINE UNDER, REAR LH
51444-34010

UCK30,40,VCK30,40

 1
51455A - SEAL, ENGINE UNDER COVER, NO.1
51455-34010

UCK30,40,VCK30,40

 1
51961 - HOOK, NO.1
51961-35051

UCK30..USA;UCK40,VCK40

 1
51961-35051

UCK40,VCK40

 1
51963B - HOOK, TRANSPORT, FRONT RH
51963-35070

UCK30,40,VCK30,40

 1
51964B - HOOK, TRANSPORT, FRONT LH
51964-35050

UCK30,40,VCK30,40

 1
52133G - BRACKET, FRONT BUMPER, RH
52133-34010

UCK30,40,VCK30,40

 4
Common parts
90080-11373
90119-12311
90159-60440
90179-06036
90179-12056
90467-05137
91642-81235
91642-81265
