VCK40L-TRSSKA (1999)

Toyota Tundra

Production Feb 1999 - Aug 2002
Engine 5VZFE
Transmission 4HC ATM
Displacement 2500cc
Power 168 HP (125 kW)

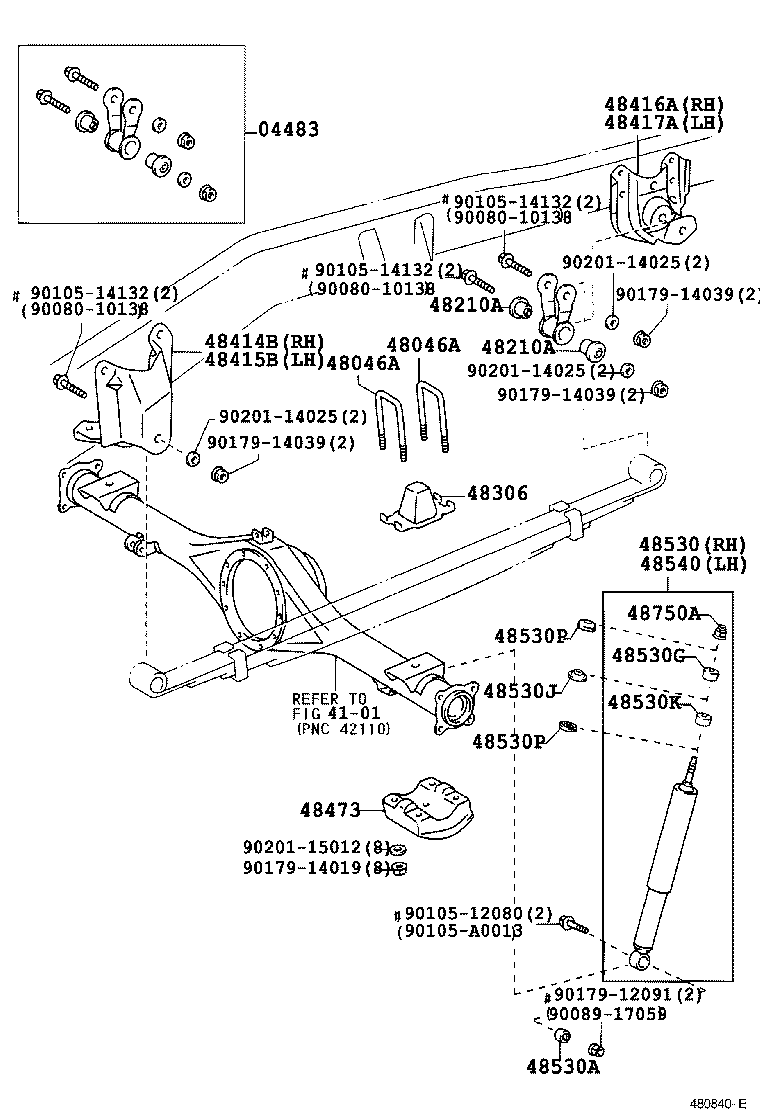

ILLUST NO. 1 OF 3(9902- )

Click highlighted areas on diagram

diagram 04483 4101 48046A 48046A 48210A 48210A 48306 48414B 48415B 48416A 48417A 48473 48530 48530A 48530G 48530J 48530K 48530P 48530P 48540 48750A 9008010138 9008010138 9008010138 9008917059 9010512080 9010514132 9010514132 9010514132 90105A0013 9017912091 9017914019 9017914039 9017914039 9017914039 9020114025 9020114025 9020114025 9020115012
Part # Description Qty Price
04483 - SHACKLE KIT, REAR SPRING
04483-0C010

UCK30,40,VCK30,40

 2
48046A - BOLT, U(FOR REAR SPRING)
90117-14065

UCK30,40,VCK30,40

L=160

 4
48046A - BOLT, U(FOR REAR SPRING)
90117-14065

UCK30,40,VCK30,40

L=160

 4
48210A - BUSH(FOR REAR SPRING SHACKLE UPPER)
90389-14053

UCK30,40,VCK30,40

 4
48210A - BUSH(FOR REAR SPRING SHACKLE UPPER)
90389-14053

UCK30,40,VCK30,40

 4
48306 - BUMPER SUB-ASSY, REAR SPRING
48306-04010

UCK30,40,VCK30,40

 2
48414B - BRACKET, SPRING, NO.3 RH
48414-34030

UCK30,40,VCK30,40

 1
48415B - BRACKET, SPRING, NO.3 LH
48415-34030

UCK30,40,VCK30,40

 1
48416A - BRACKET, SPRING, NO.4 RH
48416-34020

UCK30,40,VCK30,40

 1
48416-0C010

UCK30,40,VCK30,40

 1
48417A - BRACKET, SPRING, NO.4 LH
48417-34010

UCK30,40,VCK30,40

 1
48417-0C010

UCK30,40,VCK30,40

 1
48473 - SEAT, REAR SPRING U BOLT
48473-34050

UCK30,40,VCK30,40

 2
48530 - ABSORBER ASSY, SHOCK, REAR RH
48531-09131

UCK40,VCK40

MARK 48531-AF020

 1
48531-09130

UCK40,VCK40

MARK 48531-AF020

 1
48530A - BUSH(FOR REAR SHOCK ABSORBER)
90903-89013

UCK40,VCK40..RCB

 1
48530G - CUSHION, REAR SHOCK ABSORBER, NO.1
90948-01003

UCK30,40,VCK30,40

 2
90948-01084

UCK30,40,VCK30,40

 2
48530J - RETAINER, CUSHION, NO.1(FOR REAR SHOCK ABSORBER)
90948-02181

UCK30,40,VCK30,40

 2
48530K - CUSHION, REAR SHOCK ABSORBER, NO.2
90948-01045

UCK30,40,VCK30,40

 2
48530P - RETAINER, CUSHION, NO.2(FOR REAR SHOCK ABSORBER)
90948-02131

UCK30,40,VCK30,40

 4
48530P - RETAINER, CUSHION, NO.2(FOR REAR SHOCK ABSORBER)
90948-02131

UCK30,40,VCK30,40

 4
48540 - ABSORBER ASSY, SHOCK, REAR LH
48531-09130

UCK40,VCK40

MARK 48531-AF020

 1
48531-09131

UCK40,VCK40

MARK 48531-AF020

 1
48750A - NUT(FOR REAR SUPPORT TO REAR SHOCK ABSORBER)
94184-01041

UCK30,40,VCK30,40

 2
Common parts
90080-10138
90089-17059
90105-12080
90105-14132
90105-A0013
90179-12091
90179-14019
90179-14039
90201-14025
90201-15012
Linked diagrams
4101

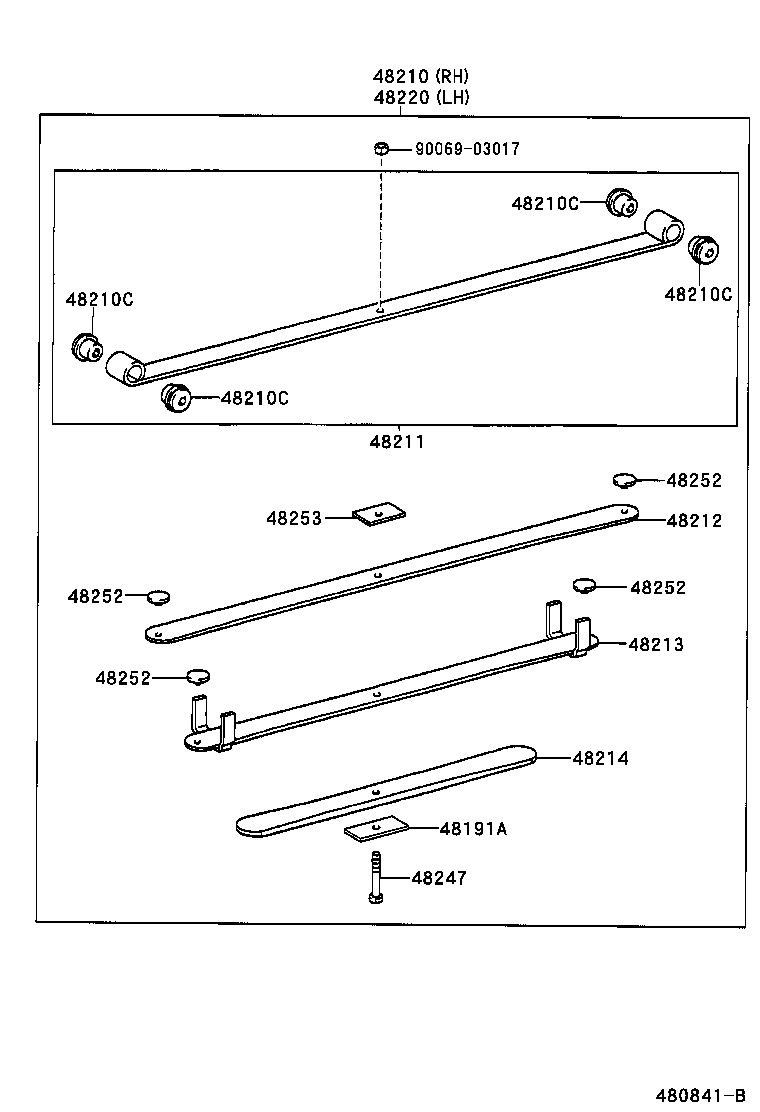

ILLUST NO. 3 OF 3(9902- )UCK30..ACB..SD..5HC..USA ; (9902-)UCK30,40,VCK30,40..4HC,5F

Click highlighted areas on diagram

diagram 48191A 48210 48210C 48210C 48210C 48210C 48211 48212 48213 48214 48220 48247 48252 48252 48252 48252 48253 9006903017
Part # Description Qty Price
48210 - SPRING ASSY, REAR RH
48210-0C050

VCK40..RCB

4-LEAF

 1
48210C - BUSH(FOR REAR SPRING LEAF)
90389-14051

UCK30,40,VCK30,40

 4
90389-14051

VCK30;UCK40..USA;UCK30..SR5;VCK40..RCB;VCK40..ACB..USA;UCK30..LIMD..USA

 4
48210C - BUSH(FOR REAR SPRING LEAF)
90389-14051

UCK30,40,VCK30,40

 4
90389-14051

VCK30;UCK40..USA;UCK30..SR5;VCK40..RCB;VCK40..ACB..USA;UCK30..LIMD..USA

 4
48210C - BUSH(FOR REAR SPRING LEAF)
90389-14051

UCK30,40,VCK30,40

 4
90389-14051

VCK30;UCK40..USA;UCK30..SR5;VCK40..RCB;VCK40..ACB..USA;UCK30..LIMD..USA

 4
48210C - BUSH(FOR REAR SPRING LEAF)
90389-14051

UCK30,40,VCK30,40

 4
90389-14051

VCK30;UCK40..USA;UCK30..SR5;VCK40..RCB;VCK40..ACB..USA;UCK30..LIMD..USA

 4
48211 - LEAF, REAR SPRING, NO.1
48031-0C050

VCK40..RCB

LH

 1
48201-0C050

VCK40..RCB

RH

 1
48212 - LEAF, REAR SPRING, NO.2
48212-0C050

VCK40..RCB

RH

 1
48276-0C050

VCK40..RCB

LH

 1
48213 - LEAF, REAR SPRING, NO.3
48032-0C050

VCK40..RCB

LH

 1
48202-0C050

VCK40..RCB

RH

 1
48214 - LEAF, REAR SPRING, NO.4
48214-0C050

VCK40..RCB

RH

 1
48278-0C050

VCK40..RCB

LH

 1
48220 - SPRING ASSY, REAR LH
48220-0C050

VCK40..RCB

4-LEAF

 1
48247 - BOLT, REAR SPRING, CENTER
48247-0C010

UCK30,VCK30;UCK40,VCK40..RCB;UCK40,VCK40..ACB..USA

 2
48247-0C010

UCK30,40,VCK30,40

 2
48252 - SILENCER, REAR SPRING
48252-0C010

UCK30,VCK30;UCK40,VCK40..RCB;UCK40,VCK40..ACB..USA

 8
48252-0C010

UCK30,40,VCK30,40

 8
48252 - SILENCER, REAR SPRING
48252-0C010

UCK30,VCK30;UCK40,VCK40..RCB;UCK40,VCK40..ACB..USA

 8
48252-0C010

UCK30,40,VCK30,40

 8
48252 - SILENCER, REAR SPRING
48252-0C010

UCK30,VCK30;UCK40,VCK40..RCB;UCK40,VCK40..ACB..USA

 8
48252-0C010

UCK30,40,VCK30,40

 8
48252 - SILENCER, REAR SPRING
48252-0C010

UCK30,VCK30;UCK40,VCK40..RCB;UCK40,VCK40..ACB..USA

 8
48252-0C010

UCK30,40,VCK30,40

 8
48253 - SPACER, REAR SPRING, NO.1
48253-04050

UCK30,40,VCK30,40

 2
48253-04050

UCK30,VCK30;UCK40,VCK40..RCB;UCK40,VCK40..ACB..USA

 2
Common parts
90069-03017
