VCK40L-TRSSKA (1999)

Toyota Tundra

Production Feb 1999 - Aug 2002
Engine 5VZFE
Transmission 4HC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9902- )

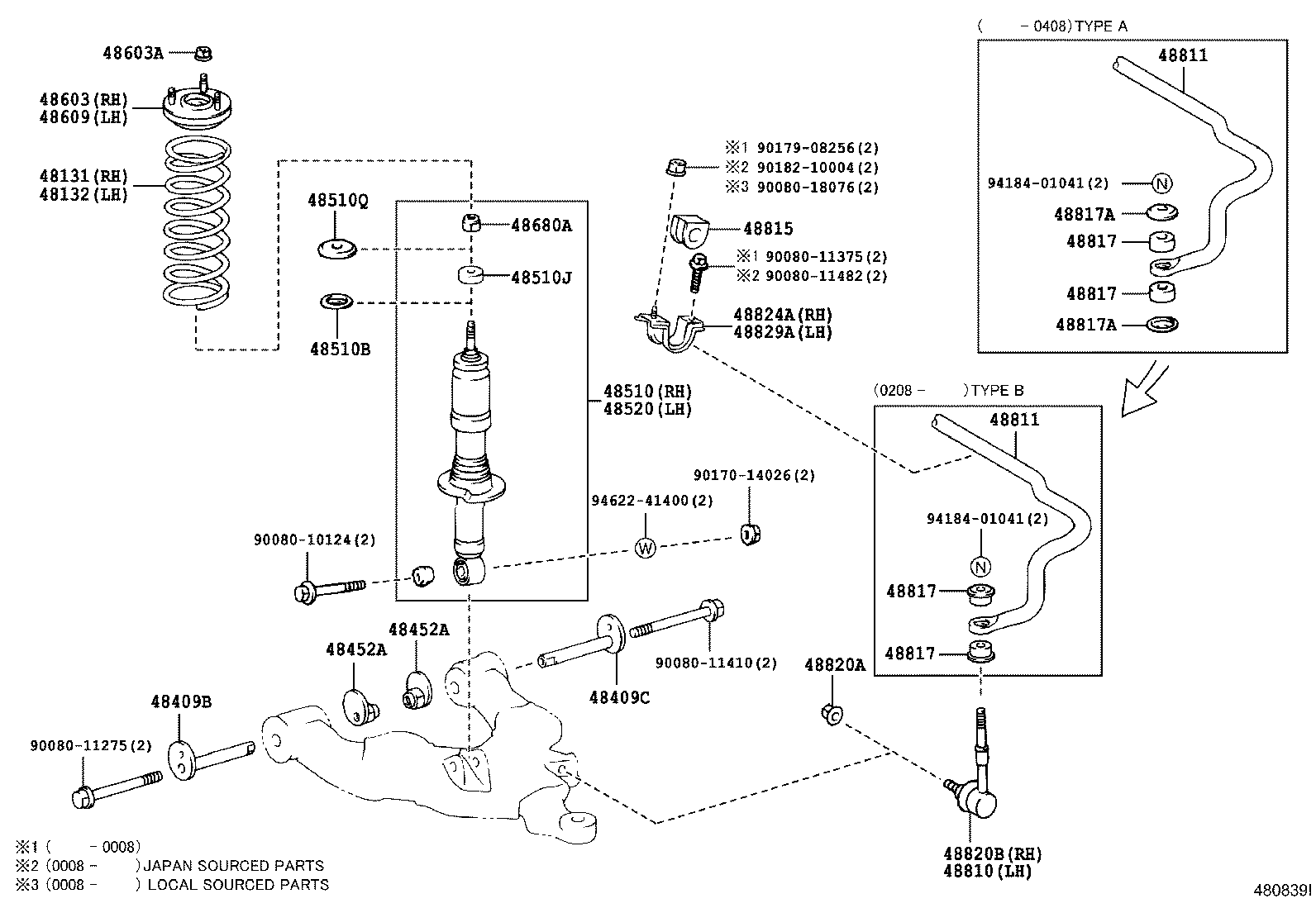

Click highlighted areas on diagram

diagram 48131 48132 48409B 48409C 48452A 48452A 48510 48510B 48510J 48510Q 48520 48603 48603A 48609 48680A 48810 48811 48811 48815 48817 48817 48817 48817 48817A 48817A 48820A 48820B 48824A 48829A 9008010124 9008011275 9008011375 9008011410 9008011482 9008018076 9017014026 9017908256 9018210004 9418401041 9418401041 9462241400
Part # Description Qty Price
48131 - SPRING, FRONT COIL, RH
48131-AF030

UCK40,VCK40..RCB

 1
48132 - SPRING, FRONT COIL, LH
48131-AF070

UCK40,VCK40..RCB

 1
48409B - CAM SUB-ASSY, FRONT SUSPENSION TOE ADJUST
48409-34020

UCK30,40,VCK30,40

 2
48409C - CAM SUB-ASSY, FRONT SUSPENSION TOE ADJUST, NO.2
48409-34030

UCK30,40,VCK30,40

 2
48452A - PLATE, FRONT SUSPENSION TOE ADJUST, NO.2
48452-35020

UCK30,40,VCK30,40

 4
48452A - PLATE, FRONT SUSPENSION TOE ADJUST, NO.2
48452-35020

UCK30,40,VCK30,40

 4
48510 - ABSORBER ASSY, SHOCK, FRONT RH
48510-09500

UCK40,VCK40

MARK 48510-AF021

 1
48510-09320

UCK40,VCK40

 1
48510B - RETAINER, CUSHION, NO.1(FOR FRONT SHOCK ABSORBER)
90948-02159

UCK30,40,VCK30,40

 2
48510J - CUSHION, FRONT SHOCK ABSORBER, NO.1
90080-94077

UCK30,40,VCK30,40

 2
90080-94105

UCK30,40,VCK30,40

 2
48510Q - RETAINER, CUSHION, NO.3(FOR FRONT SHOCK ABSORBER)
90948-02161

UCK30,40,VCK30,40

 2
48520 - ABSORBER ASSY, SHOCK, FRONT LH
48510-09320

UCK40,VCK40

 1
48510-09500

UCK40,VCK40

MARK 48510-AF021

 1
48603 - SUPPORT SUB-ASSY, FRONT SUSPENSION, RH
48609-0C020

UCK30,40,VCK30,40

 1
48609-0C021

UCK30,40,VCK30,40

 1
48609-0C010

UCK30,40,VCK30,40

 1
48603A - NUT(FOR FRONT SUSPENSION SUPPORT)
90178-10015

UCK30,40,VCK30,40

 6
90179-10212

UCK30,40,VCK30,40

 6
48609 - SUPPORT SUB-ASSY, FRONT SUSPENSION, LH
48609-0C020

UCK30,40,VCK30,40

 1
48609-0C021

UCK30,40,VCK30,40

 1
48609-0C010

UCK30,40,VCK30,40

 1
48680A - NUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER)
94184-01241

UCK30,40,VCK30,40

 2
48810 - LINK ASSY, FRONT STABILIZER, LH
48820-34020

UCK30,40,VCK30,40

 1
48820-35030

UCK30,40,VCK30,40

 1
48811 - BAR, STABILIZER, FRONT
48811-AF020

UCK40,VCK40

 1
48811-AF021

UCK40,VCK40

 1
48811 - BAR, STABILIZER, FRONT
48811-AF020

UCK40,VCK40

 1
48811-AF021

UCK40,VCK40

 1
48815 - BUSH, FRONT STABILIZER BAR, NO.1
48815-AF020

UCK40,VCK40

 2
48815-AF021

UCK40,VCK40

 2
48817 - CUSHION, FRONT STABILIZER
90948-01072

UCK30,40,VCK30,40

TYPE A

 4
48817 - CUSHION, FRONT STABILIZER
90948-01072

UCK30,40,VCK30,40

TYPE A

 4
48817 - CUSHION, FRONT STABILIZER
90948-01072

UCK30,40,VCK30,40

TYPE A

 4
48817 - CUSHION, FRONT STABILIZER
90948-01072

UCK30,40,VCK30,40

TYPE A

 4
48817A - RETAINER, CUSHION, NO.1(FOR FRONT STABILIZER BAR)
90948-02131

UCK30,40,VCK30,40

 4
48817A - RETAINER, CUSHION, NO.1(FOR FRONT STABILIZER BAR)
90948-02131

UCK30,40,VCK30,40

 4
48820A - NUT(FOR FRONT STABILIZER LINK)
90179-12144

UCK30,40,VCK30,40

 2
90179-12141

UCK30,40,VCK30,40

 2
48820B - LINK ASSY, FRONT STABILIZER, RH
48820-34020

UCK30,40,VCK30,40

 1
48820-35030

UCK30,40,VCK30,40

 1
48824A - BRACKET, FRONT STABILIZER, NO.1 RH
48824-34020

UCK30,40,VCK30,40

 1
48824-34030

UCK30,40,VCK30,40

 1
48829A - BRACKET, FRONT STABILIZER, NO.1 LH
48829-34020

UCK30,40,VCK30,40

 1
48829-34010

UCK30,40,VCK30,40

 1
Common parts
90080-10124
90080-11275
90080-11375
90080-11410
90080-11482
90080-18076
90170-14026
90179-08256
90182-10004
94184-01041
94622-41400
