VCK40L-TRSSKA (1999)
Toyota Tundra

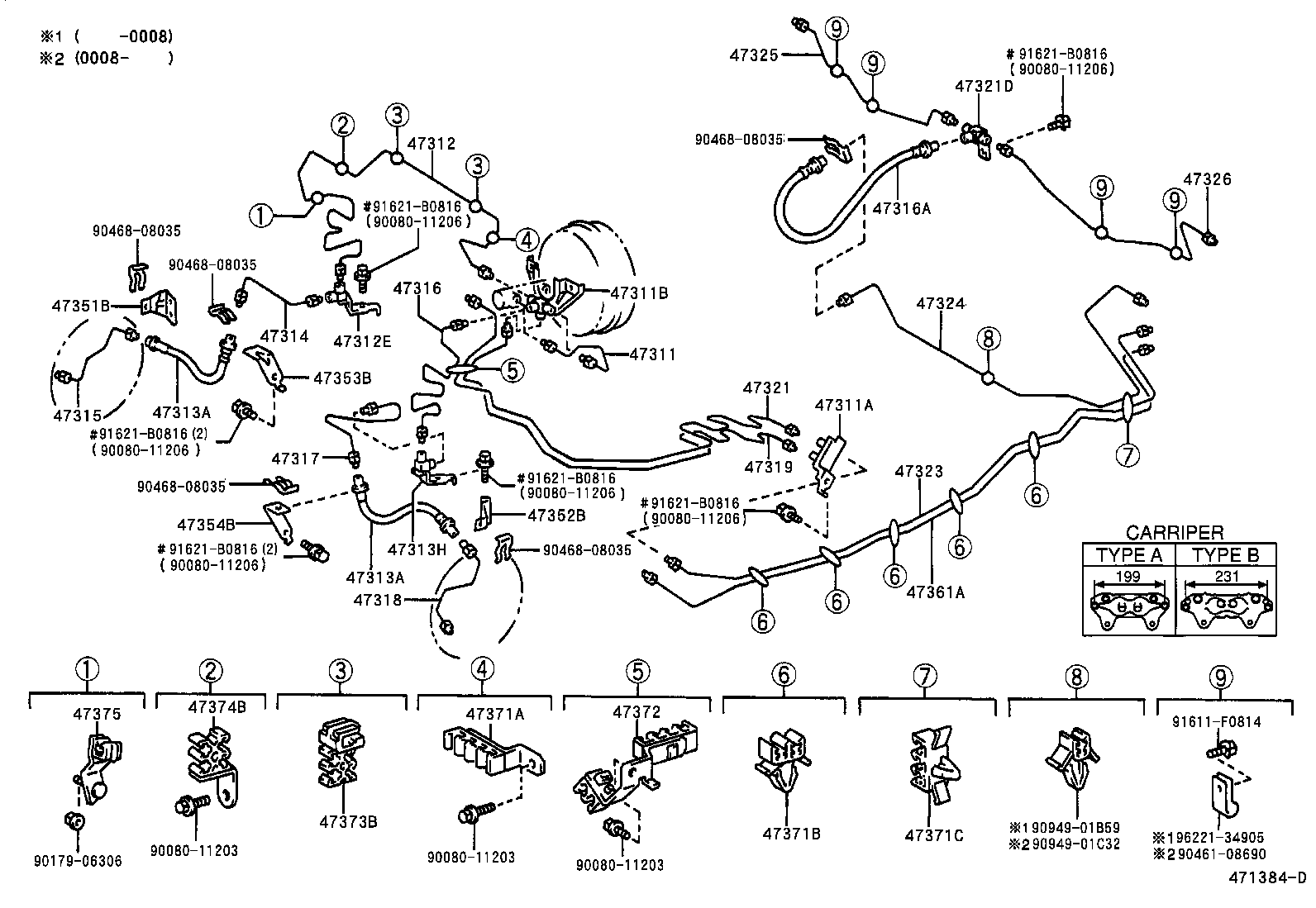

ILLUST NO. 1 OF 3(9902-0208)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-0C010 |
UCK30,40,VCK30,40 |
1 | ||
| 47311A - WAY(FOR FRONT BRAKE TUBE) | ||||
| 90904-12068 |
UCK30,40,VCK30,40 |
1 | ||
| 47311B - WAY, NO.1(FOR FRONT BRAKE TUBE) | ||||
| 90904-14006 |
UCK30,40,VCK30,40 |
1 | ||
| 90413-10067 |
UCK30,40,VCK30,40 W(ABS) |
1 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47312-0C011 |
UCK30,40,VCK30,40 |
1 | ||
| 47312-0C022 |
UCK30,40,VCK30,40 W(ABS) |
1 | ||
| 47312-0C021 |
UCK30,40,VCK30,40 W(ABS) |
1 | ||
| 47312E - WAY, NO.2(FOR FRONT BRAKE TUBE) | ||||
| 90904-12066 |
UCK30,40,VCK30,40 |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90080-94073 |
UCK30,40,VCK30,40 |
2 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90080-94073 |
UCK30,40,VCK30,40 |
2 | ||
| 47313H - WAY, NO.3(FOR FRONT BRAKE TUBE) | ||||
| 90904-12067 |
UCK30,40,VCK30,40 |
1 | ||
| 47314 - TUBE, FRONT BRAKE, NO.4 | ||||
| 47314-0C011 |
UCK30,40,VCK30,40 |
1 | ||
| 47315 - TUBE, FRONT BRAKE, NO.5 | ||||
| 47315-0C020 |
UCK30,40,VCK30,40 CARRIPER=TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 47315-0C010 |
UCK30,40,VCK30,40 CARRIPER=TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 47316 - TUBE, FRONT BRAKE, NO.6 | ||||
| 47316-0C021 |
UCK30,40,VCK30,40 W(ABS) |
1 | ||
| 47316-0C022 |
UCK30,40,VCK30,40 W(ABS) |
1 | ||
| 47316-0C011 |
UCK30,40,VCK30,40 |
1 | ||
| 47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE) | ||||
| 90080-94071 |
UCK40,VCK40 |
1 | ||
| 47317 - TUBE, FRONT BRAKE, NO.7 | ||||
| 47317-0C011 |
UCK30,40,VCK30,40 |
1 | ||
| 47318 - TUBE, FRONT BRAKE, NO.8 | ||||
| 47318-0C020 |
UCK30,40,VCK30,40 CARRIPER=TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 47318-0C010 |
UCK30,40,VCK30,40 CARRIPER=TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 47319 - TUBE, FRONT BRAKE, NO.9 | ||||
| 47319-0C021 |
UCK30,40,VCK30,40 |
1 | ||
| 47321 - TUBE, REAR BRAKE, NO.1 | ||||
| 47321-0C022 |
UCK30,40,VCK30,40 W(ABS) |
1 | ||
| 47321-0C011 |
UCK30,40,VCK30,40 |
1 | ||
| 47321-0C021 |
UCK30,40,VCK30,40 W(ABS) |
1 | ||
| 47321D - WAY, NO.1(FOR REAR BRAKE TUBE) | ||||
| 90904-13048 |
UCK30,40,VCK30,40 |
1 | ||
| 47323 - TUBE, REAR BRAKE, NO.3 | ||||
| 47323-0C011 |
UCK30,40,VCK30,40 |
1 | ||
| 47323-0C012 |
UCK30,40,VCK30,40 |
1 | ||
| 47324 - TUBE, REAR BRAKE, NO.4 | ||||
| 47324-0C011 |
UCK30,40,VCK30,40 |
1 | ||
| 47324-0C012 |
UCK30,40,VCK30,40 |
1 | ||
| 47325 - TUBE, REAR BRAKE, NO.5 | ||||
| 47325-0C011 |
UCK30,40,VCK30,40 |
1 | ||
| 47325-0C012 |
UCK30,40,VCK30,40 |
1 | ||
| 47326 - TUBE, REAR BRAKE, NO.6 | ||||
| 47326-0C012 |
UCK30,40,VCK30,40 |
1 | ||
| 47326-0C011 |
UCK30,40,VCK30,40 |
1 | ||
| 47351B - BRACKET, FLEXIBLE HOSE, NO.1 | ||||
| 47351-35270 |
UCK30,40,VCK30,40 |
1 | ||
| 47352B - BRACKET, FLEXIBLE HOSE, NO.2 | ||||
| 47352-35310 |
UCK30,40,VCK30,40 |
1 | ||
| 47353B - BRACKET, FLEXIBLE HOSE, NO.3 | ||||
| 47353-35110 |
UCK30,40,VCK30,40 |
1 | ||
| 47354B - BRACKET, FLEXIBLE HOSE, NO.4 | ||||
| 47354-35100 |
UCK30,40,VCK30,40 |
1 | ||
| 47361A - TUBE, FRONT BRAKE, NO.10 | ||||
| 47361-0C012 |
UCK30,40,VCK30,40 |
1 | ||
| 47361-0C011 |
UCK30,40,VCK30,40 |
1 | ||
| 47371A - CLAMP, BRAKE TUBE, NO.1 | ||||
| 47371-35300 |
UCK30,40,VCK30,40 |
1 | ||
| 47371B - CLAMP, BRAKE TUBE, NO.6 | ||||
| 90949-01B60 |
UCK30,40,VCK30,40 |
5 | ||
| 90949-01C06 |
UCK30,40,VCK30,40 |
5 | ||
| 47371C - CLAMP, BRAKE TUBE, NO.7 | ||||
| 90949-01B61 |
UCK30,40,VCK30,40 |
1 | ||
| 90949-01C33 |
UCK30,40,VCK30,40 |
1 | ||
| 47372 - CLAMP, BRAKE TUBE, NO.2 | ||||
| 47372-34040 |
UCK30,40,VCK30,40 |
1 | ||
| 47373B - CLAMP, BRAKE TUBE, NO.3 | ||||
| 47372-35150 |
UCK30,40,VCK30,40 |
2 | ||
| 47374B - CLAMP, BRAKE TUBE, NO.4 | ||||
| 47374-34010 |
UCK30,40,VCK30,40 |
1 | ||
| 47375 - CLAMP, BRAKE TUBE, NO.5 | ||||
| 47375-34010 |
UCK30,40,VCK30,40 |
1 | ||
| Common parts | ||||
| 90080-11203 | ||||
| 90080-11206 | ||||
| 90179-06306 | ||||
| 90461-08690 | ||||
| 90468-08035 | ||||
| 90949-01B59 | ||||
| 90949-01C32 | ||||
| 91611-F0814 | ||||
| 91621-B0816 | ||||
| 96221-34905 | ||||
ILLUST NO. 1 OF 3(9902-0408)UCK30,40,VCK30,40 ; (0408- )GSK30,UCK30,40
W(ABS)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-0C010 |
UCK30,40,VCK30,40 |
1 | ||
| 47311A - WAY(FOR FRONT BRAKE TUBE) | ||||
| 90904-12068 |
UCK30,40,VCK30,40 |
1 | ||
| 47311B - WAY, NO.1(FOR FRONT BRAKE TUBE) | ||||
| 90904-14006 |
UCK30,40,VCK30,40 |
1 | ||
| 90413-10067 |
UCK30,40,VCK30,40 W(ABS) |
1 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47312-0C011 |
UCK30,40,VCK30,40 |
1 | ||
| 47312-0C022 |
UCK30,40,VCK30,40 W(ABS) |
1 | ||
| 47312-0C021 |
UCK30,40,VCK30,40 W(ABS) |
1 | ||
| 47312E - WAY, NO.2(FOR FRONT BRAKE TUBE) | ||||
| 90904-12066 |
UCK30,40,VCK30,40 |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47313-0C011 |
UCK30,40,VCK30,40 |
1 | ||
| 47313-0C012 |
UCK30,40,VCK30,40 |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90080-94073 |
UCK30,40,VCK30,40 |
2 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90080-94073 |
UCK30,40,VCK30,40 |
2 | ||
| 47313H - WAY, NO.3(FOR FRONT BRAKE TUBE) | ||||
| 90904-12067 |
UCK30,40,VCK30,40 |
1 | ||
| 47314 - TUBE, FRONT BRAKE, NO.4 | ||||
| 47314-0C011 |
UCK30,40,VCK30,40 |
1 | ||
| 47315 - TUBE, FRONT BRAKE, NO.5 | ||||
| 47315-0C020 |
UCK30,40,VCK30,40 CARRIPER=TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 47315-0C010 |
UCK30,40,VCK30,40 CARRIPER=TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 47316 - TUBE, FRONT BRAKE, NO.6 | ||||
| 47316-0C021 |
UCK30,40,VCK30,40 W(ABS) |
1 | ||
| 47316-0C022 |
UCK30,40,VCK30,40 W(ABS) |
1 | ||
| 47316-0C011 |
UCK30,40,VCK30,40 |
1 | ||
| 47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE) | ||||
| 90080-94071 |
UCK40,VCK40 |
1 | ||
| 47317 - TUBE, FRONT BRAKE, NO.7 | ||||
| 47317-0C011 |
UCK30,40,VCK30,40 |
1 | ||
| 47318 - TUBE, FRONT BRAKE, NO.8 | ||||
| 47318-0C020 |
UCK30,40,VCK30,40 CARRIPER=TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 47318-0C010 |
UCK30,40,VCK30,40 CARRIPER=TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 47319 - TUBE, FRONT BRAKE, NO.9 | ||||
| 47319-0C021 |
UCK30,40,VCK30,40 |
1 | ||
| 47321 - TUBE, REAR BRAKE, NO.1 | ||||
| 47321-0C022 |
UCK30,40,VCK30,40 W(ABS) |
1 | ||
| 47321-0C011 |
UCK30,40,VCK30,40 |
1 | ||
| 47321-0C021 |
UCK30,40,VCK30,40 W(ABS) |
1 | ||
| 47321D - WAY, NO.1(FOR REAR BRAKE TUBE) | ||||
| 90904-13048 |
UCK30,40,VCK30,40 |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47322-0C012 |
UCK30,40,VCK30,40 |
1 | ||
| 47322-0C011 |
UCK30,40,VCK30,40 |
1 | ||
| 47323 - TUBE, REAR BRAKE, NO.3 | ||||
| 47323-0C011 |
UCK30,40,VCK30,40 |
1 | ||
| 47323-0C012 |
UCK30,40,VCK30,40 |
1 | ||
| 47324 - TUBE, REAR BRAKE, NO.4 | ||||
| 47324-0C011 |
UCK30,40,VCK30,40 |
1 | ||
| 47324-0C012 |
UCK30,40,VCK30,40 |
1 | ||
| 47325 - TUBE, REAR BRAKE, NO.5 | ||||
| 47325-0C011 |
UCK30,40,VCK30,40 |
1 | ||
| 47325-0C012 |
UCK30,40,VCK30,40 |
1 | ||
| 47326 - TUBE, REAR BRAKE, NO.6 | ||||
| 47326-0C012 |
UCK30,40,VCK30,40 |
1 | ||
| 47326-0C011 |
UCK30,40,VCK30,40 |
1 | ||
| 47351B - BRACKET, FLEXIBLE HOSE, NO.1 | ||||
| 47351-35270 |
UCK30,40,VCK30,40 |
1 | ||
| 47352B - BRACKET, FLEXIBLE HOSE, NO.2 | ||||
| 47352-35310 |
UCK30,40,VCK30,40 |
1 | ||
| 47353B - BRACKET, FLEXIBLE HOSE, NO.3 | ||||
| 47353-35110 |
UCK30,40,VCK30,40 |
1 | ||
| 47354B - BRACKET, FLEXIBLE HOSE, NO.4 | ||||
| 47354-35100 |
UCK30,40,VCK30,40 |
1 | ||
| 47361A - TUBE, FRONT BRAKE, NO.10 | ||||
| 47361-0C012 |
UCK30,40,VCK30,40 |
1 | ||
| 47361-0C011 |
UCK30,40,VCK30,40 |
1 | ||
| 47371A - CLAMP, BRAKE TUBE, NO.1 | ||||
| 47371-35300 |
UCK30,40,VCK30,40 |
1 | ||
| 47371B - CLAMP, BRAKE TUBE, NO.6 | ||||
| 90949-01B60 |
UCK30,40,VCK30,40 |
5 | ||
| 90949-01C06 |
UCK30,40,VCK30,40 |
5 | ||
| 47371C - CLAMP, BRAKE TUBE, NO.7 | ||||
| 90949-01B61 |
UCK30,40,VCK30,40 |
1 | ||
| 90949-01C33 |
UCK30,40,VCK30,40 |
1 | ||
| 47372 - CLAMP, BRAKE TUBE, NO.2 | ||||
| 47372-34040 |
UCK30,40,VCK30,40 |
1 | ||
| 47373B - CLAMP, BRAKE TUBE, NO.3 | ||||
| 47372-35150 |
UCK30,40,VCK30,40 |
2 | ||
| 47374B - CLAMP, BRAKE TUBE, NO.4 | ||||
| 47374-34010 |
UCK30,40,VCK30,40 |
1 | ||
| 47375 - CLAMP, BRAKE TUBE, NO.5 | ||||
| 47375-34010 |
UCK30,40,VCK30,40 |
1 | ||
| Common parts | ||||
| 90080-11180 | ||||
| 90080-11203 | ||||
| 90119-A0055 | ||||
| 90179-06306 | ||||
| 90461-08690 | ||||
| 90468-08035 | ||||
| 90949-01B59 | ||||
| 90949-01C32 | ||||
| 91611-F0814 | ||||
| 96221-34905 | ||||

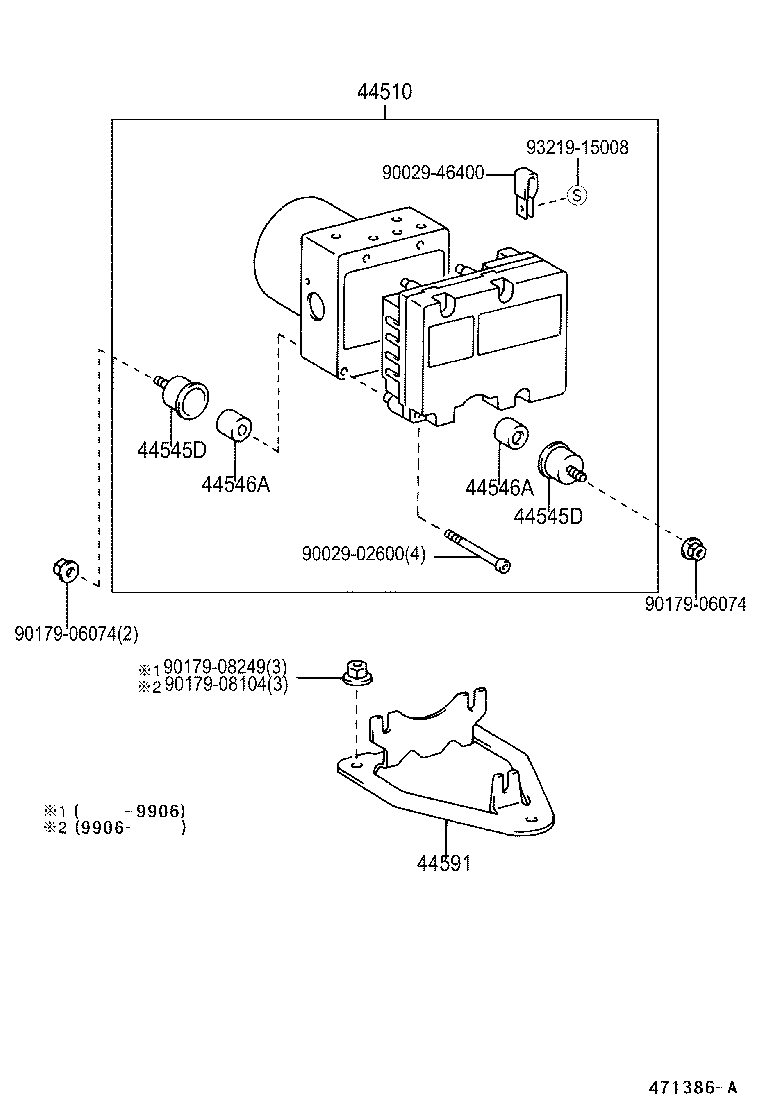

ILLUST NO. 2 OF 3(9902-0008)
W(ABS)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44510 - ACTUATOR ASSY, BRAKE | ||||
| 44050-0C040 |
UCK30,40,VCK30,40 |
1 | ||
| 44050-34040 |
UCK40,VCK40 |
1 | ||
| 44050-0C030 |
UCK30,40,VCK30,40 |
1 | ||
| 44545D - HOLDER, BRAKE ACTUATOR BOLT | ||||
| 44545-35080 |
UCK30,40,VCK30,40 |
1 | ||
| 44545D - HOLDER, BRAKE ACTUATOR BOLT | ||||
| 44545-35080 |
UCK30,40,VCK30,40 |
1 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44546-0C010 |
UCK30,40,VCK30,40 |
3 | ||
| 44546-35090 |
UCK30,40,VCK30,40 |
3 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44546-0C010 |
UCK30,40,VCK30,40 |
3 | ||
| 44546-35090 |
UCK30,40,VCK30,40 |
3 | ||
| 44591 - BRACKET, BRAKE ACTUATOR, NO.1 | ||||
| 44591-34060 |
UCK30,40,VCK30,40 |
1 | ||
| Common parts | ||||
| 90029-02600 | ||||
| 90029-46400 | ||||
| 90179-06074 | ||||
| 90179-08104 | ||||
| 90179-08249 | ||||
| 93219-15008 | ||||
ILLUST NO. 3 OF 3(9902-0408) ; (0408- )
W(LSPV)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04477 - BUSH & BOOT KIT, LOAD SENSING SPRING | ||||
| 04477-60010 |
UCK30,40,VCK30,40 |
1 | ||
| 31478D - CAP, BLEEDER PLUG(FOR LSPV) | ||||
| 31478-30010 |
UCK30,40,VCK30,40 |
1 | ||
| 47910 - VALVE ASSY, LOAD SENSING PROPORTIONING | ||||
| 47910-34070 |
UCK30,40,VCK30,40 W(ABS) |
1 | ||
| 47910-34060 |
UCK30,40,VCK30,40 |
1 | ||
| 47910B - PLUG, BLEEDER | ||||
| 47547-27030 |
UCK30,40,VCK30,40 |
1 | ||
| 47920 - SPRING ASSY, LOAD SENSING | ||||
| 47920-34040 |
UCK30,40,VCK30,40 |
1 | ||
| 47920A - COLLAR(FOR LOAD SENSING SPRING) | ||||
| 90387-08099 |
UCK30,40,VCK30,40 |
2 | ||
| 47920A - COLLAR(FOR LOAD SENSING SPRING) | ||||
| 90387-08099 |
UCK30,40,VCK30,40 |
2 | ||
| 47920B - CLIP(FOR LOAD SENSING VALVE BOOT) | ||||
| 90467-31110 |
UCK30,40,VCK30,40 |
1 | ||
| 47920C - WASHER(FOR LOAD SENSING SPRING) | ||||
| 90202-10103 |
UCK30,40,VCK30,40 |
2 | ||
| 47920C - WASHER(FOR LOAD SENSING SPRING) | ||||
| 90202-10103 |
UCK30,40,VCK30,40 |
2 | ||
| 47924 - BUSH, LOAD SENSING VALVE | ||||
| 47924-35010 |
UCK30,40,VCK30,40 |
2 | ||
| 47924 - BUSH, LOAD SENSING VALVE | ||||
| 47924-35010 |
UCK30,40,VCK30,40 |
2 | ||
| 47926 - SPACER, LOAD SENSING VALVE | ||||
| 47926-35010 |
UCK30,40,VCK30,40 |
1 | ||
| 47931 - BRACKET, LOAD SENSING VALVE | ||||
| 47931-34020 |
UCK30,40,VCK30,40 |
1 | ||
| 47933 - BRACKET, LOAD SENSING SHACKLE, NO.1 | ||||
| 47933-34011 |
UCK30,40,VCK30,40 |
1 | ||
| 47935 - SHACKLE, LOAD SENSING SPRING, NO.1 | ||||
| 47935-35030 |
UCK30,40,VCK30,40 |
1 | ||
| 47935A - COLLAR(FOR LOAD SENSING SPRING SHACKLE) | ||||
| 90387-08099 |
UCK30,40,VCK30,40 |
1 | ||
| 47935C - RETAINER(FOR LOAD SENSING SPRING SHACKLE) | ||||
| 90201-08062 |
UCK30,40,VCK30,40 |
1 | ||
| 47936 - SHACKLE, LOAD SENSING SPRING, NO.2 | ||||
| 47936-35050 |
UCK30,40,VCK30,40 |
1 | ||
| 47937 - PLATE, LOAD SENSING VALVE SET | ||||
| 47937-35030 |
UCK30,40,VCK30,40 |
1 | ||
| Common parts | ||||
| 90080-11180 | ||||
| 90170-08016 | ||||
| 90201-23360 | ||||
| 91131-50840 | ||||
| 94130-00802 | ||||
| 94512-00800 | ||||
| 94612-10800 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
