VCK40L-TRSSKA (1999)

Toyota Tundra

Production Feb 1999 - Aug 2002
Engine 5VZFE
Transmission 4HC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9902-0208)

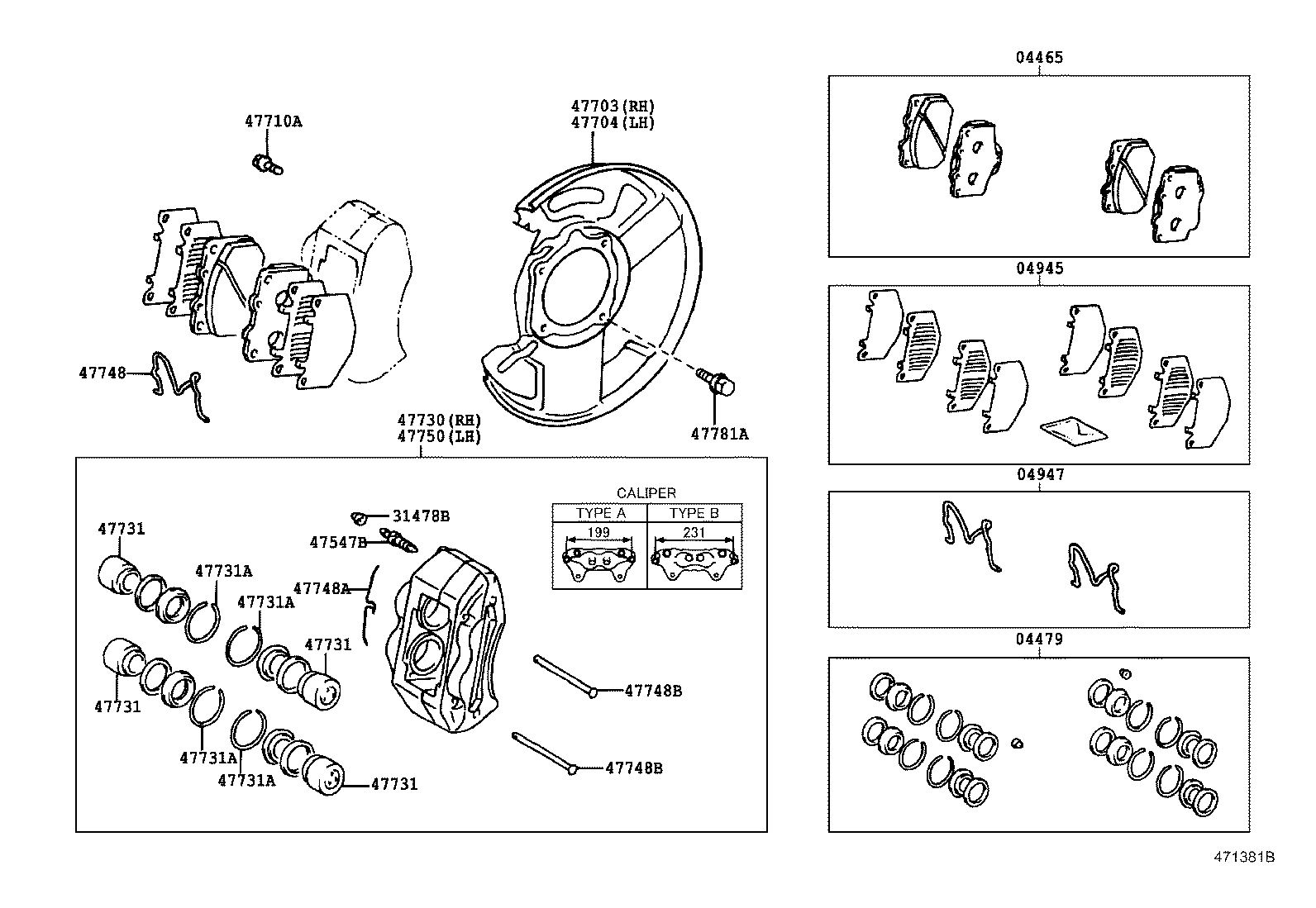

Click highlighted areas on diagram

diagram 04465 04479 04945 04947 31478B 47547B 47703 47704 47710A 47730 47731 47731 47731 47731 47731A 47731A 47731A 47731A 47748 47748A 47748B 47748B 47750 47781A
Part # Description Qty Price
04465 - PAD KIT, DISC BRAKE, FRONT
04465-0C012

UCK30,40,VCK30,40

SUMITOMO PS534,CALIPER=TYPE A:REFER TO ILLUSTRATION

 1
04465-0C011

UCK30,40,VCK30,40

CALIPER=TYPE A:REFER TO ILLUSTRATION

 1
04465-35290

UCK30,40,VCK30,40

MARK SUMITOMO PS558H

 1
04479 - CYLINDER KIT, DISC BRAKE, FRONT
04479-0C020

UCK30,40,VCK30,40

CALIPER=TYPE B:REFER TO ILLUSTRATION

 1
04479-0C010

UCK30,40,VCK30,40

CALIPER=TYPE A:REFER TO ILLUSTRATION

 1
04479-0C020

UCK30,40,VCK30,40

CALIPER=TYPE A:REFER TO ILLUSTRATION

 1
04945 - SHIM KIT, ANTI SQUEAL, FRONT
04945-04010

UCK30,40,VCK30,40

CALIPER=TYPE A:REFER TO ILLUSTRATION

 1
04945-35080

UCK30,40,VCK30,40

CALIPER=TYPE B:REFER TO ILLUSTRATION

 1
04947 - FITTING KIT, DISC BRAKE, FRONT
04947-0C010

UCK30,40,VCK30,40

CALIPER=TYPE B:REFER TO ILLUSTRATION

 1
04947-35050

UCK30,40,VCK30,40

CALIPER=TYPE A:REFER TO ILLUSTRATION

 1
31478B - CAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)
31478-30010

UCK30,40,VCK30,40

 2
47547B - PLUG, BLEEDER(FOR FRONT DISC BRAKE)
90080-93012

UCK30,40,VCK30,40

 2
47703 - COVER SUB-ASSY, DISC BRAKE DUST, FRONT RH
47703-0C011

UCK30,40,VCK30,40

CALIPER=TYPE A:REFER TO ILLUSTRATION

 1
47703-34030

UCK30,40,VCK30,40

CALIPER=TYPE B:REFER TO ILLUSTRATION

 1
47703-0C010

UCK30,40,VCK30,40

CALIPER=TYPE A:REFER TO ILLUSTRATION

 1
47704 - COVER SUB-ASSY, DISC BRAKE DUST, FRONT LH
47704-0C010

UCK30,40,VCK30,40

CALIPER=TYPE A:REFER TO ILLUSTRATION

 1
47704-0C011

UCK30,40,VCK30,40

CALIPER=TYPE A:REFER TO ILLUSTRATION

 1
47704-34030

UCK30,40,VCK30,40

CALIPER=TYPE B:REFER TO ILLUSTRATION

 1
47710A - BOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)
90080-10129

UCK30,40,VCK30,40

*12-1.25PX35-27,CALIPER=TYPE A:REFER TO ILLUSTRATION

 4
90105-12228

UCK30,40,VCK30,40

*12-1.25PX32-24,CALIPER=TYPE B:REFER TO ILLUSTRATION

 4
47730 - CYLINDER ASSY, FRONT DISC BRAKE, RH
47730-34040

UCK30,40,VCK30,40

CALIPER=TYPE B:REFER TO ILLUSTRATION

 1
47730-0C011

UCK30,40,VCK30,40

CALIPER=TYPE A:REFER TO ILLUSTRATION

 1
47730-0C010

UCK30,40,VCK30,40

CALIPER=TYPE A:REFER TO ILLUSTRATION

 1
47731 - PISTON, FRONT DISC BRAKE
47731-0C010

UCK30,40,VCK30,40

 8
47731-35040

UCK30,40,VCK30,40

 8
47731-0C020

UCK30,40,VCK30,40

 8
47731 - PISTON, FRONT DISC BRAKE
47731-0C010

UCK30,40,VCK30,40

 8
47731-35040

UCK30,40,VCK30,40

 8
47731-0C020

UCK30,40,VCK30,40

 8
47731 - PISTON, FRONT DISC BRAKE
47731-0C010

UCK30,40,VCK30,40

 8
47731-35040

UCK30,40,VCK30,40

 8
47731-0C020

UCK30,40,VCK30,40

 8
47731 - PISTON, FRONT DISC BRAKE
47731-0C010

UCK30,40,VCK30,40

 8
47731-35040

UCK30,40,VCK30,40

 8
47731-0C020

UCK30,40,VCK30,40

 8
47731A - RING, SET(FOR FRONT DISC BRAKE PISTON)
90080-52102

UCK30,40,VCK30,40

 8
47731A - RING, SET(FOR FRONT DISC BRAKE PISTON)
90080-52102

UCK30,40,VCK30,40

 8
47731A - RING, SET(FOR FRONT DISC BRAKE PISTON)
90080-52102

UCK30,40,VCK30,40

 8
47731A - RING, SET(FOR FRONT DISC BRAKE PISTON)
90080-52102

UCK30,40,VCK30,40

 8
47748 - SPRING, ANTI-RATTLE, NO.1(FOR FRONT DISC BRAKE)
47748-0C010

UCK30,40,VCK30,40

CALIPER=TYPE A:REFER TO ILLUSTRATION

 2
47748-35010

UCK30,40,VCK30,40

CALIPER=TYPE B:REFER TO ILLUSTRATION

 2
47748A - CLIP(FOR FRONT DISC BRAKE ANTI-RATTLE)
90080-46209

UCK30,40,VCK30,40

 2
47748B - PIN, W/HOLE(FOR FRONT DISC BRAKE ANTI-RATTLE)
90080-24077

UCK30,40,VCK30,40

 4
47748B - PIN, W/HOLE(FOR FRONT DISC BRAKE ANTI-RATTLE)
90080-24077

UCK30,40,VCK30,40

 4
47750 - CYLINDER ASSY, DISC BRAKE, LH
47750-0C011

UCK30,40,VCK30,40

CALIPER=TYPE A:REFER TO ILLUSTRATION

 1
47750-34040

UCK30,40,VCK30,40

CALIPER=TYPE B:REFER TO ILLUSTRATION

 1
47750-0C010

UCK30,40,VCK30,40

CALIPER=TYPE A:REFER TO ILLUSTRATION

 1
47781A - BOLT(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING)
90080-11370

UCK30,40,VCK30,40

 8
