VCK40L-TRSSKA (1999)
Toyota Tundra
Production
Feb 1999
-
Aug 2002
Engine
5VZFE
Transmission
4HC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(9902- )ATM

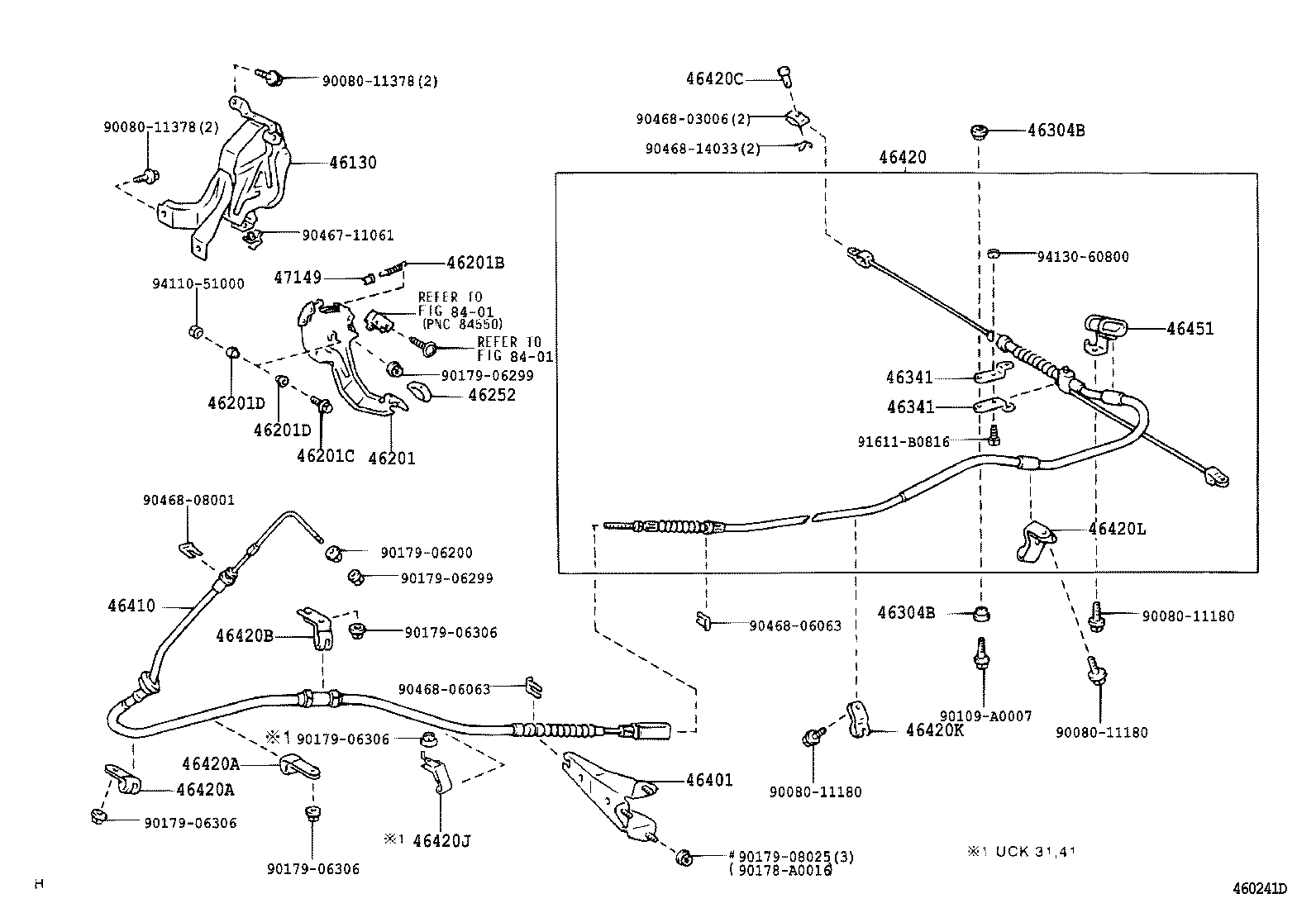

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 46130 - BRACKET ASSY, PARKING BRAKE PEDAL | ||||
| 46130-34010 |
UCK30,40,VCK30,40..4HC |
1 | ||
| 46201 - PEDAL SUB-ASSY, PARKING BRAKE | ||||
| 46210-34010 |
UCK30,40,VCK30,40..4HC |
1 | ||
| 46201B - SPRING, TENSION | ||||
| 90506-19005 |
UCK30,40,VCK30,40..4HC |
1 | ||
| 46201C - SHAFT, PEDAL | ||||
| 90109-10033 |
UCK30,40,VCK30,40..4HC |
1 | ||
| 46201D - BUSH(FOR PARKING BRAKE PEDAL) | ||||
| 90386-16022 |
UCK30,40,VCK30,40..4HC |
2 | ||
| 46201D - BUSH(FOR PARKING BRAKE PEDAL) | ||||
| 90386-16022 |
UCK30,40,VCK30,40..4HC |
2 | ||
| 46252 - PAD, PARKING PEDAL | ||||
| 46252-33010 |
UCK30,40,VCK30,40..4HC |
1 | ||
| 46304B - BUSH(FOR PARKING BRAKE EQUALIZER) | ||||
| 90385-12012 |
UCK30,40,VCK30,40 |
2 | ||
| 46304B - BUSH(FOR PARKING BRAKE EQUALIZER) | ||||
| 90385-12012 |
UCK30,40,VCK30,40 |
2 | ||
| 46341 - EQUALIZER, PARKING BRAKE | ||||
| 46341-35030 |
UCK30,40,VCK30,40 |
2 | ||
| 46341 - EQUALIZER, PARKING BRAKE | ||||
| 46341-35030 |
UCK30,40,VCK30,40 |
2 | ||
| 46401 - BRACKET SUB-ASSY, CABLE SUPPORT | ||||
| 46401-34010 |
UCK30,40,VCK30,40 |
1 | ||
| 46410 - CABLE ASSY, PARKING BRAKE, NO.1 | ||||
| 46410-34110 |
UCK30,40,VCK30,40..4HC |
1 | ||
| 46410-34090 |
UCK30,40 |
1 | ||
| 46410-34080 |
VCK30,40..4HC |
1 | ||
| 46420 - CABLE ASSY, PARKING BRAKE, NO.2 | ||||
| 46420-0C020 |
UCK30,40,VCK30,40..4HC |
1 | ||
| 46420A - CLAMP, NO.1(FOR PARKING BRAKE CABLE) | ||||
| 46411-34020 |
UCK30,40,VCK30,40..4HC |
2 | ||
| 46420A - CLAMP, NO.1(FOR PARKING BRAKE CABLE) | ||||
| 46411-34020 |
UCK30,40,VCK30,40..4HC |
2 | ||
| 46420B - CLAMP, NO.2(FOR PARKING BRAKE CABLE) | ||||
| 46411-34030 |
UCK30,40,VCK30,40 |
1 | ||
| 46420C - PIN, W/HOLE(FOR PARKING BRAKE CABLE) | ||||
| 90240-08059 |
UCK30,40,VCK30,40 |
2 | ||
| 46420K - CLAMP, NO.4(FOR PARKING BRAKE CABLE) | ||||
| 90949-01964 |
UCK30,40,VCK30,40 |
1 | ||
| 46420L - CLAMP, NO.5(FOR PARKING BRAKE CABLE) | ||||
| 46421-34010 |
UCK30,40,VCK30,40 |
1 | ||
| 46451 - BRACKET, CABLE SUPPORT | ||||
| 46451-34010 |
UCK30,40,VCK30,40 |
1 | ||
| 47149 - DAMPER, RETURN SPRING | ||||
| 47149-22010 |
UCK30,40,VCK30,40..4HC |
1 | ||
| Common parts | ||||
| 90080-11180 | ||||
| 90080-11378 | ||||
| 90109-A0007 | ||||
| 90178-A0016 | ||||
| 90179-06200 | ||||
| 90179-06299 | ||||
| 90179-06306 | ||||
| 90179-08025 | ||||
| 90467-11061 | ||||
| 90468-03006 | ||||
| 90468-06063 | ||||
| 90468-08001 | ||||
| 90468-14033 | ||||
| 91611-B0816 | ||||
| 94110-51000 | ||||
| 94130-60800 | ||||
| Linked diagrams | ||||
| 8401 | ||||
