VCK40L-TRSSKA (1999)
Toyota Tundra
Production
Feb 1999
-
Aug 2002
Engine
5VZFE
Transmission
4HC ATM
Displacement
2500cc
Power
168 HP (125 kW)

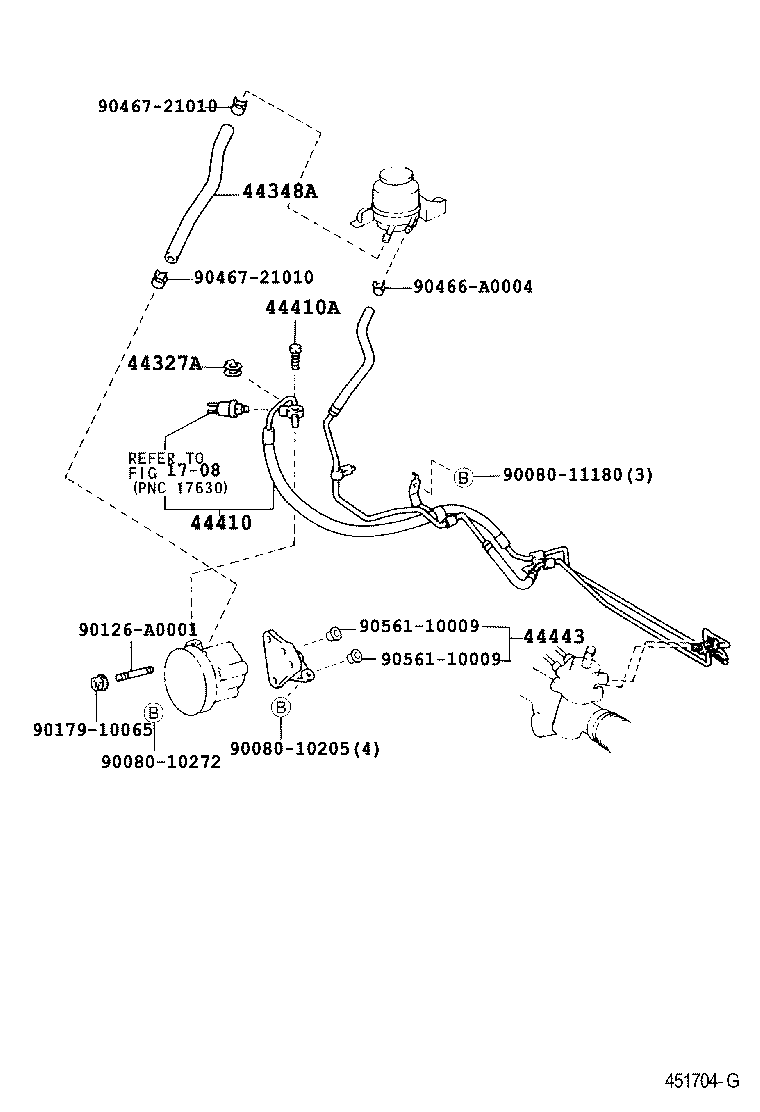

(9902- )UCK3#,4#
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44327A - GASKET, PRESSURE PORT, NO.1 | ||||
| 44327-26020 |
UCK30,40,VCK30,40 |
1 | ||
| 44327-30040 |
UCK30,40,VCK30,40 |
1 | ||
| 44348A - HOSE, OIL RESERVOIR TO PUMP, NO.1 | ||||
| 44348-0C010 |
UCK30,40 |
1 | ||
| 44410 - TUBE ASSY, PRESSURE FEED | ||||
| 44410-0C020 |
UCK30,40 |
1 | ||
| 44410-0C010 |
VCK30,40 |
1 | ||
| 44410A - BOLT, UNION(FOR PRESSURE FEED TUBE) | ||||
| 90401-16034 |
UCK30,40,VCK30,40 |
1 | ||
| 44443 - BRACKET, PUMP | ||||
| 44443-34030 |
VCK30,40 |
1 | ||
| 44443-60100 |
UCK30,40 |
1 | ||
| Common parts | ||||
| 90080-10205 | ||||
| 90080-10272 | ||||
| 90080-11180 | ||||
| 90126-A0001 | ||||
| 90179-10065 | ||||
| 90466-A0004 | ||||
| 90467-21010 | ||||
| 90561-10009 | ||||
| Linked diagrams | ||||
| 1708 | ||||

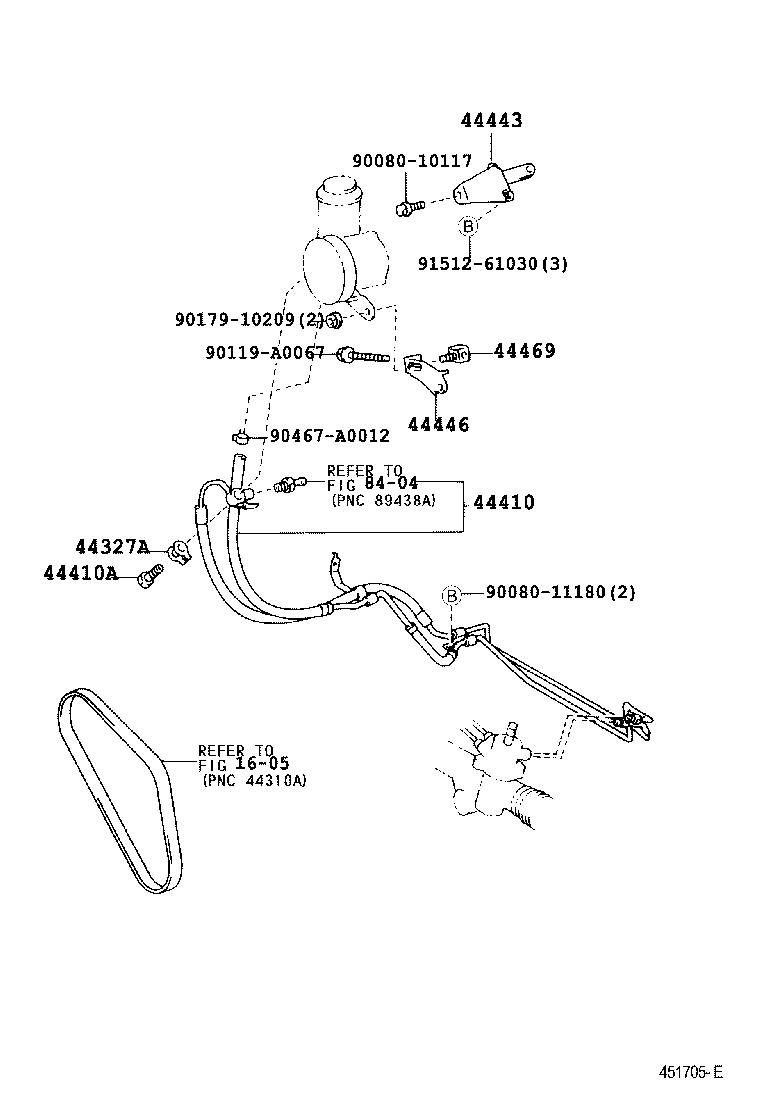

(9902- )VCK30,40
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44327A - GASKET, PRESSURE PORT, NO.1 | ||||
| 44327-26020 |
UCK30,40,VCK30,40 |
1 | ||
| 44327-30040 |
UCK30,40,VCK30,40 |
1 | ||
| 44410 - TUBE ASSY, PRESSURE FEED | ||||
| 44410-0C020 |
UCK30,40 |
1 | ||
| 44410-0C010 |
VCK30,40 |
1 | ||
| 44410A - BOLT, UNION(FOR PRESSURE FEED TUBE) | ||||
| 90401-16034 |
UCK30,40,VCK30,40 |
1 | ||
| 44443 - BRACKET, PUMP | ||||
| 44443-34030 |
VCK30,40 |
1 | ||
| 44443-60100 |
UCK30,40 |
1 | ||
| 44446 - STRUT, ADJUSTING | ||||
| 44446-35010 |
VCK30,40 |
1 | ||
| 44469 - SLIDER, POWER STEERING BELT ADJUSTING | ||||
| 44469-35010 |
VCK30,40 |
1 | ||
| Common parts | ||||
| 90080-10117 | ||||
| 90080-11180 | ||||
| 90119-A0067 | ||||
| 90179-10209 | ||||
| 90467-A0012 | ||||
| 91512-61030 | ||||
| Linked diagrams | ||||
| 1605 | ||||
| 8404 | ||||
