VCK40L-TRSSKA (1999)
Toyota Tundra

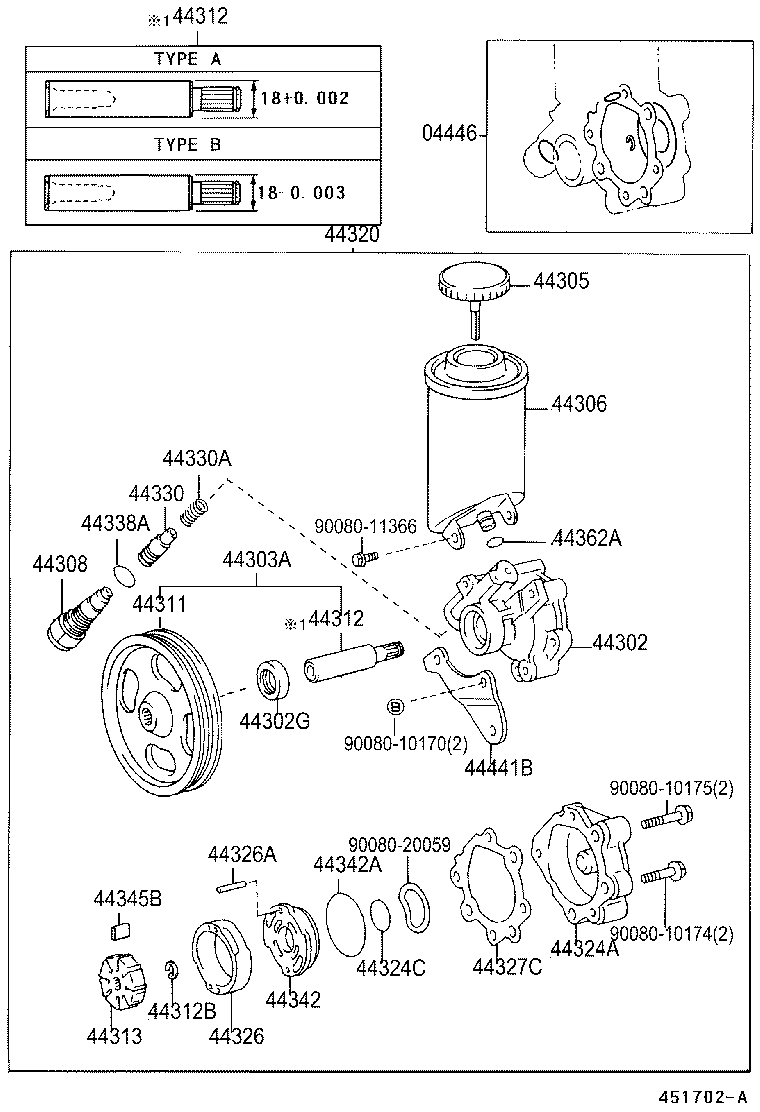

(9902-0408)UCK30,40
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04446 - GASKET KIT, POWER STEERING PUMP | ||||
| 04446-06030 |
UCK30,40,VCK30,40 |
1 | ||
| 44302 - HOUSING SUB-ASSY, VANE PUMP, FRONT | ||||
| 44302-04020 |
VCK30,40 |
1 | ||
| 44302-0C010 |
UCK30,40 |
1 | ||
| 44302G - SEAL, OIL, NO.2(FOR VANE PUMP HOUSING) | ||||
| 90080-31020 |
UCK30,40,VCK30,40 |
1 | ||
| 44303A - SHAFT SUB-ASSY, W/PULLEY | ||||
| 44303-0C010 |
VCK30,40 |
1 | ||
| 44303-0C030 |
UCK30,40 |
1 | ||
| 44305 - CAP SUB-ASSY, VANE PUMP OIL RESERVOIR | ||||
| 44305-28020 |
UCK30,40 |
1 | ||
| 44305-50010 |
VCK30,40 |
1 | ||
| 44308 - UNION SUB-ASSY, PRESSURE PORT | ||||
| 44308-0C010 |
UCK30,40,VCK30,40 |
1 | ||
| 44308-0C010 |
VCK30,40 |
1 | ||
| 44308-0C020 |
UCK30,40 |
1 | ||
| 44311 - PULLEY, VANE PUMP | ||||
| 44311-0C020 |
UCK30,40 |
1 | ||
| 44311-0C010 |
VCK30,40 |
1 | ||
| 44312 - SHAFT, VANE PUMP | ||||
| 44312-0C020 |
UCK30,40,VCK30,40 TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 44312-0C010 |
UCK30,40,VCK30,40 TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 44312 - SHAFT, VANE PUMP | ||||
| 44312-0C020 |
UCK30,40,VCK30,40 TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 44312-0C010 |
UCK30,40,VCK30,40 TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 44312B - RING, SNAP, NO.1(FOR VANE PUMP SHAFT) | ||||
| 90080-52033 |
UCK30,40,VCK30,40 |
1 | ||
| 44313 - ROTOR, VANE PUMP | ||||
| 44313-06020 |
UCK30,40,VCK30,40 MARK 1 |
1 | ||
| 44313-06050 |
UCK30,40,VCK30,40 MARK 4 |
1 | ||
| 44313-06030 |
UCK30,40,VCK30,40 MARK 2 |
1 | ||
| 44313-06040 |
UCK30,40,VCK30,40 MARK 3 |
1 | ||
| 44313-06010 |
UCK30,40,VCK30,40 NO MARK |
1 | ||
| 44320 - PUMP ASSY, VANE | ||||
| 44310-0C030 |
UCK30,40 |
1 | ||
| 44310-0C010 |
VCK30,40 |
1 | ||
| 44320-0C020 |
UCK30,40 |
1 | ||
| 44324A - HOUSING, PUMP, REAR | ||||
| 44324-04010 |
UCK30,40 |
1 | ||
| 44324-04020 |
VCK30,40 |
1 | ||
| 44324C - RING, O(FOR PUMP HOUSING REAR) | ||||
| 90080-30031 |
UCK30,40,VCK30,40 |
1 | ||
| 44326 - RING, CAM(FOR VANE PUMP) | ||||
| 44325-0C010 |
UCK30,40,VCK30,40 NO MARK |
1 | ||
| 44325-0C040 |
UCK30,40,VCK30,40 MARK 3 |
1 | ||
| 44325-0C020 |
UCK30,40,VCK30,40 MARK 1 |
1 | ||
| 44325-0C030 |
UCK30,40,VCK30,40 MARK 2 |
1 | ||
| 44325-0C050 |
UCK30,40,VCK30,40 MARK 4 |
1 | ||
| 44326A - PIN, STRAIGHT(FOR VANE PUMP CAM RING) | ||||
| 90080-25024 |
UCK30,40,VCK30,40 L=23.3,OD=4.0 |
2 | ||
| 44326A - PIN, STRAIGHT(FOR VANE PUMP CAM RING) | ||||
| 90080-25024 |
UCK30,40,VCK30,40 L=23.3,OD=4.0 |
2 | ||
| 44327C - GASKET, VANE PUMP HOUSING | ||||
| 44327-04010 |
UCK30,40,VCK30,40 |
1 | ||
| 44330 - VALVE ASSY, FLOW CONTROL | ||||
| 44330-06240 |
UCK30,40,VCK30,40 MARK F |
1 | ||
| 44330-06190 |
UCK30,40,VCK30,40 MARK A |
1 | ||
| 44330-06220 |
UCK30,40,VCK30,40 MARK D |
1 | ||
| 44330-06230 |
UCK30,40,VCK30,40 MARK E |
1 | ||
| 44330-06200 |
UCK30,40,VCK30,40 MARK B |
1 | ||
| 44330-06210 |
UCK30,40,VCK30,40 MARK C |
1 | ||
| 44330A - SPRING, COMPRESSION(FOR FLOW CONTROL VALVE) | ||||
| 90080-50221 |
UCK30,40,VCK30,40 |
1 | ||
| 44337 - UNION, POWER STEERING SUCTION PORT | ||||
| 44337-0C010 |
UCK30,40 |
1 | ||
| 44338A - RING, O(FOR PRESSURE PORT UNION) | ||||
| 90080-30035 |
UCK30,40,VCK30,40 |
1 | ||
| 44342 - PLATE, VANE PUMP SIDE, REAR | ||||
| 44342-0C010 |
UCK30,40,VCK30,40 |
1 | ||
| 44342A - RING, O(FOR VANE PUMP SIDE PLATE REAR) | ||||
| 90080-30032 |
UCK30,40,VCK30,40 |
1 | ||
| 44345B - PLATE, VANE PUMP | ||||
| 44345-04030 |
UCK30,40,VCK30,40 L=14.006 |
10 | ||
| 44345-04040 |
UCK30,40,VCK30,40 L=14.004 |
10 | ||
| 44345-04020 |
UCK30,40,VCK30,40 L=14.008 |
10 | ||
| 44345-04050 |
UCK30,40,VCK30,40 L=14.002 |
10 | ||
| 44345-04010 |
UCK30,40,VCK30,40 L=15.000 |
10 | ||
| 44360 - RESERVOIR ASSY, VANE PUMP OIL | ||||
| 44360-34010 |
UCK30,40 |
1 | ||
| 44362A - RING, O(FOR VANE PUMP OIL RESERVOIR) | ||||
| 90080-30034 |
UCK30,40,VCK30,40 |
1 | ||
| 44362C - CUSHION(FOR VANE PUMP OIL RESERVOIR) | ||||
| 44479-34010 |
UCK30,40 |
2 | ||
| 44362C - CUSHION(FOR VANE PUMP OIL RESERVOIR) | ||||
| 44479-34010 |
UCK30,40 |
2 | ||
| Common parts | ||||
| 90080-10173 | ||||
| 90080-10174 | ||||
| 90080-11115 | ||||
| 90080-20059 | ||||
| 90178-06006 | ||||
| 94130-60600 | ||||
| 94531-00600 | ||||
(9902-0408)VCK30,40
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04446 - GASKET KIT, POWER STEERING PUMP | ||||
| 04446-06030 |
UCK30,40,VCK30,40 |
1 | ||
| 44302 - HOUSING SUB-ASSY, VANE PUMP, FRONT | ||||
| 44302-04020 |
VCK30,40 |
1 | ||
| 44302-0C010 |
UCK30,40 |
1 | ||
| 44302G - SEAL, OIL, NO.2(FOR VANE PUMP HOUSING) | ||||
| 90080-31020 |
UCK30,40,VCK30,40 |
1 | ||
| 44303A - SHAFT SUB-ASSY, W/PULLEY | ||||
| 44303-0C010 |
VCK30,40 |
1 | ||
| 44303-0C030 |
UCK30,40 |
1 | ||
| 44305 - CAP SUB-ASSY, VANE PUMP OIL RESERVOIR | ||||
| 44305-28020 |
UCK30,40 |
1 | ||
| 44305-50010 |
VCK30,40 |
1 | ||
| 44306 - RESERVOIR SUB-ASSY, VANE PUMP OIL | ||||
| 44306-35240 |
VCK30,40 |
1 | ||
| 44308 - UNION SUB-ASSY, PRESSURE PORT | ||||
| 44308-0C010 |
UCK30,40,VCK30,40 |
1 | ||
| 44308-0C010 |
VCK30,40 |
1 | ||
| 44308-0C020 |
UCK30,40 |
1 | ||
| 44311 - PULLEY, VANE PUMP | ||||
| 44311-0C020 |
UCK30,40 |
1 | ||
| 44311-0C010 |
VCK30,40 |
1 | ||
| 44312 - SHAFT, VANE PUMP | ||||
| 44312-0C020 |
UCK30,40,VCK30,40 TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 44312-0C010 |
UCK30,40,VCK30,40 TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 44312 - SHAFT, VANE PUMP | ||||
| 44312-0C020 |
UCK30,40,VCK30,40 TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 44312-0C010 |
UCK30,40,VCK30,40 TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 44312B - RING, SNAP, NO.1(FOR VANE PUMP SHAFT) | ||||
| 90080-52033 |
UCK30,40,VCK30,40 |
1 | ||
| 44313 - ROTOR, VANE PUMP | ||||
| 44313-06020 |
UCK30,40,VCK30,40 MARK 1 |
1 | ||
| 44313-06050 |
UCK30,40,VCK30,40 MARK 4 |
1 | ||
| 44313-06030 |
UCK30,40,VCK30,40 MARK 2 |
1 | ||
| 44313-06040 |
UCK30,40,VCK30,40 MARK 3 |
1 | ||
| 44313-06010 |
UCK30,40,VCK30,40 NO MARK |
1 | ||
| 44320 - PUMP ASSY, VANE | ||||
| 44310-0C030 |
UCK30,40 |
1 | ||
| 44310-0C010 |
VCK30,40 |
1 | ||
| 44320-0C020 |
UCK30,40 |
1 | ||
| 44324A - HOUSING, PUMP, REAR | ||||
| 44324-04010 |
UCK30,40 |
1 | ||
| 44324-04020 |
VCK30,40 |
1 | ||
| 44324C - RING, O(FOR PUMP HOUSING REAR) | ||||
| 90080-30031 |
UCK30,40,VCK30,40 |
1 | ||
| 44326 - RING, CAM(FOR VANE PUMP) | ||||
| 44325-0C010 |
UCK30,40,VCK30,40 NO MARK |
1 | ||
| 44325-0C040 |
UCK30,40,VCK30,40 MARK 3 |
1 | ||
| 44325-0C020 |
UCK30,40,VCK30,40 MARK 1 |
1 | ||
| 44325-0C030 |
UCK30,40,VCK30,40 MARK 2 |
1 | ||
| 44325-0C050 |
UCK30,40,VCK30,40 MARK 4 |
1 | ||
| 44326A - PIN, STRAIGHT(FOR VANE PUMP CAM RING) | ||||
| 90080-25024 |
UCK30,40,VCK30,40 L=23.3,OD=4.0 |
2 | ||
| 44327C - GASKET, VANE PUMP HOUSING | ||||
| 44327-04010 |
UCK30,40,VCK30,40 |
1 | ||
| 44330 - VALVE ASSY, FLOW CONTROL | ||||
| 44330-06240 |
UCK30,40,VCK30,40 MARK F |
1 | ||
| 44330-06190 |
UCK30,40,VCK30,40 MARK A |
1 | ||
| 44330-06220 |
UCK30,40,VCK30,40 MARK D |
1 | ||
| 44330-06230 |
UCK30,40,VCK30,40 MARK E |
1 | ||
| 44330-06200 |
UCK30,40,VCK30,40 MARK B |
1 | ||
| 44330-06210 |
UCK30,40,VCK30,40 MARK C |
1 | ||
| 44330A - SPRING, COMPRESSION(FOR FLOW CONTROL VALVE) | ||||
| 90080-50221 |
UCK30,40,VCK30,40 |
1 | ||
| 44338A - RING, O(FOR PRESSURE PORT UNION) | ||||
| 90080-30035 |
UCK30,40,VCK30,40 |
1 | ||
| 44342 - PLATE, VANE PUMP SIDE, REAR | ||||
| 44342-0C010 |
UCK30,40,VCK30,40 |
1 | ||
| 44342A - RING, O(FOR VANE PUMP SIDE PLATE REAR) | ||||
| 90080-30032 |
UCK30,40,VCK30,40 |
1 | ||
| 44345B - PLATE, VANE PUMP | ||||
| 44345-04030 |
UCK30,40,VCK30,40 L=14.006 |
10 | ||
| 44345-04040 |
UCK30,40,VCK30,40 L=14.004 |
10 | ||
| 44345-04020 |
UCK30,40,VCK30,40 L=14.008 |
10 | ||
| 44345-04050 |
UCK30,40,VCK30,40 L=14.002 |
10 | ||
| 44345-04010 |
UCK30,40,VCK30,40 L=15.000 |
10 | ||
| 44362A - RING, O(FOR VANE PUMP OIL RESERVOIR) | ||||
| 90080-30034 |
UCK30,40,VCK30,40 |
1 | ||
| 44441B - BRACKET, PUMP, FRONT | ||||
| 44441-04010 |
VCK30,40 |
1 | ||
| Common parts | ||||
| 90080-10170 | ||||
| 90080-10174 | ||||
| 90080-10175 | ||||
| 90080-11366 | ||||
| 90080-20059 | ||||
