VCK40L-TRSSKA (1999)
Toyota Tundra

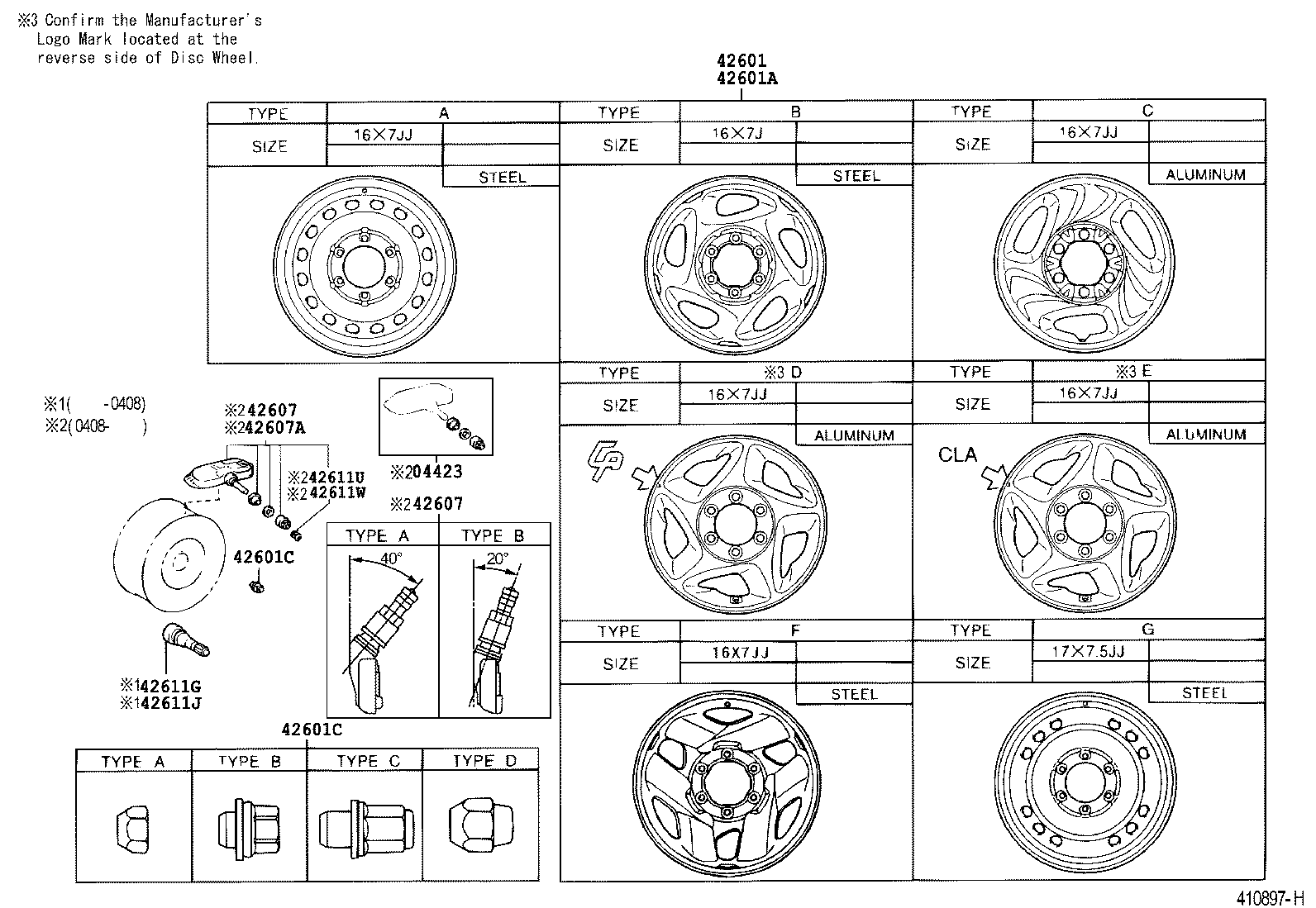

ILLUST NO. 1 OF 5(9902- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 42601 - WHEEL, DISC | ||||
| 42601-04200 |
UCK30,40,VCK30,40..SR5 16X7JJ,TYPE F:REFER TO ILLUSTRATION |
4 | ||
| 42611-0C020 |
UCK30,40,VCK30,40..LIMD,SR5 16X7JJ,OFFSET 15,TYPE D:REFER TO ILLUSTRATION |
4 | ||
| 42611-0C030 |
UCK30,40,VCK30,40..LIMD,SR5 16X7JJ,OFFSET 15,TYPE E:REFER TO ILLUSTRATION |
4 | ||
| 42601-0C020 |
VCK30..SR5;UCK30,40,VCK40..DLX,SR5 16X7J,OFFSET 15,TYPE B:REFER TO ILLUSTRATION |
4 | ||
| 42611-0C010 |
UCK30,40,VCK30,40..SR5 16X7JJ,OFFSET 15,TYPE C:REFER TO ILLUSTRATION |
4 | ||
| 42601A - WHEEL, DISC (FOR SPARE) | ||||
| 42601-0C010 |
UCK30,40,VCK30,40 16X7JJ,OFFSET 15,TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 42601C - NUT, HUB (FOR AXLE) | ||||
| 90942-01051 |
UCK30,40,VCK30,40..DLX,SR5 TYPE A:REFER TO ILLUSTRATION |
24 | ||
| 90942-01106 |
UCK30,40,VCK30,40..SR5 TYPE B:REFER TO ILLUSTRATION |
24 | ||
| 90942-01095 |
UCK30,40,VCK30,40..LIMD,SR5 TYPE C:REFER TO ILLUSTRATION |
24 | ||
| 90942-01104 |
UCK30,40,VCK30,40..SR5 TYPE D:REFER TO ILLUSTRATION |
24 | ||
| 42601C - NUT, HUB (FOR AXLE) | ||||
| 90942-01051 |
UCK30,40,VCK30,40..DLX,SR5 TYPE A:REFER TO ILLUSTRATION |
24 | ||
| 90942-01106 |
UCK30,40,VCK30,40..SR5 TYPE B:REFER TO ILLUSTRATION |
24 | ||
| 90942-01095 |
UCK30,40,VCK30,40..LIMD,SR5 TYPE C:REFER TO ILLUSTRATION |
24 | ||
| 90942-01104 |
UCK30,40,VCK30,40..SR5 TYPE D:REFER TO ILLUSTRATION |
24 | ||
| 42611G - VALVE (FOR TUBELESS TIRE) | ||||
| 90080-45006 |
UCK30,40,VCK30,40 |
4 | ||
| 42611J - VALVE (FOR TUBELESS TIRE SPARE) | ||||
| 90080-45006 |
UCK30,40,VCK30,40 |
1 | ||

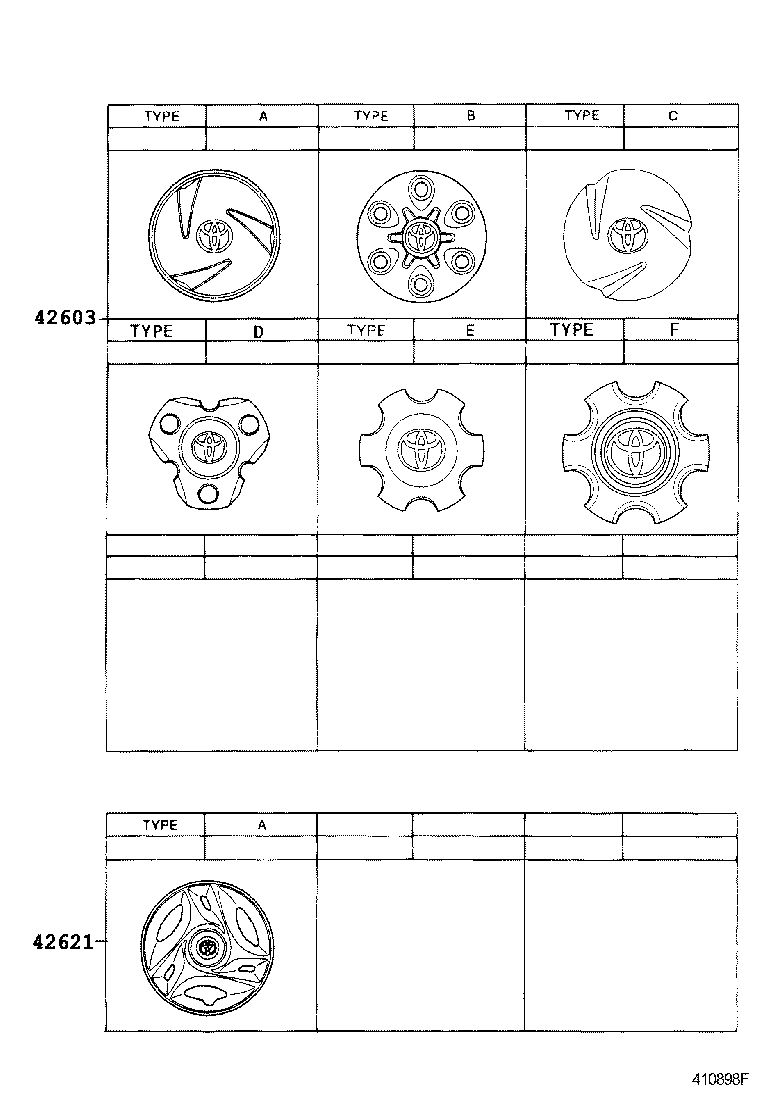

ILLUST NO. 3 OF 5(9902- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 42603 - ORNAMENT SUB-ASSY, WHEEL HUB | ||||
| 42603-04090 |
UCK30,40,VCK30,40..SR5 *CHR,TYPE D:REFER TO ILLUSTRATION |
4 | ||
| 42603-0C030 |
UCK30,40,VCK30,40..LIMD,SR5 *ALU,TYPE B:REFER TO ILLUSTRATION |
4 | ||
| 42603-0C040 |
VCK30..CND;VCK30..SR5;UCK30,40,VCK40..DLX,SR5 *STE,TYPE C:REFER TO ILLUSTRATION |
4 | ||
| 42603-0C010 |
UCK30,40,VCK30,40..SR5 *ALU,TYPE A:REFER TO ILLUSTRATION |
4 | ||
| 42603-0C010 |
VCK30..SR5;UCK30,40,VCK40..DLX,SR5 *ALU,TYPE A:REFER TO ILLUSTRATION |
4 | ||

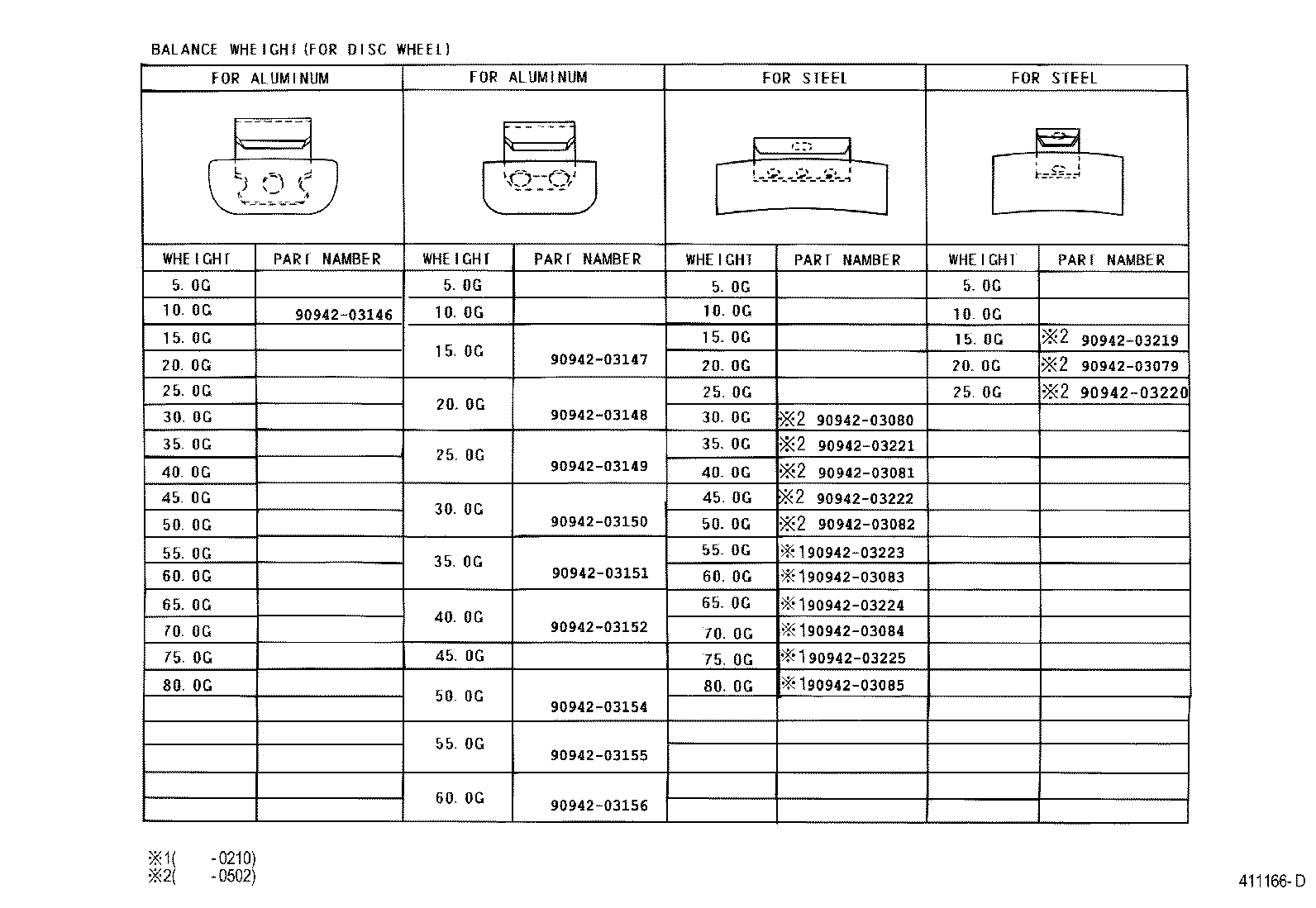

ILLUST NO. 4 OF 5(9902- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90942-03079 | ||||
| 90942-03080 | ||||
| 90942-03081 | ||||
| 90942-03082 | ||||
| 90942-03083 | ||||
| 90942-03084 | ||||
| 90942-03085 | ||||
| 90942-03146 | ||||
| 90942-03147 | ||||
| 90942-03148 | ||||
| 90942-03149 | ||||
| 90942-03150 | ||||
| 90942-03151 | ||||
| 90942-03152 | ||||
| 90942-03154 | ||||
| 90942-03155 | ||||
| 90942-03156 | ||||
| 90942-03219 | ||||
| 90942-03220 | ||||
| 90942-03221 | ||||
| 90942-03222 | ||||
| 90942-03223 | ||||
| 90942-03224 | ||||
| 90942-03225 | ||||

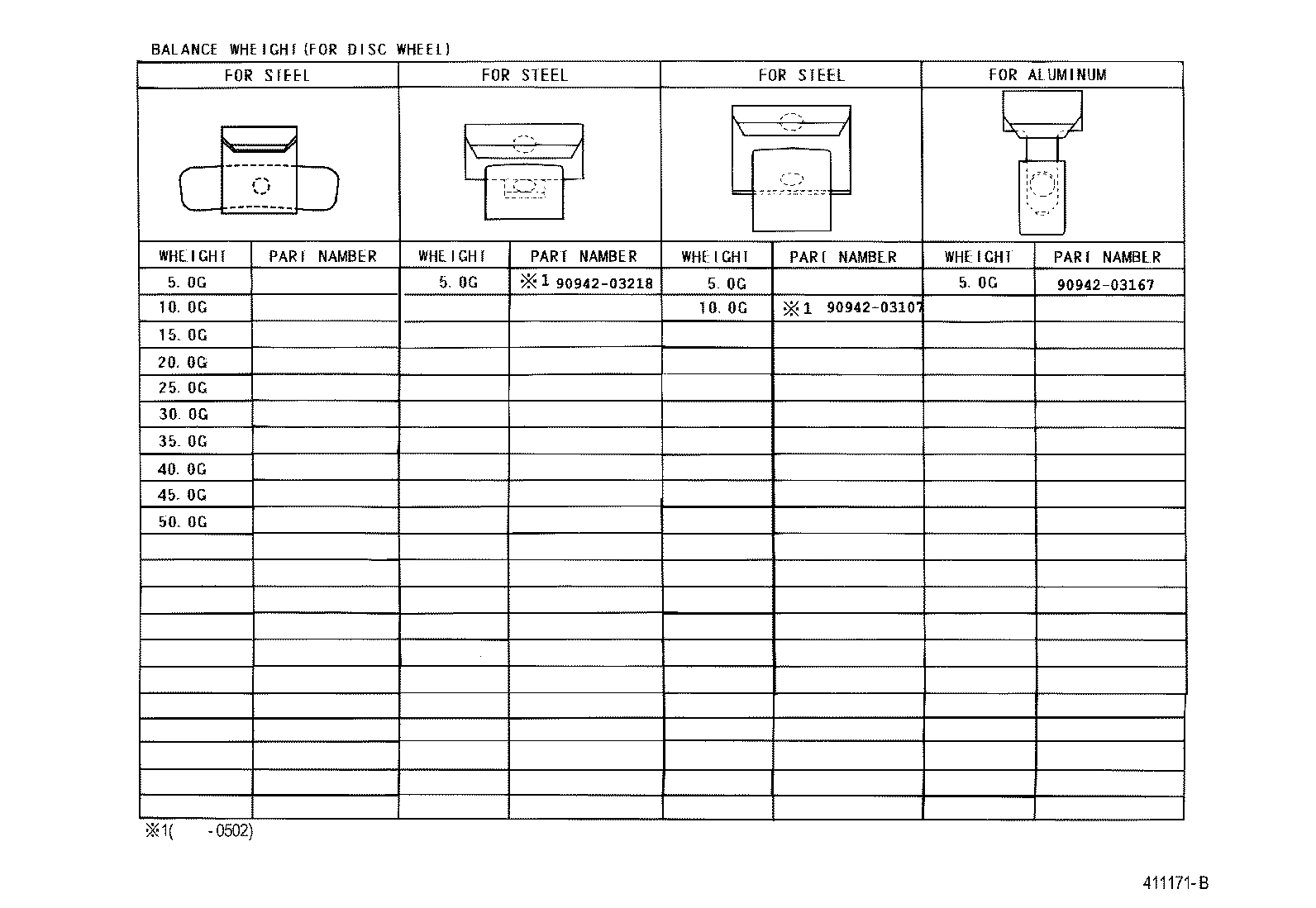

ILLUST NO. 5 OF 5(9902- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90942-03107 | ||||
| 90942-03167 | ||||
| 90942-03218 | ||||
