VCK40L-TRSSKA (1999)

Toyota Tundra

Production Feb 1999 - Aug 2002
Engine 5VZFE
Transmission 4HC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9902-0408)VCK30,40..4HC

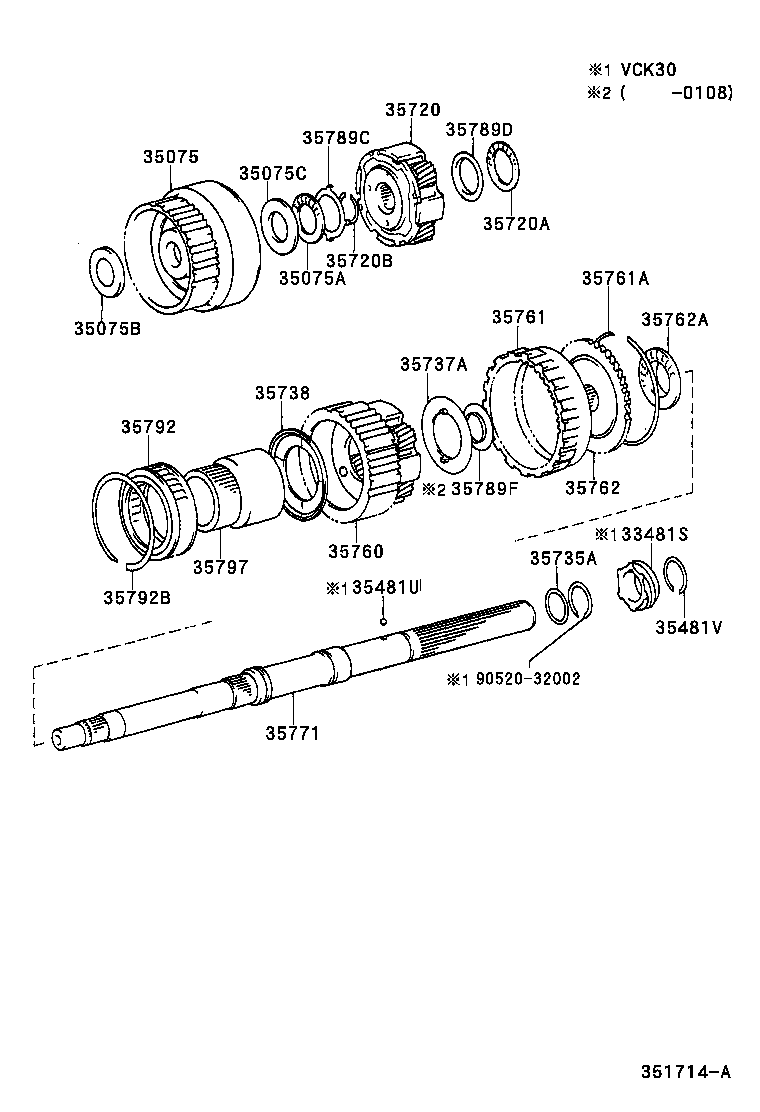

Click highlighted areas on diagram

A340E,A340F

diagram 33481S 35075 35075A 35075B 35075C 35481U 35481V 35720 35720A 35720B 35735A 35737A 35738 35760 35761 35761A 35762 35762A 35771 35789C 35789D 35789F 35792 35792B 35797 9052032002
Part # Description Qty Price
35075 - GEAR SUB-ASSY, FRONT PLANETARY RING
35075-50010

VCK30,40..4HC

 1
35075-60010

UCK30,40

 1
35075A - BEARING, THRUST NEEDLE ROLLER (FOR FRONT PLANETARY RING
90374-32004

VCK30,40..4HC

 1
90374-35004

VCK30,40..4HC

 1
90374-49004

UCK30,40

 1
35075B - RACE, THRUST BEARING (FOR FRONT PLANETARY RING GEAR FRO
35789-30120

VCK30,40..4HC

 1
35075C - RACE, THRUST BEARING (FOR FRONT PLANETARY RING GEAR RR)
35789-30080

VCK40..4HC

 1
35481V - RING OR SPACER (FOR ATM SPEEDMETER DRIVE GEAR)
90520-29004

VCK40..4HC

T=1.50,OD=34.8

 1
35720 - GEAR ASSY, FRONT PLANETARY
35720-30100

UCK30,40

 1
35720-30080

VCK30,40..4HC

 1
35720A - BEARING, THRUST NEEDLE ROLLER (FOR FRONT PLANETARY GEAR
90374-35001

VCK30,40..4HC

 1
90374-35005

UCK30,40

 1
35720B - RING, SHAFT SNAP (FOR FRONT PLANETARY GEAR)
90520-24026

UCK30,40,VCK30,40..4HC

 1
35735A - RING, PLANETARY OUTPUT SHAFT OIL SEAL
35735-30020

UCK30,40,VCK30,40..4HC

 1
35737A - WASHER, PLANETARY CARRIER THRUST, NO.1
35737-30030

VCK30,40..4HC

 1
35737-60020

UCK30,40

 1
35738 - WASHER, PLANETARY CARRIER THRUST, NO.2
35739-30030

VCK30,40..4HC

 1
35739-60010

UCK30,40

 1
35760 - GEAR ASSY, REAR PLANETARY
35705-30010

VCK30,40..4HC

 1
35705-60010

UCK30,40

 1
35761 - GEAR, REAR PLANETARY RING
35761-30020

UCK30,40,VCK30,40..4HC

 1
35761A - RING, HOLE SNAP (FOR REAR PLANETARY RING GEAR)
90521-99024

UCK30,40,VCK30,40..4HC

 1
35762 - FLANGE, REAR PLANETARY RING GEAR
35762-30040

UCK30,40,VCK30,40..4HC

 1
35762A - BEARING, THRUST NEEDLE ROLLER (FOR REAR PLANETARY FLANG
90374-38003

UCK30,40,VCK30,40..4HC

 1
90374-39001

UCK30,40,VCK30,40..4HC

 1
35771 - SHAFT, OUTPUT
35073-35030

VCK40..4HC

 1
35789C - RACE, THRUST BEARING (FOR FRONT PLANETARY GEAR FRONT)
35789-30130

VCK40..4HC

 1
35789-30210

UCK30,40

 1
35789D - RACE, THRUST BEARING (FOR FRONT PLANETARY GEAR REAR)
35789-30100

VCK30,40..4HC

 1
35789F - RACE, THRUST BEARING (FOR REAR PLANETARY FLANGE)
35789-30160

VCK30,40..4HC

 1
35792 - CLUTCH, 1 WAY, NO.2
35792-14020

UCK30,40,VCK30,40..4HC

 1
35792B - RING, HOLE SNAP (FOR 1 WAY CLUTCH NO.2)
90521-87001

UCK30,40,VCK30,40..4HC

 1
35797 - RACE, 1 WAY CLUTCH INNER
35797-50010

UCK30,40,VCK30,40..4HC

 1
Common parts
90520-32002

(9902-0408)UCK3#,4#

Click highlighted areas on diagram

A340E,A340F

diagram 33481S 35075 35075A 35720 35720A 35720B 35735A 35737A 35738 35760 35761 35761A 35762 35762A 35771 35789C 35789D 35792 35792B 35797
Part # Description Qty Price
35075 - GEAR SUB-ASSY, FRONT PLANETARY RING
35075-50010

VCK30,40..4HC

 1
35075-60010

UCK30,40

 1
35075A - BEARING, THRUST NEEDLE ROLLER (FOR FRONT PLANETARY RING
90374-32004

VCK30,40..4HC

 1
90374-35004

VCK30,40..4HC

 1
90374-49004

UCK30,40

 1
35720 - GEAR ASSY, FRONT PLANETARY
35720-30100

UCK30,40

 1
35720-30080

VCK30,40..4HC

 1
35720A - BEARING, THRUST NEEDLE ROLLER (FOR FRONT PLANETARY GEAR
90374-35001

VCK30,40..4HC

 1
90374-35005

UCK30,40

 1
35720B - RING, SHAFT SNAP (FOR FRONT PLANETARY GEAR)
90520-24026

UCK30,40,VCK30,40..4HC

 1
35735A - RING, PLANETARY OUTPUT SHAFT OIL SEAL
35735-30020

UCK30,40,VCK30,40..4HC

 1
35737A - WASHER, PLANETARY CARRIER THRUST, NO.1
35737-30030

VCK30,40..4HC

 1
35737-60020

UCK30,40

 1
35738 - WASHER, PLANETARY CARRIER THRUST, NO.2
35739-30030

VCK30,40..4HC

 1
35739-60010

UCK30,40

 1
35760 - GEAR ASSY, REAR PLANETARY
35705-30010

VCK30,40..4HC

 1
35705-60010

UCK30,40

 1
35761 - GEAR, REAR PLANETARY RING
35761-30020

UCK30,40,VCK30,40..4HC

 1
35761A - RING, HOLE SNAP (FOR REAR PLANETARY RING GEAR)
90521-99024

UCK30,40,VCK30,40..4HC

 1
35762 - FLANGE, REAR PLANETARY RING GEAR
35762-30040

UCK30,40,VCK30,40..4HC

 1
35762A - BEARING, THRUST NEEDLE ROLLER (FOR REAR PLANETARY FLANG
90374-38003

UCK30,40,VCK30,40..4HC

 1
90374-39001

UCK30,40,VCK30,40..4HC

 1
35771 - SHAFT, OUTPUT
35073-35030

VCK40..4HC

 1
35789C - RACE, THRUST BEARING (FOR FRONT PLANETARY GEAR FRONT)
35789-30130

VCK40..4HC

 1
35789-30210

UCK30,40

 1
35789D - RACE, THRUST BEARING (FOR FRONT PLANETARY GEAR REAR)
35789-30100

VCK30,40..4HC

 1
35792 - CLUTCH, 1 WAY, NO.2
35792-14020

UCK30,40,VCK30,40..4HC

 1
35792B - RING, HOLE SNAP (FOR 1 WAY CLUTCH NO.2)
90521-87001

UCK30,40,VCK30,40..4HC

 1
35797 - RACE, 1 WAY CLUTCH INNER
35797-50010

UCK30,40,VCK30,40..4HC

 1
