VCK40L-TRSSKA (1999)
Toyota Tundra
Production
Feb 1999
-
Aug 2002
Engine
5VZFE
Transmission
4HC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(9902-0408)VCK40..4HC

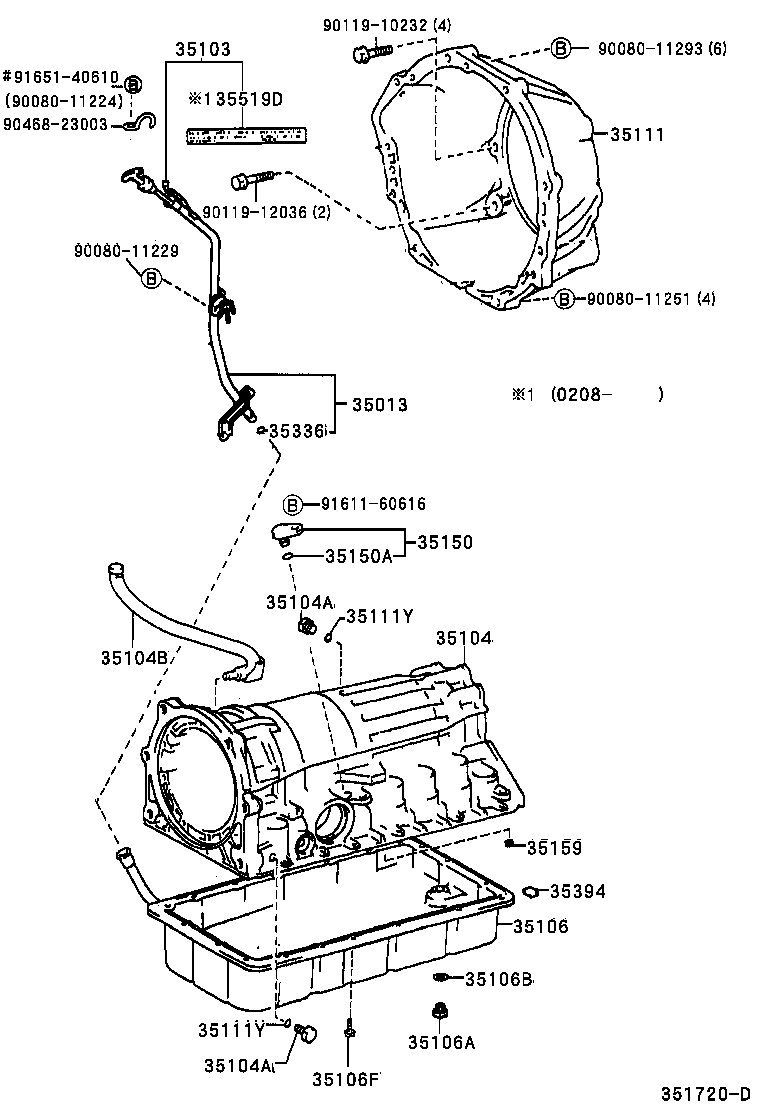

Click highlighted areas on diagram
A340F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35013 - TUBE SUB-ASSY, TRANSMISSION OIL FILLER | ||||
| 35013-35290 |
VCK30,40..4HC |
1 | ||
| 35013-34060 |
VCK30,40..4HC..USA CALIFORNIA SPEC |
1 | ||
| 35013-34070 |
UCK30,40 |
1 | ||
| 35103 - GAGE SUB-ASSY, TRANSMISSION OIL LEVEL | ||||
| 35103-34130 |
VCK30,40..4HC |
1 | ||
| 35103-34120 |
VCK30,40..4HC..USA CALIFORNIA SPEC |
1 | ||
| 35103-34090 |
UCK30,40 |
1 | ||
| 35104 - CASE SUB-ASSY, AUTOMATIC TRANSMISSION | ||||
| 35104-35011 |
VCK40..4HC |
1 | ||
| 35104A - PLUG, AUTOMATIC TRANSMISSION CASE | ||||
| 90341-08001 |
UCK30,40,VCK30,40..4HC |
2 | ||
| 35104A - PLUG, AUTOMATIC TRANSMISSION CASE | ||||
| 90341-08001 |
UCK30,40,VCK30,40..4HC |
2 | ||
| 35104B - PLUG, BREATHER, NO.1 (ATM) | ||||
| 90930-03116 |
VCK40..4HC |
1 | ||
| 35106 - PAN SUB-ASSY, AUTOMATIC TRANSMISSION OIL | ||||
| 35106-35100 |
VCK30,40..4HC |
1 | ||
| 35106-35110 |
VCK30,40..4HC..USA CALIFORNIA SPEC |
1 | ||
| 35106-34040 |
UCK30,40 |
1 | ||
| 35106A - PLUG SUB-ASSY, DRAIN (ATM) | ||||
| 90341-10006 |
UCK30,40,VCK30,40..4HC |
1 | ||
| 35106B - GASKET, DRAIN PLUG (ATM) | ||||
| 35178-30010 |
UCK30,40,VCK30,40..4HC |
1 | ||
| 35106F - BOLT (FOR AUTOMATIC TRANSMISSION OIL PAN) | ||||
| 90119-06513 |
UCK30,40,VCK30,40..4HC |
19 | ||
| 35111 - HOUSING, AUTOMATIC TRANSMISSION | ||||
| 35111-60100 |
UCK30,40 |
1 | ||
| 35111-35060 |
VCK30,40..4HC |
1 | ||
| 35111Y - RING, O (FOR AUTOMATIC TRANSMISSION CASE) | ||||
| 90301-06196 |
UCK30,40,VCK30,40..4HC |
2 | ||
| 35111Y - RING, O (FOR AUTOMATIC TRANSMISSION CASE) | ||||
| 90301-06196 |
UCK30,40,VCK30,40..4HC |
2 | ||
| 35150 - PLUG ASSY, TRANSMISSION CASE | ||||
| 35150-30010 |
UCK30,40 |
1 | ||
| 35150A - RING, O (FOR AUTOMATIC TRANSMISSION CASE PLUG) | ||||
| 90301-09012 |
UCK30,40 |
1 | ||
| 35159 - GASKET, BRAKE DRUM | ||||
| 35159-30010 |
UCK30,40,VCK30,40..4HC |
1 | ||
| 35336 - RING, O (FOR TRANSMISSION OIL FILLER TUBE) | ||||
| 90301-09011 |
UCK30,40,VCK30,40..4HC |
1 | ||
| 35394 - MAGNET, OIL CLEANER (FOR TRANSMISSION) | ||||
| 35394-30011 |
UCK40,VCK40..4HC |
4 | ||
| Common parts | ||||
| 90080-11224 | ||||
| 90080-11229 | ||||
| 90080-11251 | ||||
| 90080-11293 | ||||
| 90119-10232 | ||||
| 90119-12036 | ||||
| 90468-23003 | ||||
| 91611-60616 | ||||
| 91651-40610 | ||||
