VCK40L-TRSSKA (1999)

Toyota Tundra

Production Feb 1999 - Aug 2002
Engine 5VZFE
Transmission 4HC ATM
Displacement 2500cc
Power 168 HP (125 kW)

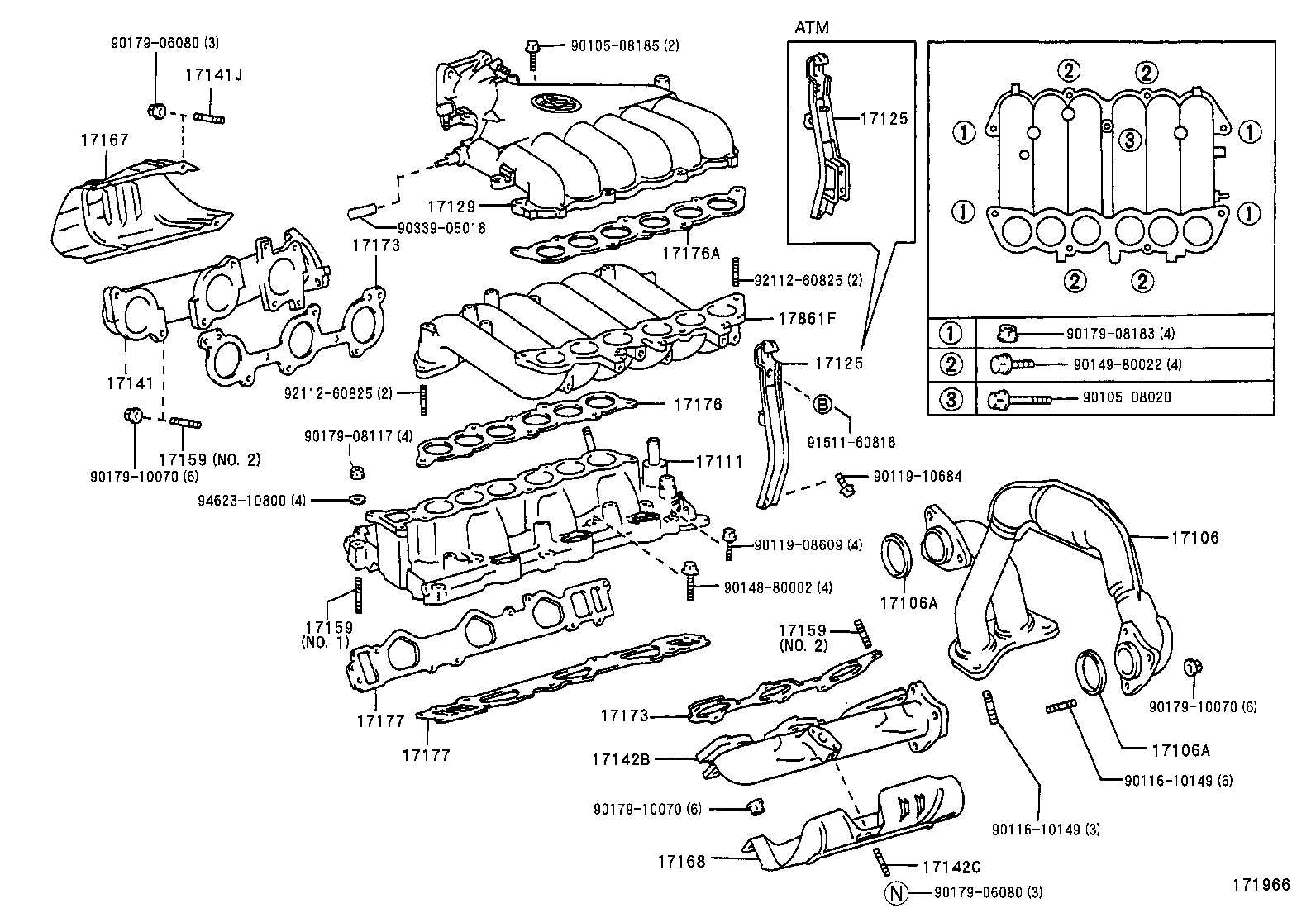

(9902-0008)5VZFE

Click highlighted areas on diagram

diagram 17106 17106A 17106A 17111 17125 17125 17129 17141 17141J 17142B 17142C 17159 17159 17159 17167 17168 17173 17173 17176 17176A 17177 17177 17861F 9010508020 9010508185 9011610149 9011610149 9011908609 9011910684 9014880002 9014980022 9017906080 9017906080 9017908117 9017908183 9017910070 9017910070 9017910070 9033905018 9151160816 9211260825 9211260825 9462310800
Part # Description Qty Price
17106 - PIPE SUB-ASSY, EXHAUST CROSSOVER
17106-62020

5VZFE..VCK30,40

 1
17106-62030

5VZFE..VCK30,40

 1
17106-62030

5VZFE..VCK30,40..USA

CALIFORNIA SPEC

 1
17106A - GASKET, EXHAUST PIPE
90917-06083

5VZFE..VCK30,40

 2
90917-06083

5VZFE..VCK30,40

 2
17106A - GASKET, EXHAUST PIPE
90917-06083

5VZFE..VCK30,40

 2
90917-06083

5VZFE..VCK30,40

 2
17111 - MANIFOLD, INTAKE
17101-62020

5VZFE..VCK30,40

 1
17125 - STAY, SURGE TANK, NO.1
17125-62060

5VZFE..VCK30,40..4HC

 1
17125 - STAY, SURGE TANK, NO.1
17125-62060

5VZFE..VCK30,40..4HC

 1
17129 - TANK, INTAKE AIR SURGE
17109-62090

5VZFE..VCK30,40

 1
17109-62080

5VZFE..VCK30,40

 1
17141 - MANIFOLD, EXHAUST
17141-62100

5VZFE..VCK30,40..USA

CALIFORNIA SPEC

 1
17141-62110

5VZFE..VCK30,40

 1
17141-62080

5VZFE..VCK30,40

 1
17141J - BOLT, STUD(FOR EXHAUST MANIFOLD, RH)
90116-06028

5VZFE..VCK30,40

 3
17142B - MANIFOLD, EXHAUST, LH
17142-62090

5VZFE..VCK30,40

 1
17142-62100

5VZFE..VCK30,40..USA

CALIFORNIA SPEC

 1
17142-62110

5VZFE..VCK30,40

 1
17142C - BOLT, STUD(FOR EXHAUST MANIFOLD, LH)
90116-06028

5VZFE..VCK30,40

 3
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
90116-08251

5VZFE..VCK30,40

NO.1

 4
90116-10150

5VZFE..VCK30,40

NO.2

 12
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
90116-08251

5VZFE..VCK30,40

NO.1

 4
90116-10150

5VZFE..VCK30,40

NO.2

 12
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
90116-08251

5VZFE..VCK30,40

NO.1

 4
90116-10150

5VZFE..VCK30,40

NO.2

 12
17167 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.1
17167-62051

5VZFE..VCK30,40

 1
17168 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.2
17168-62051

5VZFE..VCK30,40

 1
17173 - GASKET, EXHAUST MANIFOLD TO HEAD
17173-62050

5VZFE..VCK30,40

 2
17173-62060

5VZFE..VCK30,40..USA

CALIFORNIA SPEC

 2
17173-62060

5VZFE..VCK30,40

 2
17173 - GASKET, EXHAUST MANIFOLD TO HEAD
17173-62050

5VZFE..VCK30,40

 2
17173-62060

5VZFE..VCK30,40..USA

CALIFORNIA SPEC

 2
17173-62060

5VZFE..VCK30,40

 2
17176 - GASKET, AIR SURGE TANK TO INTAKE MANIFOLD
17176-62040

5VZFE..VCK30,40

 1
17176A - GASKET, AIR SURGE TANK TO INTAKE MANIFOLD, NO.2
17176-62040

5VZFE..VCK30,40

 1
17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1
17177-62060

5VZFE..VCK30,40

 2
17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1
17177-62060

5VZFE..VCK30,40

 2
17861F - CONNECTOR, INTAKE AIR
17861-62012

5VZFE..VCK30,40

 1
Common parts
90105-08020
90105-08185
90116-10149
90119-08609
90119-10684
90148-80002
90149-80022
90179-06080
90179-08117
90179-08183
90179-10070
90339-05018
91511-60816
92112-60825
94623-10800

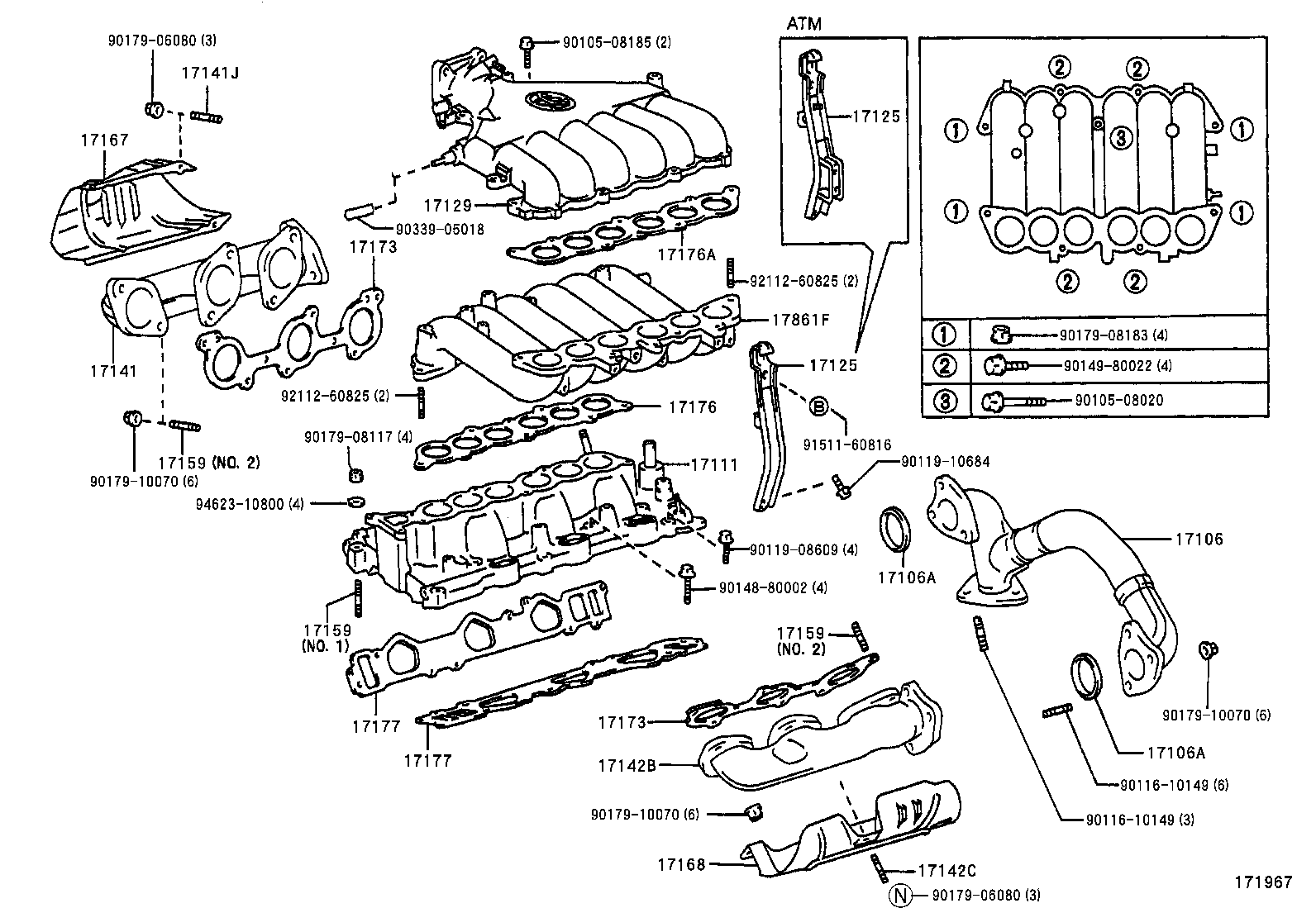

(9902-0008)5VZFE

Click highlighted areas on diagram

CALIFORNIA SPEC

diagram 17106 17106A 17106A 17111 17125 17125 17129 17141 17141J 17142B 17142C 17159 17159 17159 17167 17168 17173 17173 17176 17176A 17177 17177 17861F 9010508020 9010508185 9011610149 9011610149 9011908609 9011910684 9014880002 9014980022 9017906080 9017906080 9017908117 9017908183 9017910070 9017910070 9017910070 9033905018 9151160816 9211260825 9211260825 9462310800
Part # Description Qty Price
17106 - PIPE SUB-ASSY, EXHAUST CROSSOVER
17106-62020

5VZFE..VCK30,40

 1
17106-62030

5VZFE..VCK30,40

 1
17106-62030

5VZFE..VCK30,40..USA

CALIFORNIA SPEC

 1
17106A - GASKET, EXHAUST PIPE
90917-06083

5VZFE..VCK30,40

 2
90917-06083

5VZFE..VCK30,40

 2
17106A - GASKET, EXHAUST PIPE
90917-06083

5VZFE..VCK30,40

 2
90917-06083

5VZFE..VCK30,40

 2
17111 - MANIFOLD, INTAKE
17101-62020

5VZFE..VCK30,40

 1
17125 - STAY, SURGE TANK, NO.1
17125-62060

5VZFE..VCK30,40..4HC

 1
17125 - STAY, SURGE TANK, NO.1
17125-62060

5VZFE..VCK30,40..4HC

 1
17129 - TANK, INTAKE AIR SURGE
17109-62090

5VZFE..VCK30,40

 1
17109-62080

5VZFE..VCK30,40

 1
17141 - MANIFOLD, EXHAUST
17141-62100

5VZFE..VCK30,40..USA

CALIFORNIA SPEC

 1
17141-62110

5VZFE..VCK30,40

 1
17141-62080

5VZFE..VCK30,40

 1
17141J - BOLT, STUD(FOR EXHAUST MANIFOLD, RH)
90116-06028

5VZFE..VCK30,40

 3
17142B - MANIFOLD, EXHAUST, LH
17142-62090

5VZFE..VCK30,40

 1
17142-62100

5VZFE..VCK30,40..USA

CALIFORNIA SPEC

 1
17142-62110

5VZFE..VCK30,40

 1
17142C - BOLT, STUD(FOR EXHAUST MANIFOLD, LH)
90116-06028

5VZFE..VCK30,40

 3
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
90116-08251

5VZFE..VCK30,40

NO.1

 4
90116-10150

5VZFE..VCK30,40

NO.2

 12
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
90116-08251

5VZFE..VCK30,40

NO.1

 4
90116-10150

5VZFE..VCK30,40

NO.2

 12
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
90116-08251

5VZFE..VCK30,40

NO.1

 4
90116-10150

5VZFE..VCK30,40

NO.2

 12
17167 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.1
17167-62051

5VZFE..VCK30,40

 1
17168 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.2
17168-62051

5VZFE..VCK30,40

 1
17173 - GASKET, EXHAUST MANIFOLD TO HEAD
17173-62050

5VZFE..VCK30,40

 2
17173-62060

5VZFE..VCK30,40..USA

CALIFORNIA SPEC

 2
17173-62060

5VZFE..VCK30,40

 2
17173 - GASKET, EXHAUST MANIFOLD TO HEAD
17173-62050

5VZFE..VCK30,40

 2
17173-62060

5VZFE..VCK30,40..USA

CALIFORNIA SPEC

 2
17173-62060

5VZFE..VCK30,40

 2
17176 - GASKET, AIR SURGE TANK TO INTAKE MANIFOLD
17176-62040

5VZFE..VCK30,40

 1
17176A - GASKET, AIR SURGE TANK TO INTAKE MANIFOLD, NO.2
17176-62040

5VZFE..VCK30,40

 1
17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1
17177-62060

5VZFE..VCK30,40

 2
17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1
17177-62060

5VZFE..VCK30,40

 2
17861F - CONNECTOR, INTAKE AIR
17861-62012

5VZFE..VCK30,40

 1
Common parts
90105-08020
90105-08185
90116-10149
90119-08609
90119-10684
90148-80002
90149-80022
90179-06080
90179-08117
90179-08183
90179-10070
90339-05018
91511-60816
92112-60825
94623-10800

(0008- )5VZFE

Click highlighted areas on diagram

diagram 17106 17106A 17106A 17111 17125 17125 17129 17141 17141J 17142B 17142C 17159 17159 17159 17167 17168 17173 17173 17176 17176A 17177 17177 17861F 7851 9008010159 9010508020 9010508185 9011610149 9011610149 9011908609 9011910684 9014880002 9014980022 9017906080 9017906080 9017908117 9017908183 9017910070 9017910070 9017910070 9033903002 9033905018 91511B0816 9211260825 9211260825 9462310800
Part # Description Qty Price
17106 - PIPE SUB-ASSY, EXHAUST CROSSOVER
17106-62020

5VZFE..VCK30,40

 1
17106-62030

5VZFE..VCK30,40

 1
17106-62030

5VZFE..VCK30,40..USA

CALIFORNIA SPEC

 1
17106A - GASKET, EXHAUST PIPE
90917-06083

5VZFE..VCK30,40

 2
90917-06083

5VZFE..VCK30,40

 2
17106A - GASKET, EXHAUST PIPE
90917-06083

5VZFE..VCK30,40

 2
90917-06083

5VZFE..VCK30,40

 2
17111 - MANIFOLD, INTAKE
17101-62020

5VZFE..VCK30,40

 1
17125 - STAY, SURGE TANK, NO.1
17125-62060

5VZFE..VCK30,40..4HC

 1
17125 - STAY, SURGE TANK, NO.1
17125-62060

5VZFE..VCK30,40..4HC

 1
17129 - TANK, INTAKE AIR SURGE
17109-62090

5VZFE..VCK30,40

 1
17109-62080

5VZFE..VCK30,40

 1
17141 - MANIFOLD, EXHAUST
17141-62100

5VZFE..VCK30,40..USA

CALIFORNIA SPEC

 1
17141-62110

5VZFE..VCK30,40

 1
17141-62080

5VZFE..VCK30,40

 1
17141J - BOLT, STUD(FOR EXHAUST MANIFOLD, RH)
90116-06028

5VZFE..VCK30,40

 3
17142B - MANIFOLD, EXHAUST, LH
17142-62090

5VZFE..VCK30,40

 1
17142-62100

5VZFE..VCK30,40..USA

CALIFORNIA SPEC

 1
17142-62110

5VZFE..VCK30,40

 1
17142C - BOLT, STUD(FOR EXHAUST MANIFOLD, LH)
90116-06028

5VZFE..VCK30,40

 3
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
90116-08251

5VZFE..VCK30,40

NO.1

 4
90116-10150

5VZFE..VCK30,40

NO.2

 12
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
90116-08251

5VZFE..VCK30,40

NO.1

 4
90116-10150

5VZFE..VCK30,40

NO.2

 12
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
90116-08251

5VZFE..VCK30,40

NO.1

 4
90116-10150

5VZFE..VCK30,40

NO.2

 12
17167 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.1
17167-62051

5VZFE..VCK30,40

 1
17168 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.2
17168-62051

5VZFE..VCK30,40

 1
17173 - GASKET, EXHAUST MANIFOLD TO HEAD
17173-62050

5VZFE..VCK30,40

 2
17173-62060

5VZFE..VCK30,40..USA

CALIFORNIA SPEC

 2
17173-62060

5VZFE..VCK30,40

 2
17173 - GASKET, EXHAUST MANIFOLD TO HEAD
17173-62050

5VZFE..VCK30,40

 2
17173-62060

5VZFE..VCK30,40..USA

CALIFORNIA SPEC

 2
17173-62060

5VZFE..VCK30,40

 2
17176 - GASKET, AIR SURGE TANK TO INTAKE MANIFOLD
17176-62040

5VZFE..VCK30,40

 1
17176A - GASKET, AIR SURGE TANK TO INTAKE MANIFOLD, NO.2
17176-62040

5VZFE..VCK30,40

 1
17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1
17177-62060

5VZFE..VCK30,40

 2
17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1
17177-62060

5VZFE..VCK30,40

 2
17861F - CONNECTOR, INTAKE AIR
17861-62012

5VZFE..VCK30,40

 1
Common parts
90080-10159
90105-08020
90105-08185
90116-10149
90119-08609
90119-10684
90148-80002
90149-80022
90179-06080
90179-08117
90179-08183
90179-10070
90339-03002
90339-05018
91511-B0816
92112-60825
94623-10800
Linked diagrams
7851
