VCK40L-TRSSKA (1999)

Toyota Tundra

Production Feb 1999 - Aug 2002
Engine 5VZFE
Transmission 4HC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9902- )5VZFE

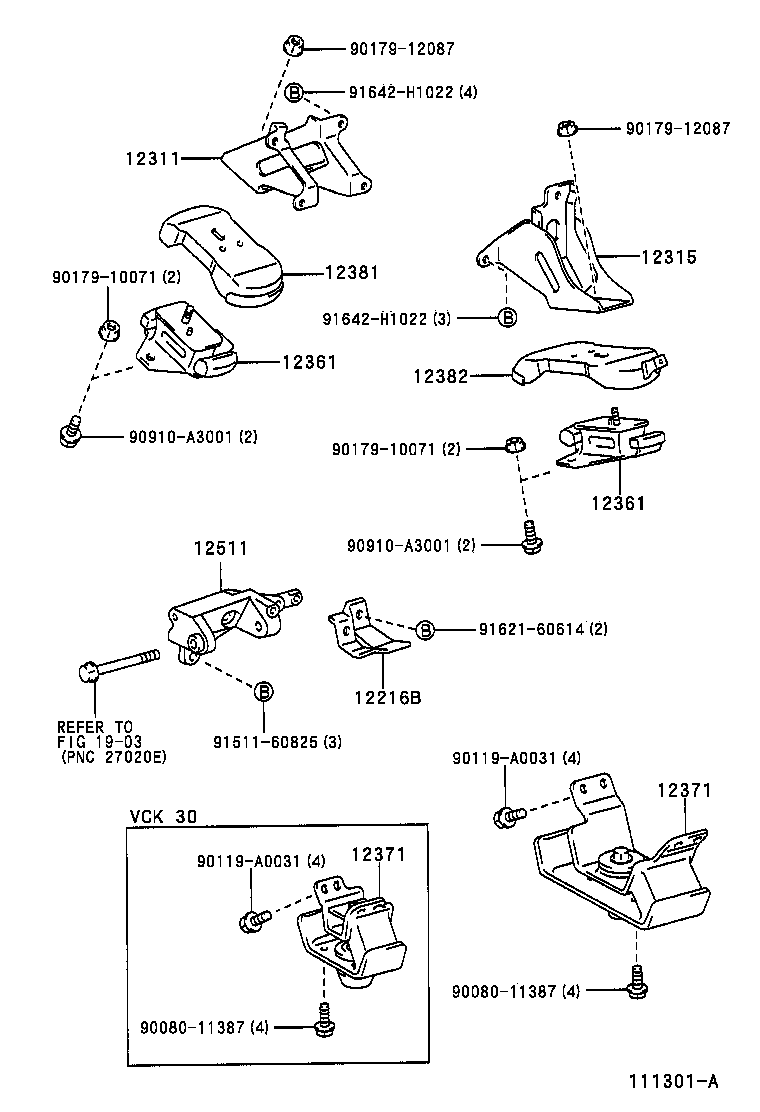

Click highlighted areas on diagram

diagram 12216B 12311 12315 12361 12361 12371 12371 12381 12382 12511 1903 9008011387 9008011387 90119A0031 90119A0031 9017910071 9017910071 9017912087 9017912087 90910A3001 90910A3001 9151160825 9162160614 91642H1022 91642H1022
Part # Description Qty Price
12216B - PLATE, OIL BAFFLE
12216-62030

5VZFE..VCK30,40

 1
12311 - BRACKET, ENGINE MOUNTING, FRONT NO.1 RH
12311-62050

5VZFE..VCK30,40

 1
12315 - BRACKET, ENGINE MOUNTING, FRONT NO.1 LH
12315-62060

5VZFE..VCK30,40

 1
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-62130

5VZFE..VCK30,40

 2
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-62130

5VZFE..VCK30,40

 2
12371 - INSULATOR, ENGINE MOUNTING, REAR NO.1
12371-62170

5VZFE..VCK40..4HC

 1
12371 - INSULATOR, ENGINE MOUNTING, REAR NO.1
12371-62170

5VZFE..VCK40..4HC

 1
12381 - STABILIZER, ENGINE MOUNTING
12381-62020

5VZFE..VCK30,40

 1
12382 - STABILIZER, ENGINE MOUNTING, LH
12382-62010

5VZFE..VCK30,40

 1
12511 - BRACKET, ALTERNATOR, NO.1
12511-62010

5VZFE..VCK30,40

 1
Common parts
90080-11387
90119-A0031
90179-10071
90179-12087
90910-A3001
91511-60825
91621-60614
91642-H1022
Linked diagrams
1903
