VCK40L-TRMSKA (1999)

Toyota Tundra

Production Feb 1999 - Aug 2002
Engine 5VZFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9902-0408)VCK40..5F

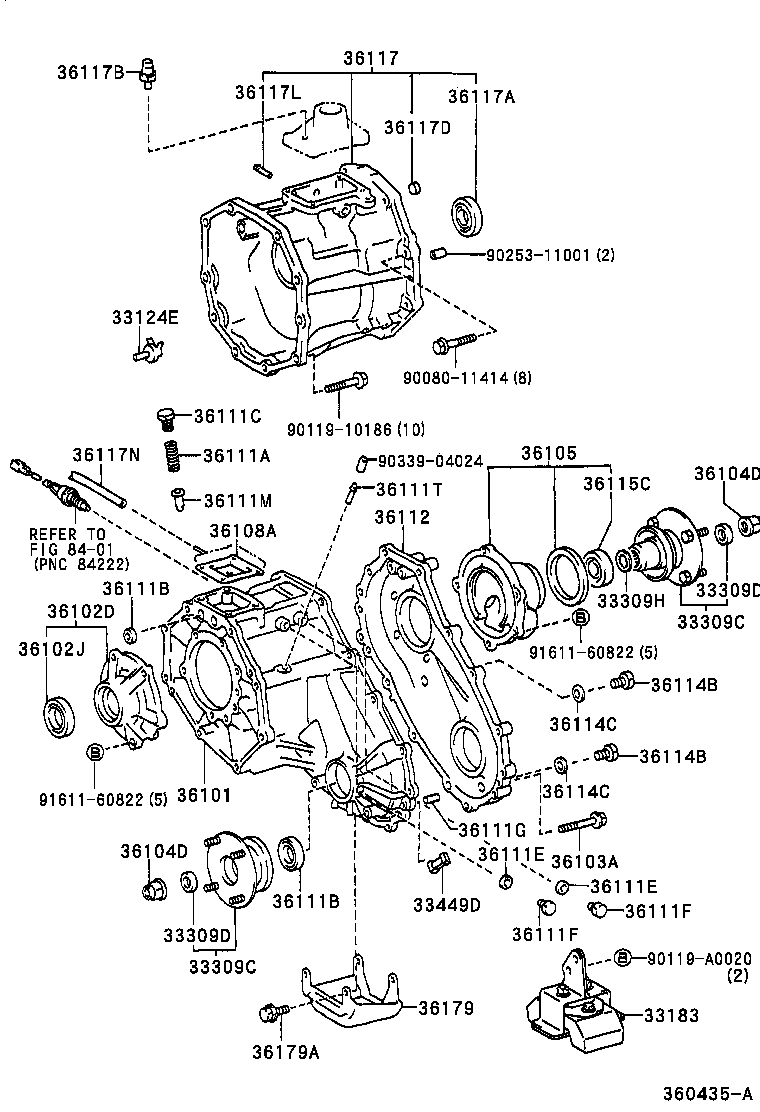

Click highlighted areas on diagram

W/O(*DL)

diagram 33124E 33183 33309C 33309C 33309D 33309D 33309H 33449D 36101 36102D 36102J 36103A 36104D 36104D 36105 36108A 36111A 36111B 36111B 36111C 36111E 36111E 36111F 36111F 36111G 36111M 36111T 36112 36114B 36114B 36114C 36114C 36115C 36117 36117A 36117B 36117D 36117L 36117N 36179 36179A 8401 9008011414 9011910186 90119A0020 9025311001 9033904024 9161160822 9161160822
Part # Description Qty Price
33124E - PIPE, OIL RECEIVER(FOR TRANSFER)
33124-35100

VCK40..5F

 1
33183 - DAMPER, TRANSFER DYNAMIC
33183-34031

VCK40

 1
33309C - FLANGE SUB-ASSY, OUTPUT SHAFT COMPANION
33309-35091

UCK40,VCK40

REAR

 1
33309-35100

UCK40,VCK40

FRONT

 1
33309C - FLANGE SUB-ASSY, OUTPUT SHAFT COMPANION
33309-35091

UCK40,VCK40

REAR

 1
33309-35100

UCK40,VCK40

FRONT

 1
33309D - SEAL, OIL(FOR TRANSFER OUTPUT SHAFT COMPANION FLANGE)
90312-23001

UCK40,VCK40

 2
33309D - SEAL, OIL(FOR TRANSFER OUTPUT SHAFT COMPANION FLANGE)
90312-23001

UCK40,VCK40

 2
33309H - WASHER, TRANSFER OUTPUT SHAFT
36275-35010

UCK40,VCK40

N=30,OD=38

 2
33449D - MAGNET (FOR TRANSFER CASE)
33449-32020

UCK40,VCK40

 1
36101 - CASE SUB-ASSY, TRANSFER
36111-35060

VCK40

 1
36102D - RETAINER SUB-ASSY, TRANSFER RH BEARING
36102-35031

UCK40,VCK40

 1
36102-35032

UCK40,VCK40

 1
36102J - SEAL, TYPE T OIL (FOR TRANSFER COVER)
90311-40021

UCK40,VCK40

 1
36103A - BOLT (FOR TRANSFER CASE)
90119-08A28

UCK40,VCK40

*8-1.25PX55-30

 12
36104D - NUT (FOR TRANSFER OUTPUT SHAFT)
90179-22016

UCK40,VCK40

 2
36104D - NUT (FOR TRANSFER OUTPUT SHAFT)
90179-22016

UCK40,VCK40

 2
36105 - HOUSING SUB-ASSY, TRANSFER EXTENSION, FRONT
36105-35040

UCK40,VCK40

 1
36108A - DEFLECTOR SUB-ASSY, BREATHER OIL
36108-35060

VCK40..5F

 1
36111A - SPRING, COMPRESSION (FOR TRANSFER CASE)
90501-20091

UCK40,VCK40

 1
36111B - SEAL, OIL (FOR TRANSFER CASE)
90311-41008

VCK40

FRONT OUTPUT SIDE

 1
90311-41011

VCK40

FRONT OUTPUT SIDE

 1
90311-15008

VCK40

FORK SHAFT SIDE

 2
36111B - SEAL, OIL (FOR TRANSFER CASE)
90311-41008

VCK40

FRONT OUTPUT SIDE

 1
90311-41011

VCK40

FRONT OUTPUT SIDE

 1
90311-15008

VCK40

FORK SHAFT SIDE

 2
36111C - PLUG (FOR TRANSFER CASE)
90341-14012

UCK40,VCK40

 1
36111E - GASKET (FOR TRANSFER CASE)
90430-18008

VCK40..5F

W/O(DIFFERENTIAL LOCK)

 2
90430-18008

VCK40..5F

W(DIFFERENTIAL LOCK)

 1
36111E - GASKET (FOR TRANSFER CASE)
90430-18008

VCK40..5F

W/O(DIFFERENTIAL LOCK)

 2
90430-18008

VCK40..5F

W(DIFFERENTIAL LOCK)

 1
36111F - PLUG (FOR TRANSFER CASE)
90341-18006

VCK40..5F

W/O(DIFFERENTIAL LOCK)

 2
90341-18006

VCK40..5F

W(DIFFERENTIAL LOCK)

 1
36111F - PLUG (FOR TRANSFER CASE)
90341-18006

VCK40..5F

W/O(DIFFERENTIAL LOCK)

 2
90341-18006

VCK40..5F

W(DIFFERENTIAL LOCK)

 1
36111G - PIN, STRAIGHT (FOR TRANSFER CASE)
90250-10214

UCK40,VCK40

L=14,OD=10

 2
36111M - PIN, SLOTTED SPRING (FOR TRANSFER CASE)
90241-07003

UCK40,VCK40

 1
36111T - TUBE (FOR TRANSFER CASE)
90441-05001

UCK40,VCK40

 1
36112 - CASE, TRANSFER, REAR
36112-35040

VCK40

 1
36114B - PLUG, NO.1 (FOR TRANSFER CASE)
90341-18006

UCK40,VCK40

 2
36114B - PLUG, NO.1 (FOR TRANSFER CASE)
90341-18006

UCK40,VCK40

 2
36114C - GASKET, NO.1 (FOR TRANSFER CASE)
90430-18008

UCK40,VCK40

 2
36114C - GASKET, NO.1 (FOR TRANSFER CASE)
90430-18008

UCK40,VCK40

 2
36115C - SEAL, TYPE T OIL (FOR TRANSFER EXTENSION HOUSING)
90311-41007

UCK40,VCK40

 1
36117 - ADAPTER, TRANSFER
36107-35160

VCK40..5F

 1
36117A - SEAL, OIL(FOR TRANSFER ADAPTER)
90311-40007

VCK40..5F

 1
36117B - PLUG, BREATHER(FOR TRANSFER ADAPTER)
90930-03075

VCK40..5F

 1
36117D - PLUG(FOR TRANSFER ADAPTER)
90331-21003

VCK40..5F

 1
36117L - TUBE(FOR TRANSFER ADAPTER)
90441-05001

UCK40,VCK40

 1
36117N - HOSE(FOR TRANSFER ADAPTER)
90447-08126

VCK40..5F

 1
36179 - PROTECTOR, TRANSFER CASE LOWER
36179-04010

UCK40,VCK40

 1
36179A - BOLT (FOR TRANSFER CASE LOWER PROTECTOR)
90080-11251

UCK40,VCK40

(L)

 4
91611-60820

UCK40,VCK40

(J)

 4
Common parts
90080-11414
90119-10186
90119-A0020
90253-11001
90339-04024
91611-60822
Linked diagrams
8401

(9902-0408)VCK40..5F

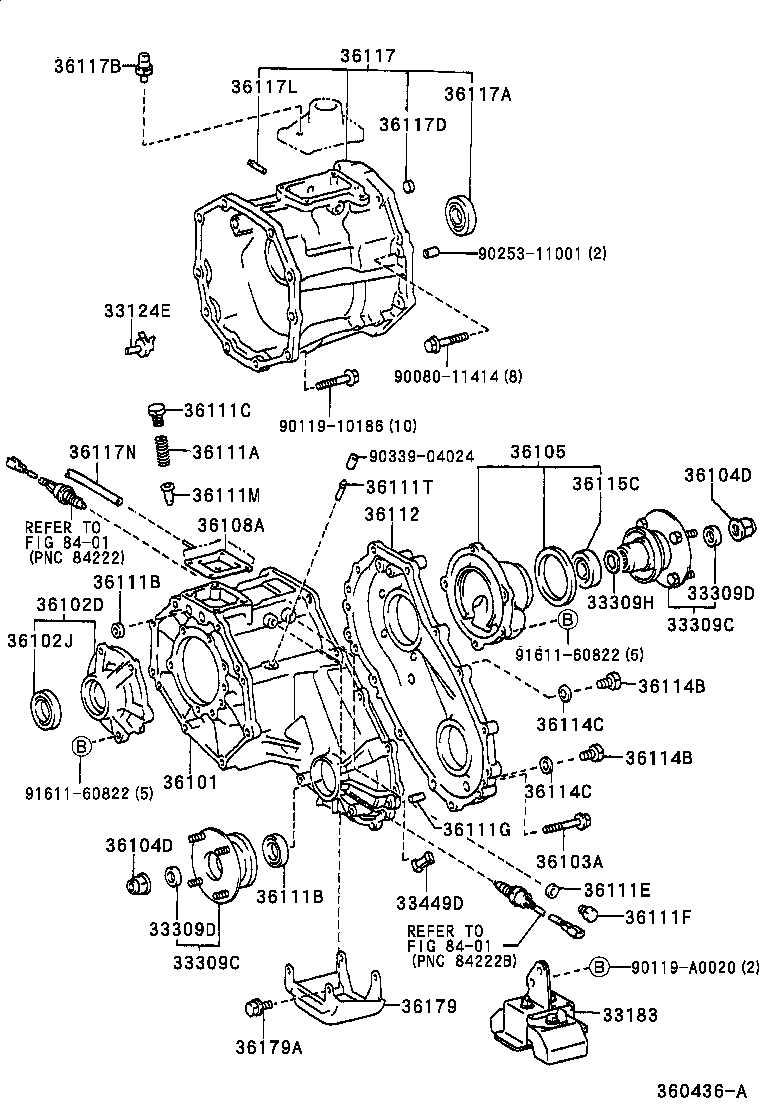

Click highlighted areas on diagram

W(*DL)

diagram 33124E 33183 33309C 33309C 33309D 33309D 33309H 33449D 36101 36102D 36102J 36103A 36104D 36104D 36105 36108A 36111A 36111B 36111B 36111C 36111E 36111F 36111G 36111M 36111T 36112 36114B 36114B 36114C 36114C 36115C 36117 36117A 36117B 36117D 36117L 36117N 36179 36179A 8401 8401 9008011414 9011910186 90119A0020 9025311001 9033904024 9161160822 9161160822
Part # Description Qty Price
33124E - PIPE, OIL RECEIVER(FOR TRANSFER)
33124-35100

VCK40..5F

 1
33183 - DAMPER, TRANSFER DYNAMIC
33183-34031

VCK40

 1
33309C - FLANGE SUB-ASSY, OUTPUT SHAFT COMPANION
33309-35091

UCK40,VCK40

REAR

 1
33309-35100

UCK40,VCK40

FRONT

 1
33309C - FLANGE SUB-ASSY, OUTPUT SHAFT COMPANION
33309-35091

UCK40,VCK40

REAR

 1
33309-35100

UCK40,VCK40

FRONT

 1
33309D - SEAL, OIL(FOR TRANSFER OUTPUT SHAFT COMPANION FLANGE)
90312-23001

UCK40,VCK40

 2
33309D - SEAL, OIL(FOR TRANSFER OUTPUT SHAFT COMPANION FLANGE)
90312-23001

UCK40,VCK40

 2
33309H - WASHER, TRANSFER OUTPUT SHAFT
36275-35010

UCK40,VCK40

N=30,OD=38

 2
33449D - MAGNET (FOR TRANSFER CASE)
33449-32020

UCK40,VCK40

 1
36101 - CASE SUB-ASSY, TRANSFER
36111-35060

VCK40

 1
36102D - RETAINER SUB-ASSY, TRANSFER RH BEARING
36102-35031

UCK40,VCK40

 1
36102-35032

UCK40,VCK40

 1
36102J - SEAL, TYPE T OIL (FOR TRANSFER COVER)
90311-40021

UCK40,VCK40

 1
36103A - BOLT (FOR TRANSFER CASE)
90119-08A28

UCK40,VCK40

*8-1.25PX55-30

 12
36104D - NUT (FOR TRANSFER OUTPUT SHAFT)
90179-22016

UCK40,VCK40

 2
36104D - NUT (FOR TRANSFER OUTPUT SHAFT)
90179-22016

UCK40,VCK40

 2
36105 - HOUSING SUB-ASSY, TRANSFER EXTENSION, FRONT
36105-35040

UCK40,VCK40

 1
36108A - DEFLECTOR SUB-ASSY, BREATHER OIL
36108-35060

VCK40..5F

 1
36111A - SPRING, COMPRESSION (FOR TRANSFER CASE)
90501-20091

UCK40,VCK40

 1
36111B - SEAL, OIL (FOR TRANSFER CASE)
90311-41008

VCK40

FRONT OUTPUT SIDE

 1
90311-41011

VCK40

FRONT OUTPUT SIDE

 1
90311-15008

VCK40

FORK SHAFT SIDE

 2
36111B - SEAL, OIL (FOR TRANSFER CASE)
90311-41008

VCK40

FRONT OUTPUT SIDE

 1
90311-41011

VCK40

FRONT OUTPUT SIDE

 1
90311-15008

VCK40

FORK SHAFT SIDE

 2
36111C - PLUG (FOR TRANSFER CASE)
90341-14012

UCK40,VCK40

 1
36111E - GASKET (FOR TRANSFER CASE)
90430-18008

VCK40..5F

W/O(DIFFERENTIAL LOCK)

 2
90430-18008

VCK40..5F

W(DIFFERENTIAL LOCK)

 1
36111F - PLUG (FOR TRANSFER CASE)
90341-18006

VCK40..5F

W/O(DIFFERENTIAL LOCK)

 2
90341-18006

VCK40..5F

W(DIFFERENTIAL LOCK)

 1
36111G - PIN, STRAIGHT (FOR TRANSFER CASE)
90250-10214

UCK40,VCK40

L=14,OD=10

 2
36111M - PIN, SLOTTED SPRING (FOR TRANSFER CASE)
90241-07003

UCK40,VCK40

 1
36111T - TUBE (FOR TRANSFER CASE)
90441-05001

UCK40,VCK40

 1
36112 - CASE, TRANSFER, REAR
36112-35040

VCK40

 1
36114B - PLUG, NO.1 (FOR TRANSFER CASE)
90341-18006

UCK40,VCK40

 2
36114B - PLUG, NO.1 (FOR TRANSFER CASE)
90341-18006

UCK40,VCK40

 2
36114C - GASKET, NO.1 (FOR TRANSFER CASE)
90430-18008

UCK40,VCK40

 2
36114C - GASKET, NO.1 (FOR TRANSFER CASE)
90430-18008

UCK40,VCK40

 2
36115C - SEAL, TYPE T OIL (FOR TRANSFER EXTENSION HOUSING)
90311-41007

UCK40,VCK40

 1
36117 - ADAPTER, TRANSFER
36107-35160

VCK40..5F

 1
36117A - SEAL, OIL(FOR TRANSFER ADAPTER)
90311-40007

VCK40..5F

 1
36117B - PLUG, BREATHER(FOR TRANSFER ADAPTER)
90930-03075

VCK40..5F

 1
36117D - PLUG(FOR TRANSFER ADAPTER)
90331-21003

VCK40..5F

 1
36117L - TUBE(FOR TRANSFER ADAPTER)
90441-05001

UCK40,VCK40

 1
36117N - HOSE(FOR TRANSFER ADAPTER)
90447-08126

VCK40..5F

 1
36179 - PROTECTOR, TRANSFER CASE LOWER
36179-04010

UCK40,VCK40

 1
36179A - BOLT (FOR TRANSFER CASE LOWER PROTECTOR)
90080-11251

UCK40,VCK40

(L)

 4
91611-60820

UCK40,VCK40

(J)

 4
Common parts
90080-11414
90119-10186
90119-A0020
90253-11001
90339-04024
91611-60822
Linked diagrams
8401
