VCK40L-TRMDKK (1999)

Toyota Tundra

Production Feb 1999 - Aug 2000
Engine 5VZFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9902- )GSK30,UCK30,40,VCK30,40

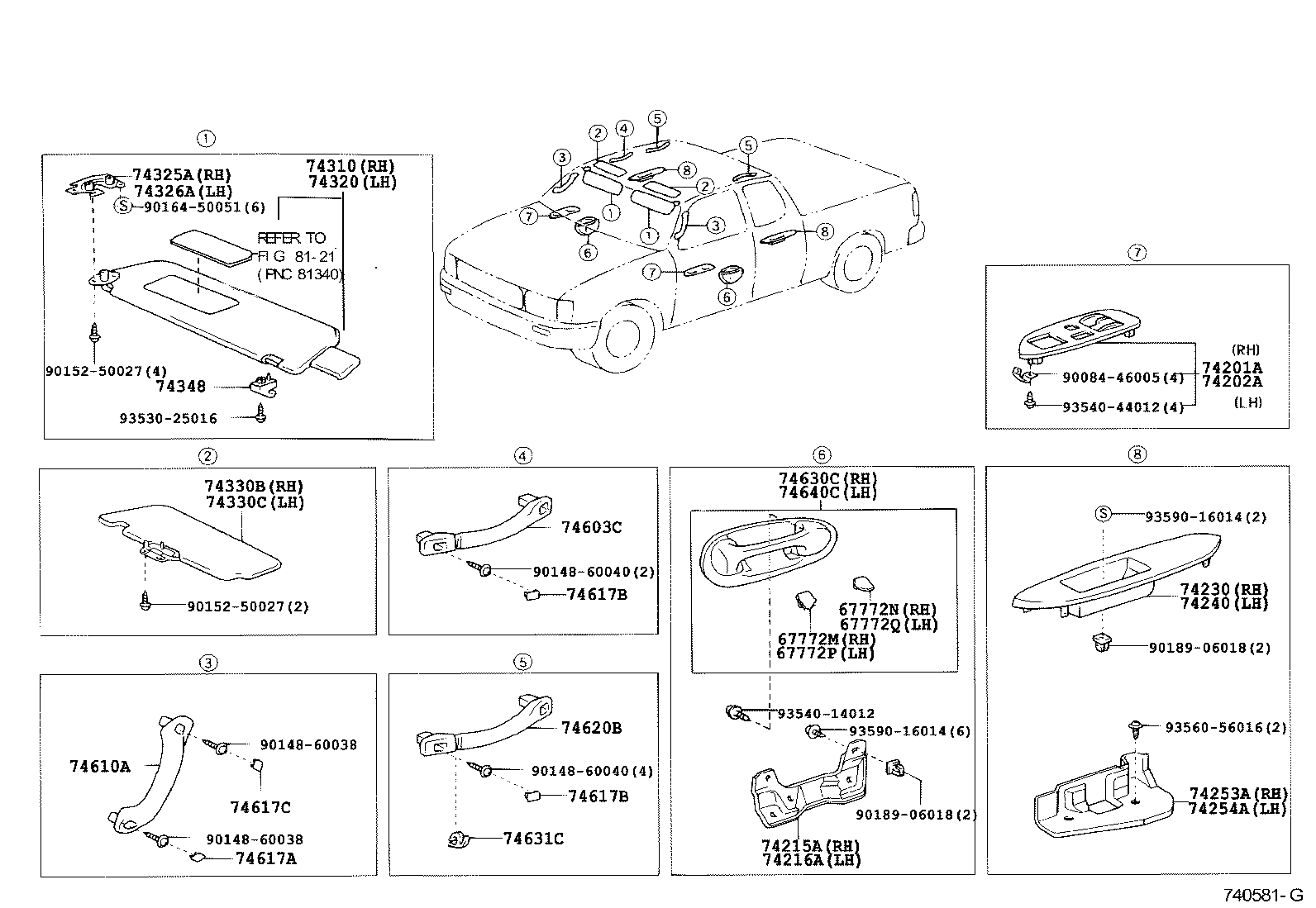

Click highlighted areas on diagram

diagram 67772M 67772N 67772P 67772Q 74201A 74202A 74215A 74216A 74230 74240 74253A 74254A 74310 74320 74325A 74326A 74330B 74330C 74348 74603C 74610A 74617A 74617B 74617B 74617C 74620B 74630C 74631C 74640C 8121 9008446005 9014860038 9014860038 9014860040 9014860040 9015250027 9015250027 9016450051 9018906018 9018906018 9353025016 9354014012 9354044012 9356056016 9359016014 9359016014
Part # Description Qty Price
67772M - CAP, DOOR TRIM RETAINER, RH
67772-0C080E0

UCK30,40,VCK30,40..DLX,SR5

MD.OAK,TRIM4#

 1
67772N - CAP, DOOR TRIM RETAINER, RH
67772-0C100E0

UCK30,40,VCK30,40..DLX,SR5

MD.OAK,TRIM4#

 1
67772P - CAP, DOOR TRIM RETAINER, LH
67772-0C090E0

UCK30,40,VCK30,40..DLX,SR5

MD.OAK,TRIM4#

 1
67772Q - CAP, DOOR TRIM RETAINER, LH
67772-0C110E0

UCK30,40,VCK30,40..DLX,SR5

MD.OAK,TRIM4#

 1
74201A - PANEL SUB-ASSY, FRONT ARMREST BASE, UPPER RH
74201-0C020

UCK30,40..CND;UCK30,40,VCK30,40..LIMD

WOOD GRAIN

 1
74202A - PANEL SUB-ASSY, FRONT ARMREST BASE, UPPER LH
74202-0C020

UCK30,40..CND;UCK30,40,VCK30,40..LIMD

WOOD GRAIN

 1
74215A - BASE, DOOR ARMREST RH
74215-0C020

UCK30,40,VCK30,40

 1
74216A - BASE, DOOR ARMREST, LH
74216-0C020

UCK30,40,VCK30,40

 1
74310 - VISOR ASSY, RH
74310-34080E0

VCK30,40..DLX

MEDIUM OAK,TRIM4#

 1
74320 - VISOR ASSY, LH
74320-34310E0

VCK40..DLX

MEDIUM OAK,TRIM4#

 1
74325A - SUPPORT, FRONT VISOR, NO.1
74325-0C010

UCK30,40,VCK30,40

 1
74326A - SUPPORT, FRONT VISOR, NO.2
74326-0C010

UCK30,40,VCK30,40

 1
74348 - HOLDER, VISOR
74348-34010E0

UCK30,40,VCK30,40

MD.OAK,TRIM4#

 2
74603C - GRIP SUB-ASSY, ASSIST
74610-0C020E0

UCK30,40,VCK30,40

MD.OAK,TRIM4#

 1
74610A - GRIP SUB-ASSY, ASSIST
74610-0C010E0

UCK30,40,VCK30,40

MD.OAK,TRIM4#

 2
74617A - PLUG, ASSIST GRIP
74617-0C010E0

UCK30,40,VCK30,40

MD.OAK,TRIM4#

 2
74617B - PLUG, DOOR ASSIST GRIP
74617-0C030E0

UCK40,VCK30,40..RCB

MD.OAK,TRIM4#

 2
74617B - PLUG, DOOR ASSIST GRIP
74617-0C030E0

UCK40,VCK30,40..RCB

MD.OAK,TRIM4#

 2
74617C - PLUG, ASSIST GRIP
74617-0C020E0

UCK30,40,VCK30,40

MD.OAK,TRIM4#

 2
74630C - GRIP ASSY, DOOR ASSIST, RH
74630-0C020E0

UCK30,40,VCK30,40..DLX,SR5

MD.OAK,TRIM4#

 1
74640C - GRIP ASSY, DOOR ASSIST, LH
74640-0C020E0

UCK30,40,VCK30,40..DLX,SR5

MD.OAK,TRIM4#

 1
Common parts
90084-46005
90148-60038
90148-60040
90152-50027
90164-50051
90189-06018
93530-25016
93540-14012
93540-44012
93560-56016
93590-16014
Linked diagrams
8121
