VCK40L-ARSSKK (1999)
Toyota Tundra
Production
Feb 1999
-
Aug 2002
Engine
5VZFE
Transmission
4HC ATM
Displacement
2500cc
Power
168 HP (125 kW)

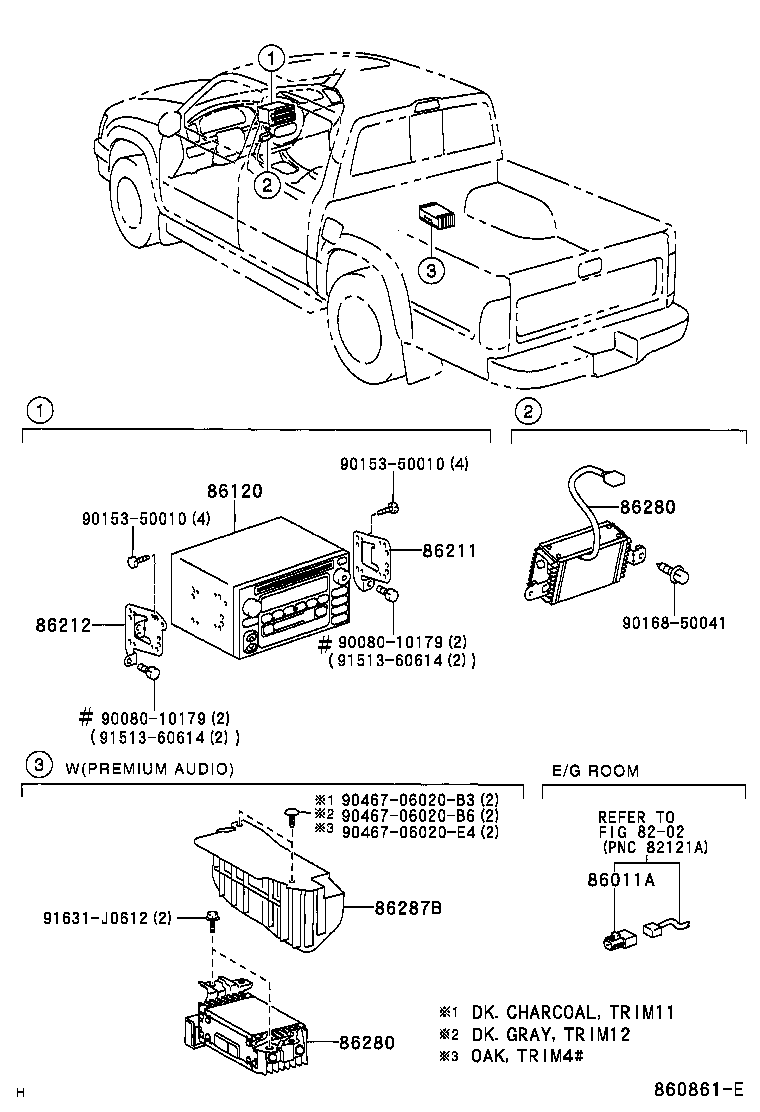

ILLUST NO. 1 OF 2(9902-0408)UCK30,40,VCK30,40
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86011A - CONDENSER, RADIO SETTING | ||||
| 90980-04083 |
UCK30,40,VCK30,40 |
1 | ||
| 90980-04083 |
UCK30,40 |
2 | ||
| 90980-04083 |
VCK30,40 |
1 | ||
| 86120 - RECEIVER ASSY, RADIO | ||||
| 86120-0C010 |
UCK30,40,VCK30,40..DLX,SR5 MATSUSHITA,ID=A56410,TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 86120-0C020 |
VCK40..ACB..SR5;UCK40..ACB..SR5..USA;UCK30,VCK30..4HC..SR5 FUJITSU TEN USA,TYPE B:REFER TO ILLUSTRATION & W(4 SPEAKER) |
1 | ||
| 86120-0C040 |
UCK30,40,VCK30,40..ACB MATSUSHITA,ID=56811,TYPE C:REFER TO ILLUSTRATION |
1 | ||
| 86120-0C030 |
VCK40..ACB..SR5;UCK30,40,VCK30..ACB..4HC..SR5 FUJITSU TEN USA,TYPE B:REFER TO ILLUSTRATION & W(4 SPEAKER 2 TWEETERS) |
1 | ||
| 86211 - BRACKET, RADIO, NO.1 | ||||
| 86211-0C010 |
UCK30,40,VCK30,40 |
1 | ||
| 86212 - BRACKET, RADIO, NO.2 | ||||
| 86212-0C010 |
UCK30,40,VCK30,40 |
1 | ||
| 86280 - AMPLIFIER ASSY, STEREO COMPONENT | ||||
| 86280-0C010 |
UCK30,40,VCK30,40..ACB |
1 | ||
| 86280 - AMPLIFIER ASSY, STEREO COMPONENT | ||||
| 86280-0C010 |
UCK30,40,VCK30,40..ACB |
1 | ||
| Common parts | ||||
| 90080-10179 | ||||
| 90153-50010 | ||||
| 90168-50041 | ||||
| 90467-06020B3 | ||||
| 90467-06020B6 | ||||
| 90467-06020E4 | ||||
| 91513-60614 | ||||
| 91631-J0612 | ||||
| Linked diagrams | ||||
| 8202 | ||||

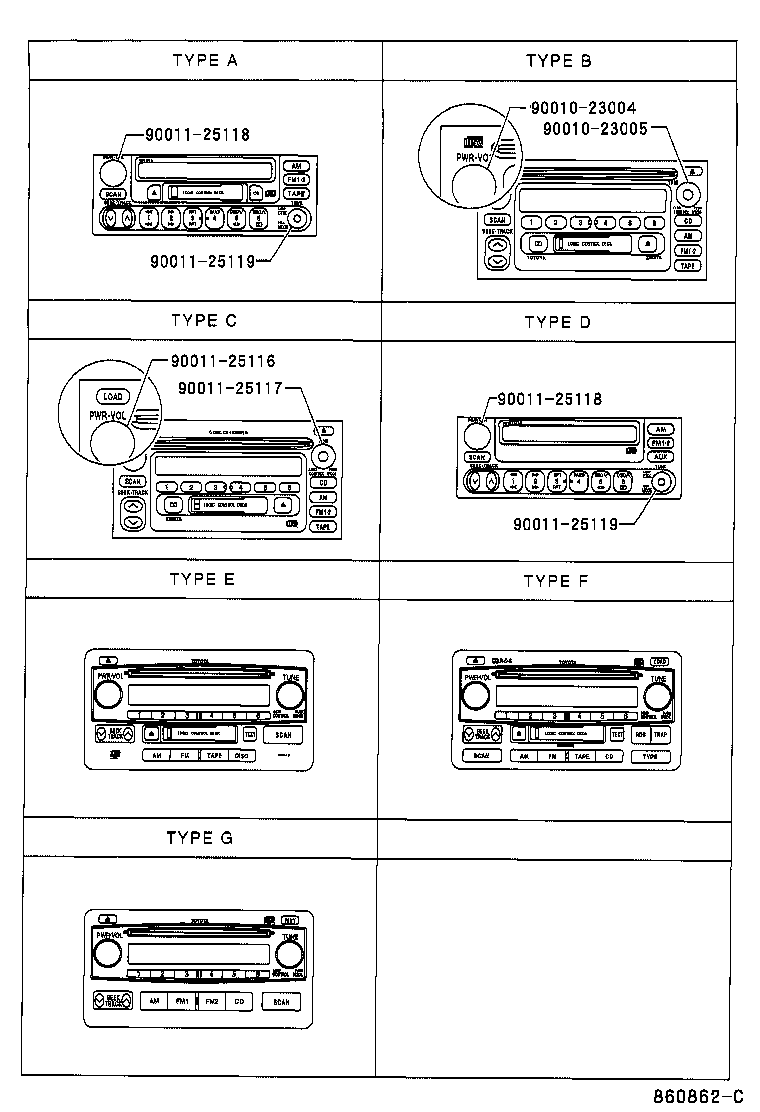

ILLUST NO. 2 OF 2(9902- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90010-23004 | ||||
| 90010-23005 | ||||
| 90011-25116 | ||||
| 90011-25117 | ||||
| 90011-25118 | ||||
| 90011-25119 | ||||
