VCK40L-ARSSKK (1999)
Toyota Tundra
Production
Feb 1999
-
Aug 2002
Engine
5VZFE
Transmission
4HC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(9902- )UCK4#,VCK40

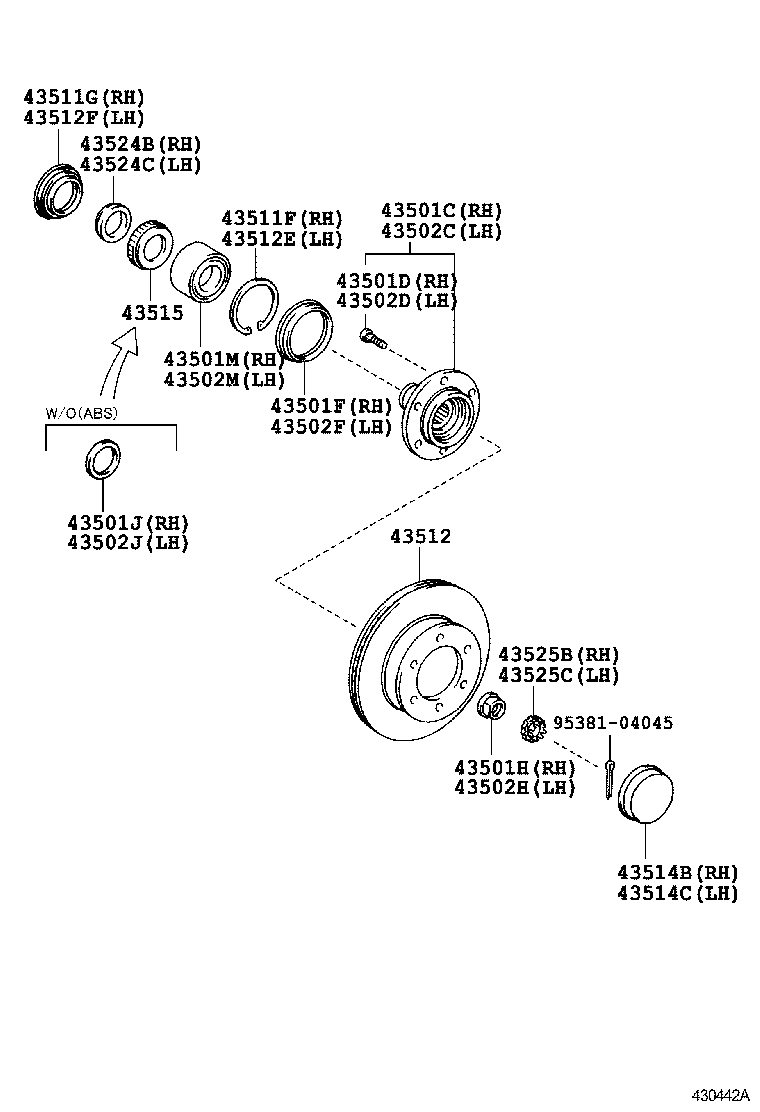

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 43501C - HUB SUB-ASSY, FRONT AXLE, RH | ||||
| 43502-04040 |
UCK40,VCK40 |
1 | ||
| 43501D - BOLT, HUB (FOR FRONT AXLE RH) | ||||
| 90942-02049 |
UCK30,40,VCK30,40 |
6 | ||
| 43501F - SEAL, OIL (FOR FRONT AXLE HUB RH) | ||||
| 90312-95001 |
UCK30,40,VCK30,40 |
1 | ||
| 43501H - NUT (FOR FRONT AXLE SHAFT RH) | ||||
| 90179-28007 |
UCK40,VCK40 |
1 | ||
| 43501J - SPACER (FOR FRONT AXLE HUB RH) | ||||
| 90560-52001 |
UCK30,40,VCK30,40 |
1 | ||
| 43501M - BEARING (FOR FRONT AXLE HUB INNER RH) | ||||
| 90369-54001 |
UCK30,40,VCK30,40 |
1 | ||
| 90080-36071 |
UCK30,40,VCK30,40 |
1 | ||
| 43502C - HUB SUB-ASSY, FRONT AXLE, LH | ||||
| 43502-04040 |
UCK40,VCK40 |
1 | ||
| 43502D - BOLT, HUB (FOR FRONT AXLE LH) | ||||
| 90942-02049 |
UCK30,40,VCK30,40 |
6 | ||
| 43502F - SEAL, OIL (FOR FRONT AXLE HUB LH) | ||||
| 90312-95001 |
UCK30,40,VCK30,40 |
1 | ||
| 43502H - NUT (FOR FRONT AXLE SHAFT LH) | ||||
| 90179-28007 |
UCK40,VCK40 |
1 | ||
| 43502J - SPACER (FOR FRONT AXLE HUB LH) | ||||
| 90560-52001 |
UCK30,40,VCK30,40 |
1 | ||
| 43502M - BEARING (FOR FRONT AXLE HUB INNER LH) | ||||
| 90369-54001 |
UCK30,40,VCK30,40 |
1 | ||
| 90080-36071 |
UCK30,40,VCK30,40 |
1 | ||
| 43511F - RING, HOLE SNAP (FOR FRONT AXLE HUB RH) | ||||
| 90521-99114 |
UCK30,40,VCK30,40 |
1 | ||
| 43511G - SEAL, OIL (FOR FRONT AXLE HUB OUTER RH) | ||||
| 90316-69001 |
UCK40,VCK40 |
1 | ||
| 43512 - DISC, FRONT | ||||
| 43512-0C010 |
UCK30,40,VCK30,40 |
2 | ||
| 43512E - RING, HOLE SNAP (FOR FRONT AXLE HUB LH) | ||||
| 90521-99114 |
UCK30,40,VCK30,40 |
1 | ||
| 43512F - SEAL, OIL (FOR FRONT AXLE HUB OUTER LH) | ||||
| 90316-69001 |
UCK40,VCK40 |
1 | ||
| 43514B - CAP, FRONT AXLE HUB GREASE, RH | ||||
| 43514-28010 |
UCK40,VCK40 |
1 | ||
| 43514C - CAP, FRONT AXLE HUB GREASE, LH | ||||
| 43514-28010 |
UCK40,VCK40 |
1 | ||
| 43515 - ROTOR, SKID CONTROL, FRONT | ||||
| 43515-35010 |
UCK30,40,VCK30,40 |
2 | ||
| 43524B - SPACER, FRONT WHEEL INNER BEARING, RH | ||||
| 43524-35010 |
UCK40,VCK40 |
1 | ||
| 43524C - SPACER, FRONT WHEEL INNER BEARING, LH | ||||
| 43524-35010 |
UCK40,VCK40 |
1 | ||
| 43525B - CAP, FRONT WHEEL ADJUSTING LOCK, RH | ||||
| 43525-35010 |
UCK40,VCK40 |
1 | ||
| 43525C - CAP, FRONT WHEEL ADJUSTING LOCK, LH | ||||
| 43525-35010 |
UCK40,VCK40 |
1 | ||
| Common parts | ||||
| 95381-04045 | ||||
