VCK40L-ARSSKA (1999)

Toyota Tundra

Production Feb 1999 - Aug 2004
Engine 5VZFE
Transmission 4HC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9902-0408)UCK30,40,VCK30,40..4HC ; (0408- )GSK30,UCK30,40..5HC

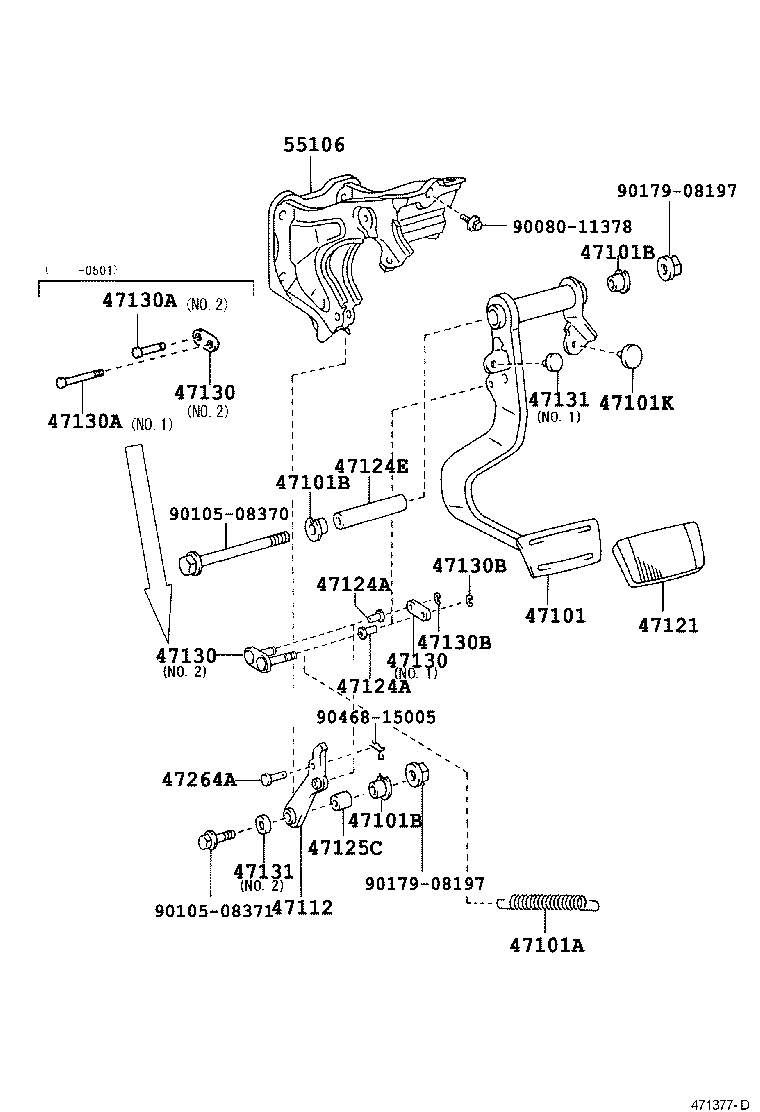

Click highlighted areas on diagram

diagram 47101 47101A 47101B 47101B 47101B 47101K 47112 47121 47124A 47124A 47124E 47125C 47130 47130 47130 47130A 47130A 47130B 47130B 47131 47131 47264A 55106 9008011378 9010508370 9010508371 9017908197 9017908197 9046815005
Part # Description Qty Price
47101 - PEDAL SUB-ASSY, BRAKE
47101-34060

UCK30,40,VCK30,40..4HC

 1
47101-34061

UCK30,40,VCK30,40..4HC

 1
47101-34130

UCK30,40,VCK30,40..4HC

W(VSC)

 1
47101-34061

UCK30,40,VCK30,40..4HC

 1
47101A - SPRING(FOR BRAKE PEDAL RETURN)
90905-07023

UCK30,40,VCK30,40

 1
90905-07023

UCK3#,4#,VCK30,40

 1
47101B - BUSH(FOR BRAKE PEDAL)
90389-14054

UCK30,40,VCK30,40

 3
90386-14015

UCK30,40,VCK30,40

 3
90386-14015

UCK3#,4#,VCK30,40

 3
90386-14015

UCK3#,4#,VCK30,40

W(VSC)

 2
47101B - BUSH(FOR BRAKE PEDAL)
90389-14054

UCK30,40,VCK30,40

 3
90386-14015

UCK30,40,VCK30,40

 3
90386-14015

UCK3#,4#,VCK30,40

 3
90386-14015

UCK3#,4#,VCK30,40

W(VSC)

 2
47101B - BUSH(FOR BRAKE PEDAL)
90389-14054

UCK30,40,VCK30,40

 3
90386-14015

UCK30,40,VCK30,40

 3
90386-14015

UCK3#,4#,VCK30,40

 3
90386-14015

UCK3#,4#,VCK30,40

W(VSC)

 2
47101K - CUSHION(FOR PARKING LOCK CABLE)
90541-06049

UCK30,40,VCK30,40..4HC

 1
90541-06049

UCK30,40,VCK30,40..4HC

 1
90541-06049

UCK3#,4#,VCK30,40

 1
47112 - LEVER, BRAKE PEDAL
47112-34010

UCK30,40,VCK30,40

 1
47112-34010

UCK30,40,VCK30,40

 1
47121 - PAD, BRAKE PEDAL
47121-14010

UCK30,40,VCK30,40..4HC

 1
47121-14010

UCK30,40,VCK30,40..4HC

 1
47121-14010

UCK3#,4#,VCK30,40

W(VSC)

 1
47124A - COLLAR(FOR BRAKE PEDAL SHAFT)
47144-34010

UCK30,40,VCK30,40

 2
47144-34010

UCK3#,4#,VCK30,40

 2
47124A - COLLAR(FOR BRAKE PEDAL SHAFT)
47144-34010

UCK30,40,VCK30,40

 2
47144-34010

UCK3#,4#,VCK30,40

 2
47124E - COLLAR, BRAKE PEDAL SHAFT, NO.2
90387-08156

UCK3#,4#,VCK30,40

 1
90387-08156

UCK30,40,VCK30,40

 1
47125C - COLLAR(FOR BRAKE PEDAL BRACKET)
90387-08157

UCK30,40,VCK30,40

 1
90387-08157

UCK3#,4#,VCK30,40

 1
47130 - LINK ASSY, BRAKE PEDAL
47130-60010

UCK3#,4#,VCK30,40

 2
47130-60010

UCK30,40,VCK30,40

 2
47130 - LINK ASSY, BRAKE PEDAL
47130-60010

UCK3#,4#,VCK30,40

 2
47130-60010

UCK30,40,VCK30,40

 2
47130 - LINK ASSY, BRAKE PEDAL
47130-60010

UCK3#,4#,VCK30,40

 2
47130-60010

UCK30,40,VCK30,40

 2
47130A - PIN, BRAKE PEDAL LINK
90249-06172

UCK30,40,VCK30,40

NO.2

 1
90249-06171

UCK3#,4#,VCK30,40

NO.1

 1
90249-06171

UCK30,40,VCK30,40

NO.1

 1
90249-06172

UCK3#,4#,VCK30,40

NO.2

 1
47130A - PIN, BRAKE PEDAL LINK
90249-06172

UCK30,40,VCK30,40

NO.2

 1
90249-06171

UCK3#,4#,VCK30,40

NO.1

 1
90249-06171

UCK30,40,VCK30,40

NO.1

 1
90249-06172

UCK3#,4#,VCK30,40

NO.2

 1
47130B - RING E, BRAKE PEDAL LINK PIN
96160-00400

UCK30,40,VCK30,40

 2
96160-00400

UCK3#,4#,VCK30,40

 2
47130B - RING E, BRAKE PEDAL LINK PIN
96160-00400

UCK30,40,VCK30,40

 2
96160-00400

UCK3#,4#,VCK30,40

 2
47131 - CUSHION(FOR STOP LAMP SWITCH)
90541-06036

UCK3#,4#,VCK30,40

NO.1

 1
47131-34010

UCK3#,4#,VCK30,40

NO.2

 1
47131-34010

UCK30,40,VCK30,40

NO.2

 1
90541-06036

UCK30,40,VCK30,40

NO.1

 1
47131 - CUSHION(FOR STOP LAMP SWITCH)
90541-06036

UCK3#,4#,VCK30,40

NO.1

 1
47131-34010

UCK3#,4#,VCK30,40

NO.2

 1
47131-34010

UCK30,40,VCK30,40

NO.2

 1
90541-06036

UCK30,40,VCK30,40

NO.1

 1
47264A - PIN(FOR PUSH ROD)
90240-06023

UCK30,40,VCK30,40

 1
90240-10157

UCK30,40,VCK30,40

W(VSC)

 1
90240-06023

UCK30,40,VCK30,40

 1
55106 - SUPPORT SUB-ASSY, BRAKE PEDAL
55106-34020

UCK30,40,VCK30,40

 1
55106-34020

UCK30,40,VCK30,40

 1
55106-34060

UCK30,40,VCK30,40

W(VSC)

 1
Common parts
90080-11378
90105-08370
90105-08371
90179-08197
90468-15005
