VCK40L-ARSLKA (1999)

Toyota Tundra

Production Jul 1999 - Aug 2002
Engine 5VZFE
Transmission 4HC ATM
Displacement 2500cc
Power 168 HP (125 kW)

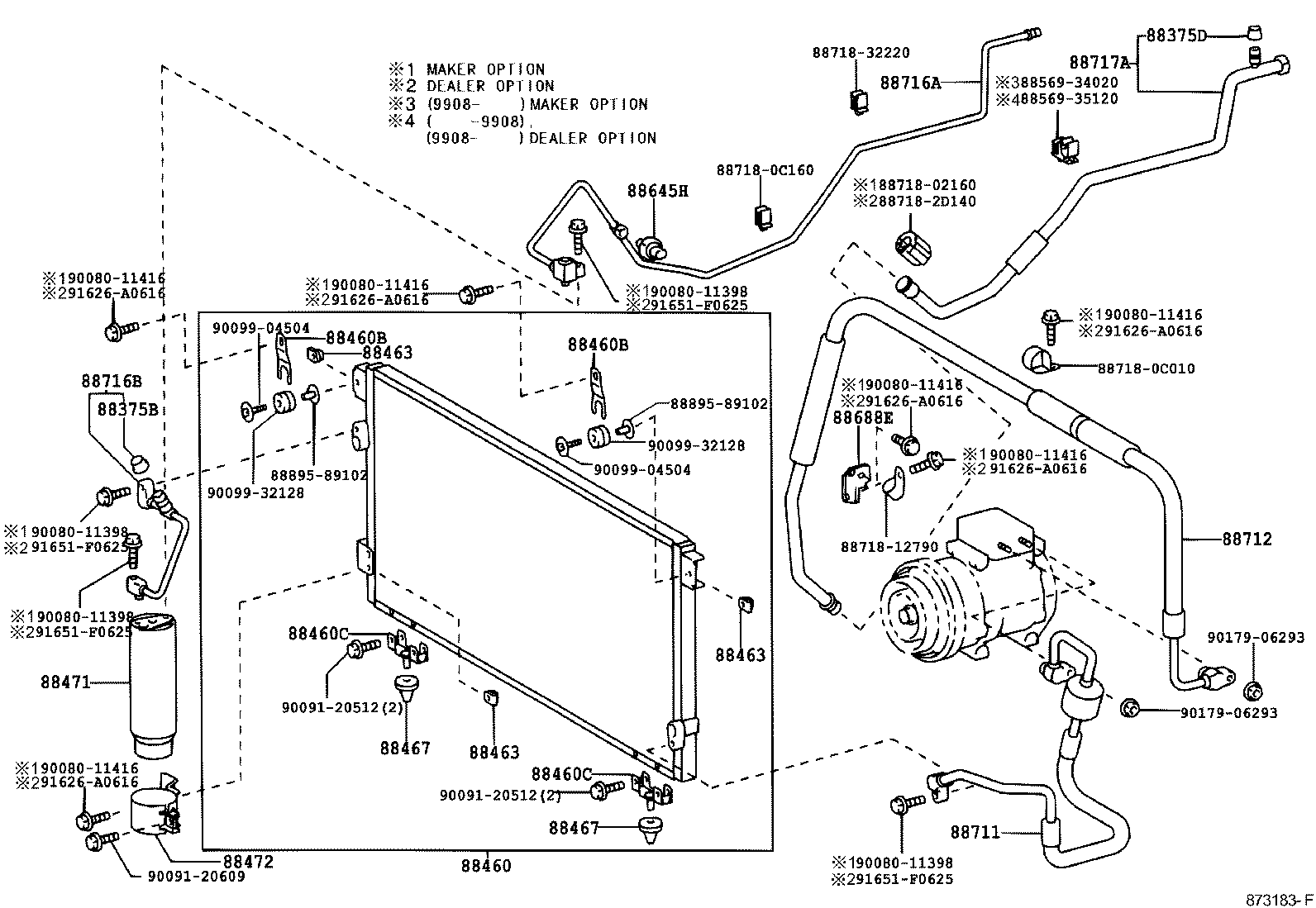

ILLUST NO. 1 OF 2(9902-0208)UCK30,40

Click highlighted areas on diagram

diagram 88375B 88375D 88460 88460B 88460B 88460C 88460C 88463 88463 88463 88467 88467 88471 88472 8856934020 8856935120 88645H 88688E 88711 88712 88716A 88716B 88717A 8871802160 887180C010 887180C160 8871812790 887182D140 8871832220 8889589102 8889589102 9008011398 9008011398 9008011398 9008011398 9008011416 9008011416 9008011416 9008011416 9008011416 9008011416 9009120512 9009120512 9009120609 9009904504 9009904504 9009932128 9009932128 9017906293 9017906293 91626A0616 91626A0616 91626A0616 91626A0616 91626A0616 91626A0616 91651F0625 91651F0625 91651F0625 91651F0625
Part # Description Qty Price
88375B - CAP, SERVICE VALVE, NO.1
88375-02020

UCK30,40,VCK30,40

 1
88375D - CAP, SERVICE VALVE, NO.2
88375-02050

UCK30,40

 1
88460 - CONDENSER ASSY, COOLER
88460-0C010

UCK30,40,VCK30,40

 1
88460B - BRACKET, COOLER CONDENSER, NO.1
88688-0C010

UCK30,40,VCK30,40

 2
88460B - BRACKET, COOLER CONDENSER, NO.1
88688-0C010

UCK30,40,VCK30,40

 2
88460C - BRACKET, COOLER CONDENSER, NO.2
88688-0C020

UCK30,40,VCK30,40

 2
88460C - BRACKET, COOLER CONDENSER, NO.2
88688-0C020

UCK30,40,VCK30,40

 2
88463 - BRACKET, COOLER CONDENSER, NO.1
88463-35120

UCK30,40,VCK30,40

 3
88463 - BRACKET, COOLER CONDENSER, NO.1
88463-35120

UCK30,40,VCK30,40

 3
88463 - BRACKET, COOLER CONDENSER, NO.1
88463-35120

UCK30,40,VCK30,40

 3
88467 - CUSHION, COOLER CONDENSER, NO.1
88467-32060

UCK30,40,VCK30,40

 2
88467 - CUSHION, COOLER CONDENSER, NO.1
88467-32060

UCK30,40,VCK30,40

 2
88471 - TANK, RECEIVER AIR CONDITIONER
88471-20050

UCK30,40,VCK30,40

 1
88472 - BRACKET, RECEIVER TANK, NO.1
88472-0C010

UCK30,40,VCK30,40

 1
88645H - SWITCH, PRESSURE NO.1
88645-34010

UCK30,40,VCK30,40

 1
88688E - BRACKET, COOLER REFRIGERANT HOSE, NO.1
88688-0C030

UCK30,40

 1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-0C030

UCK30,40

 1
88711-0C010

VCK30,40

 1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-0C021

UCK30,40

 1
88712-0C010

VCK30,40

 1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-0C010

UCK30,40,VCK30,40

 1
88716-0C012

UCK30,40,VCK30,40

MAKER OPTION

 1
88716B - PIPE, COOLER REFRIGERANT LIQUID, B
88716-0C020

VCK30,40

 1
88716-0C030

UCK30,40

 1
88717A - PIPE, COOLER REFRIGERANT SUCTION, A
88717-0C010

UCK30,40

 1
Common parts
88569-34020
88569-35120
88718-02160
88718-0C010
88718-0C160
88718-12790
88718-2D140
88718-32220
88895-89102
90080-11398
90080-11416
90091-20512
90091-20609
90099-04504
90099-32128
90179-06293
91626-A0616
91651-F0625

ILLUST NO. 1 OF 2(9902-0208)VCK30,40

Click highlighted areas on diagram

diagram 88375A 88375B 88460 88460B 88460B 88460C 88460C 88463 88463 88463 88467 88467 88471 88472 88645H 88711 88712 88716A 88716B 887180C160 8871832220 8871832220 8889589102 8889589102 9008010194 9008010194 9008011398 9008011398 9008011398 9008011398 9008011416 9008011416 9008011416 9009120512 9009120512 9009120609 9009904504 9009904504 9009932128 9009932128 9151160630 9151160630 91626A0616 91626A0616 91626A0616 91651F0625 91651F0625 91651F0625 91651F0625
Part # Description Qty Price
88375A - CAP, SERVICE VALVE (FOR COOLER PIPE)
88375-02050

VCK30,40

 1
88375B - CAP, SERVICE VALVE, NO.1
88375-02020

UCK30,40,VCK30,40

 1
88460 - CONDENSER ASSY, COOLER
88460-0C010

UCK30,40,VCK30,40

 1
88460B - BRACKET, COOLER CONDENSER, NO.1
88688-0C010

UCK30,40,VCK30,40

 2
88460B - BRACKET, COOLER CONDENSER, NO.1
88688-0C010

UCK30,40,VCK30,40

 2
88460C - BRACKET, COOLER CONDENSER, NO.2
88688-0C020

UCK30,40,VCK30,40

 2
88460C - BRACKET, COOLER CONDENSER, NO.2
88688-0C020

UCK30,40,VCK30,40

 2
88463 - BRACKET, COOLER CONDENSER, NO.1
88463-35120

UCK30,40,VCK30,40

 3
88463 - BRACKET, COOLER CONDENSER, NO.1
88463-35120

UCK30,40,VCK30,40

 3
88463 - BRACKET, COOLER CONDENSER, NO.1
88463-35120

UCK30,40,VCK30,40

 3
88467 - CUSHION, COOLER CONDENSER, NO.1
88467-32060

UCK30,40,VCK30,40

 2
88467 - CUSHION, COOLER CONDENSER, NO.1
88467-32060

UCK30,40,VCK30,40

 2
88471 - TANK, RECEIVER AIR CONDITIONER
88471-20050

UCK30,40,VCK30,40

 1
88472 - BRACKET, RECEIVER TANK, NO.1
88472-0C010

UCK30,40,VCK30,40

 1
88645H - SWITCH, PRESSURE NO.1
88645-34010

UCK30,40,VCK30,40

 1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-0C030

UCK30,40

 1
88711-0C010

VCK30,40

 1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-0C021

UCK30,40

 1
88712-0C010

VCK30,40

 1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-0C010

UCK30,40,VCK30,40

 1
88716-0C012

UCK30,40,VCK30,40

MAKER OPTION

 1
88716B - PIPE, COOLER REFRIGERANT LIQUID, B
88716-0C020

VCK30,40

 1
88716-0C030

UCK30,40

 1
Common parts
88718-0C160
88718-32220
88895-89102
90080-10194
90080-11398
90080-11416
90091-20512
90091-20609
90099-04504
90099-32128
91511-60630
91626-A0616
91651-F0625
