VCK40L-ARMSKK (1999)

Toyota Tundra

Production Feb 1999 - Aug 2000
Engine 5VZFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9902- )GSK30,UCK30,40,VCK30,40

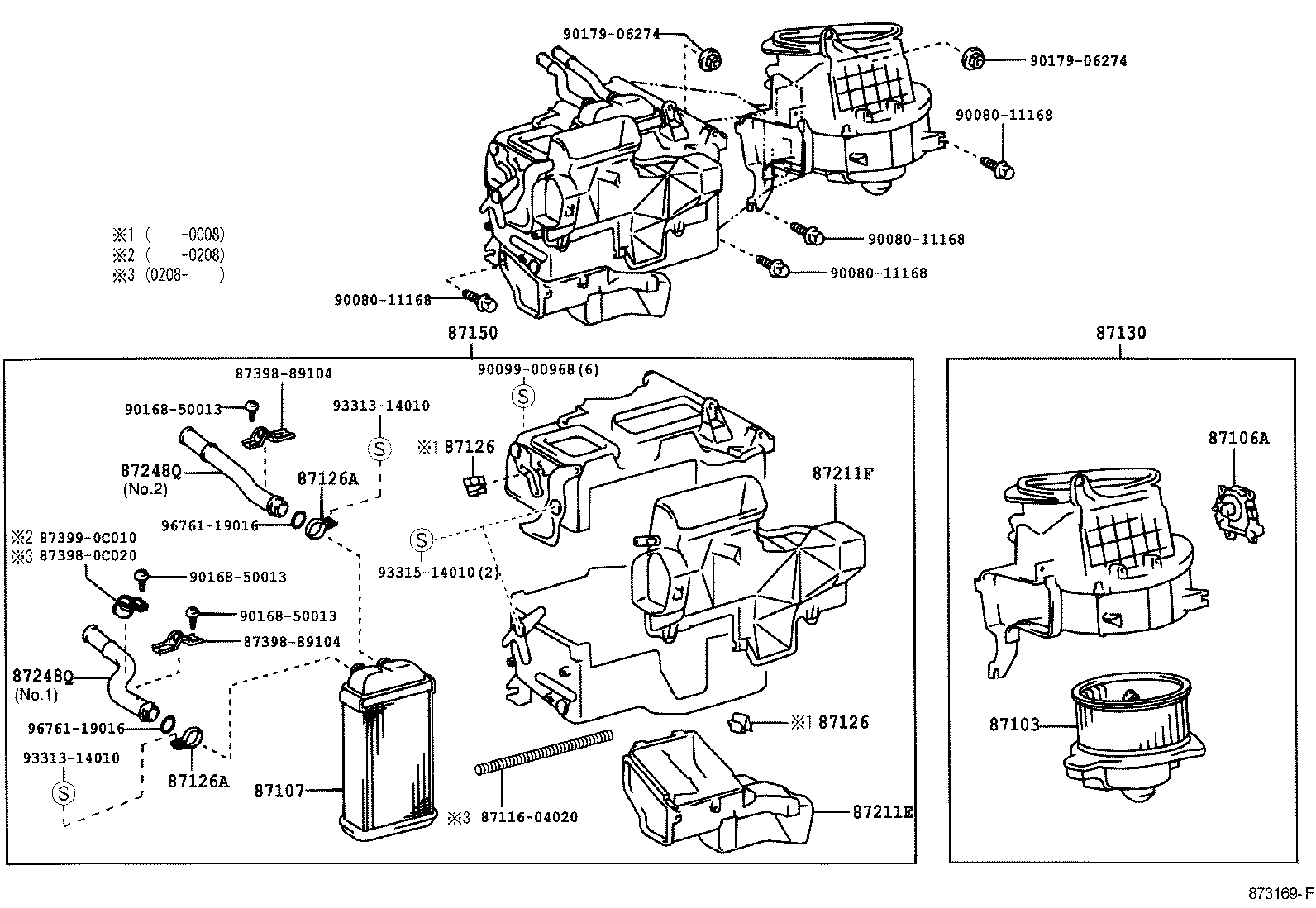

Click highlighted areas on diagram

diagram 87103 87106A 87107 8711604020 87126 87126 87126A 87126A 87130 87150 87211E 87211F 87248Q 87248Q 873980C020 8739889104 8739889104 873990C010 9008011168 9008011168 9008011168 9008011168 9009900968 9016850013 9016850013 9016850013 9017906274 9017906274 9331314010 9331314010 9331514010 9676119016 9676119016
Part # Description Qty Price
87103 - MOTOR SUB-ASSY, HEATER BLOWER, W/FAN
87103-0C010

UCK30,40,VCK30,40

 1
87106A - SERVO SUB-ASSY, DAMPER
87106-0C010

UCK30,40,VCK30,40

 1
87107 - UNIT SUB-ASSY, HEATER RADIATOR
87107-0C010

UCK30,40,VCK30,40

 1
87126 - CLAMP, HEATER CONTROL
87124-20020

UCK30,40,VCK30,40

 2
87126 - CLAMP, HEATER CONTROL
87124-20020

UCK30,40,VCK30,40

 2
87126A - CLAMP, HEATER CONTROL
87124-35040

UCK30,40,VCK30,40

 2
87126A - CLAMP, HEATER CONTROL
87124-35040

UCK30,40,VCK30,40

 2
87130 - BLOWER ASSY, HEATER, FRONT
87130-0C010

UCK30,40,VCK30,40

 1
87150 - RADIATOR ASSY, HEATER
87150-0C010

UCK30,40,VCK30,40

 1
87211E - DUCT, AIR
87211-0C020

UCK30,40,VCK30,40

 1
87211F - DUCT, AIR
87211-0C010

UCK30,40,VCK30,40

 1
87248Q - PIPE, FRONT HEATER RADIATOR WATER
87156-0C020

UCK30,40,VCK30,40

NO.2

 1
87156-0C010

UCK30,40,VCK30,40

NO.1

 1
87248Q - PIPE, FRONT HEATER RADIATOR WATER
87156-0C020

UCK30,40,VCK30,40

NO.2

 1
87156-0C010

UCK30,40,VCK30,40

NO.1

 1
Common parts
87116-04020
87398-0C020
87398-89104
87399-0C010
90080-11168
90099-00968
90168-50013
90179-06274
93313-14010
93315-14010
96761-19016
