VCK40L-ARMSKK (1999)
Toyota Tundra

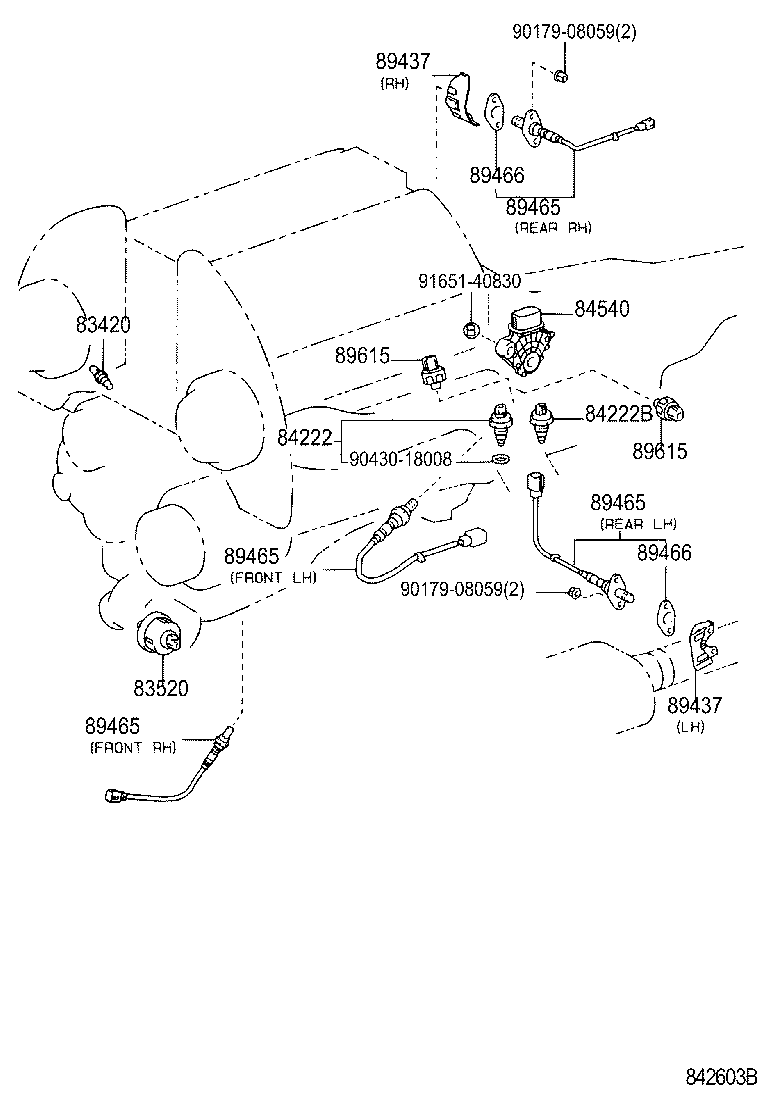

ILLUST NO. 1 OF 8(9902-0408)UCK30,40
ENGINE & TRANSMISSION
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83420 - GAGE ASSY, WATER TEMPERATURE SENDER | ||||
| 83420-20040 |
UCK30,40 |
1 | ||
| 83420-16020 |
VCK30,40 |
1 | ||
| 83520 - GAGE ASSY,OIL PRESSURE SENDER | ||||
| 83520-35020 |
UCK30,40;VCK30,40..LIMD,SR5 |
1 | ||
| 84222 - SWITCH, TRANSFER INDICATOR, NO.1 | ||||
| 84222-35110 |
VCK40 |
1 | ||
| 84222B - SWITCH, TRANSFER INDICATOR, NO.2 | ||||
| 84222-35080 |
VCK40 |
1 | ||
| 89437 - COVER, SENSOR | ||||
| 89437-60030 |
VCK30,40 |
1 | ||
| 89437 - COVER, SENSOR | ||||
| 89437-60030 |
VCK30,40 |
1 | ||
| 89465 - SENSOR, OXYGEN | ||||
| 89465-09130 |
VCK30,40..5F FRONT |
1 | ||
| 89465-34080 |
UCK30,40 FRONT RH |
1 | ||
| 89465-09150 |
VCK30,40 REAR |
1 | ||
| 89465-34110 |
UCK30,40 FRONT LH |
1 | ||
| 89465 - SENSOR, OXYGEN | ||||
| 89465-09130 |
VCK30,40..5F FRONT |
1 | ||
| 89465-34080 |
UCK30,40 FRONT RH |
1 | ||
| 89465-09150 |
VCK30,40 REAR |
1 | ||
| 89465-34110 |
UCK30,40 FRONT LH |
1 | ||
| 89465 - SENSOR, OXYGEN | ||||
| 89465-09130 |
VCK30,40..5F FRONT |
1 | ||
| 89465-34080 |
UCK30,40 FRONT RH |
1 | ||
| 89465-09150 |
VCK30,40 REAR |
1 | ||
| 89465-34110 |
UCK30,40 FRONT LH |
1 | ||
| 89465 - SENSOR, OXYGEN | ||||
| 89465-09130 |
VCK30,40..5F FRONT |
1 | ||
| 89465-34080 |
UCK30,40 FRONT RH |
1 | ||
| 89465-09150 |
VCK30,40 REAR |
1 | ||
| 89465-34110 |
UCK30,40 FRONT LH |
1 | ||
| 89466 - GASKET, OXYGEN SENSOR | ||||
| 89466-20020 |
UCK30,40,VCK30,40 |
2 | ||
| 89466 - GASKET, OXYGEN SENSOR | ||||
| 89466-20020 |
UCK30,40,VCK30,40 |
2 | ||
| 89615 - SENSOR, KNOCK CONTROL | ||||
| 89615-22030 |
UCK30,40 |
2 | ||
| 89615-12040 |
VCK30,40 MATSUSHITA |
2 | ||
| 89615-12050 |
VCK30,40 DENSO |
2 | ||
| 89615 - SENSOR, KNOCK CONTROL | ||||
| 89615-22030 |
UCK30,40 |
2 | ||
| 89615-12040 |
VCK30,40 MATSUSHITA |
2 | ||
| 89615-12050 |
VCK30,40 DENSO |
2 | ||
| Common parts | ||||
| 90179-08059 | ||||
| 90430-18008 | ||||
| 91651-40830 | ||||

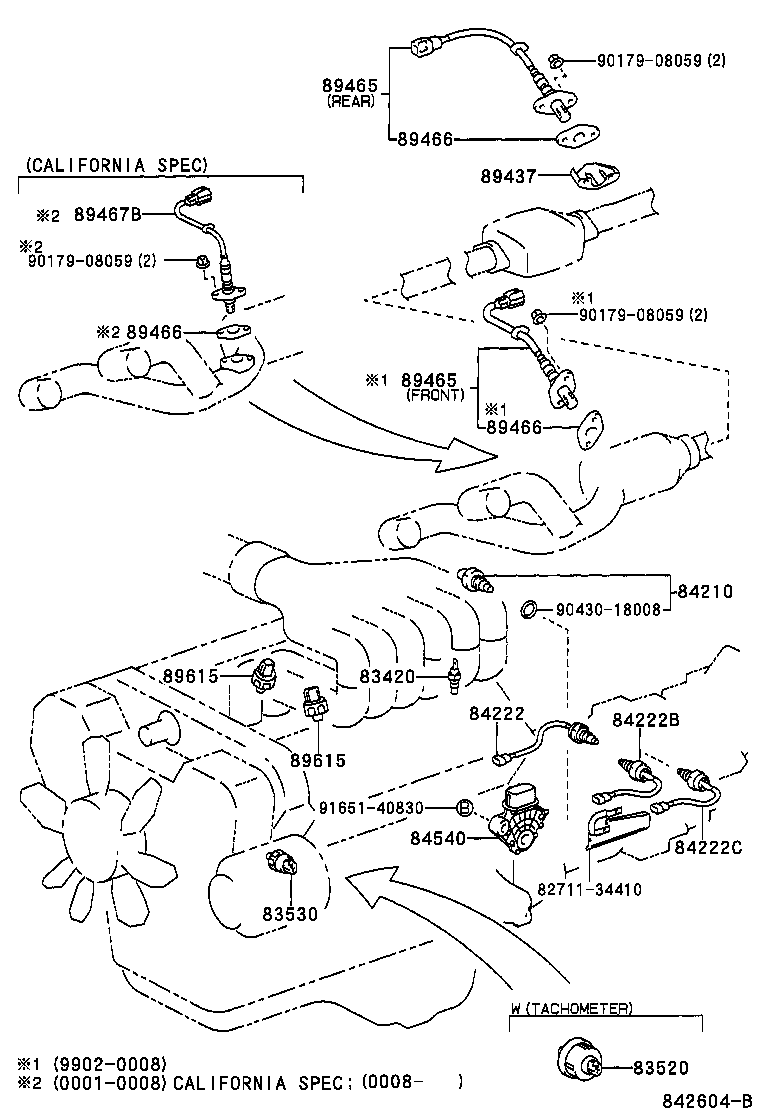

ILLUST NO. 1 OF 8(9902-0408)VCK30,40
ENGINE & TRANSMISSION
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83420 - GAGE ASSY, WATER TEMPERATURE SENDER | ||||
| 83420-20040 |
UCK30,40 |
1 | ||
| 83420-16020 |
VCK30,40 |
1 | ||
| 83520 - GAGE ASSY,OIL PRESSURE SENDER | ||||
| 83520-35020 |
UCK30,40;VCK30,40..LIMD,SR5 |
1 | ||
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-28020 |
VCK30,40..DLX,SR5 |
1 | ||
| 84210 - SWITCH ASSY, BACK-UP LAMP | ||||
| 84210-12040 |
VCK30,40..5F |
1 | ||
| 84222 - SWITCH, TRANSFER INDICATOR, NO.1 | ||||
| 84222-35110 |
VCK40 |
1 | ||
| 84222B - SWITCH, TRANSFER INDICATOR, NO.2 | ||||
| 84222-35080 |
VCK40 |
1 | ||
| 89437 - COVER, SENSOR | ||||
| 89437-60030 |
VCK30,40 |
1 | ||
| 89465 - SENSOR, OXYGEN | ||||
| 89465-09130 |
VCK30,40..5F FRONT |
1 | ||
| 89465-34080 |
UCK30,40 FRONT RH |
1 | ||
| 89465-09150 |
VCK30,40 REAR |
1 | ||
| 89465-34110 |
UCK30,40 FRONT LH |
1 | ||
| 89465 - SENSOR, OXYGEN | ||||
| 89465-09130 |
VCK30,40..5F FRONT |
1 | ||
| 89465-34080 |
UCK30,40 FRONT RH |
1 | ||
| 89465-09150 |
VCK30,40 REAR |
1 | ||
| 89465-34110 |
UCK30,40 FRONT LH |
1 | ||
| 89466 - GASKET, OXYGEN SENSOR | ||||
| 89466-20020 |
UCK30,40,VCK30,40 |
2 | ||
| 89466 - GASKET, OXYGEN SENSOR | ||||
| 89466-20020 |
UCK30,40,VCK30,40 |
2 | ||
| 89466 - GASKET, OXYGEN SENSOR | ||||
| 89466-20020 |
UCK30,40,VCK30,40 |
2 | ||
| 89615 - SENSOR, KNOCK CONTROL | ||||
| 89615-22030 |
UCK30,40 |
2 | ||
| 89615-12040 |
VCK30,40 MATSUSHITA |
2 | ||
| 89615-12050 |
VCK30,40 DENSO |
2 | ||
| 89615 - SENSOR, KNOCK CONTROL | ||||
| 89615-22030 |
UCK30,40 |
2 | ||
| 89615-12040 |
VCK30,40 MATSUSHITA |
2 | ||
| 89615-12050 |
VCK30,40 DENSO |
2 | ||
| Common parts | ||||
| 82711-34410 | ||||
| 90179-08059 | ||||
| 90430-18008 | ||||
| 91651-40830 | ||||
ILLUST NO. 2 OF 8(9902-0208)
ENGINE ROOM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28300 - RELAY ASSY, STARTER | ||||
| 28300-10020 |
2UZFE,5VZFE..UCK30,40,VCK30,40 |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90080-82023 |
UCK30,40,VCK30,40 20A,MINI FUSE,YELLOW |
1 | ||
| 90080-82022 |
UCK30,40,VCK30,40 15A,MINI FUSE,BLUE |
1 | ||
| 90080-82031 |
UCK30,40,VCK30,40 5A,MINI FUSE,TAN |
1 | ||
| 90080-82021 |
UCK30,40,VCK30,40 10A,MINI FUSE,RED |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90080-82023 |
UCK30,40,VCK30,40 20A,MINI FUSE,YELLOW |
1 | ||
| 90080-82022 |
UCK30,40,VCK30,40 15A,MINI FUSE,BLUE |
1 | ||
| 90080-82031 |
UCK30,40,VCK30,40 5A,MINI FUSE,TAN |
1 | ||
| 90080-82021 |
UCK30,40,VCK30,40 10A,MINI FUSE,RED |
1 | ||
| 82616 - PULLER, FUSE | ||||
| 82616-20010 |
UCK30,40,VCK30,40 |
1 | ||
| 82642B - RELAY, DAY TIME RUNNING LIGHT, NO.1 | ||||
| 90987-02006 |
UCK30,40,VCK30,40 |
1 | ||
| 82661 - COVER, RELAY BLOCK, NO.1 | ||||
| 82661-0C040 |
UCK30,40..CND |
1 | ||
| 82661-0C030 |
VCK30,40..CND |
1 | ||
| 82663 - COVER, RELAY BLOCK, LOWER | ||||
| 82663-0C010 |
UCK30,40,VCK30,40 |
1 | ||
| 82690 - RESISTOR ASSY, DIM DIP LAMP | ||||
| 82690-34020 |
UCK30,40,VCK30,40 |
1 | ||
| 82741 - BLOCK, ENGINE ROOM RELAY | ||||
| 82741-0C010 |
UCK30,40,VCK30,40 |
1 | ||
| 85530A - RELAY, POWER OUTLET SOCKET | ||||
| 90987-02006 |
UCK30,40,VCK30,40 |
1 | ||
| 85910C - RELAY ASSY (FOR HEATER BLOWER MOTOR) | ||||
| 90987-04002 |
UCK30,40,VCK30,40 |
1 | ||
| 85916D - RELAY, FOG LAMP | ||||
| 90987-02006 |
UCK30,40,VCK30,40 |
1 | ||
| 85916P - RELAY, HEADLAMP | ||||
| 90987-02006 |
UCK30,40,VCK30,40 |
1 | ||
| 85926 - RELAY, HEADLAMP DIMMER | ||||
| 85926-30020 |
UCK30,40,VCK30,40 |
1 | ||
| 89438 - SWITCH, POWER STEERING OIL PRESSURE | ||||
| 89438-33010 |
VCK30,40 |
1 | ||
| 89620 - IGNITER ASSY | ||||
| 89621-07010 |
VCK30,40 |
1 | ||
| 89629 - BRACKET, IGNITER ASSY | ||||
| 89629-0C010 |
VCK30,40 |
1 | ||
| Common parts | ||||
| 90080-11395 | ||||
| 90080-11403 | ||||
| 90119-06033 | ||||
| 93319-A5014 | ||||
| Linked diagrams | ||||
| 8202 | ||||
| 8404 | ||||

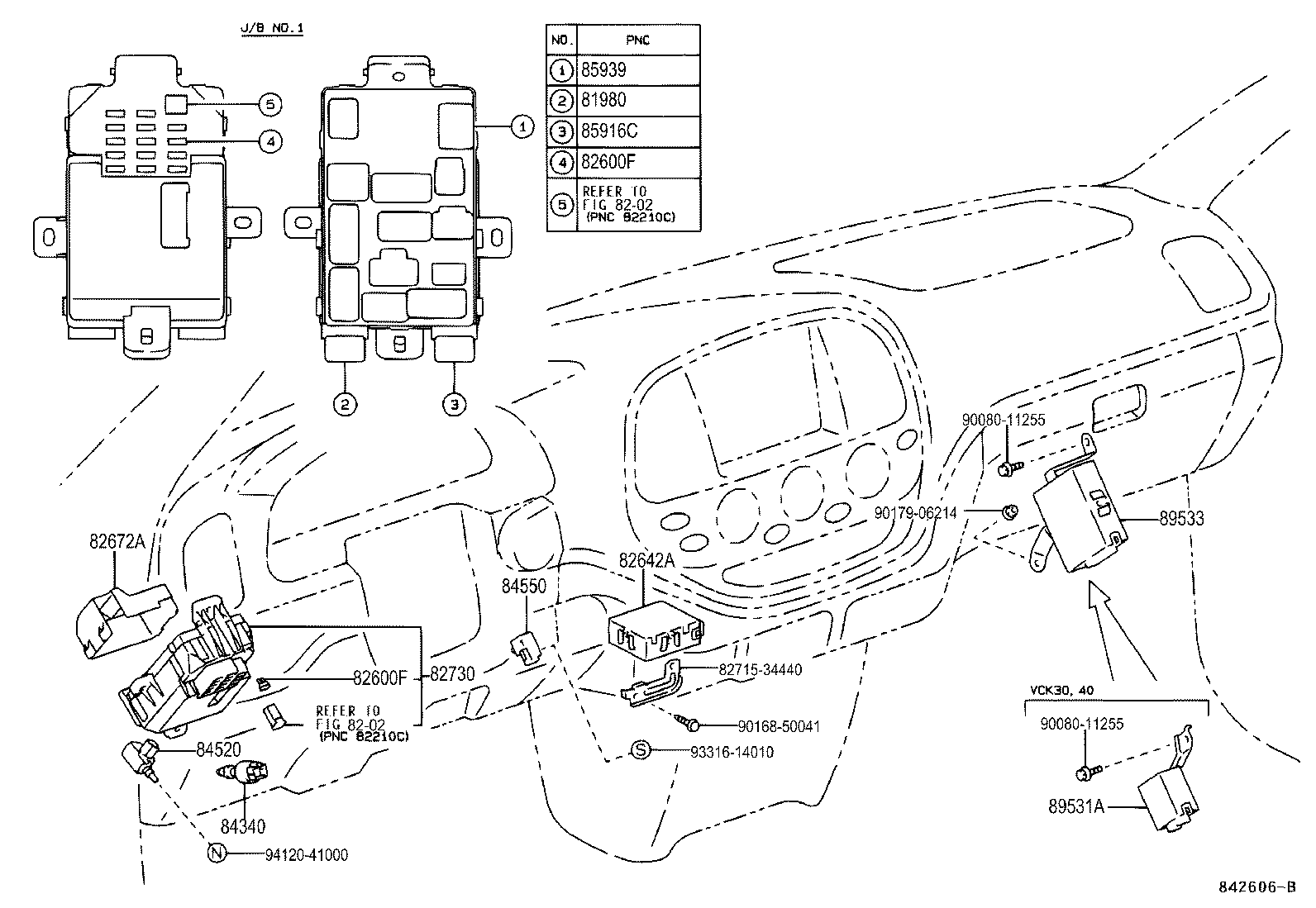

ILLUST NO. 3 OF 8(9902-0208)
COWL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81980 - FLASHER ASSY, TURN SIGNAL | ||||
| 81980-50020 |
UCK30,40,VCK30,40 |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90080-82023 |
UCK30,40,VCK30,40 20A,MINI FUSE,YELLOW |
1 | ||
| 90080-82022 |
UCK30,40,VCK30,40 15A,MINI FUSE,BLUE |
1 | ||
| 90080-82031 |
UCK30,40,VCK30,40 5A,MINI FUSE,TAN |
1 | ||
| 90080-82021 |
UCK30,40,VCK30,40 10A,MINI FUSE,RED |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90080-82023 |
UCK30,40,VCK30,40 20A,MINI FUSE,YELLOW |
1 | ||
| 90080-82022 |
UCK30,40,VCK30,40 15A,MINI FUSE,BLUE |
1 | ||
| 90080-82031 |
UCK30,40,VCK30,40 5A,MINI FUSE,TAN |
1 | ||
| 90080-82021 |
UCK30,40,VCK30,40 10A,MINI FUSE,RED |
1 | ||
| 82642A - RELAY, RUNNING LIGHT | ||||
| 82642-22020 |
UCK30,40,VCK30,40 |
1 | ||
| 82672A - COVER, JUNCTION BLOCK | ||||
| 82672-0C010 |
UCK30,40,VCK30,40 |
1 | ||
| 82730 - BLOCK ASSY, INSTRUMENT PANEL JUNCTION | ||||
| 82730-0C010 |
UCK30,40,VCK30,40..DLX,SR5 |
1 | ||
| 82730-0C020 |
VCK30..5F..SR5;VCK30..4HC..USA;VCK30..SR5..CND;UCK30,40,VCK40..LIMD,SR5 W(POWER WINDOW) |
1 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-32090 |
VCK30,40..DLX,SR5 |
1 | ||
| 84340-32110 |
UCK30..SR5;UCK40..USA;UCK40..SR5..CND;UCK30..LIMD..USA;VCK30,40..LIMD,SR5 W(CRUISE CONTROL) |
1 | ||
| 84520 - SWITCH ASSY, CLUTCH START | ||||
| 84520-24010 |
VCK30,40..5F |
1 | ||
| 84550 - SWITCH ASSY, PARKING BRAKE | ||||
| 84550-34020 |
VCK30,40..5F |
1 | ||
| 85939 - RELAY, POWER WINDOW | ||||
| 90987-02012 |
UCK30,40,VCK30,40..LIMD,SR5 PART NUMBER LABEL=90987-02012 |
1 | ||
| 90084-98031 |
UCK30,40,VCK30,40..LIMD,SR5 PART NUMBER LABEL=90084-98031 |
1 | ||
| 89531A - RELAY, TRANSMISSION CONTROL | ||||
| 89531-34010 |
VCK40 |
1 | ||
| Common parts | ||||
| 82715-34440 | ||||
| 90080-11255 | ||||
| 90168-50041 | ||||
| 90179-06214 | ||||
| 93316-14010 | ||||
| 94120-41000 | ||||
| Linked diagrams | ||||
| 8202 | ||||

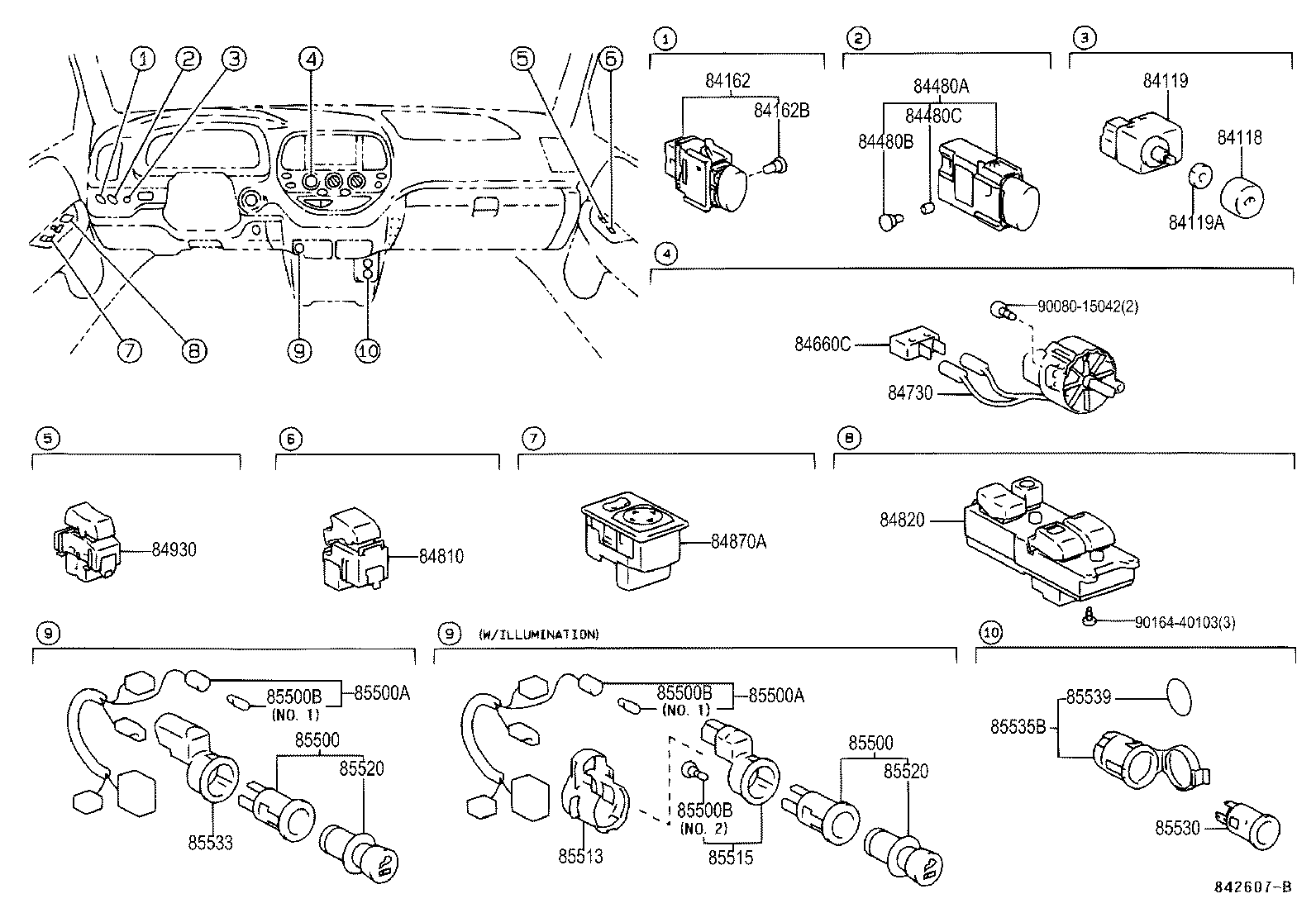

ILLUST NO. 4 OF 8(9902-0208)
INSTRMENT PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84118 - KNOB, LIGHT CONTROL RHEOSTAT | ||||
| 84118-04010 |
UCK30,40,VCK30,40 |
1 | ||
| 84119 - RHEOSTAT, LIGHT CONTROL | ||||
| 84119-03010 |
UCK30,40,VCK30,40 |
1 | ||
| 84119A - BOLT OR NUT, RHEOSTAT CONTROL SET | ||||
| 90170-09002 |
UCK30,40,VCK30,40 |
1 | ||
| 84162 - SWITCH, FRONT FOG LAMP | ||||
| 84160-0C010 |
UCK30,40,VCK30,40 |
1 | ||
| 84162B - BULB, FOG LAMP SWITCH | ||||
| 90011-01001 |
UCK30,40,VCK30,40 14V 0.91W |
1 | ||
| 84480A - SWITCH ASSY, CLUTCH START CANCEL | ||||
| 84480-34020 |
VCK40..5F |
1 | ||
| 84480B - BULB, MAIN SWITCH ASSY | ||||
| 84999-10850 |
VCK40..5F 14V 0.84W |
1 | ||
| 84480C - CAP BULB, MAIN SWITCH ASSY | ||||
| 84998-10720 |
VCK40..5F |
1 | ||
| 84660C - SWITCH, COOLER | ||||
| 84660-0C010 |
UCK30,40,VCK30,40 |
1 | ||
| 84730 - SWITCH ASSY, HEATER BLOWER | ||||
| 84732-0C010 |
UCK30,40,VCK30,40 |
1 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-08010 |
UCK30,40,VCK30,40..LIMD,SR5 |
1 | ||
| 84820 - MASTER SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84820-08010 |
UCK30,40,VCK30,40..LIMD,SR5 |
1 | ||
| 84870A - SWITCH ASSY, OUTER MIRROR | ||||
| 84870-34010 |
UCK30,40,VCK30,40..LIMD,SR5 |
1 | ||
| 84930 - SWITCH ASSY, DOOR CONTROL | ||||
| 84930-AA010 |
UCK30,40,VCK30,40..LIMD,SR5 |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-12240 |
UCK30,40,VCK30,40 |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-12240 |
UCK30,40,VCK30,40 |
1 | ||
| 85500A - WIRE, CIGARETTE LIGHTER | ||||
| 82390-0C020 |
UCK30..SR5;UCK40..USA;UCK40..SR5..CND;UCK30..LIMD..USA;VCK30,40..LIMD,SR5 W(ILLUMINATION) |
1 | ||
| 82390-0C010 |
UCK30,40,VCK30,40..DLX,SR5 |
1 | ||
| 85500A - WIRE, CIGARETTE LIGHTER | ||||
| 82390-0C020 |
UCK30..SR5;UCK40..USA;UCK40..SR5..CND;UCK30..LIMD..USA;VCK30,40..LIMD,SR5 W(ILLUMINATION) |
1 | ||
| 82390-0C010 |
UCK30,40,VCK30,40..DLX,SR5 |
1 | ||
| 85500B - BULB, CIGARETTE LIGHTER | ||||
| 84999-10250 |
UCK30,40,VCK30,40..LIMD,SR5 14V 1.4W |
1 | ||
| 85500B - BULB, CIGARETTE LIGHTER | ||||
| 84999-10250 |
UCK30,40,VCK30,40..LIMD,SR5 14V 1.4W |
1 | ||
| 85500B - BULB, CIGARETTE LIGHTER | ||||
| 84999-10250 |
UCK30,40,VCK30,40..LIMD,SR5 14V 1.4W |
1 | ||
| 85513 - COVER, CIGARETTE LIGHTER | ||||
| 85513-12020 |
UCK30,40,VCK30,40..LIMD,SR5 |
1 | ||
| 85515 - STAY, CIGARETTE LIGHTER BEZEL | ||||
| 85515-32010 |
UCK30,40,VCK30,40..LIMD,SR5 |
1 | ||
| 85520 - KNOB AND ELEMENT ASSY, CIGARETTE LIGHTER | ||||
| 85520-28010 |
UCK30,40,VCK30,40 |
1 | ||
| 85520 - KNOB AND ELEMENT ASSY, CIGARETTE LIGHTER | ||||
| 85520-28010 |
UCK30,40,VCK30,40 |
1 | ||
| 85530 - SOCKET ASSY, POWER OUTLET, NO.1 | ||||
| 85530-33020 |
UCK30,40,VCK30,40 |
2 | ||
| 85533 - LENS, CIGARETTE LIGHTER INDICATOR | ||||
| 85533-26010 |
UCK30,40,VCK30,40..DLX,SR5 |
1 | ||
| 85535B - COVER, POWER OUTLET SOCKET, NO.1 | ||||
| 85535-60020C0 |
UCK30,40,VCK30,40..LIMD,SR5 BLACK,TRIM10,11,4# |
2 | ||
| 85539 - LABEL, POWER OUTLET NOTICE | ||||
| 85539-60020 |
UCK30,40,VCK30,40 |
2 | ||
| Common parts | ||||
| 90080-15042 | ||||
| 90164-40103 | ||||

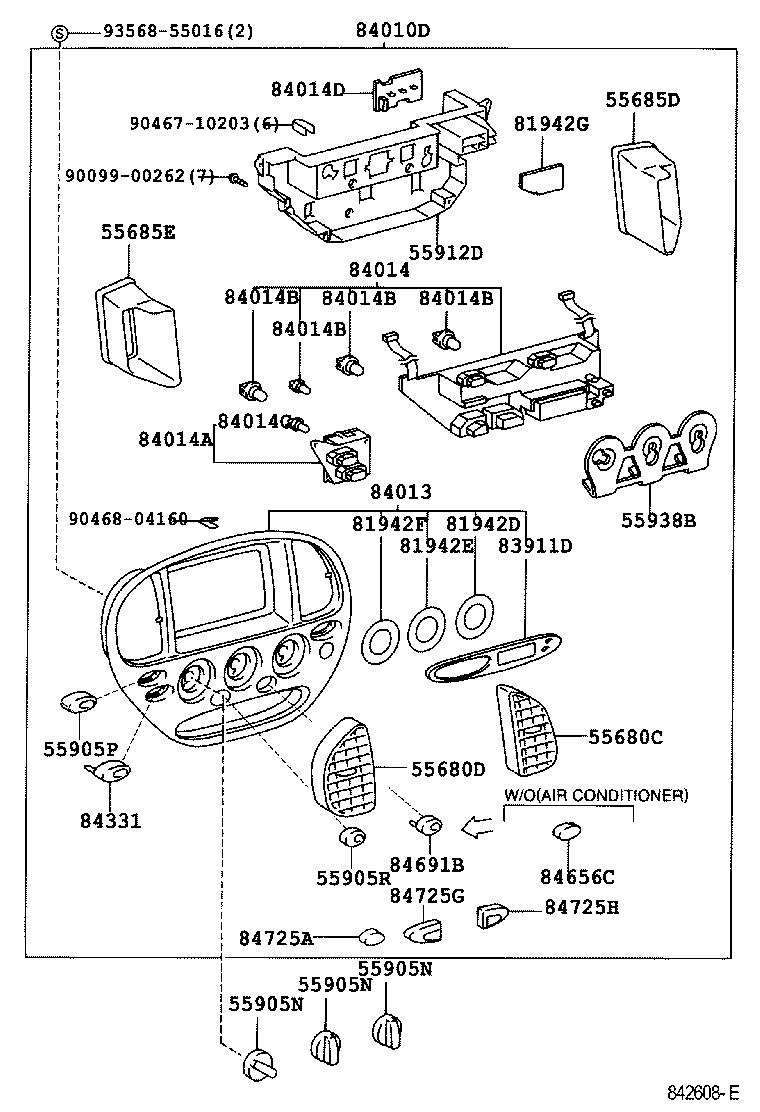

ILLUST NO. 6 OF 8(9902-0408)UCK30,40,VCK30,40
INTEGRATION PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55680C - REGISTER ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55680-0C010 |
UCK30,40,VCK30,40 |
1 | ||
| 55680D - REGISTER ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55680-0C020 |
UCK30,40,VCK30,40 |
1 | ||
| 55685D - RETAINER, REGISTER BLADE, NO.1 | ||||
| 55685-0C010 |
UCK30,40,VCK30,40 |
1 | ||
| 55685E - RETAINER, REGISTER BLADE, NO.2 | ||||
| 55685-0C020 |
UCK30,40,VCK30,40 |
1 | ||
| 55905N - KNOB SUB-ASSY, CONTROL, NO.1 | ||||
| 55905-0C010 |
UCK30,40,VCK30,40 |
3 | ||
| 55905N - KNOB SUB-ASSY, CONTROL, NO.1 | ||||
| 55905-0C010 |
UCK30,40,VCK30,40 |
3 | ||
| 55905N - KNOB SUB-ASSY, CONTROL, NO.1 | ||||
| 55905-0C010 |
UCK30,40,VCK30,40 |
3 | ||
| 55905P - KNOB SUB-ASSY, CONTROL, NO.2 | ||||
| 55905-0C020 |
UCK30,40,VCK30,40 |
1 | ||
| 55905R - KNOB SUB-ASSY, CONTROL, NO.4 | ||||
| 55905-0C030 |
UCK30,40,VCK30,40 |
1 | ||
| 55912D - HOUSING, HEATER CONTROL | ||||
| 55912-0C010 |
UCK30,40,VCK30,40 |
1 | ||
| 81942D - SHEET, HEATER CONTROL NAME, NO.1 | ||||
| 81942-0C020 |
UCK30,40,VCK30,40 |
1 | ||
| 81942E - SHEET, HEATER CONTROL NAME, NO.2 | ||||
| 81942-0C030 |
UCK30,40,VCK30,40 |
1 | ||
| 81942F - SHEET, HEATER CONTROL NAME, NO.3 | ||||
| 81942-0C040 |
UCK30,40,VCK30,40 |
1 | ||
| 81942G - SHEET, HEATER CONTROL NAME, NO.4 | ||||
| 81942-0C010 |
UCK30,40,VCK30,40 |
1 | ||
| 83911D - ORNAMENT, CLOCK | ||||
| 83911-0C020 |
UCK30,VCK30,40 |
1 | ||
| 84010D - CONTROL & PANEL ASSY, INTEGRATION | ||||
| 84010-0C030 |
UCK30,VCK30,40 BLACK PANEL,W(A/C SW.) |
1 | ||
| 84010-0C040 |
UCK30,VCK30,40..DLX,SR5 BLACK PANEL |
1 | ||
| 84013 - PANEL SUB-ASSY, INTEGRATION | ||||
| 84013-0C040 |
UCK30,VCK30,40 BLACK PANEL |
1 | ||
| 84014 - BOARD SUB-ASSY, PRINTED WIRE INTEGRATION | ||||
| 84014-0C030 |
UCK30,VCK30,40 |
1 | ||
| 84014A - BOARD SUB-ASSY, PRINTED WIRE INTEGRATION, NO.2 | ||||
| 84014-0C010 |
UCK30,40,VCK30,40 |
1 | ||
| 84014B - BULB, PRINTED WIRE INTEGRATION BOARD | ||||
| 90011-03003 |
UCK30,40,VCK30,40 14V 3.78W |
3 | ||
| 90011-03002 |
UCK30,40,VCK30,40 14V 2.0W |
1 | ||
| 84014B - BULB, PRINTED WIRE INTEGRATION BOARD | ||||
| 90011-03003 |
UCK30,40,VCK30,40 14V 3.78W |
3 | ||
| 90011-03002 |
UCK30,40,VCK30,40 14V 2.0W |
1 | ||
| 84014B - BULB, PRINTED WIRE INTEGRATION BOARD | ||||
| 90011-03003 |
UCK30,40,VCK30,40 14V 3.78W |
3 | ||
| 90011-03002 |
UCK30,40,VCK30,40 14V 2.0W |
1 | ||
| 84014B - BULB, PRINTED WIRE INTEGRATION BOARD | ||||
| 90011-03003 |
UCK30,40,VCK30,40 14V 3.78W |
3 | ||
| 90011-03002 |
UCK30,40,VCK30,40 14V 2.0W |
1 | ||
| 84014C - BULB, PRINTED WIRE INTEGRATION BOARD, NO.2 | ||||
| 90011-03002 |
UCK30,40,VCK30,40 14V 2.0W |
1 | ||
| 84014D - BOARD SUB-ASSY, PRINTED WIRE INTEGRATION, NO.3 | ||||
| 84014-0C040 |
UCK30,40,VCK30,40 |
1 | ||
| 84331 - KNOB, HAZARD WARNING SIGNAL SWITCH | ||||
| 84331-0C010 |
UCK30,40,VCK30,40 |
1 | ||
| 84656C - BEZEL, SWITCH NO.2 | ||||
| 84656-0C010 |
UCK30,40,VCK30,40..DLX,SR5 |
1 | ||
| 84691B - KNOB, CONDITION INDICATOR | ||||
| 84691-0C010 |
UCK30,40,VCK30,40 |
1 | ||
| Common parts | ||||
| 90099-00262 | ||||
| 90467-10203 | ||||
| 90468-04160 | ||||
| 93568-55016 | ||||

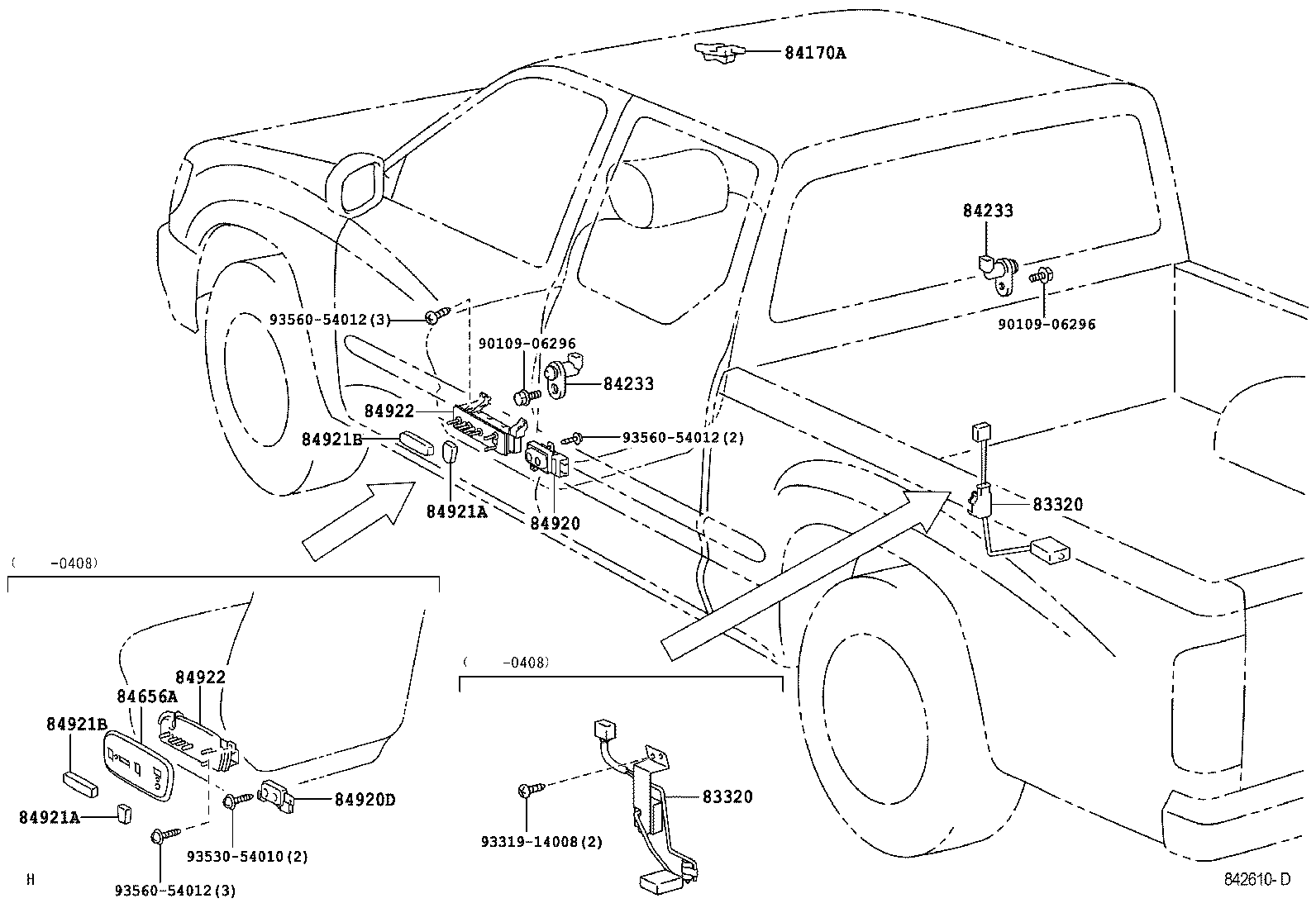

ILLUST NO. 8 OF 8(9902- )GSK30,UCK30,40,VCK30,40
DOOR,ROOF,FLOOR & LUGGAGE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-34030 |
UCK30,40,VCK30,40 |
1 | ||
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-34030 |
UCK30,40,VCK30,40 |
1 | ||
| 84170A - SWITCH ASSY, ROOM LAMP NO.1 | ||||
| 84170-AE020B1 |
UCK30,40,VCK30,40..LIMD,SR5 MOON MIST,TRIM10 |
1 | ||
| 84170-AE020B2 |
UCK30,40,VCK30,40..LIMD,SR5 MD.CHARCOAL,TRIM11 |
1 | ||
| 84170-AE020E0 |
UCK30,40,VCK30,40..LIMD,SR5 MD.OAK,TRIM4# |
1 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-33071 |
UCK30,40,VCK30,40 |
2 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-33071 |
UCK30,40,VCK30,40 |
2 | ||
| 84656A - BEZEL, SWITCH | ||||
| 84656-33020B1 |
UCK30,40..CND;UCK30,40,VCK30,40..LIMD MOON MIST,TRIM10 |
1 | ||
| 84656-33020B2 |
UCK30,40..CND;UCK30,40,VCK30,40..LIMD MD.CHARCOAL,TRIM11 |
1 | ||
| 84656-33020E0 |
UCK30,40..CND;UCK30,40,VCK30,40..LIMD MD.OAK,TRIM4# |
1 | ||
| 84921A - KNOB, POWER SEAT SWITCH (FOR RECLINING) | ||||
| 84921-30130E0 |
UCK30,40..CND;UCK30,40,VCK30,40..LIMD MD.OAK,TRIM4# |
1 | ||
| 84921-30130B3 |
UCK30,40..CND;UCK30,40,VCK30,40..LIMD MOON MIST,TRIM10 |
1 | ||
| 84921-30130B0 |
UCK30,40..CND;UCK30,40,VCK30,40..LIMD MD.CHARCOAL,TRIM11 |
1 | ||
| 84921A - KNOB, POWER SEAT SWITCH (FOR RECLINING) | ||||
| 84921-30130E0 |
UCK30,40..CND;UCK30,40,VCK30,40..LIMD MD.OAK,TRIM4# |
1 | ||
| 84921-30130B3 |
UCK30,40..CND;UCK30,40,VCK30,40..LIMD MOON MIST,TRIM10 |
1 | ||
| 84921-30130B0 |
UCK30,40..CND;UCK30,40,VCK30,40..LIMD MD.CHARCOAL,TRIM11 |
1 | ||
| 84921B - KNOB, POWER SEAT SWITCH (FOR SLIDE & VERTICAL) | ||||
| 84921-24050B1 |
UCK30,40..CND;UCK30,40,VCK30,40..LIMD MD.CHARCOAL,TRIM11 |
1 | ||
| 84921-24050B3 |
UCK30,40..CND;UCK30,40,VCK30,40..LIMD MOON MIST,TRIM10 |
1 | ||
| 84921-24050E1 |
UCK30,40..CND;UCK30,40,VCK30,40..LIMD MD.OAK,TRIM4# |
1 | ||
| 84921B - KNOB, POWER SEAT SWITCH (FOR SLIDE & VERTICAL) | ||||
| 84921-24050B1 |
UCK30,40..CND;UCK30,40,VCK30,40..LIMD MD.CHARCOAL,TRIM11 |
1 | ||
| 84921-24050B3 |
UCK30,40..CND;UCK30,40,VCK30,40..LIMD MOON MIST,TRIM10 |
1 | ||
| 84921-24050E1 |
UCK30,40..CND;UCK30,40,VCK30,40..LIMD MD.OAK,TRIM4# |
1 | ||
| 84922 - SWITCH, FRONT POWER SEAT | ||||
| 84922-33130 |
UCK30,40..CND;UCK30,40,VCK30,40..LIMD |
1 | ||
| 84922 - SWITCH, FRONT POWER SEAT | ||||
| 84922-33130 |
UCK30,40..CND;UCK30,40,VCK30,40..LIMD |
1 | ||
| Common parts | ||||
| 90109-06296 | ||||
| 93319-14008 | ||||
| 93530-54010 | ||||
| 93560-54012 | ||||

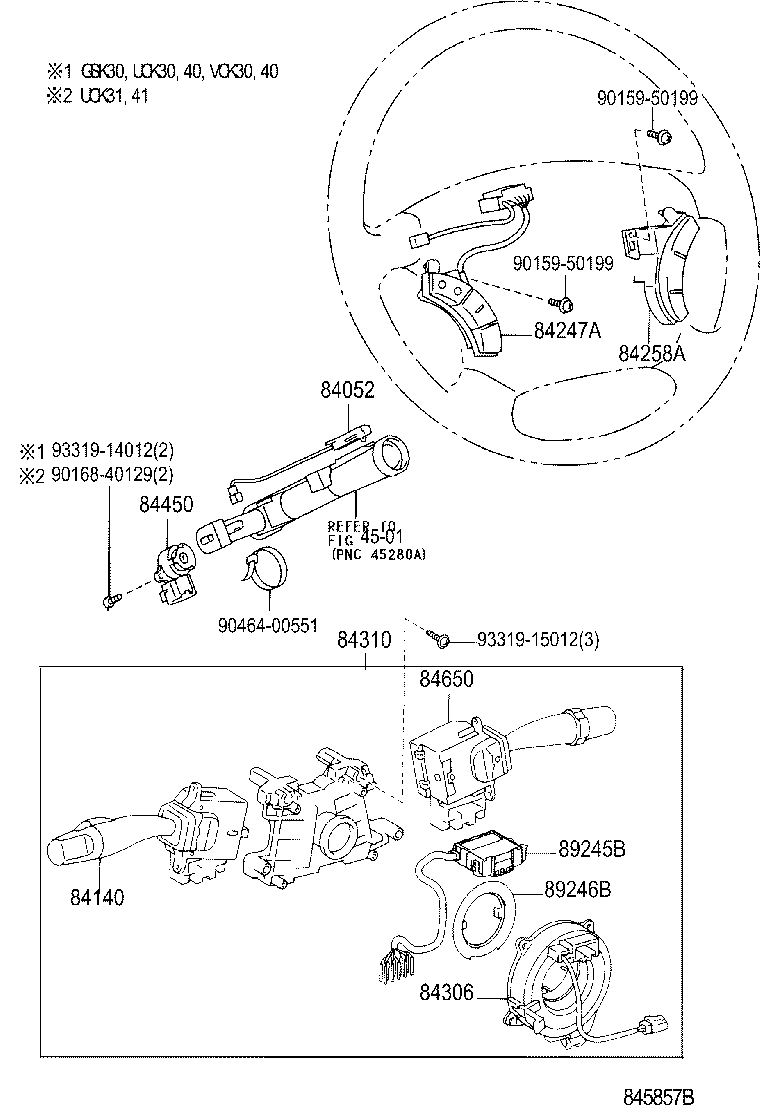

ILLUST NO. 7 OF 8(9902- )
CONBINATION SWITCH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84052 - SWITCH ASSY, UN-LOCK WARNING | ||||
| 84052-33040 |
UCK30,40,VCK30,40 |
1 | ||
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-0C010 |
UCK30,40,VCK30,40 |
1 | ||
| 84306 - CABLE SUB-ASSY, SPIRAL | ||||
| 84306-0C010 |
UCK30,40,VCK30,40 |
1 | ||
| 84310 - SWITCH ASSY, TURN SIGNAL | ||||
| 84310-0C010 |
UCK30,40,VCK30,40..DLX,SR5 |
1 | ||
| 84310-0C020 |
UCK30,40,VCK30,40 W(INTERMITTENT WIPER) |
1 | ||
| 84450 - SWITCH ASSY, IGNITION OR STARTER | ||||
| 84450-12200 |
UCK30,40,VCK30,40 |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-0C020 |
UCK30,40,VCK30,40 W(INTERMITTENT WIPER) |
1 | ||
| 84652-0C010 |
UCK30,40,VCK30,40..DLX,SR5 |
1 | ||
| Common parts | ||||
| 90159-50199 | ||||
| 90168-40129 | ||||
| 90464-00551 | ||||
| 93319-14012 | ||||
| 93319-15012 | ||||
| Linked diagrams | ||||
| 4501 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
