VCK40L-ARMSKK (1999)
Toyota Tundra

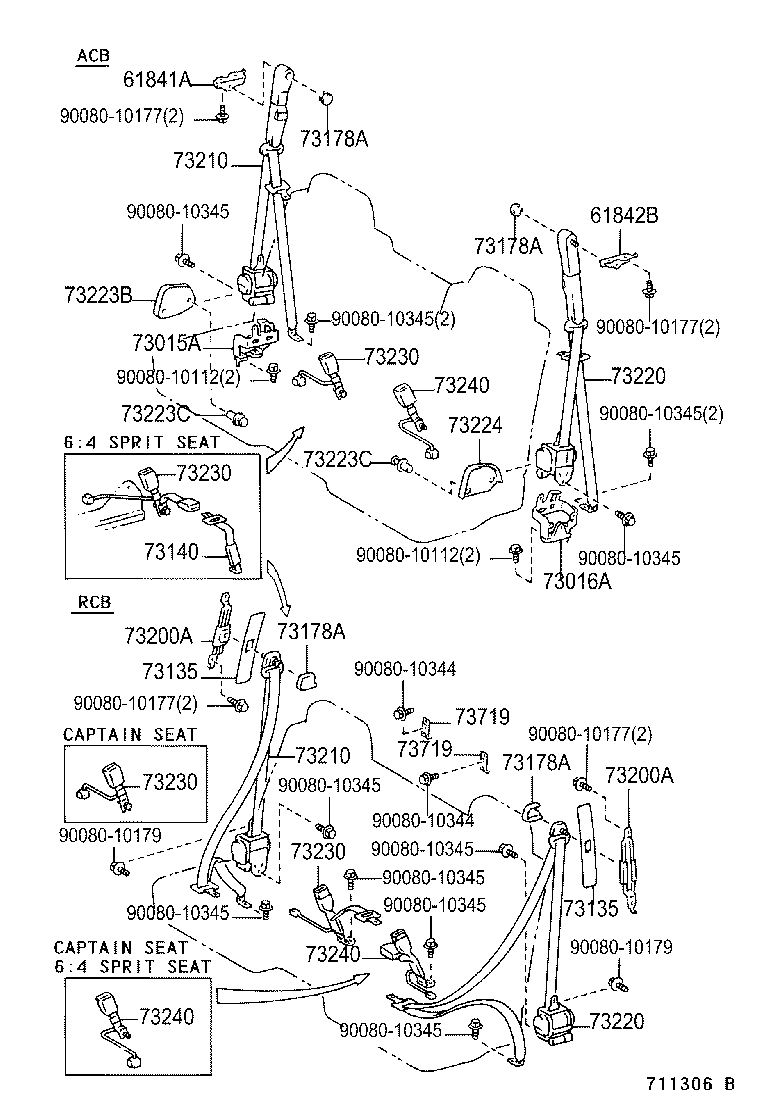

ILLUST NO. 1 OF 2(9902-0408)UCK30,40,VCK30,40
FRONT SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 61841A - BRACKET, SHOULDER BELT ANCHOR, RH | ||||
| 61841-0C010 |
UCK30,40,VCK30,40..ACB |
1 | ||
| 61842B - BRACKET, SHOULDER BELT ANCHOR, LH | ||||
| 61842-0C010 |
UCK30,40,VCK30,40..ACB |
1 | ||
| 73015A - BRACKET SUB-ASSY, BELT OUTER ANCHOR, RH | ||||
| 73015-0C010 |
UCK30,40,VCK30,40..ACB |
1 | ||
| 73016A - BRACKET SUB-ASSY, BELT OUTER ANCHOR, LH | ||||
| 73016-0C010 |
UCK30,40,VCK30,40..ACB |
1 | ||
| 73178A - CAP, SEAT BELT ANCHOR COVER | ||||
| 73178-0C010B1 |
UCK30,40,VCK30,40..ACB MD.CHARCOAL,TRIM11 |
2 | ||
| 73178-0C010E0 |
UCK30,40,VCK30,40..ACB MD.OAK,TRIM4# |
2 | ||
| 73178-0C010B0 |
UCK30,40,VCK30,40..ACB MOON MIST,TRIM10 |
2 | ||
| 73178A - CAP, SEAT BELT ANCHOR COVER | ||||
| 73178-0C010B1 |
UCK30,40,VCK30,40..ACB MD.CHARCOAL,TRIM11 |
2 | ||
| 73178-0C010E0 |
UCK30,40,VCK30,40..ACB MD.OAK,TRIM4# |
2 | ||
| 73178-0C010B0 |
UCK30,40,VCK30,40..ACB MOON MIST,TRIM10 |
2 | ||
| 73178A - CAP, SEAT BELT ANCHOR COVER | ||||
| 73178-0C010B1 |
UCK30,40,VCK30,40..ACB MD.CHARCOAL,TRIM11 |
2 | ||
| 73178-0C010E0 |
UCK30,40,VCK30,40..ACB MD.OAK,TRIM4# |
2 | ||
| 73178-0C010B0 |
UCK30,40,VCK30,40..ACB MOON MIST,TRIM10 |
2 | ||
| 73178A - CAP, SEAT BELT ANCHOR COVER | ||||
| 73178-0C010B1 |
UCK30,40,VCK30,40..ACB MD.CHARCOAL,TRIM11 |
2 | ||
| 73178-0C010E0 |
UCK30,40,VCK30,40..ACB MD.OAK,TRIM4# |
2 | ||
| 73178-0C010B0 |
UCK30,40,VCK30,40..ACB MOON MIST,TRIM10 |
2 | ||
| 73210 - BELT ASSY, FRONT SEAT OUTER, RH | ||||
| 73210-0C010B2 |
UCK30,40,VCK30,40..ACB CHARCOAL,TRIM11 |
1 | ||
| 73210-0C010B3 |
UCK30,40,VCK30,40..ACB BLUISH GRAY,TRIM10 |
1 | ||
| 73210-0C010E2 |
UCK30,40,VCK30,40..ACB OAK,TRIM4# |
1 | ||
| 73210 - BELT ASSY, FRONT SEAT OUTER, RH | ||||
| 73210-0C010B2 |
UCK30,40,VCK30,40..ACB CHARCOAL,TRIM11 |
1 | ||
| 73210-0C010B3 |
UCK30,40,VCK30,40..ACB BLUISH GRAY,TRIM10 |
1 | ||
| 73210-0C010E2 |
UCK30,40,VCK30,40..ACB OAK,TRIM4# |
1 | ||
| 73220 - BELT ASSY, FRONT SEAT OUTER, LH | ||||
| 73220-0C010B2 |
UCK30,40,VCK30,40..ACB CHARCOAL,TRIM11 |
1 | ||
| 73220-0C010B3 |
UCK30,40,VCK30,40..ACB BLUISH GRAY,TRIM10 |
1 | ||
| 73220-0C010E2 |
UCK30,40,VCK30,40..ACB OAK,TRIM4# |
1 | ||
| 73220 - BELT ASSY, FRONT SEAT OUTER, LH | ||||
| 73220-0C010B2 |
UCK30,40,VCK30,40..ACB CHARCOAL,TRIM11 |
1 | ||
| 73220-0C010B3 |
UCK30,40,VCK30,40..ACB BLUISH GRAY,TRIM10 |
1 | ||
| 73220-0C010E2 |
UCK30,40,VCK30,40..ACB OAK,TRIM4# |
1 | ||
| 73223B - COVER, FRONT SEAT BELT RETRACTOR, RH | ||||
| 73223-0C010B0 |
UCK30,40,VCK30,40..ACB MOON MIST,TRIM10 |
1 | ||
| 73223-0C010E0 |
UCK30,40,VCK30,40..ACB MD.OAK,TRIM4# |
1 | ||
| 73223-0C010B1 |
UCK30,40,VCK30,40..ACB MD.CHARCOAL,TRIM11 |
1 | ||
| 73223C - CLIP, FRONT SEAT BELT RETRACTOR COVER | ||||
| 90080-46276E0 |
UCK30,40,VCK30,40..ACB MD.OAK,TRIM4# |
4 | ||
| 90080-46276B0 |
UCK30,40,VCK30,40..ACB MOON MIST,TRIM10 |
4 | ||
| 90080-46276B1 |
UCK30,40,VCK30,40..ACB MD.CHARCOAL,TRIM11 |
4 | ||
| 73223C - CLIP, FRONT SEAT BELT RETRACTOR COVER | ||||
| 90080-46276E0 |
UCK30,40,VCK30,40..ACB MD.OAK,TRIM4# |
4 | ||
| 90080-46276B0 |
UCK30,40,VCK30,40..ACB MOON MIST,TRIM10 |
4 | ||
| 90080-46276B1 |
UCK30,40,VCK30,40..ACB MD.CHARCOAL,TRIM11 |
4 | ||
| 73224 - COVER, FRONT SEAT BELT RETRACTOR, LH | ||||
| 73224-0C010B0 |
UCK30,40,VCK30,40..ACB MOON MIST,TRIM10 |
1 | ||
| 73224-0C010B1 |
UCK30,40,VCK30,40..ACB MD.CHARCOAL,TRIM11 |
1 | ||
| 73224-0C010E0 |
UCK30,40,VCK30,40..ACB MD.OAK,TRIM4# |
1 | ||
| 73230 - BELT ASSY, FRONT SEAT INNER, RH | ||||
| 73230-0C040B1 |
VCK40..ACB..5F;VCK40..4HC..(LIMD,SR5);UCK30,40,VCK30..LIMD,SR5 MD.CHARCOAL,TRIM11 |
1 | ||
| 73230-0C040E0 |
VCK40..ACB..5F;VCK40..4HC..(LIMD,SR5);UCK30,40,VCK30..LIMD,SR5 MD.OAK,TRIM4# |
1 | ||
| 73230-0C040B0 |
VCK40..ACB..5F;VCK40..4HC..(LIMD,SR5);UCK30,40,VCK30..LIMD,SR5 MOON MIST,TRIM10 |
1 | ||
| 73230 - BELT ASSY, FRONT SEAT INNER, RH | ||||
| 73230-0C040B1 |
VCK40..ACB..5F;VCK40..4HC..(LIMD,SR5);UCK30,40,VCK30..LIMD,SR5 MD.CHARCOAL,TRIM11 |
1 | ||
| 73230-0C040E0 |
VCK40..ACB..5F;VCK40..4HC..(LIMD,SR5);UCK30,40,VCK30..LIMD,SR5 MD.OAK,TRIM4# |
1 | ||
| 73230-0C040B0 |
VCK40..ACB..5F;VCK40..4HC..(LIMD,SR5);UCK30,40,VCK30..LIMD,SR5 MOON MIST,TRIM10 |
1 | ||
| 73230 - BELT ASSY, FRONT SEAT INNER, RH | ||||
| 73230-0C040B1 |
VCK40..ACB..5F;VCK40..4HC..(LIMD,SR5);UCK30,40,VCK30..LIMD,SR5 MD.CHARCOAL,TRIM11 |
1 | ||
| 73230-0C040E0 |
VCK40..ACB..5F;VCK40..4HC..(LIMD,SR5);UCK30,40,VCK30..LIMD,SR5 MD.OAK,TRIM4# |
1 | ||
| 73230-0C040B0 |
VCK40..ACB..5F;VCK40..4HC..(LIMD,SR5);UCK30,40,VCK30..LIMD,SR5 MOON MIST,TRIM10 |
1 | ||
| 73230 - BELT ASSY, FRONT SEAT INNER, RH | ||||
| 73230-0C040B1 |
VCK40..ACB..5F;VCK40..4HC..(LIMD,SR5);UCK30,40,VCK30..LIMD,SR5 MD.CHARCOAL,TRIM11 |
1 | ||
| 73230-0C040E0 |
VCK40..ACB..5F;VCK40..4HC..(LIMD,SR5);UCK30,40,VCK30..LIMD,SR5 MD.OAK,TRIM4# |
1 | ||
| 73230-0C040B0 |
VCK40..ACB..5F;VCK40..4HC..(LIMD,SR5);UCK30,40,VCK30..LIMD,SR5 MOON MIST,TRIM10 |
1 | ||
| 73240 - BELT ASSY, FRONT SEAT INNER, LH | ||||
| 73230-0C030B3 |
VCK40..ACB..5F;VCK40..4HC..(LIMD,SR5);UCK30,40,VCK30..LIMD,SR5 MD.CHARCOAL,TRIM11 |
1 | ||
| 73230-0C050B0 |
UCK30,40..CND;UCK30,40,VCK30,40..LIMD W(POWER SEAT),MOON MIST,TRIM10 |
1 | ||
| 73230-0C030E1 |
VCK40..ACB..5F;VCK40..4HC..(LIMD,SR5);UCK30,40,VCK30..LIMD,SR5 MD.OAK,TRIM4# |
1 | ||
| 73230-0C050E0 |
UCK30,40..CND;UCK30,40,VCK30,40..LIMD W(POWER SEAT),MD.OAK,TRIM4# |
1 | ||
| 73230-0C050B1 |
UCK30,40..CND;UCK30,40,VCK30,40..LIMD W(POWER SEAT),MD.CHARCOAL,TRIM11 |
1 | ||
| 73230-0C030B2 |
VCK40..ACB..5F;VCK40..4HC..(LIMD,SR5);UCK30,40,VCK30..LIMD,SR5 MOON MIST,TRIM10 |
1 | ||
| 73240 - BELT ASSY, FRONT SEAT INNER, LH | ||||
| 73230-0C030B3 |
VCK40..ACB..5F;VCK40..4HC..(LIMD,SR5);UCK30,40,VCK30..LIMD,SR5 MD.CHARCOAL,TRIM11 |
1 | ||
| 73230-0C050B0 |
UCK30,40..CND;UCK30,40,VCK30,40..LIMD W(POWER SEAT),MOON MIST,TRIM10 |
1 | ||
| 73230-0C030E1 |
VCK40..ACB..5F;VCK40..4HC..(LIMD,SR5);UCK30,40,VCK30..LIMD,SR5 MD.OAK,TRIM4# |
1 | ||
| 73230-0C050E0 |
UCK30,40..CND;UCK30,40,VCK30,40..LIMD W(POWER SEAT),MD.OAK,TRIM4# |
1 | ||
| 73230-0C050B1 |
UCK30,40..CND;UCK30,40,VCK30,40..LIMD W(POWER SEAT),MD.CHARCOAL,TRIM11 |
1 | ||
| 73230-0C030B2 |
VCK40..ACB..5F;VCK40..4HC..(LIMD,SR5);UCK30,40,VCK30..LIMD,SR5 MOON MIST,TRIM10 |
1 | ||
| 73240 - BELT ASSY, FRONT SEAT INNER, LH | ||||
| 73230-0C030B3 |
VCK40..ACB..5F;VCK40..4HC..(LIMD,SR5);UCK30,40,VCK30..LIMD,SR5 MD.CHARCOAL,TRIM11 |
1 | ||
| 73230-0C050B0 |
UCK30,40..CND;UCK30,40,VCK30,40..LIMD W(POWER SEAT),MOON MIST,TRIM10 |
1 | ||
| 73230-0C030E1 |
VCK40..ACB..5F;VCK40..4HC..(LIMD,SR5);UCK30,40,VCK30..LIMD,SR5 MD.OAK,TRIM4# |
1 | ||
| 73230-0C050E0 |
UCK30,40..CND;UCK30,40,VCK30,40..LIMD W(POWER SEAT),MD.OAK,TRIM4# |
1 | ||
| 73230-0C050B1 |
UCK30,40..CND;UCK30,40,VCK30,40..LIMD W(POWER SEAT),MD.CHARCOAL,TRIM11 |
1 | ||
| 73230-0C030B2 |
VCK40..ACB..5F;VCK40..4HC..(LIMD,SR5);UCK30,40,VCK30..LIMD,SR5 MOON MIST,TRIM10 |
1 | ||
| Common parts | ||||
| 90080-10112 | ||||
| 90080-10177 | ||||
| 90080-10179 | ||||
| 90080-10344 | ||||
| 90080-10345 | ||||

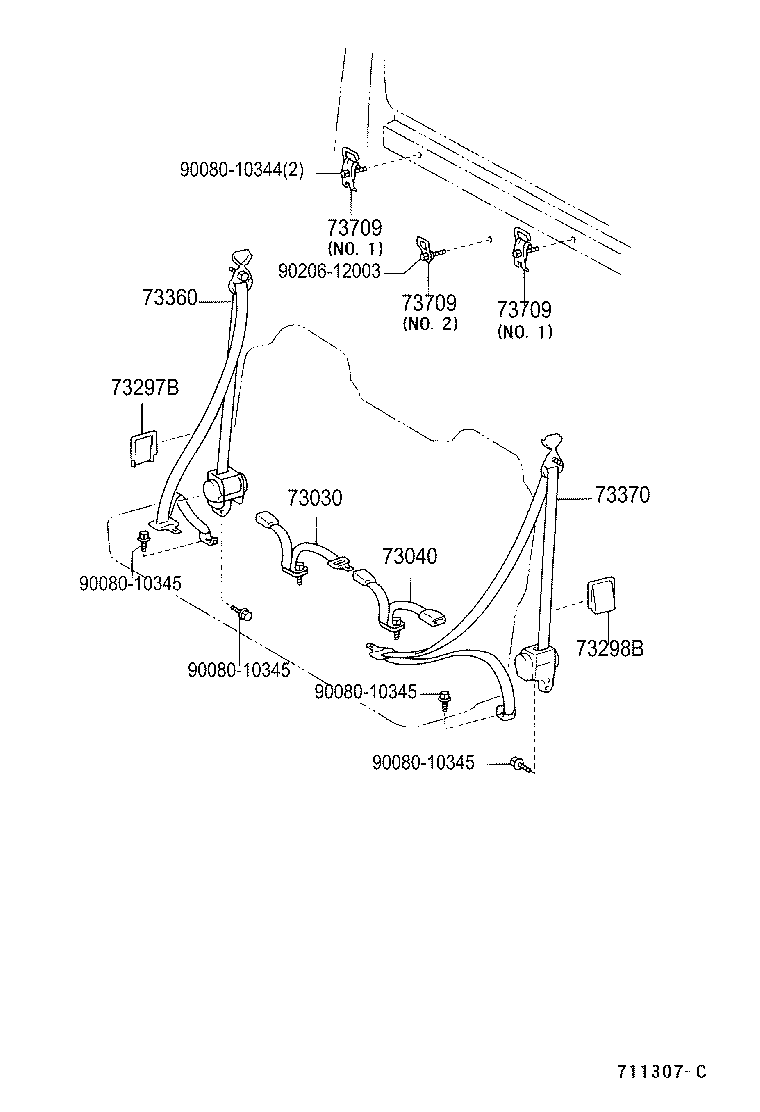

ILLUST NO. 2 OF 2(9902-0408)UCK30,40,VCK30,40
REAR SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 73030 - BELT ASSY, NO.1 SEAT LAP, CENTER W/INNER RH | ||||
| 73030-0C010E0 |
UCK30,40,VCK30,40..ACB OAK,TRIM4# |
1 | ||
| 73030-0C010B0 |
UCK30,40,VCK30,40..ACB CHARCOAL,TRIM11 |
1 | ||
| 73030-0C010B1 |
UCK30,40,VCK30,40..ACB BLUISH GRAY,TRIM10 |
1 | ||
| 73040 - BELT ASSY, NO.1 SEAT LAP, CENTER W/INNER LH | ||||
| 73040-0C010B3 |
UCK30,40,VCK30,40..ACB BLUISH GRAY,TRIM10 |
1 | ||
| 73040-0C010B2 |
UCK30,40,VCK30,40..ACB CHARCOAL,TRIM11 |
1 | ||
| 73040-0C010E1 |
UCK30,40,VCK30,40..ACB OAK,TRIM4# |
1 | ||
| 73297B - COVER, QUARTER TRIM BELT HOLE, RH | ||||
| 73297-0C010B1 |
UCK30,40,VCK30,40..LIMD,SR5 MD.CHARCOAL,TRIM11 |
1 | ||
| 73297-0C010B0 |
UCK30,40,VCK30,40..LIMD,SR5 MOON MIST,TRIM10 |
1 | ||
| 73297-0C010E0 |
UCK30,40,VCK30,40 MD.OAK,TRIM4# |
1 | ||
| 73298B - COVER, QUARTER TRIM BELT HOLE, LH | ||||
| 73297-0C010E0 |
UCK30,40,VCK30,40 MD.OAK,TRIM4# |
1 | ||
| 73297-0C010B0 |
UCK30,40,VCK30,40..LIMD,SR5 MOON MIST,TRIM10 |
1 | ||
| 73297-0C010B1 |
UCK30,40,VCK30,40..LIMD,SR5 MD.CHARCOAL,TRIM11 |
1 | ||
| 73360 - BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER RH | ||||
| 73360-0C010E2 |
UCK30,40,VCK30,40..ACB OAK,TRIM4# |
1 | ||
| 73360-0C010B2 |
UCK30,40,VCK30,40..ACB CHARCOAL,TRIM11 |
1 | ||
| 73360-0C010B3 |
UCK30,40,VCK30,40..ACB BLUISH GRAY,TRIM10 |
1 | ||
| 73370 - BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER LH | ||||
| 73370-0C010B2 |
UCK30,40,VCK30,40..ACB CHARCOAL,TRIM11 |
1 | ||
| 73370-0C010B3 |
UCK30,40,VCK30,40..ACB BLUISH GRAY,TRIM10 |
1 | ||
| 73370-0C010E2 |
UCK30,40,VCK30,40..ACB OAK,TRIM4# |
1 | ||
| 73709 - BRACKET SUB-ASSY, TETHER ANCHOR | ||||
| 73709-34010 |
UCK30,40,VCK30,40..ACB NO.1 |
2 | ||
| 73709-34020 |
UCK30,40,VCK30,40..SR5..CND NO.2 |
1 | ||
| 73709 - BRACKET SUB-ASSY, TETHER ANCHOR | ||||
| 73709-34010 |
UCK30,40,VCK30,40..ACB NO.1 |
2 | ||
| 73709-34020 |
UCK30,40,VCK30,40..SR5..CND NO.2 |
1 | ||
| 73709 - BRACKET SUB-ASSY, TETHER ANCHOR | ||||
| 73709-34010 |
UCK30,40,VCK30,40..ACB NO.1 |
2 | ||
| 73709-34020 |
UCK30,40,VCK30,40..SR5..CND NO.2 |
1 | ||
| Common parts | ||||
| 90080-10344 | ||||
| 90080-10345 | ||||
| 90206-12003 | ||||
