VCK40L-ARMSKK (1999)

Toyota Tundra

Production Feb 1999 - Aug 2000
Engine 5VZFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9902- )ACB

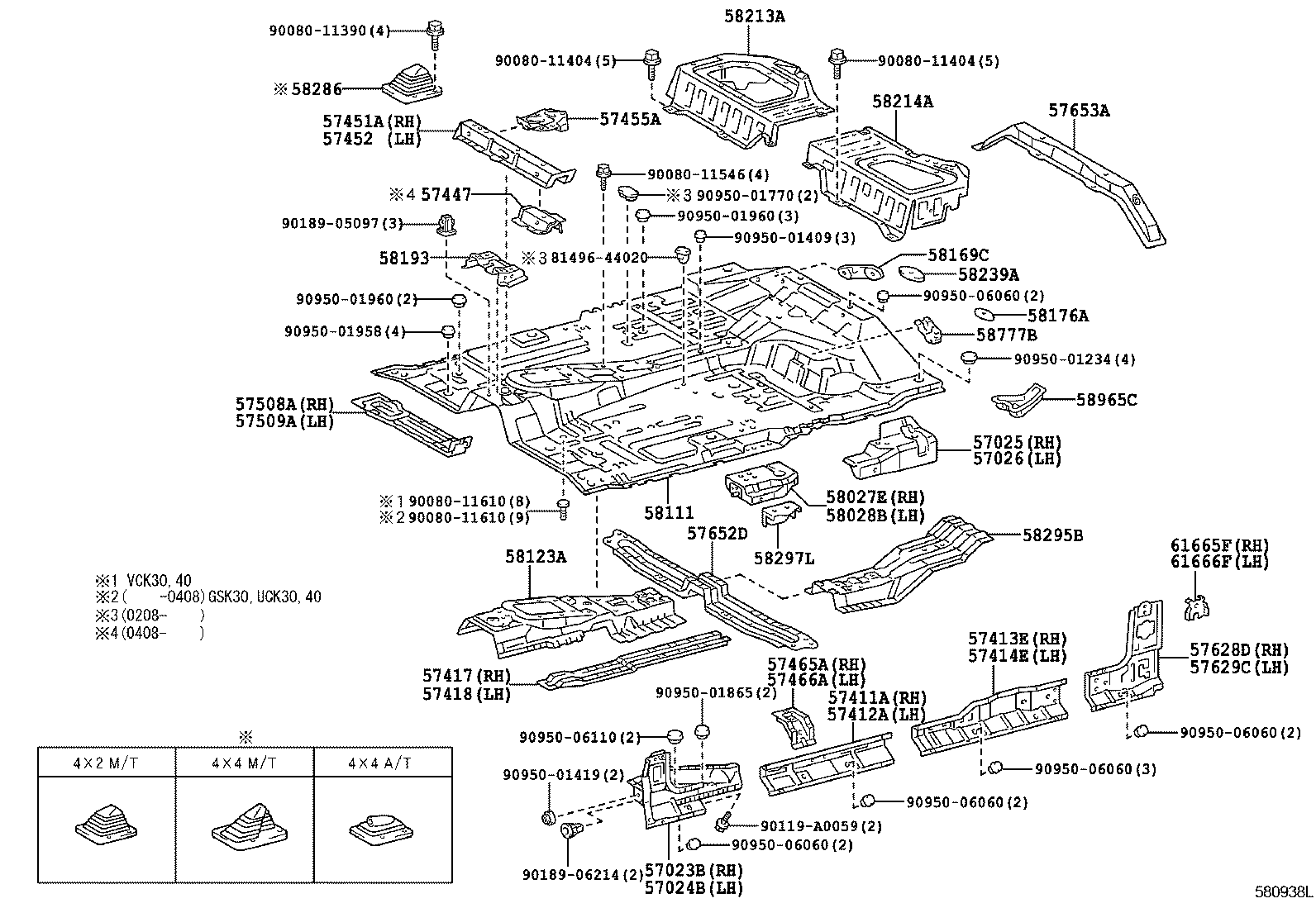

Click highlighted areas on diagram

diagram 57023B 57024B 57025 57026 57411A 57412A 57413E 57414E 57417 57418 57447 57451A 57452 57455A 57465A 57466A 57508A 57509A 57628D 57629C 57652D 57653A 58027E 58028B 58111 58123A 58169C 58176A 58193 58213A 58214A 58239A 58286 58295B 58297L 58777B 58965C 61665F 61666F 8149644020 9008011390 9008011404 9008011404 9008011546 9008011610 9008011610 90119A0059 9018905097 9018906214 9095001234 9095001409 9095001419 9095001770 9095001865 9095001958 9095001960 9095001960 9095006060 9095006060 9095006060 9095006060 9095006060 9095006110
Part # Description Qty Price
57023B - BRACKET SUB-ASSY, BODY MOUNTING, NO.2 RH
57023-0C010

UCK30,40,VCK30,40

 1
57024B - BRACKET SUB-ASSY, BODY MOUNTING, NO.2 LH
57024-0C010

UCK30,40,VCK30,40

 1
57025 - BRACKET SUB-ASSY, BODY MOUNTING, NO.3 RH
57025-0C010

UCK30,40,VCK30,40..ACB

 1
57026 - BRACKET SUB-ASSY, BODY MOUNTING, NO.3 LH
57026-0C010

UCK30,40,VCK30,40..ACB

 1
57411A - MEMBER, FLOOR SIDE, INNER RH
57411-0C010

UCK30,40,VCK30,40

 1
57412A - MEMBER, FLOOR SIDE, INNER LH
57412-0C010

UCK30,40,VCK30,40

 1
57413E - MEMBER, FLOOR SIDE, INNER REAR RH
57413-0C010

UCK30,40,VCK30,40..ACB

 1
57414E - MEMBER, FLOOR SIDE, INNER REAR LH
57414-0C010

UCK30,40,VCK30,40..ACB

 1
57417 - REINFORCEMENT, FRONT FLOOR UNDER, RH
57417-0C010

UCK30,40,VCK30,40

 1
57418 - REINFORCEMENT, FRONT FLOOR UNDER, LH
57417-0C010

UCK30,40,VCK30,40

 1
57451A - MEMBER, FRONT FLOOR CROSS, RH
57451-0C010

UCK30,40,VCK30,40

 1
57452 - MEMBER, FRONT FLOOR CROSS, LH
57452-0C010

UCK30,40,VCK30,40

 1
57465A - GUSSET, CENTER FLOOR CROSSMEMBER, RH
57465-0C010

UCK30,40,VCK30,40

 1
57466A - GUSSET, CENTER FLOOR CROSSMEMBER, LH
57465-0C010

UCK30,40,VCK30,40

 1
57508A - REINFORCEMENT SUB-ASSY, FRONT FLOOR, RH
57508-0C010

UCK30,40,VCK30,40

 1
57509A - REINFORCEMENT SUB-ASSY, FRONT FLOOR, LH
57509-0C010

UCK30,40,VCK30,40

 1
57628D - PLATE, REAR FLOOR SIDE MEMBER, RH
57628-0C010

UCK30,40,VCK30,40..ACB

 1
57629C - PLATE, REAR FLOOR SIDE MEMBER, LH
57629-0C010

UCK30,40,VCK30,40..ACB

 1
57652D - MEMBER, REAR FLOOR CROSS, NO.1
57605-0C020

VCK40..ACB..5F;VCK40..4HC..(LIMD,SR5);UCK30,40,VCK30..LIMD,SR5

W(REAR SEPARATE SEAT)

 1
57653A - MEMBER, REAR FLOOR CROSS, NO.2
57653-0C010

UCK30,40,VCK30,40..ACB

 1
58027E - REINFORCE SUB-ASSY, SEAT BELT ANCHOR ,RH
58027-0C010

UCK30,40,VCK30,40..ACB

 1
58028B - REINFORCE SUB-ASSY, SEAT BELT ANCHOR, LH
58028-0C010

UCK30,40,VCK30,40..ACB

 1
58111 - PAN, FRONT FLOOR
58111-0C030

VCK40..ACB..5F

 1
58123A - SUPPORT, SHIFT & SELECT LEVER
58123-0C010

UCK30,40,VCK30,40

 1
58169C - PATCH, FRONT FLOOR REAR
58169-34010

UCK30,40,VCK30,40..ACB

 1
58176A - PLATE, REAR SEAT SETTING NUT
58176-35010

UCK30,40,VCK30,40..ACB

 5
58193 - BRACKET, INSTRUMENT PANEL BRACE MOUNTING
58193-0C010

UCK30,40,VCK30,40

 1
58213A - PANEL, SEAT FLOOR, RH
58201-0C010

UCK30,40,VCK30,40..ACB

 1
58214A - PANEL, SEAT FLOOR, LH
58202-0C010

UCK30,40,VCK30,40..ACB

 1
58239A - PLATE, BELT ANCHOR NUT
58239-34010

UCK30,40,VCK30,40..ACB

 1
58286 - BOOT, SHIFT & SELECT LEVER, NO.1
58280-0C020

VCK40..5F

 1
58295B - REINFORCEMENT, SEAT BELT ANCHOR FLOOR
58295-0C010

UCK30,40,VCK30,40..ACB

 1
58297L - BRACKET, SEAT BELT RETRACTOR MOUNTING
58297-0C010

UCK30,40,VCK30,40..ACB

 2
58777B - HOLDER, TOOL BAG
58777-34010

UCK30,40,VCK30,40..ACB

 1
58965C - HOLDER, JACK
58965-0C010

UCK30,40,VCK30,40..ACB

 1
61665F - REINFORCE, SEAT BELT ANCHOR, RH
61665-35020

UCK30,40,VCK30,40

 1
61666F - REINFORCE, SEAT BELT ANCHOR, LH
61666-35010

UCK30,40,VCK30,40

 1
Common parts
81496-44020
90080-11390
90080-11404
90080-11546
90080-11610
90119-A0059
90189-05097
90189-06214
90950-01234
90950-01409
90950-01419
90950-01770
90950-01865
90950-01958
90950-01960
90950-06060
90950-06110
