VCK40L-ARMSKK (1999)

Toyota Tundra

Production Feb 1999 - Aug 2000
Engine 5VZFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9902- )

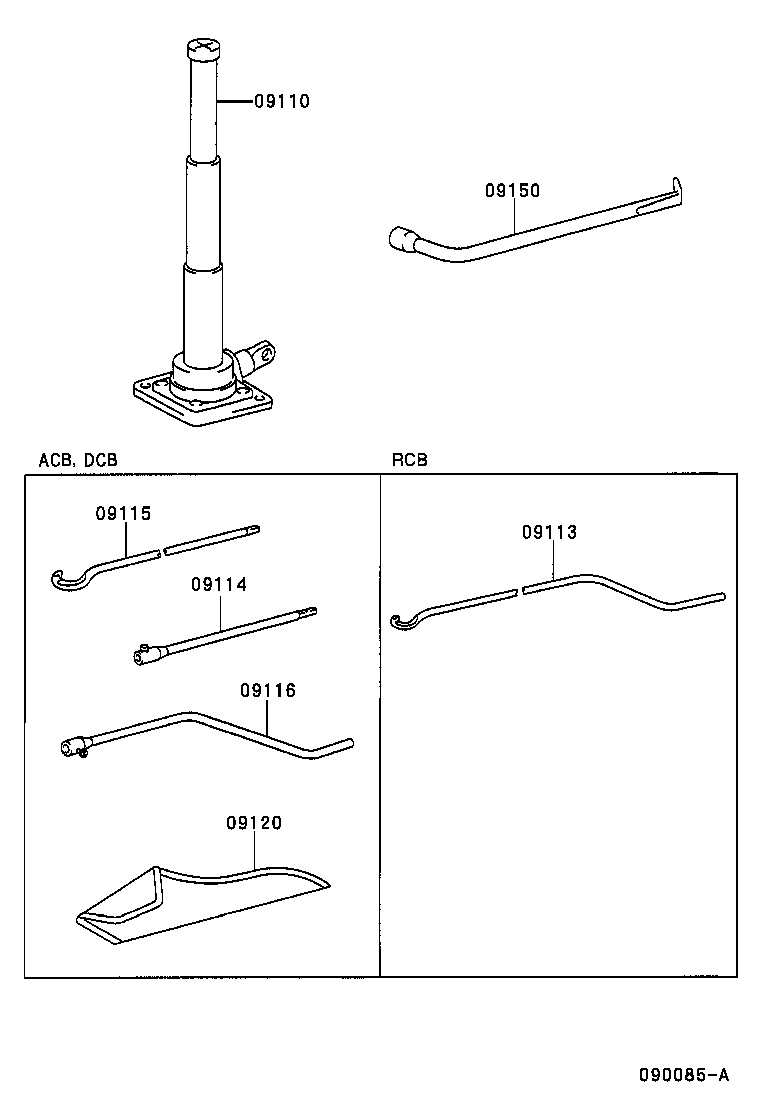

Click highlighted areas on diagram

diagram 09110 09113 09114 09115 09116 09120 09150
Part # Description Qty Price
09110 - JACK ASSY
09111-0C010

UCK30,40,VCK30,40

 1
09114 - EXTENSION SUB-ASSY, JACK HANDLE
09114-0C010

UCK30,40,VCK30,40..ACB

 2
09115 - ROD SUB-ASSY, JACK HANDLE
09115-0C010

UCK30,40,VCK30,40..ACB

 1
09116 - LEVER, JACK HANDLE
09116-04020

UCK30,40,VCK30,40..ACB

 1
09120 - BAG, TOOL
09120-0C010

UCK30,40,VCK30,40..ACB

 1
09150 - WRENCH, HUB NUT BOX
09150-AD020

UCK30,40,VCK30,40

 1
