VCK40L-ARMSKA (1999)

Toyota Tundra

Production Feb 1999 - Aug 2004
Engine 5VZFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9902- )MTM

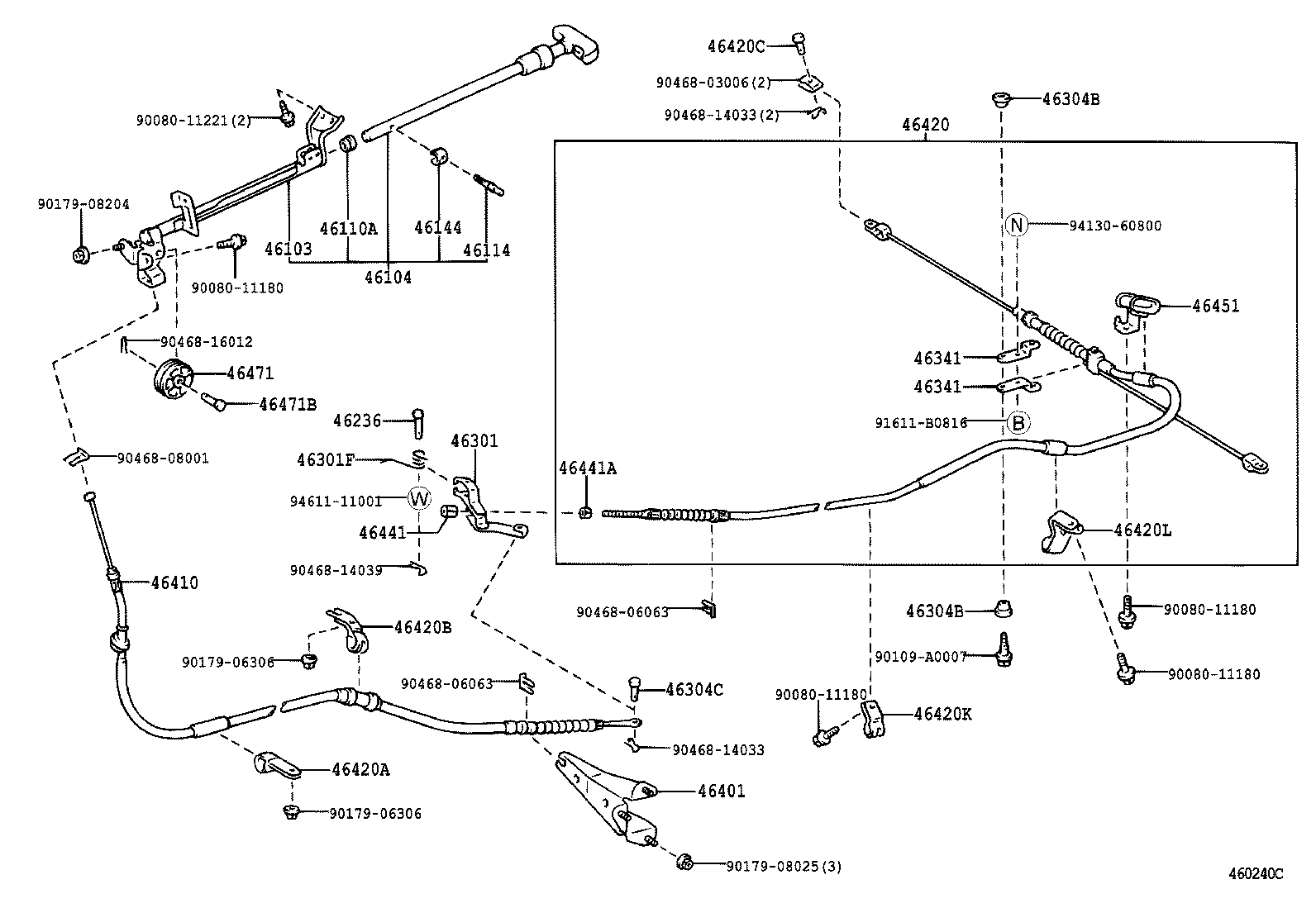

Click highlighted areas on diagram

diagram 46103 46104 46110A 46114 46144 46236 46301 46301F 46304B 46304B 46304C 46341 46341 46401 46410 46420 46420A 46420B 46420C 46420K 46420L 46441 46441A 46451 46471 46471B 9008011180 9008011180 9008011180 9008011180 9008011221 90109A0007 9017906306 9017906306 9017908025 9017908204 9046803006 9046806063 9046806063 9046808001 9046814033 9046814033 9046814039 9046816012 91611B0816 9413060800 9461111001
Part # Description Qty Price
46103 - GUIDE SUB-ASSY, PARKING BRAKE PLUNGER
46103-34020

VCK30,40..5F

 1
46103-34020

VCK30,40..5F

 1
46104 - HANDLE SUB-ASSY, PARKING BRAKE CONTROL
46104-34020

VCK30,40..5F

 1
46104-34020

VCK30,40..5F

 1
46110A - BUSH OR RING, O (FOR PARKING BRAKE PLUNGER)
90386-11195

VCK30,40..5F

 1
90386-11195

VCK30,40..5F

 1
46114 - PIN, PARKING BRAKE PLUNGER
46114-20010

VCK30,40..5F

 1
46114-20010

VCK30,40..5F

 1
46144 - ANTI-RATTLE, PARKING BRAKE PLUNGER
46144-30020

VCK30,40..5F

 1
46144-30020

VCK30,40..5F

 1
46236 - PIN, LEVER PIVOT
46236-34020

VCK30,40..5F

 1
46236-34020

VCK30,40..5F

 1
46301 - LEVER SUB-ASSY, PARKING BRAKE INTERMEDIATE
46301-34030

VCK30,40..5F

 1
46301-34030

VCK30,40..5F

 1
46301F - SPRING, TORSION(FOR PARKING BRAKE INTERMEDIATE LEVER)
90949-03074

VCK30,40..5F

 1
90949-03074

VCK30,40..5F

 1
46304B - BUSH(FOR PARKING BRAKE EQUALIZER)
90385-12012

UCK30,40,VCK30,40

 2
90385-12012

UCK3#,4#,VCK30,40

 2
46304B - BUSH(FOR PARKING BRAKE EQUALIZER)
90385-12012

UCK30,40,VCK30,40

 2
90385-12012

UCK3#,4#,VCK30,40

 2
46304C - PIN(FOR PARKING BRAKE EQUALIZER)
90240-08059

VCK30,40..5F

 1
90240-08059

VCK30,40..5F

 1
90240-08040

VCK30,40..5F

 1
46341 - EQUALIZER, PARKING BRAKE
46341-35030

UCK3#,4#,VCK30,40

 2
46341-35030

UCK30,40,VCK30,40

 2
46341 - EQUALIZER, PARKING BRAKE
46341-35030

UCK3#,4#,VCK30,40

 2
46341-35030

UCK30,40,VCK30,40

 2
46401 - BRACKET SUB-ASSY, CABLE SUPPORT
46401-34010

UCK3#,4#,VCK30,40

 1
46401-34010

UCK30,40,VCK30,40

 1
46410 - CABLE ASSY, PARKING BRAKE, NO.1
46410-34090

UCK30,40

 1
46410-34060

VCK30,40..5F

 1
46410-34060

VCK30,40..5F

 1
46420 - CABLE ASSY, PARKING BRAKE, NO.2
46420-0C010

VCK30,40..5F

 1
46420-0C010

VCK30,40..5F

 1
46420A - CLAMP, NO.1(FOR PARKING BRAKE CABLE)
46411-34020

VCK30,40..5F

 1
46411-34020

VCK30,40..5F

 1
46420B - CLAMP, NO.2(FOR PARKING BRAKE CABLE)
46411-34030

UCK30,40,VCK30,40

 1
46411-34030

UCK3#,4#,VCK30,40

 1
46420C - PIN, W/HOLE(FOR PARKING BRAKE CABLE)
90240-08059

UCK3#,4#,VCK30,40

 2
90240-08059

UCK30,40,VCK30,40

 2
46420K - CLAMP, NO.4(FOR PARKING BRAKE CABLE)
90949-01964

UCK30,40,VCK30,40

 1
90949-01964

UCK3#,4#,VCK30,40

 1
46420L - CLAMP, NO.5(FOR PARKING BRAKE CABLE)
46421-34010

UCK30,40,VCK30,40

 1
46421-34010

UCK3#,4#,VCK30,40

 1
46441 - NUT, WIRE ADJUSTING, NO.1
46441-30041

VCK30,40..5F

 1
46441-30041

VCK30,40..5F

 1
46441A - NUT, WIRE ADJUSTING, NO.2
46441-30030

VCK30,40..5F

 1
46441-30030

VCK30,40..5F

 1
46451 - BRACKET, CABLE SUPPORT
46451-34010

UCK3#,4#,VCK30,40

 1
46451-34010

UCK30,40,VCK30,40

 1
46471 - PULLEY, WIRE
46471-30010

VCK30,40..5F

 1
46471-30010

VCK30,40..5F

 1
46471B - PIN, W/HOLE(FOR WIRE PULLEY SET)
90240-08017

VCK30,40..5F

 1
90240-08017

VCK30,40..5F

 1
Common parts
90080-11180
90080-11221
90109-A0007
90179-06306
90179-08025
90179-08204
90468-03006
90468-06063
90468-08001
90468-14033
90468-14039
90468-16012
91611-B0816
94130-60800
94611-11001
