VCK40L-ARMSKA (1999)

Toyota Tundra

Production Feb 1999 - Aug 2004
Engine 5VZFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

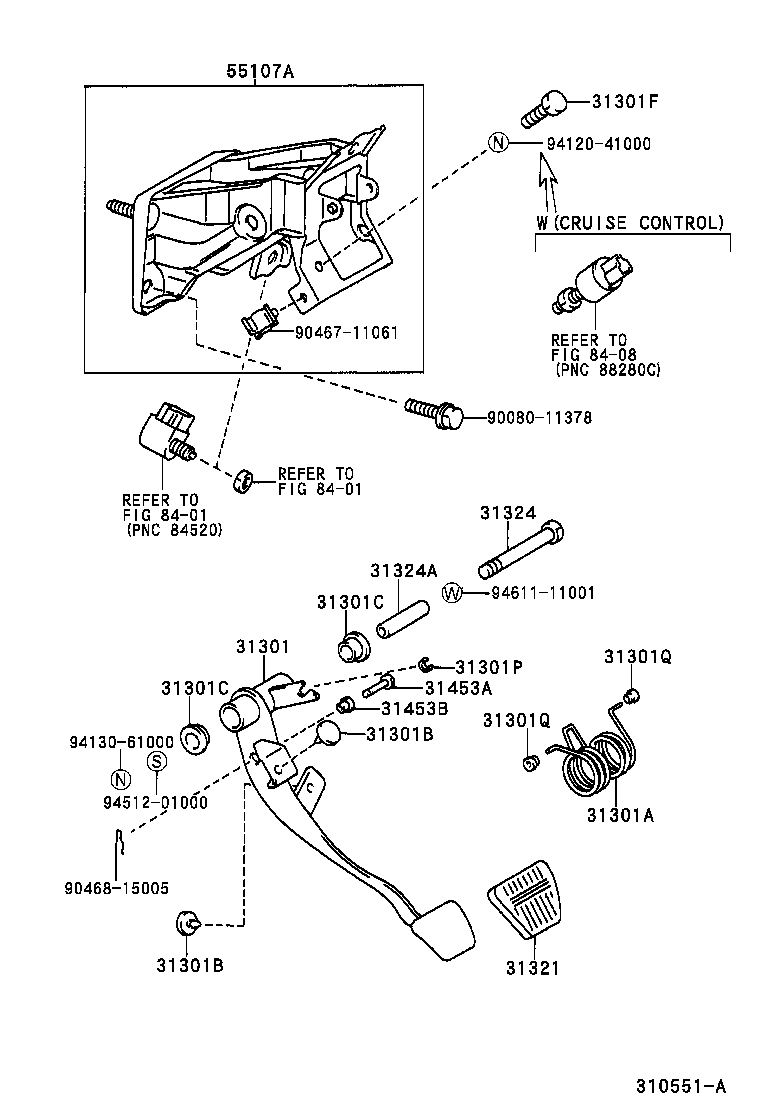

ILLUST NO. 1 OF 2(9902-0408)5F

Click highlighted areas on diagram

diagram 31301 31301A 31301B 31301B 31301C 31301C 31301F 31301P 31301Q 31301Q 31321 31324 31324A 31453A 31453B 55107A 8401 8401 8408 9008011378 9046711061 9046815005 9412041000 9413061000 9451201000 9461111001
Part # Description Qty Price
31301 - PEDAL SUB-ASSY, CLUTCH
31310-34020

VCK30,40..5F

 1
31310-34020

VCK30,40..5F

 1
31301A - SPRING(FOR CLUTCH PEDAL)
90905-08003

VCK30,40..5F

 1
90905-08003

VCK30,40..5F

 1
31301B - CUSHION, NO.1(FOR CLUTCH PEDAL)
90541-06036

VCK30,40..5F

 2
90541-06036

VCK30,40..5F

 2
31301B - CUSHION, NO.1(FOR CLUTCH PEDAL)
90541-06036

VCK30,40..5F

 2
90541-06036

VCK30,40..5F

 2
31301C - BUSH(FOR CLUTCH PEDAL)
90386-13007

VCK30,40..5F

 2
90386-13007

VCK30,40..5F

 2
31301C - BUSH(FOR CLUTCH PEDAL)
90386-13007

VCK30,40..5F

 2
90386-13007

VCK30,40..5F

 2
31301F - BOLT(FOR CLUTCH PEDAL STOPPER)
90101-10369

VCK30,40..5F

 1
90101-10369

VCK30,40..5F

 1
31301P - BUSH(FOR CLUTCH PEDAL TURNOVER)
90389-04002

VCK30,40..5F

 1
90389-04002

VCK30,40..5F

 1
31301Q - BUSH(FOR CLUTCH PEDAL SPRING)
90386-04009

VCK30,40..5F

 2
90386-04009

VCK30,40..5F

 2
31301Q - BUSH(FOR CLUTCH PEDAL SPRING)
90386-04009

VCK30,40..5F

 2
90386-04009

VCK30,40..5F

 2
31321 - PAD, CLUTCH PEDAL
31321-14020

VCK30,40..5F

 1
31321-14020

VCK30,40..5F

 1
31324 - SHAFT, CLUTCH PEDAL
90101-10113

VCK30,40..5F

 1
90101-10113

VCK30,40..5F

 1
31324A - COLLAR, CLUTCH PEDAL SHAFT
90387-10121

VCK30,40..5F

 1
90387-10121

VCK30,40..5F

 1
31453A - PIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)
47148-34010

VCK30,40..5F

L=27

 1
47148-34010

VCK30,40..5F

L=27

 1
31453B - BUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)
90386-08002

VCK30,40..5F

 1
90386-08002

VCK30,40..5F

 1
55107A - SUPPORT SUB-ASSY, CLUTCH PEDAL
55107-34040

VCK30,40..5F

 1
55107-34040

VCK30,40..5F

 1
Common parts
90080-11378
90467-11061
90468-15005
94120-41000
94130-61000
94512-01000
94611-11001
Linked diagrams
8401
8408

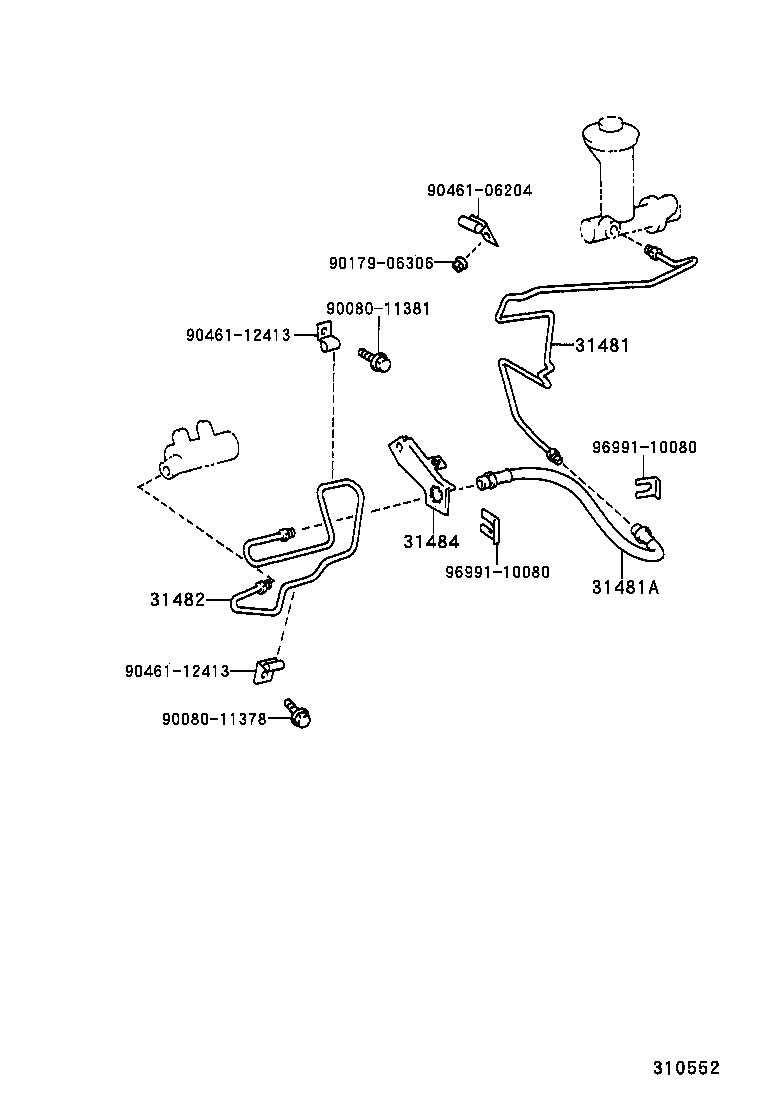

ILLUST NO. 2 OF 2(9902-0408)5F

Click highlighted areas on diagram

diagram 31481 31481A 31482 31484 9008011378 9008011381 9017906306 9046106204 9046112413 9046112413 9699110080 9699110080
Part # Description Qty Price
31481 - TUBE, CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE
31481-0C010

VCK30,40..5F

 1
31481-0C010

VCK30,40..5F

 1
31481A - HOSE, CLUTCH, NO.1
90931-01134

VCK30,40..5F

 1
90931-01134

VCK30,40..5F

 1
31482 - TUBE, CLUTCH RELEASE CYLINDER TO FLEXIBLE HOSE
31482-0C010

VCK30,40..5F

 1
31482-0C010

VCK30,40..5F

 1
31484 - BRACKET, FLEXIBLE HOSE(FOR CLUTCH)
31484-34050

VCK30,40..5F

 1
31484-34050

VCK30,40..5F

 1
Common parts
90080-11378
90080-11381
90179-06306
90461-06204
90461-12413
96991-10080
