USK57L-CHTSGA (2008)

Toyota Tundra

Production Aug 2008 - Apr 2009
Engine 3URFBE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0808-0903)3URFBE

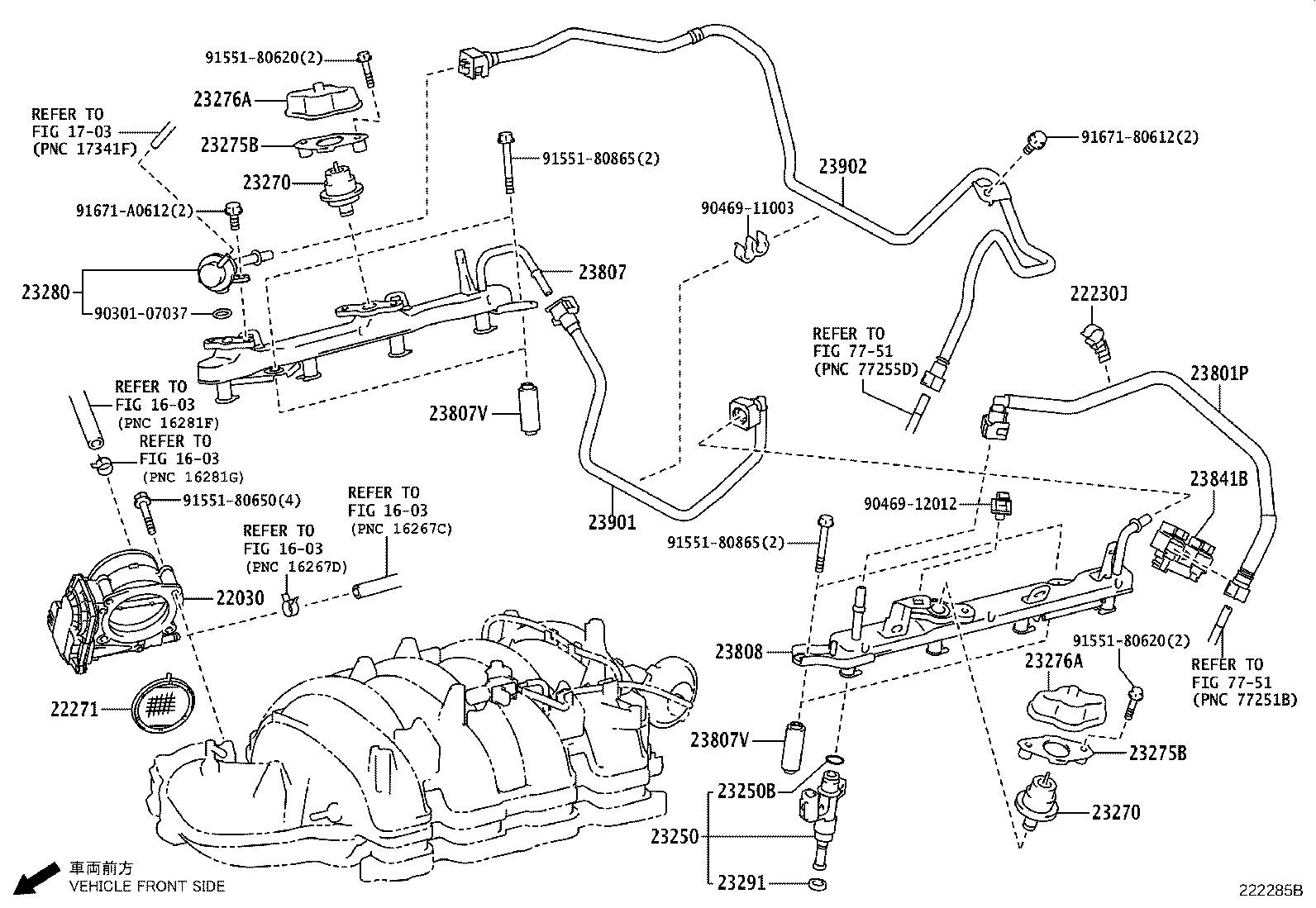

Click highlighted areas on diagram

diagram 1603 1603 1603 1603 1703 22030 22230J 22271 23250 23250B 23270 23270 23275B 23275B 23276A 23276A 23280 23291 23801P 23807 23807V 23807V 23808 23841B 23901 23902 7751 7751 9030107037 9046911003 9046912012 9155180620 9155180620 9155180650 9155180865 9155180865 9167180612 91671A0612
Part # Description Qty Price
22271 - GASKET, THROTTLE BODY
22271-0S020

3URFBE..USK55,56,57

 1
23270 - DAMPER ASSY, FUEL PRESSURE PULSATION
23270-38020

3URFBE..USK55,56,57

 2
23270 - DAMPER ASSY, FUEL PRESSURE PULSATION
23270-38020

3URFBE..USK55,56,57

 2
23275B - COVER, FUEL PRESSURE PULSATION DAMPER
23275-38010

3URFBE..USK55,56,57

 2
23275B - COVER, FUEL PRESSURE PULSATION DAMPER
23275-38010

3URFBE..USK55,56,57

 2
23276A - CAP, FUEL PRESSURE PULSATION DAMPER
23276-38010

3URFBE..USK55,56,57

 2
23276A - CAP, FUEL PRESSURE PULSATION DAMPER
23276-38010

3URFBE..USK55,56,57

 2
23280 - REGULATOR ASSY, FUEL PRESSURE
23280-38040

3URFBE..USK55,56,57

 1
23807 - PIPE SUB-ASSY, FUEL DELIVERY
23814-38120

3URFBE..USK55,56,57

 1
23814-38121

3URFBE..USK55,56,57

 1
23807V - SPACER, NO.1(FOR DELIVERY PIPE)
23891-38020

3URFBE..USK55,56,57

 4
23807V - SPACER, NO.1(FOR DELIVERY PIPE)
23891-38020

3URFBE..USK55,56,57

 4
23808 - PIPE SUB-ASSY, FUEL DELIVERY, NO.2
23815-38070

3URFBE..USK55,56,57

 1
23841B - CLAMP, FUEL PIPE, NO.1(FOR EFI)
23841-0F010

2UZFE,3UR#..UCK5#,USK5#

 1
23901 - TUBE SUB-ASSY, FUEL
23901-38011

3UR#..USK5#

ENGINE NO.=5XXXXXX

 1
23902 - TUBE SUB-ASSY, FUEL
23902-38030

3URFBE..USK55,56,57

 1
23902-38031

3URFBE..USK55,56,57

 1
Common parts
90301-07037
90469-11003
90469-12012
91551-80620
91551-80650
91551-80865
91671-80612
91671-A0612
Linked diagrams
1603
1703
7751
