USK56L-THTSKA (2013)
Toyota Tundra

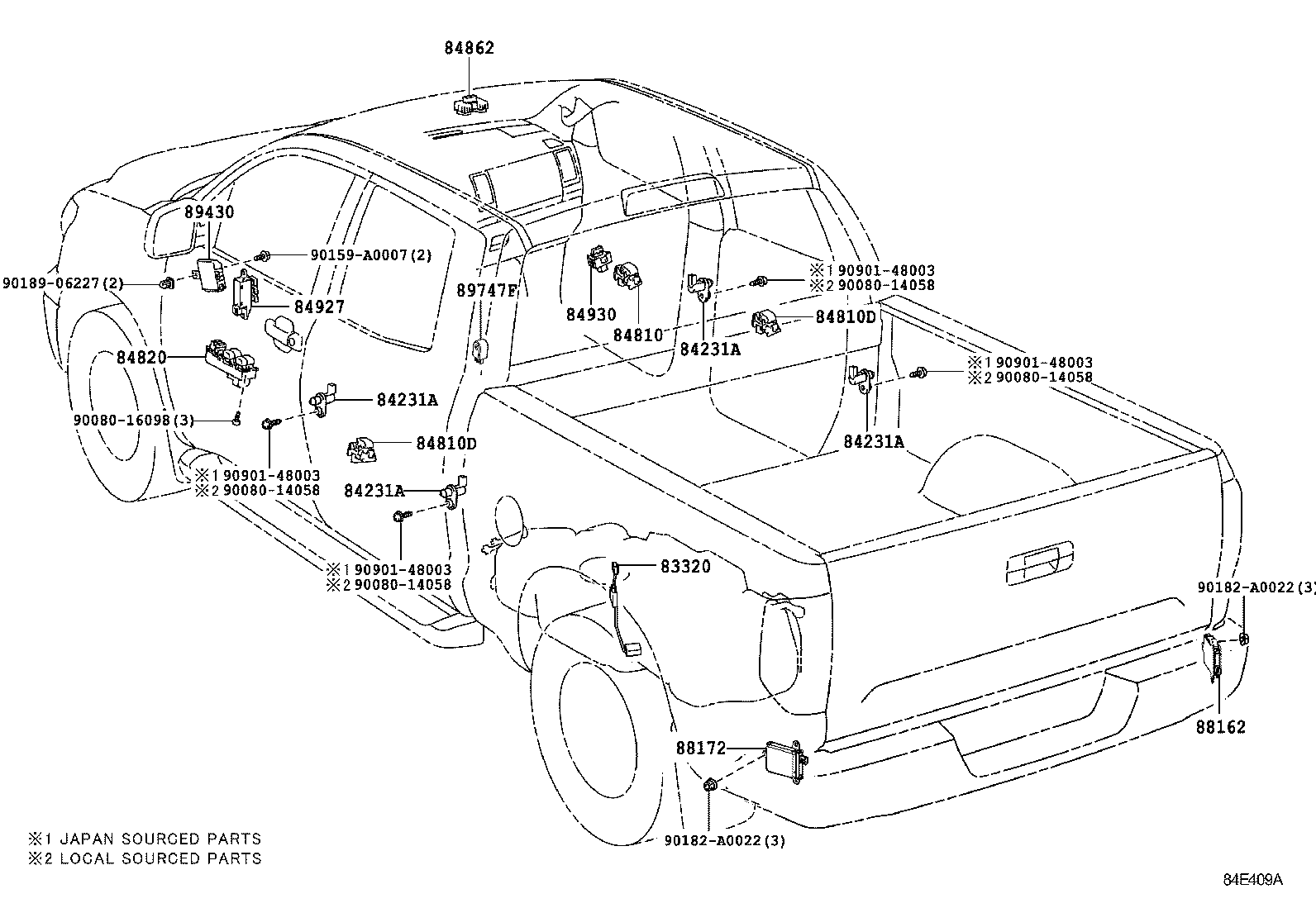

ILLUST NO. 9 OF 9(1308-1708)
DOOR,ROOF,FLOOR & LUGGAGE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-0C080 |
GSK51,UPK5#,USK5#..HTWC |
1 | ||
| 83320-0C050 |
USK5#..HTWC FUEL TANK-38 GALLON |
1 | ||
| 84231A - SWITCH, COURTESY LAMP | ||||
| 84231-0C010 |
USK51,56..RCB |
2 | ||
| 84231A - SWITCH, COURTESY LAMP | ||||
| 84231-0C010 |
USK51,56..RCB |
2 | ||
| 84231A - SWITCH, COURTESY LAMP | ||||
| 84231-0C010 |
USK51,56..RCB |
2 | ||
| 84231A - SWITCH, COURTESY LAMP | ||||
| 84231-0C010 |
USK51,56..RCB |
2 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-06030 |
USK51,56..RCB LOW PACKAGE&POWER DOOR LOCK-WITHOUT |
1 | ||
| 84810-06030 |
USK56..RCB;USK51..RCB..HTWC LOW PACKAGE&POWER WINDOW-WITHOUT |
1 | ||
| 84810-06030 |
UPK5#,USK5#..L,S |
1 | ||
| 84810-0C080 |
USK51,56..L POWER WINDOW-WITH(*DRP:AUTO UP & DOWN) |
1 | ||
| 84820 - MASTER SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84820-0C050 |
USK51,56..RCB |
1 | ||
| 84820-0C050 |
USK51,56..RCB LOW PACKAGE&POWER DOOR LOCK-WITHOUT |
1 | ||
| 84820-0C050 |
USK56..RCB;USK51..RCB..HTWC LOW PACKAGE&POWER WINDOW-WITHOUT |
1 | ||
| 84820-0C040 |
USK51,56..L POWER WINDOW-WITH(*DRP:AUTO UP & DOWN) |
1 | ||
| 84930 - SWITCH ASSY, DOOR CONTROL | ||||
| 84930-0C010 |
USK56..RCB;USK51..RCB..HTWC LOW PACKAGE&POWER WINDOW-WITHOUT |
1 | ||
| 84930-0C010 |
UPK5#,USK5# |
1 | ||
| 84930-0C010 |
USK51,56..RCB LOW PACKAGE&POWER DOOR LOCK-WITHOUT |
1 | ||
| 88162 - SENSOR, BLIND SPOT MONITOR, RH | ||||
| 88162-0C020 |
GSK51,UPK5#,USK5#..L,S LANE CHANGE ASSIST-WITH(BLIND SPOT MONITOR) |
1 | ||
| 88162-0C021 |
UPK5#,USK5#..L,S LANE CHANGE ASSIST-WITH(BLIND SPOT MONITOR) |
1 | ||
| 88172 - SENSOR, BLIND SPOT MONITOR, LH | ||||
| 88162-0C020 |
GSK51,UPK5#,USK5#..L,S LANE CHANGE ASSIST-WITH(BLIND SPOT MONITOR) |
1 | ||
| 88162-0C021 |
UPK5#,USK5#..L,S LANE CHANGE ASSIST-WITH(BLIND SPOT MONITOR) |
1 | ||
| 89747F - BUZZER, BLIND SPOT MONITOR | ||||
| 89747-02010 |
UPK5#,USK5# LANE CHANGE ASSIST-WITH(BLIND SPOT MONITOR) |
1 | ||
| Common parts | ||||
| 90080-14058 | ||||
| 90080-16098 | ||||
| 90159-A0007 | ||||
| 90182-A0022 | ||||
| 90189-06227 | ||||
| 90901-48003 | ||||

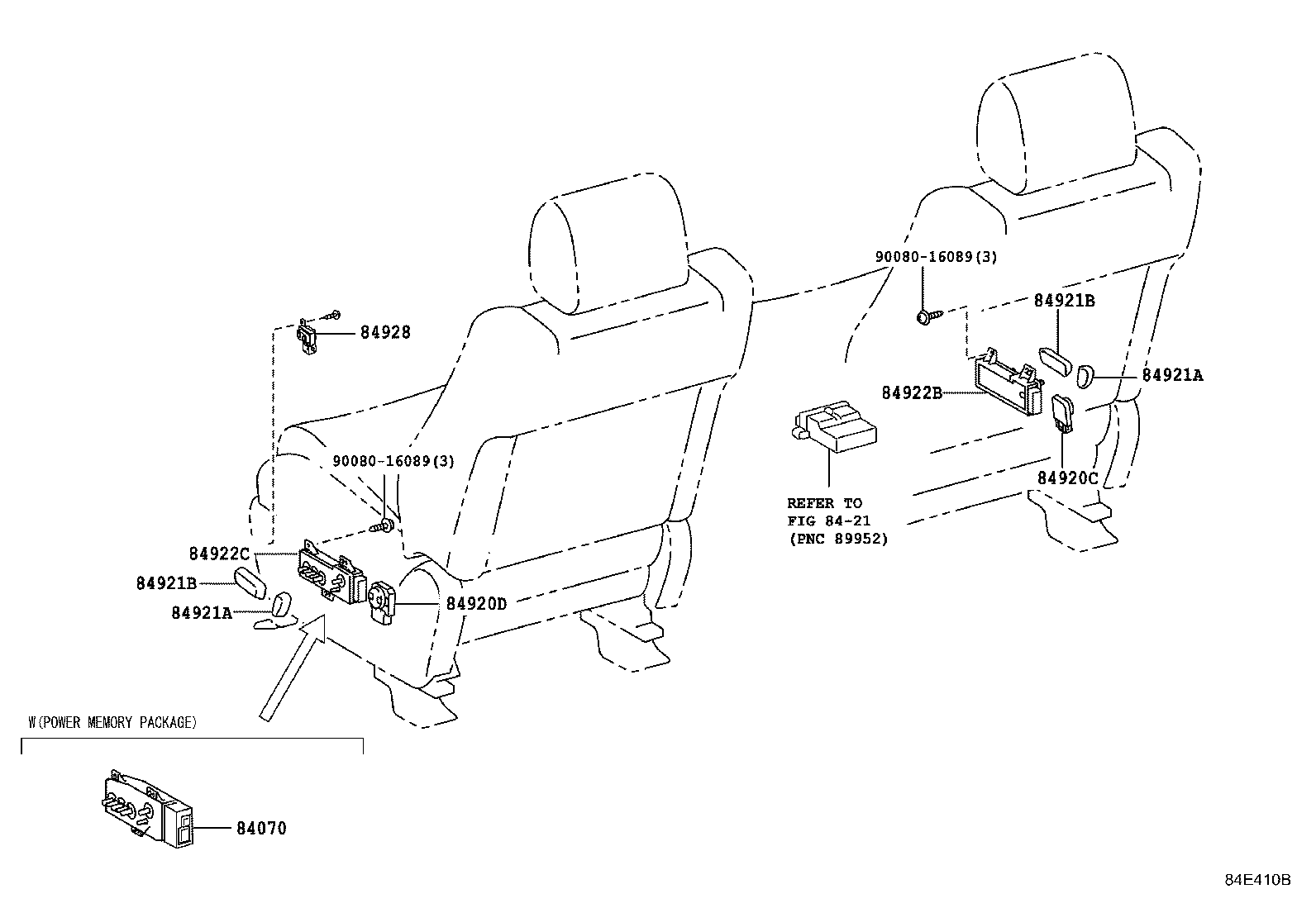

ILLUST NO. 8 OF 9(1308- )
SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84920D - SWITCH ASSY, POWER SEAT FRONT, LH | ||||
| 84920-08010C0 |
USK51,56..L BLACK,TRIM1#,2#,4# |
1 | ||
| 84921A - KNOB, POWER SEAT SWITCH (FOR RECLINING) | ||||
| 84921-08010C0 |
USK51,56..L BLACK,TRIM1#,2#,4#,LH |
1 | ||
| 84921-08030C0 |
USK51,56..L BLACK,TRIM1#,2#,4#,RH |
1 | ||
| 84921A - KNOB, POWER SEAT SWITCH (FOR RECLINING) | ||||
| 84921-08010C0 |
USK51,56..L BLACK,TRIM1#,2#,4#,LH |
1 | ||
| 84921-08030C0 |
USK51,56..L BLACK,TRIM1#,2#,4#,RH |
1 | ||
| 84921B - KNOB, POWER SEAT SWITCH (FOR SLIDE & VERTICAL) | ||||
| 84921-08020C0 |
USK51,56..L BLACK,TRIM1#,2#,4#,LH |
1 | ||
| 84921-08040C0 |
USK51,56..L BLACK,TRIM1#,2#,4#,RH |
1 | ||
| 84921B - KNOB, POWER SEAT SWITCH (FOR SLIDE & VERTICAL) | ||||
| 84921-08020C0 |
USK51,56..L BLACK,TRIM1#,2#,4#,LH |
1 | ||
| 84921-08040C0 |
USK51,56..L BLACK,TRIM1#,2#,4#,RH |
1 | ||
| 84922B - SWITCH, FRONT POWER SEAT, RH | ||||
| 84922-08010 |
USK51,56..L |
1 | ||
| 84922C - SWITCH, FRONT POWER SEAT, LH | ||||
| 84922-08020 |
USK51,56..L |
1 | ||
| Common parts | ||||
| 90080-16089 | ||||
| Linked diagrams | ||||
| 8421 | ||||

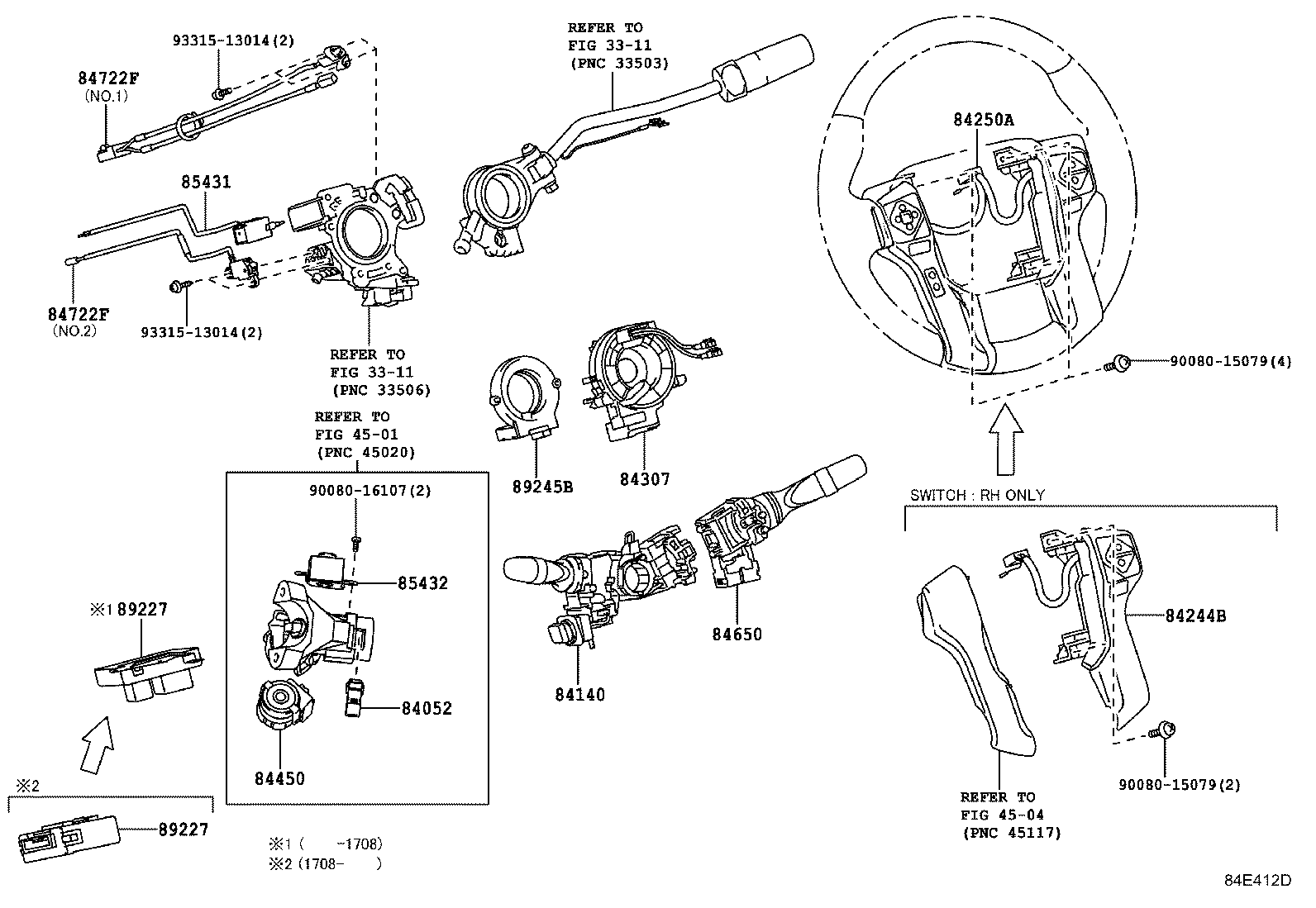

ILLUST NO. 7 OF 9(1308- )
STEERING
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84052 - SWITCH ASSY, UN-LOCK WARNING | ||||
| 84052-71010 |
GSK51,UPK5#,USK5# |
1 | ||
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-0E090 |
UPK5#,USK5#..S FRONT FOG LAMP-WITH |
1 | ||
| 84140-02660 |
USK56..HTWC..S;USK51..(CMAX,RCB)..HTWC..S;GSK51,UPK5#,USK52,57..(DCB,RCB)..HTWC CANADA SPEC |
1 | ||
| 84140-0E070 |
GSK51,UPK5#,USK5#..S |
1 | ||
| 84140-07141 |
USK56..HTWC..L;USK51..CMAX..HTWC..L CANADA SPEC |
1 | ||
| 84140-02670 |
USK56..HTWC..S;UPK5#,USK52,57..DCB..HTWC;USK51..(CMAX,RCB)..HTWC..S CANADA SPEC&FRONT FOG LAMP-WITH |
1 | ||
| 84140-0E100 |
USK51,56..L |
1 | ||
| 84244B - SWITCH, STEERING PAD, RH | ||||
| 84244-0C010C0 |
GSK51,UPK5#,USK5#..(DCB,RCB)..S LOW PACKAGE&AUDIO-ENTRY DISPLAY,BLACK,TRIM1# |
1 | ||
| 84250A - SWITCH ASSY, STEERING PAD | ||||
| 84250-0C060B0 |
GSK51,UPK5#,USK5#..L,S SILVER,TRIM1#,2#,4# |
1 | ||
| 84307 - CABLE SUB-ASSY, SPIRAL W/SENSOR | ||||
| 84306-0E010 |
GSK51,UPK5#,USK5# |
1 | ||
| 84450 - SWITCH ASSY, IGNITION OR STARTER | ||||
| 84450-71010 |
GSK51,UPK5#,USK5# |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-02610 |
USK56..HTWC;USK51..(CMAX,RCB)..HTWC;UPK5#,USK52,57..DCB..HTWC CANADA SPEC |
1 | ||
| 84652-02710 |
UPK5#,USK5# |
1 | ||
| 84652-04132 |
USK51..RCB..HTWC;UPK5#,USK52,56,57..(DCB,RCB)..HTWC..S CANADA SPEC&LOW PACKAGE |
1 | ||
| 84652-04150 |
UPK5#,USK5#..(DCB,RCB)..S LOW PACKAGE |
1 | ||
| 84722F - SWITCH, TRANSMISSION CONTROL | ||||
| 84722-34021 |
GSK51,UPK5#,USK5#..S NO.1 |
1 | ||
| 84722-34030 |
GSK51,UPK5#,USK5#..S NO.2 |
1 | ||
| 84722F - SWITCH, TRANSMISSION CONTROL | ||||
| 84722-34021 |
GSK51,UPK5#,USK5#..S NO.1 |
1 | ||
| 84722-34030 |
GSK51,UPK5#,USK5#..S NO.2 |
1 | ||
| 85431 - SOLENOID, SHIFT LOCK | ||||
| 85431-34010 |
GSK51,UPK5#,USK5#..S |
1 | ||
| 85432 - SOLENOID, KEY INTER LOCK | ||||
| 85432-71010 |
GSK51,UPK5#,USK5# |
1 | ||
| 89245B - SENSOR, STEERING | ||||
| 89245-06040 |
GSK51,UPK5#,USK5# |
1 | ||
| Common parts | ||||
| 90080-15079 | ||||
| 90080-16107 | ||||
| 93315-13014 | ||||
| Linked diagrams | ||||
| 3311 | ||||
| 4501 | ||||
| 4504 | ||||

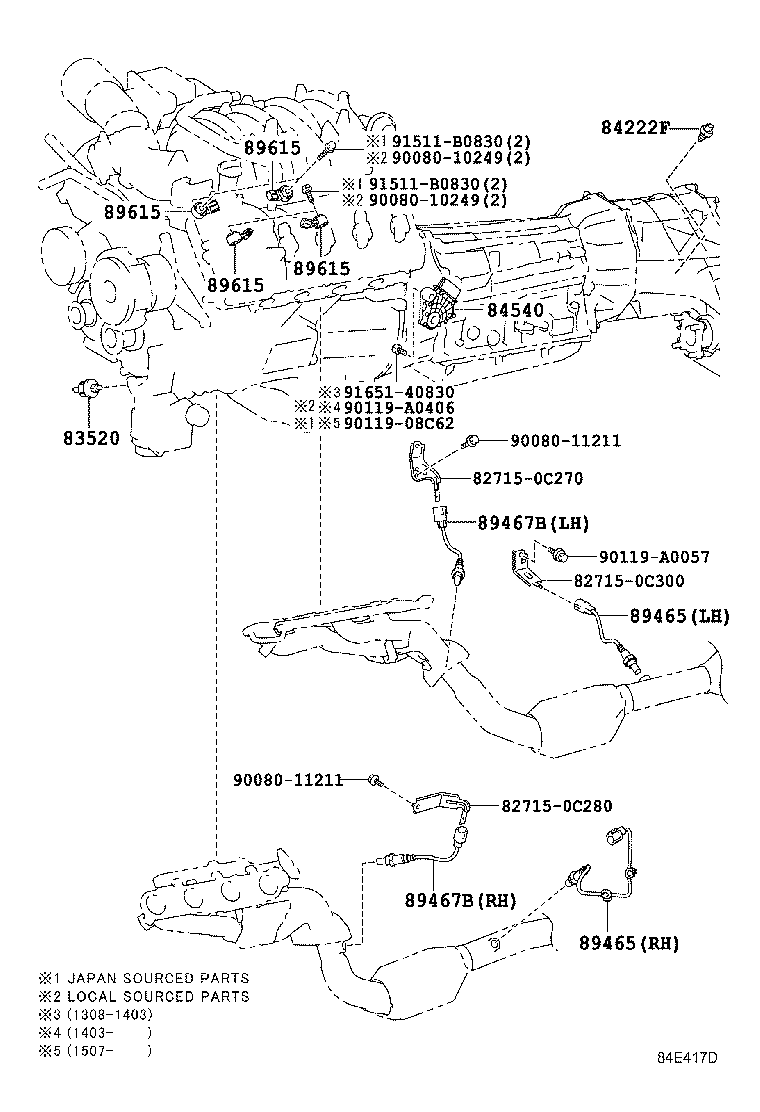

ILLUST NO. 1 OF 9(1308- )USK5#
ENGINE & TRANSMISSION
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83520 - GAGE ASSY,OIL PRESSURE SENDER | ||||
| 83520-60050 |
UPK5#,USK5# |
1 | ||
| 83520-60051 |
UPK5#,USK5# |
1 | ||
| 84222F - SWITCH, TRANSFER INDICATOR | ||||
| 84222-0C010 |
UPK56,USK56,57 |
1 | ||
| 84540 - SWITCH ASSY, NEUTRAL START | ||||
| 84540-0C010 |
GSK51,UPK5#,USK5# |
1 | ||
| 89465 - SENSOR, OXYGEN | ||||
| 89465-0C300 |
UPK5#,USK51,52;USK56,57..HTWC RH |
1 | ||
| 89465-34170 |
UPK5#,USK5#..HTWC RH |
1 | ||
| 89465-34160 |
UPK5#,USK5#..HTWC LH |
1 | ||
| 89465-0C290 |
UPK5#,USK51,52;USK56,57..HTWC LH |
1 | ||
| 89465 - SENSOR, OXYGEN | ||||
| 89465-0C300 |
UPK5#,USK51,52;USK56,57..HTWC RH |
1 | ||
| 89465-34170 |
UPK5#,USK5#..HTWC RH |
1 | ||
| 89465-34160 |
UPK5#,USK5#..HTWC LH |
1 | ||
| 89465-0C290 |
UPK5#,USK51,52;USK56,57..HTWC LH |
1 | ||
| 89467B - SENSOR, AIR FUEL RATIO | ||||
| 89467-0C060 |
USK51,52;USK56,57..HTWC LH |
1 | ||
| 89467-0C070 |
USK51,52;USK56,57..HTWC RH |
1 | ||
| 89467B - SENSOR, AIR FUEL RATIO | ||||
| 89467-0C060 |
USK51,52;USK56,57..HTWC LH |
1 | ||
| 89467-0C070 |
USK51,52;USK56,57..HTWC RH |
1 | ||
| 89615 - SENSOR, KNOCK CONTROL | ||||
| 89615-20090 |
UPK5#,USK5# (J) |
4 | ||
| 89615-06010 |
UPK5#,USK5# (L) |
4 | ||
| 89615 - SENSOR, KNOCK CONTROL | ||||
| 89615-20090 |
UPK5#,USK5# (J) |
4 | ||
| 89615-06010 |
UPK5#,USK5# (L) |
4 | ||
| 89615 - SENSOR, KNOCK CONTROL | ||||
| 89615-20090 |
UPK5#,USK5# (J) |
4 | ||
| 89615-06010 |
UPK5#,USK5# (L) |
4 | ||
| 89615 - SENSOR, KNOCK CONTROL | ||||
| 89615-20090 |
UPK5#,USK5# (J) |
4 | ||
| 89615-06010 |
UPK5#,USK5# (L) |
4 | ||
| Common parts | ||||
| 82715-0C270 | ||||
| 82715-0C280 | ||||
| 82715-0C300 | ||||
| 90080-10249 | ||||
| 90080-11211 | ||||
| 90119-08C62 | ||||
| 90119-A0057 | ||||
| 90119-A0406 | ||||
| 91511-B0830 | ||||
| 91651-40830 | ||||

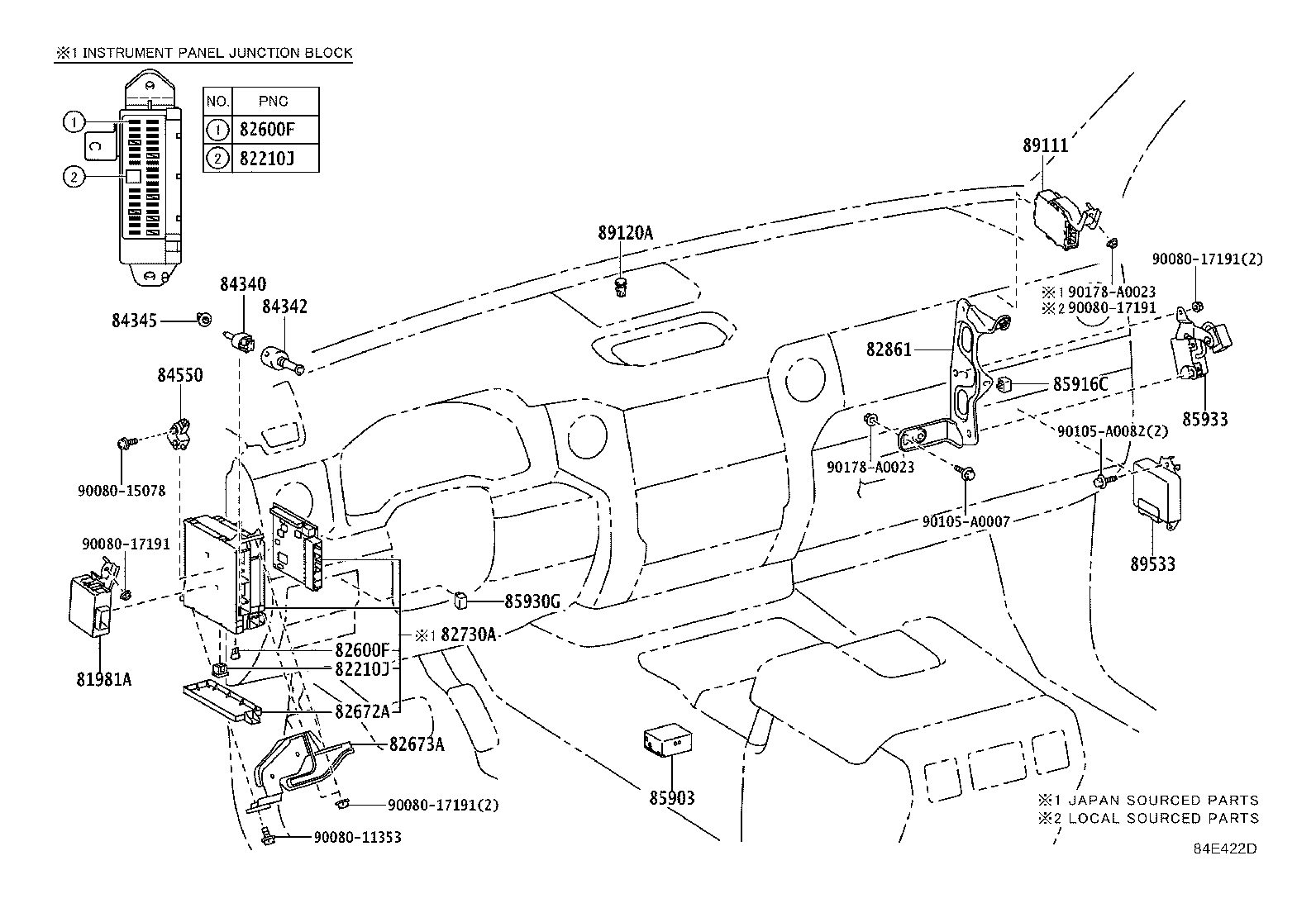

ILLUST NO. 4 OF 9(1308-1708)
COWL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81981A - FLASHER, TURN SIGNAL | ||||
| 81980-0C010 |
UPK5#,USK5#..L,S DAYTIME RUNNING LIGHT SYSTEM-WITH |
1 | ||
| 81980-0C020 |
UPK5#,USK5#..L,S |
1 | ||
| 81980-0C010 |
UPK5#,USK5#..L,S |
1 | ||
| 82210J - FUSIBLE LINK | ||||
| 90982-08294 |
UPK5#,USK5# 40A,TERM.:FEMALE,GRN |
1 | ||
| 90982-08298 |
UPK5#,USK5# 30A,TERMINAL:FEMALE |
1 | ||
| 90982-08295 |
UPK5#,USK5# 30A,TERM.:FEMALE,PNK,MARK:58V |
1 | ||
| 90982-08296 |
USK56,57;USK51..CMAX;UPK5#,USK52..HTWC;USK51..(DCB,RCB)..HTWC 50A,TERM.:FEMALE,RED |
1 | ||
| 82210J - FUSIBLE LINK | ||||
| 90982-08294 |
UPK5#,USK5# 40A,TERM.:FEMALE,GRN |
1 | ||
| 90982-08298 |
UPK5#,USK5# 30A,TERMINAL:FEMALE |
1 | ||
| 90982-08295 |
UPK5#,USK5# 30A,TERM.:FEMALE,PNK,MARK:58V |
1 | ||
| 90982-08296 |
USK56,57;USK51..CMAX;UPK5#,USK52..HTWC;USK51..(DCB,RCB)..HTWC 50A,TERM.:FEMALE,RED |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90080-82050 |
UPK5#,USK5# 7.5A,MINI FUSE,BROWN |
1 | ||
| 90982-09020 |
UPK5#,USK5# 7.5A,MINI FUSE,BROWN,MARK:58V |
1 | ||
| 90080-82052 |
UPK5#,USK5# 15A,MINI FUSE,BLUE |
1 | ||
| 90080-82053 |
UPK5#,USK5# 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09022 |
UPK5#,USK5# 15A,MINI FUSE,BLUE,MARK:58V |
1 | ||
| 90982-09019 |
UPK5#,USK5# 5A,MINI FUSE,TAN,MARK:58V |
1 | ||
| 90982-09025 |
UPK5#,USK5# 30A,MINI FUSE,GRN,MARK:58V |
1 | ||
| 90982-09023 |
UPK5#,USK5# 20A,MINI FUSE,YELLOW,MARK:58V |
1 | ||
| 90080-82051 |
UPK5#,USK5# 10A,MINI FUSE,RED |
1 | ||
| 90080-82054 |
UPK5#,USK5# 30A,MINI FUSE,GREEN |
1 | ||
| 90982-09024 |
UPK5#,USK5# 25A,MINI FUSE,MARK:58V |
1 | ||
| 90080-82055 |
UPK5#,USK5# 25A,MINI FUSE |
1 | ||
| 90982-09021 |
UPK5#,USK5# 10A,MINI FUSE,RED,MARK:58V |
1 | ||
| 90982-A9001 |
UPK5#,USK5# 5A,MINI FUSE,TAN |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90080-82050 |
UPK5#,USK5# 7.5A,MINI FUSE,BROWN |
1 | ||
| 90982-09020 |
UPK5#,USK5# 7.5A,MINI FUSE,BROWN,MARK:58V |
1 | ||
| 90080-82052 |
UPK5#,USK5# 15A,MINI FUSE,BLUE |
1 | ||
| 90080-82053 |
UPK5#,USK5# 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09022 |
UPK5#,USK5# 15A,MINI FUSE,BLUE,MARK:58V |
1 | ||
| 90982-09019 |
UPK5#,USK5# 5A,MINI FUSE,TAN,MARK:58V |
1 | ||
| 90982-09025 |
UPK5#,USK5# 30A,MINI FUSE,GRN,MARK:58V |
1 | ||
| 90982-09023 |
UPK5#,USK5# 20A,MINI FUSE,YELLOW,MARK:58V |
1 | ||
| 90080-82051 |
UPK5#,USK5# 10A,MINI FUSE,RED |
1 | ||
| 90080-82054 |
UPK5#,USK5# 30A,MINI FUSE,GREEN |
1 | ||
| 90982-09024 |
UPK5#,USK5# 25A,MINI FUSE,MARK:58V |
1 | ||
| 90080-82055 |
UPK5#,USK5# 25A,MINI FUSE |
1 | ||
| 90982-09021 |
UPK5#,USK5# 10A,MINI FUSE,RED,MARK:58V |
1 | ||
| 90982-A9001 |
UPK5#,USK5# 5A,MINI FUSE,TAN |
1 | ||
| 82672A - COVER, JUNCTION BLOCK | ||||
| 82672-0C091 |
UPK5#,USK5# |
1 | ||
| 82673A - BRACKET, JUNCTION BLOCK | ||||
| 82673-0C010 |
UPK5#,USK5# |
1 | ||
| 82730A - BLOCK ASSY, DRIVER SIDE JUNCTION | ||||
| 82730-0C283 |
UPK5#,USK5#..S ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & ALARM & *GBS) |
1 | ||
| 82730-0C243 |
UPK5#,USK5#..S ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & ALARM & *GBS)&DAYTIME RUNNING LIGHT SYSTEM-WITH |
1 | ||
| 82730-0C243 |
USK51,56..L DAYTIME RUNNING LIGHT SYSTEM-WITH |
1 | ||
| 82730-0C243 |
UPK5#,USK5#..S ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & ALARM)&DAYTIME RUNNING LIGHT SYSTEM-WITH |
1 | ||
| 82730-0C273 |
USK51,56..RCB LOW PACKAGE&POWER DOOR LOCK-WITHOUT&DAYTIME RUNNING LIGHT SYSTEM-WITH |
1 | ||
| 82730-0C263 |
UPK5#,USK5#..S DAYTIME RUNNING LIGHT SYSTEM-WITH |
1 | ||
| 82730-0C283 |
UPK5#,USK5#..S ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & ALARM) |
1 | ||
| 82730-0C283 |
USK51,56..L |
1 | ||
| 82730-0C293 |
UPK5#,USK5#..S |
1 | ||
| 82730-0C303 |
USK51,56..RCB LOW PACKAGE&POWER DOOR LOCK-WITHOUT |
1 | ||
| 82730-0C650 |
USK51,56..RCB..HTWC CANADA SPEC&LOW PACKAGE&POWER DOOR LOCK-WITHOUT&DAYTIME RUNNING LIGHT SYSTEM-WITH |
1 | ||
| 82730-0C630 |
USK52,56,57..HTWC..S;USK51..(CMAX,RCB)..S CANADA SPEC&DAYTIME RUNNING LIGHT SYSTEM-WITH |
1 | ||
| 82730-0C660 |
USK52,56,57..HTWC..S;USK51..(CMAX,RCB)..S CANADA SPEC&ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & ALARM)&DAYTIME RUNNING LIGHT SYSTEM-WITH |
1 | ||
| 82730-0C660 |
USK52,56,57..HTWC..S;USK51..(CMAX,RCB)..S CANADA SPEC&ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & ALARM & *GBS)&DAYTIME RUNNING LIGHT SYSTEM-WITH |
1 | ||
| 82730-0C243 |
USK56..L;USK51..HTWC..L |
1 | ||
| 82730-0C243 |
UPK5#,USK5#..S ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & ALARM & *GBS) |
1 | ||
| 82730-0C263 |
UPK5#,USK5#..S |
1 | ||
| 82730-0C243 |
UPK5#,USK5#..S ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & ALARM) |
1 | ||
| 82730-0C630 |
USK52,56,57..HTWC..S;USK51..(CMAX,RCB)..HTWC..S CANADA SPEC |
1 | ||
| 82730-0C273 |
USK51,56..RCB LOW PACKAGE&POWER DOOR LOCK-WITHOUT |
1 | ||
| 82730-0C650 |
USK51,56..RCB..HTWC CANADA SPEC&LOW PACKAGE&POWER DOOR LOCK-WITHOUT |
1 | ||
| 82730-0C660 |
USK51..CMAX..L;USK56..HTWC..L CANADA SPEC&DAYTIME RUNNING LIGHT SYSTEM-WITH |
1 | ||
| 82730-0C660 |
USK56..HTWC..L;USK51..CMAX..HTWC..L CANADA SPEC |
1 | ||
| 82730-0C660 |
USK52,56,57..HTWC..S;USK51..(CMAX,RCB)..HTWC..S CANADA SPEC&ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & ALARM) |
1 | ||
| 82730-0C660 |
USK52,56,57..HTWC..S;USK51..(CMAX,RCB)..HTWC..S CANADA SPEC&ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & ALARM & *GBS) |
1 | ||
| 82861 - BRACKET, COMPUTER INTEGRATION, NO.1 | ||||
| 82861-0C014 |
UPK5#,USK5# |
1 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-09070 |
UPK5#,USK5# |
1 | ||
| 84340-09310 |
UPK5#,USK5# |
1 | ||
| 84342 - COVER, STOP LAMP SWITCH | ||||
| 84342-08010 |
GSK51,UPK5#,USK5# |
1 | ||
| 84345 - ADJUSTER, STOP LAMP SWITCH MOUNTING | ||||
| 84345-08010 |
UPK5#,USK5# |
1 | ||
| 84550 - SWITCH ASSY, PARKING BRAKE | ||||
| 84550-04030 |
GSK51,UPK5#,USK5# |
1 | ||
| 85903 - COMPUTER SUB-ASSY, SHIFT LOCK CONTROL | ||||
| 85903-06010 |
USK51,56..L,Z |
1 | ||
| 85916C - RELAY, BACK UP LAMP | ||||
| 90080-87026 |
UPK5#,USK5# (L) |
1 | ||
| 90987-02027 |
UPK5#,USK5# (J) |
1 | ||
| 85930G - RELAY, ACC | ||||
| 90084-98032 |
UPK5#,USK5# |
1 | ||
| 85933 - COMPUTER, SHIFT LOCK CONTROL | ||||
| 85933-0C010 |
UPK5#,USK5#..S |
1 | ||
| 89111 - COMPUTER, NETWORK GATEWAY | ||||
| 89100-0C020 |
UPK5#,USK5# LANE CHANGE ASSIST-WITH(BLIND SPOT MONITOR) |
1 | ||
| 89100-0C010 |
GSK51,UPK5#,USK5# LANE CHANGE ASSIST-WITH(BLIND SPOT MONITOR) |
1 | ||
| 89120A - SENSOR, AUTOMATIC LIGHT CONTROL | ||||
| 89121-06020 |
USK51,56..L,Z |
1 | ||
| 89121-50020 |
USK51,56..L,Z |
1 | ||
| 89533 - COMPUTER, 4 WHEEL DRIVE CONTROL | ||||
| 89533-0C040 |
UPK56,USK56,57 |
1 | ||
| Common parts | ||||
| 90080-11353 | ||||
| 90080-15078 | ||||
| 90080-17191 | ||||
| 90105-A0007 | ||||
| 90105-A0082 | ||||
| 90178-A0023 | ||||

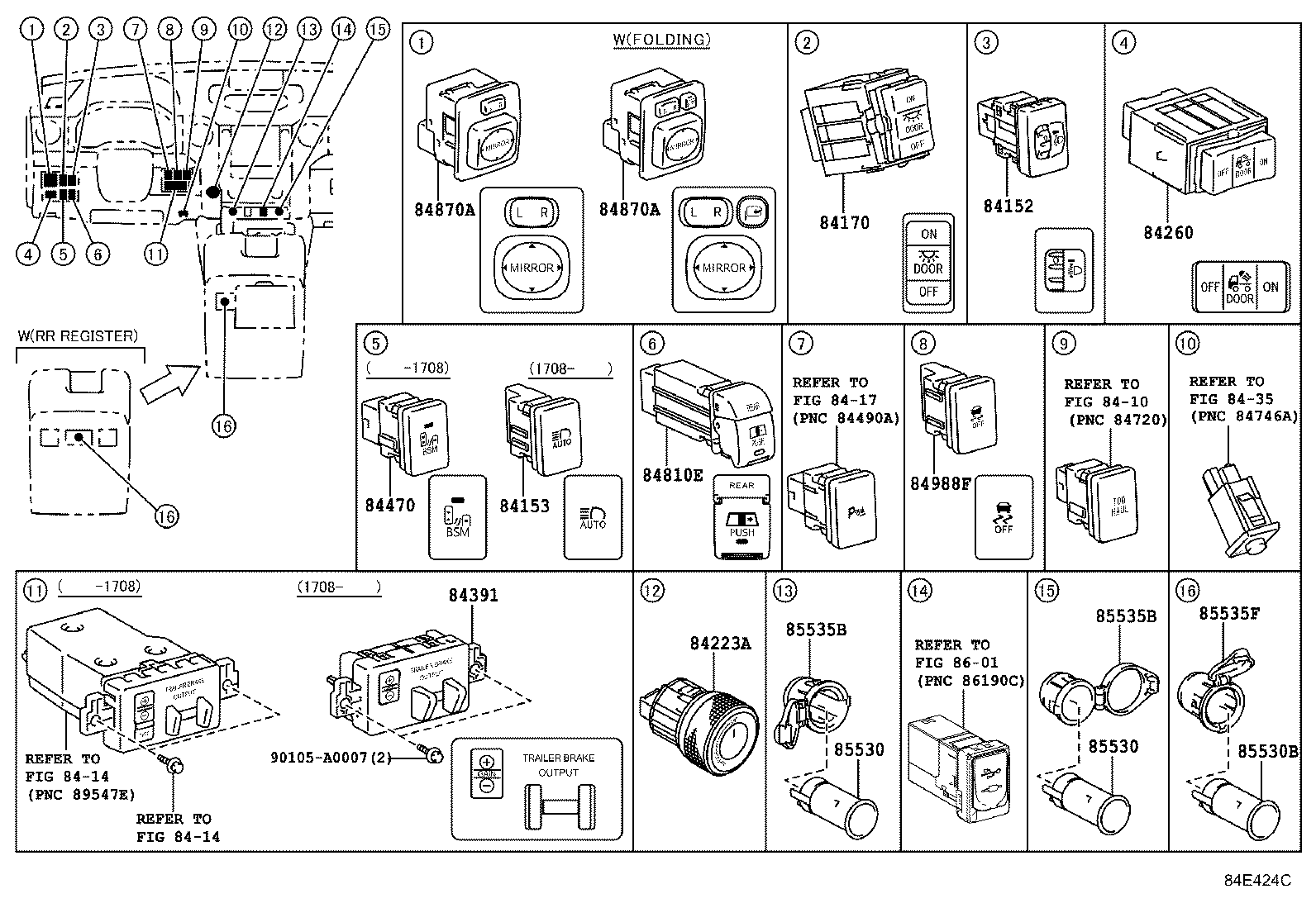

ILLUST NO. 5 OF 9(1308-1708)USK51..RCB ; (1308-1708)USK56..HTWCF..L ; (1308-1708)USK56,57..DCB,RCB..
INSTRUMENT PANEL(SEPARATE SEAT)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84152 - SWITCH, HEADLAMP LEVELING | ||||
| 84152-0E021 |
UPK5#,USK5#..L,S HEADLAMP LEVELING DEVICE-WITH(MANUAL) |
1 | ||
| 84152-0E021 |
UPK5#,USK5#..L,S HEADLAMP LEVELING DEVICE-WITH(MANUAL) |
1 | ||
| 84152-0E020 |
UPK5#,USK5#..L,S HEADLAMP LEVELING DEVICE-WITH(MANUAL) |
1 | ||
| 84152-0E020 |
UPK5#,USK5#..L,S HEADLAMP LEVELING DEVICE-WITH(MANUAL) |
1 | ||
| 84152-0E021 |
USK56,57..L,S;UPK5#,USK51,52..HTWC..(L,S) |
1 | ||
| 84152-0E021 |
USK56,57..L,S;UPK5#,USK51,52..HTWC..(L,S) |
1 | ||
| 84170 - SWITCH ASSY, INTERIOR DOME LAMP | ||||
| 84170-0C030C0 |
GSK51,UPK5#,USK5#..L,S BLACK,TRIM1#,2#,4# |
1 | ||
| 84170-0C030C0 |
GSK51,UPK5#,USK5#..L,S BLACK,TRIM1#,2#,4# |
1 | ||
| 84223A - SWITCH, TRANSFER POSITION | ||||
| 84223-0C010 |
UPK56,USK56,57 |
1 | ||
| 84223-0C010 |
UPK56,USK56,57 |
1 | ||
| 84260 - SWITCH ASSY, DECK LAMP | ||||
| 84267-0C020 |
UPK5#,USK5# |
1 | ||
| 84267-0C020 |
UPK5#,USK5# |
1 | ||
| 84470 - SWITCH ASSY, WARNING CANCELING | ||||
| 84470-0R010 |
UPK5#,USK5# LANE CHANGE ASSIST-WITH(BLIND SPOT MONITOR) |
1 | ||
| 84470-0R010 |
UPK5#,USK5# LANE CHANGE ASSIST-WITH(BLIND SPOT MONITOR) |
1 | ||
| 84470-0C020 |
GSK51,UPK5#,USK5# LANE CHANGE ASSIST-WITH(BLIND SPOT MONITOR) |
1 | ||
| 84470-0C020 |
GSK51,UPK5#,USK5# LANE CHANGE ASSIST-WITH(BLIND SPOT MONITOR) |
1 | ||
| 84470-0R011 |
UPK5#,USK5# LANE CHANGE ASSIST-WITH(BLIND SPOT MONITOR) |
1 | ||
| 84470-0R011 |
UPK5#,USK5# LANE CHANGE ASSIST-WITH(BLIND SPOT MONITOR) |
1 | ||
| 84870A - SWITCH ASSY, OUTER MIRROR | ||||
| 84870-08010 |
GSK51,UPK5#,USK5#..L,S |
1 | ||
| 84870-08010 |
GSK51,UPK5#,USK5#..L,S |
1 | ||
| 84870A - SWITCH ASSY, OUTER MIRROR | ||||
| 84870-08010 |
GSK51,UPK5#,USK5#..L,S |
1 | ||
| 84870-08010 |
GSK51,UPK5#,USK5#..L,S |
1 | ||
| 84988F - SWITCH, TRACTION CONTROL | ||||
| 84988-0C031 |
UPK5#,USK5# |
1 | ||
| 84988-0C031 |
UPK5#,USK5# |
1 | ||
| 84988-0C030 |
UPK5#,USK5# |
1 | ||
| 84988-0C030 |
UPK5#,USK5# |
1 | ||
| 85530 - SOCKET ASSY, POWER OUTLET, NO.1 | ||||
| 85530-AE010 |
UPK5#,USK5# |
2 | ||
| 85530-AE010 |
UPK5#,USK5# |
2 | ||
| 85530 - SOCKET ASSY, POWER OUTLET, NO.1 | ||||
| 85530-AE010 |
UPK5#,USK5# |
2 | ||
| 85530-AE010 |
UPK5#,USK5# |
2 | ||
| 85535B - COVER, POWER OUTLET SOCKET, NO.1 | ||||
| 85535-AE010 |
UPK5#,USK5# |
2 | ||
| 85535-AE010 |
UPK5#,USK5# |
2 | ||
| 85535B - COVER, POWER OUTLET SOCKET, NO.1 | ||||
| 85535-AE010 |
UPK5#,USK5# |
2 | ||
| 85535-AE010 |
UPK5#,USK5# |
2 | ||
| Common parts | ||||
| 90105-A0007 | ||||
| Linked diagrams | ||||
| 8410 | ||||
| 8414 | ||||
| 8417 | ||||
| 8435 | ||||
| 8601 | ||||

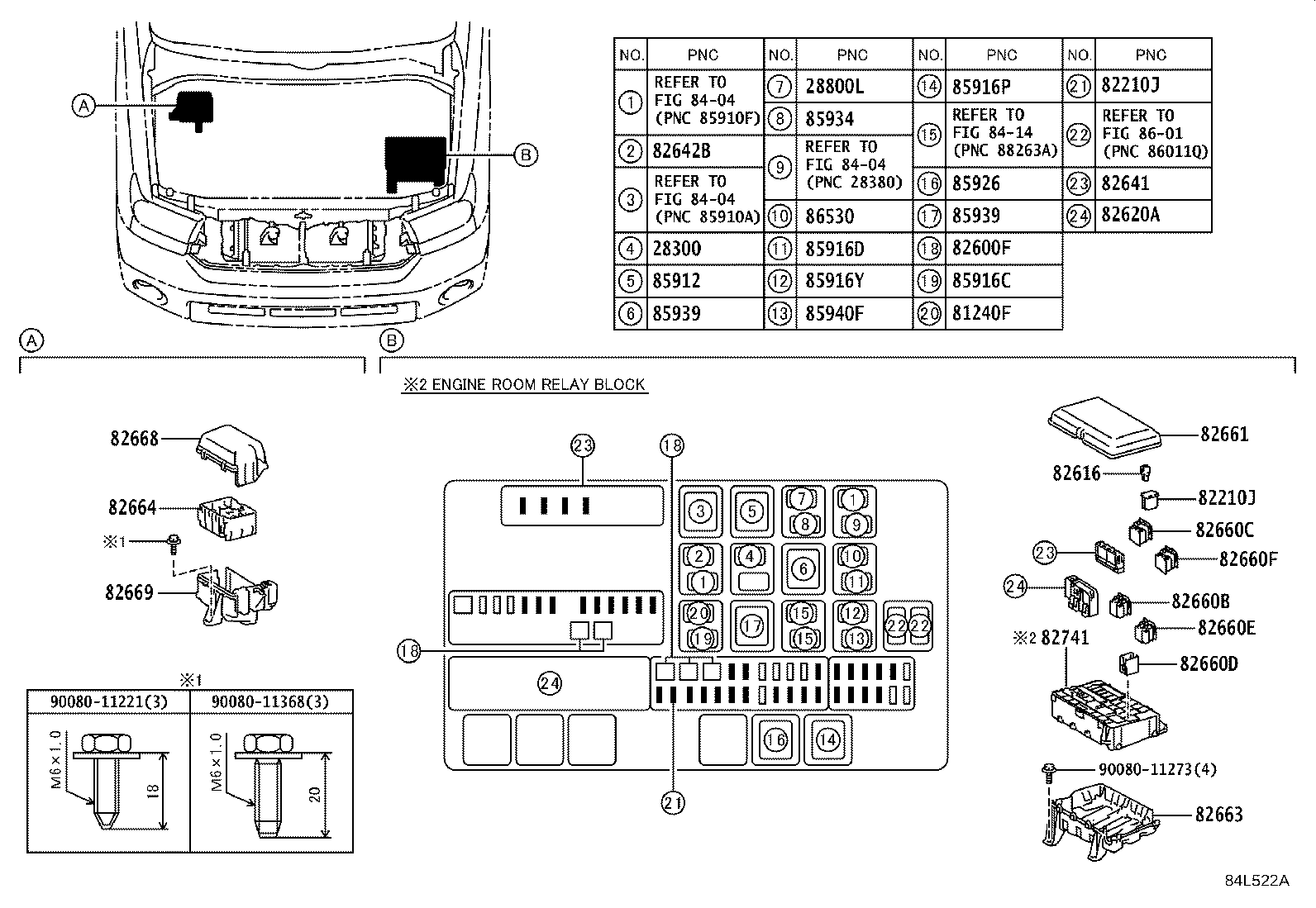

ILLUST NO. 3 OF 9(1308-1708)UPK5#,USK5#
ENGINE ROOM RELAY BLOCK
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28300 - RELAY ASSY, STARTER | ||||
| 28300-0A011 |
1URFE,3UR#..UPK5#,USK5# |
1 | ||
| 28300-0A010 |
1URFE,3UR#..UPK5#,USK5# |
1 | ||
| 28800L - RELAY, SUB BATTERY | ||||
| 90987-02027 |
1URFE,3UR#..UPK5#,USK5# (J) |
1 | ||
| 90080-87026 |
1URFE,3UR#..UPK5#,USK5# (L) |
1 | ||
| 81240F - RELAY, DOME LAMP | ||||
| 90080-87026 |
UPK5#,USK5# DENSO |
1 | ||
| 90987-02027 |
UPK5#,USK5# TYCO |
1 | ||
| 82210J - FUSIBLE LINK | ||||
| 90982-08294 |
UPK5#,USK5# 40A,TERM.:FEMALE,GRN |
1 | ||
| 90982-08298 |
UPK5#,USK5# 30A,TERMINAL:FEMALE |
1 | ||
| 90982-08295 |
UPK5#,USK5# 30A,TERM.:FEMALE,PNK,MARK:58V |
1 | ||
| 90982-08296 |
USK56,57;USK51..CMAX;UPK5#,USK52..HTWC;USK51..(DCB,RCB)..HTWC 50A,TERM.:FEMALE,RED |
1 | ||
| 82210J - FUSIBLE LINK | ||||
| 90982-08294 |
UPK5#,USK5# 40A,TERM.:FEMALE,GRN |
1 | ||
| 90982-08298 |
UPK5#,USK5# 30A,TERMINAL:FEMALE |
1 | ||
| 90982-08295 |
UPK5#,USK5# 30A,TERM.:FEMALE,PNK,MARK:58V |
1 | ||
| 90982-08296 |
USK56,57;USK51..CMAX;UPK5#,USK52..HTWC;USK51..(DCB,RCB)..HTWC 50A,TERM.:FEMALE,RED |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90080-82050 |
UPK5#,USK5# 7.5A,MINI FUSE,BROWN |
1 | ||
| 90982-09020 |
UPK5#,USK5# 7.5A,MINI FUSE,BROWN,MARK:58V |
1 | ||
| 90080-82052 |
UPK5#,USK5# 15A,MINI FUSE,BLUE |
1 | ||
| 90080-82053 |
UPK5#,USK5# 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09022 |
UPK5#,USK5# 15A,MINI FUSE,BLUE,MARK:58V |
1 | ||
| 90982-09019 |
UPK5#,USK5# 5A,MINI FUSE,TAN,MARK:58V |
1 | ||
| 90982-09025 |
UPK5#,USK5# 30A,MINI FUSE,GRN,MARK:58V |
1 | ||
| 90982-09023 |
UPK5#,USK5# 20A,MINI FUSE,YELLOW,MARK:58V |
1 | ||
| 90080-82051 |
UPK5#,USK5# 10A,MINI FUSE,RED |
1 | ||
| 90080-82054 |
UPK5#,USK5# 30A,MINI FUSE,GREEN |
1 | ||
| 90982-09024 |
UPK5#,USK5# 25A,MINI FUSE,MARK:58V |
1 | ||
| 90080-82055 |
UPK5#,USK5# 25A,MINI FUSE |
1 | ||
| 90982-09021 |
UPK5#,USK5# 10A,MINI FUSE,RED,MARK:58V |
1 | ||
| 90982-A9001 |
UPK5#,USK5# 5A,MINI FUSE,TAN |
1 | ||
| 82616 - PULLER, FUSE | ||||
| 82616-58010 |
UPK5#,USK5# |
1 | ||
| 82620A - BLOCK ASSY, FUSIBLE LINK | ||||
| 82620-0C030 |
UPK5#,USK5# |
1 | ||
| 82641 - RELAY, INTEGRATION NO.1 | ||||
| 82641-0C030 |
UPK5#,USK5# |
1 | ||
| 82660B - BLOCK ASSY, RELAY | ||||
| 82660-0H070 |
UPK5#,USK51,52;USK56,57..HTWC |
2 | ||
| 82660C - BLOCK ASSY, RELAY | ||||
| 82660-52010 |
UPK5#,USK5# |
7 | ||
| 82660E - BLOCK ASSY, RELAY | ||||
| 82660-26270 |
UPK5#,USK5#..DCB,RCB |
2 | ||
| 82660F - BLOCK ASSY, RELAY | ||||
| 82660-0C110 |
UPK5#,USK5# |
1 | ||
| 82661 - COVER, RELAY BLOCK, NO.1 | ||||
| 82661-0C300 |
UPK5#,USK5# |
1 | ||
| 82661-0C301 |
UPK5#,USK5# |
1 | ||
| 82663 - COVER, RELAY BLOCK, LOWER | ||||
| 82663-0C060 |
UPK5#,USK5# |
1 | ||
| 82664 - BLOCK, CONNECTOR HOLDER | ||||
| 82664-0C020 |
USK51,56..Z;UPK5#,USK52,57;USK51,56..DCB,RCB;USK51,56..CMAX..HTWC..(L,S) |
1 | ||
| 82668 - COVER, CONNECTOR HOLDER BLOCK, UPPER | ||||
| 82668-0C010 |
UPK5#,USK5# |
1 | ||
| 82669 - COVER, CONNECTOR HOLDER BLOCK, LOWER | ||||
| 82669-0C010 |
UPK5#,USK5# |
1 | ||
| 82741 - BLOCK, ENGINE ROOM RELAY | ||||
| 82741-0C060 |
UPK5#,USK5# |
1 | ||
| 85916C - RELAY, BACK UP LAMP | ||||
| 90080-87026 |
UPK5#,USK5# (L) |
1 | ||
| 90987-02027 |
UPK5#,USK5# (J) |
1 | ||
| 85916D - RELAY, FOG LAMP | ||||
| 90987-02027 |
UPK5#,USK5#..S FRONT FOG LAMP-WITH,TYCO |
1 | ||
| 90080-87026 |
UPK5#,USK5#..S FRONT FOG LAMP-WITH,DENSO |
1 | ||
| 90987-02027 |
USK51,56..L,Z TYCO |
1 | ||
| 90080-87026 |
USK51,56..L,Z DENSO |
1 | ||
| 85916P - RELAY, HEADLAMP | ||||
| 90080-87024 |
UPK5#,USK5# |
1 | ||
| 85916Y - RELAY, TOWING TAIL | ||||
| 90987-02027 |
UPK5#,USK5# (J) |
1 | ||
| 90080-87026 |
UPK5#,USK5# (L) |
1 | ||
| 85926 - RELAY, HEADLAMP DIMMER | ||||
| 90080-87025 |
UPK5#,USK5# |
1 | ||
| 85934 - RELAY, MAGNET-CLUTCH | ||||
| 90987-02028 |
UPK5#,USK5# |
1 | ||
| 85940F - RELAY ASSY, WINDSHIELD DEICER | ||||
| 90080-87026 |
UPK5#,USK5# WINDSHIELD DEICER-WITH |
1 | ||
| 86530 - RELAY ASSY, HORN | ||||
| 90987-02027 |
UPK5#,USK5#..S ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & ALARM),TYCO |
1 | ||
| 90987-02027 |
USK51,56..L,Z TYCO |
1 | ||
| 90080-87026 |
USK51,56..L,Z DENSO |
1 | ||
| 90987-02027 |
UPK5#,USK5#..S ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & ALARM & *GBS),TYCO |
1 | ||
| 90080-87026 |
UPK5#,USK5#..S ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & ALARM & *GBS),DENSO |
1 | ||
| 90080-87026 |
UPK5#,USK5#..S ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & ALARM),DENSO |
1 | ||
| Common parts | ||||
| 90080-11221 | ||||
| 90080-11273 | ||||
| 90080-11368 | ||||
| Linked diagrams | ||||
| 8404 | ||||
| 8414 | ||||
| 8601 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
