USK56L-THTSGA (2013)

Toyota Tundra

Production Aug 2013 - Aug 2017
Engine 3URFBE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0611-1708)RCB

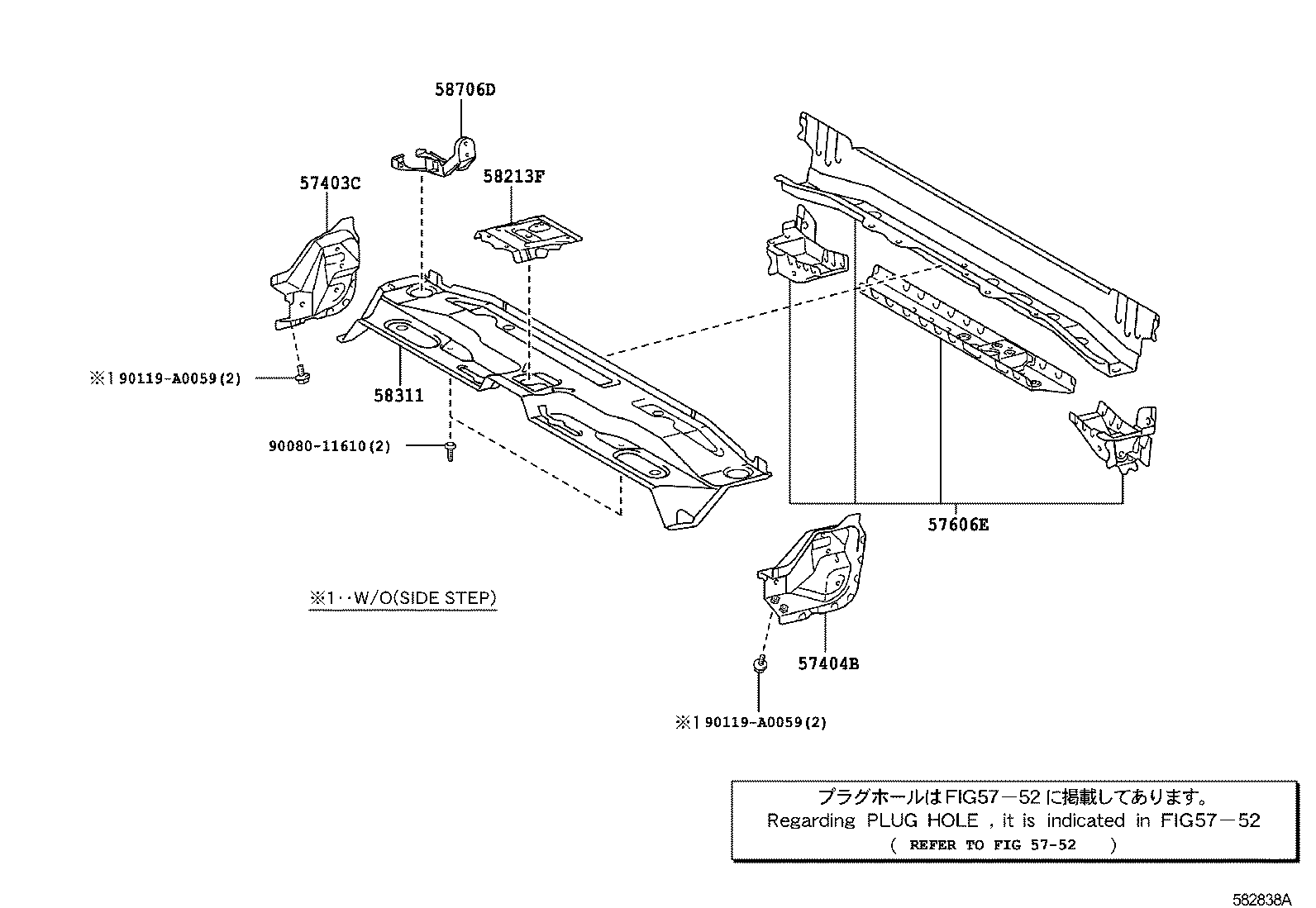

Click highlighted areas on diagram

diagram 57403C 57404B 5752 57606E 58213F 58311 58706D 9008011610 90119A0059 90119A0059
Part # Description Qty Price
57403C - REINFORCE SUB-ASSY, FLOOR SIDE, INNER RH
57403-0C060

USK51,56..RCB

 1
57404B - REINFORCE SUB-ASSY, FLOOR SIDE, INNER LH
57404-0C040

USK51,56..RCB

 1
57606E - MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.2
57606-0C040

UPK5#,USK5#..DCB,RCB

 1
58213F - REINFORCEMENT, CENTER FLOOR PANEL
58213-0C050

USK51,56..RCB

 1
58311 - PAN, REAR FLOOR
58311-0C110

USK51,56..RCB

 1
58706D - BRACKET SUB-ASSY, JACK CARRIER, NO.1
58706-0C040

USK51,56..RCB

 1
Common parts
90080-11610
90119-A0059
Linked diagrams
5752
