USK56L-PSTZGA (2013)

Toyota Tundra

Production Aug 2013 - Aug 2017
Engine 3URFBE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(1308- )

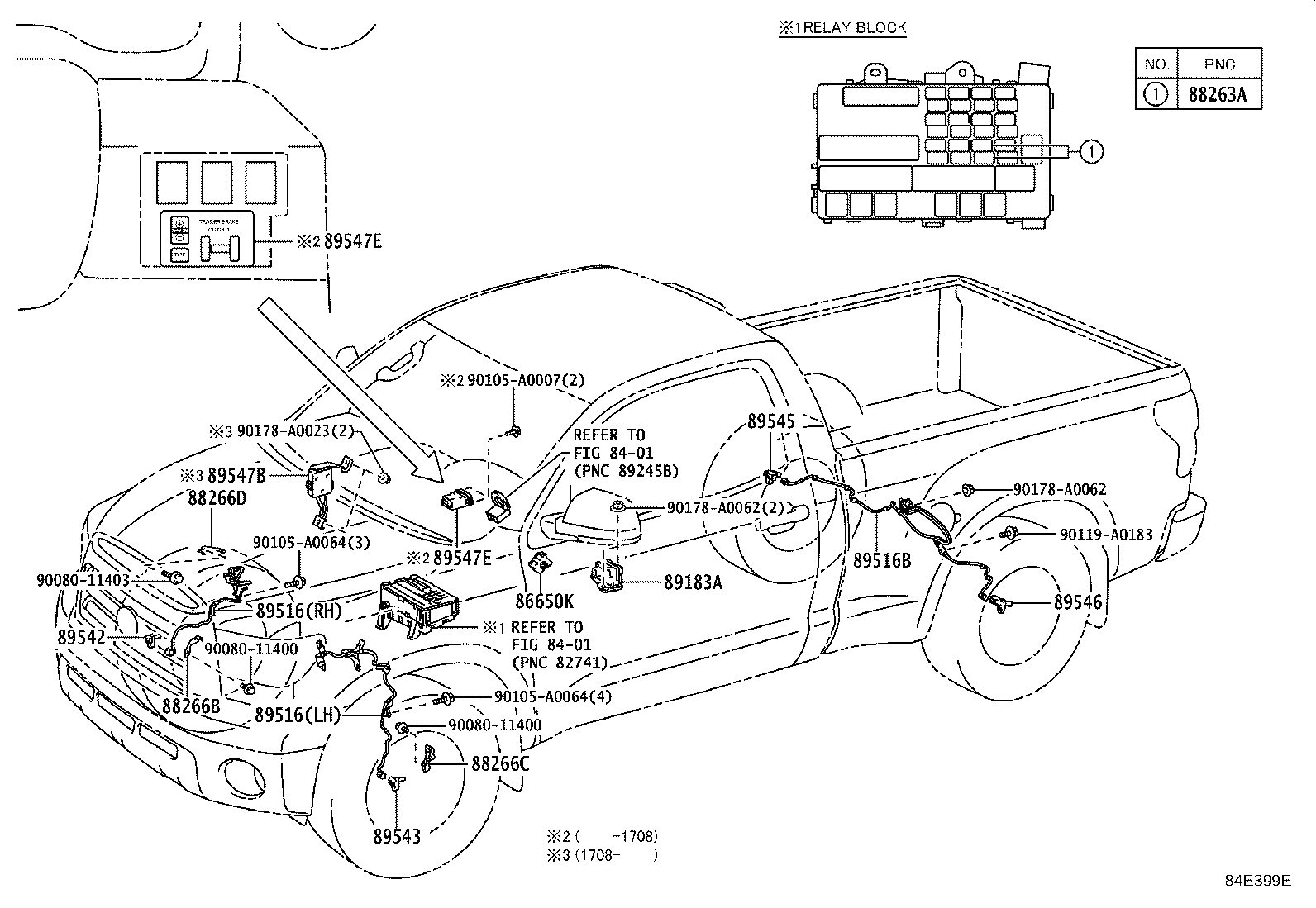

Click highlighted areas on diagram

diagram 8401 8401 86650K 88263A 88266B 88266C 88266D 89183A 89516 89516 89516B 89542 89543 89545 89546 89547B 89547E 89547E 9008011400 9008011400 9008011403 90105A0007 90105A0064 90105A0064 90119A0183 90178A0023 90178A0062 90178A0062
Part # Description Qty Price
88263A - RELAY, SKID CONTROL
90084-98032

UPK5#,USK5#

 2
88266B - CLAMP, SKID CONTROL SENSOR, NO.1
88266-0C030

UPK5#,USK5#

 1
88266C - CLAMP, SKID CONTROL SENSOR, NO.2
88266-0C080

UPK5#,USK5#

 1
88266D - CLAMP, SKID CONTROL SENSOR, NO.3
88266-0C040

UPK5#,USK5#

 1
89183A - SENSOR, YAWRATE
89180-0C070

UPK56,USK56,57

 1
89516 - WIRE, SKID CONTROL SENSOR
89516-0C040

UPK5#,USK5#

LH

 1
89516-0C030

UPK5#,USK5#

RH

 1
89516 - WIRE, SKID CONTROL SENSOR
89516-0C040

UPK5#,USK5#

LH

 1
89516-0C030

UPK5#,USK5#

RH

 1
89516B - WIRE, SKID CONTROL SENSOR
89516-0C050

UPK5#,USK5#

 1
89542 - SENSOR, SPEED, FRONT RH
89542-0C020

GSK51,UPK5#,USK5#

 1
89543 - SENSOR, SPEED, FRONT LH
89543-0C020

GSK51,UPK5#,USK5#

 1
89545 - SENSOR, SPEED, REAR RH
89542-0C020

GSK51,UPK5#,USK5#

 1
89546 - SENSOR, SPEED, REAR LH
89543-0C020

GSK51,UPK5#,USK5#

 1
89547E - ECU, TRAILER BRAKE CONTROL
89547-0C011

USK5#

ACCESSORY CONNECTOR-WITH(BRAKE CONTROLLER)

 1
89547-0C010

USK5#

ACCESSORY CONNECTOR-WITH(BRAKE CONTROLLER)

 1
89547-0C012

USK5#

ACCESSORY CONNECTOR-WITH(BRAKE CONTROLLER)

 1
89547E - ECU, TRAILER BRAKE CONTROL
89547-0C011

USK5#

ACCESSORY CONNECTOR-WITH(BRAKE CONTROLLER)

 1
89547-0C010

USK5#

ACCESSORY CONNECTOR-WITH(BRAKE CONTROLLER)

 1
89547-0C012

USK5#

ACCESSORY CONNECTOR-WITH(BRAKE CONTROLLER)

 1
Common parts
90080-11400
90080-11403
90105-A0007
90105-A0064
90119-A0183
90178-A0023
90178-A0062
Linked diagrams
8401
