USK56L-PSTLKA (2013)

Toyota Tundra

Production Aug 2013 - Aug 2017
Engine 3URFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

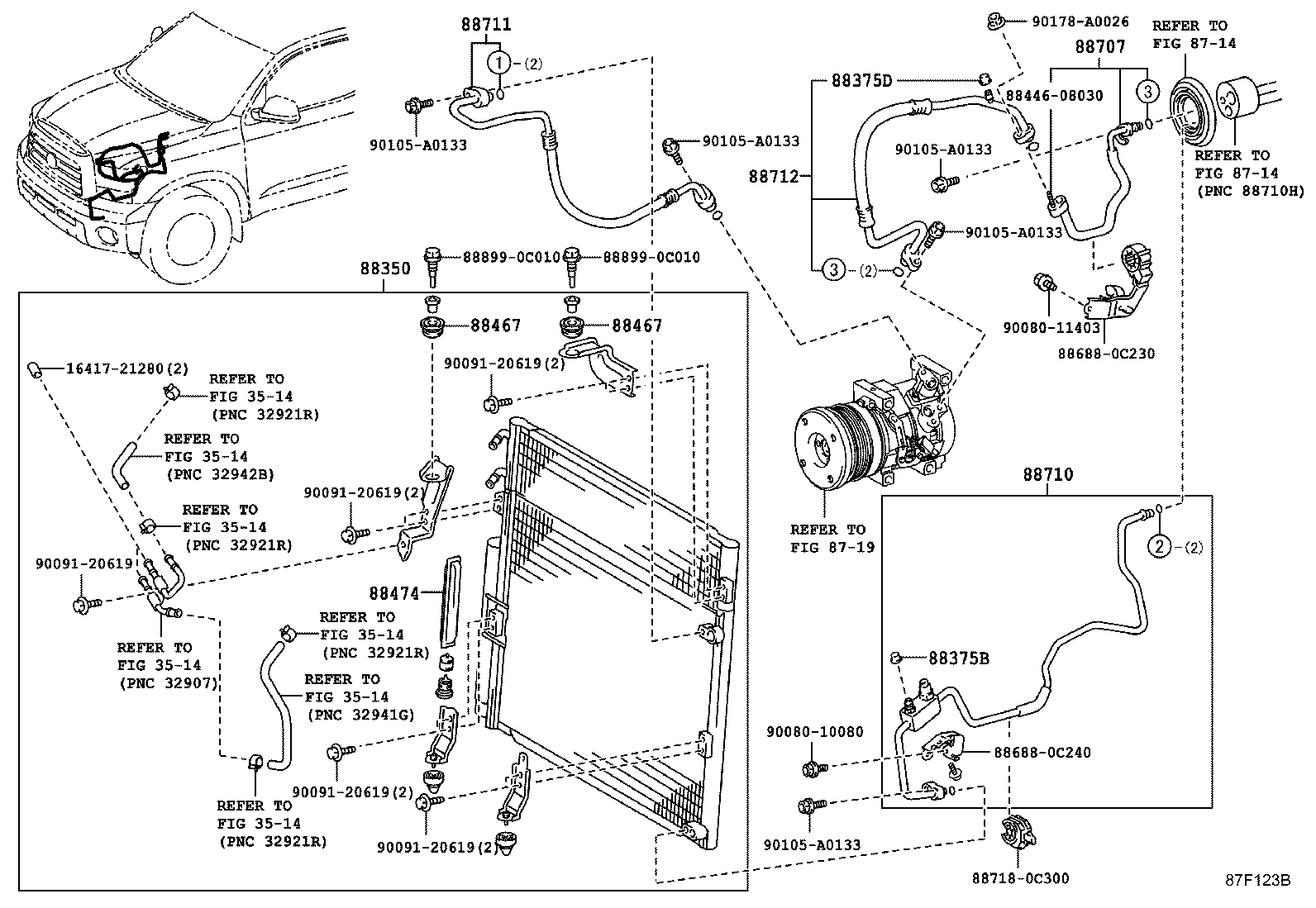

ILLUST NO. 1 OF 2(1308-1708)USK5#..CMAX,DCB

Click highlighted areas on diagram

W(TRANSMISSION OIL COOLER)

diagram 1641721280 3514 3514 3514 3514 3514 3514 3514 8714 8714 8719 88350 88375B 88375D 8844608030 88467 88467 88474 886880C230 886880C240 88707 88710 88711 88712 887180C300 888990C010 888990C010 9008010080 9008011403 9009120619 9009120619 9009120619 9009120619 9009120619 90105A0133 90105A0133 90105A0133 90105A0133 90105A0133 90178A0026
Part # Description Qty Price
88350 - UNIT ASSY, COOLER
88300-0C090

UPK5#,USK5#

 1
88350-0C010

USK5#

TOWING PACKAGE-WITH

 1
88375B - CAP, SERVICE VALVE, NO.1
88375-0E020

UPK5#,USK5#

 1
88375-02060

UPK5#,USK5#

 1
88375D - CAP, SERVICE VALVE, NO.2
88375-0E030

UPK5#,USK5#

 1
88375-02070

UPK5#,USK5#

 1
88467 - CUSHION, COOLER CONDENSER, NO.1
88467-12180

UPK5#,USK5#

 2
88467 - CUSHION, COOLER CONDENSER, NO.1
88467-12180

UPK5#,USK5#

 2
88474 - DRYER, COOLER
88474-08010

USK5#

TOWING PACKAGE-WITH

 1
88707 - PIPE SUB-ASSY, SUCTION
88717-0C150

UPK5#,USK5#..CMAX,DCB

 1
88710 - TUBE ASSY, AIR CONDITIONER
88710-0C090

UPK5#,USK5#

 1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-0C160

UPK5#,USK5#

 1
88711-0C161

UPK5#,USK5#

 1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-0C120

UPK5#,USK5#..CMAX,DCB

 1
Common parts
16417-21280
88446-08030
88688-0C230
88688-0C240
88718-0C300
88899-0C010
90080-10080
90080-11403
90091-20619
90105-A0133
90178-A0026
Linked diagrams
3514
8714
8719
