USK56L-PSTLKA (2009)
Toyota Tundra
(0611-1308)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51021B - CROSSMEMBER SUB-ASSY, FRAME AUXILIARY | ||||
| 51021-0C030 |
UPK52,57;UPK51,55,56,USK50..D,L |
1 | ||
| 51021-0C030 |
UPK51,56..S;GSK5#,UPK50,USK51,52,55,56,57 |
1 | ||
| 51025 - MEMBER SUB-ASSY, ENGINE FRONT MOUNTING | ||||
| 51025-0C040 |
UPK52,57;UPK51,55,56,USK50..D,L |
1 | ||
| 51025-0C040 |
UPK51,56..S;GSK5#,UPK50,USK51,52,55,56,57 |
1 | ||
| 51026 - BRACKET SUB-ASSY, FRAME NO.3 CROSS MEMBER, LH | ||||
| 51026-0C020 |
UPK51,56..S;GSK5#,UPK50,USK51,52,55,56,57 |
1 | ||
| 51026-0C020 |
UPK52,57;UPK51,55,56,USK50..D,L |
1 | ||
| 51027A - BRACKET SUB-ASSY, FRAME NO.4 CROSSMEMBER, RH | ||||
| 51027-0C010 |
UPK51,56..S;GSK5#,UPK50,USK51,52,55,56,57 |
1 | ||
| 51027-0C010 |
UPK52,57;UPK51,55,56,USK50..D,L |
1 | ||
| 51028A - BRACKET SUB-ASSY, FRAME NO.4 CROSSMEMBER, LH | ||||
| 51028-0C010 |
UPK52,57;UPK51,55,56,USK50..D,L |
1 | ||
| 51028-0C010 |
UPK51,56..S;GSK5#,UPK50,USK51,52,55,56,57 |
1 | ||
| 51035 - PLATE SUB-ASSY, FRAME SIDE RAIL, RH | ||||
| 51035-0C040 |
UPK52,57;UPK51,55,56,USK50..D,L |
1 | ||
| 51035-0C040 |
UPK51,56..S;GSK5#,UPK50,USK51,52,55,56,57 |
1 | ||
| 51036 - PLATE SUB-ASSY, FRAME SIDE RAIL, LH | ||||
| 51036-0C040 |
UPK52,57;UPK51,55,56,USK50..D,L |
1 | ||
| 51036-0C040 |
UPK51,56..S;GSK5#,UPK50,USK51,52,55,56,57 |
1 | ||
| 51073 - BRACKET SUB-ASSY, REAR BODY MOUNTING, NO.2 RH | ||||
| 51073-0C010 |
UPK51,56..S;GSK5#,UPK50,USK51,52,55,56,57 |
1 | ||
| 51073-0C010 |
UPK52,57;UPK51,55,56,USK50..D,L |
1 | ||
| 51074 - BRACKET SUB-ASSY, REAR BODY MOUNTING, NO.2 LH | ||||
| 51074-0C010 |
UPK51,56..S;GSK5#,UPK50,USK51,52,55,56,57 |
1 | ||
| 51074-0C010 |
UPK52,57;UPK51,55,56,USK50..D,L |
1 | ||

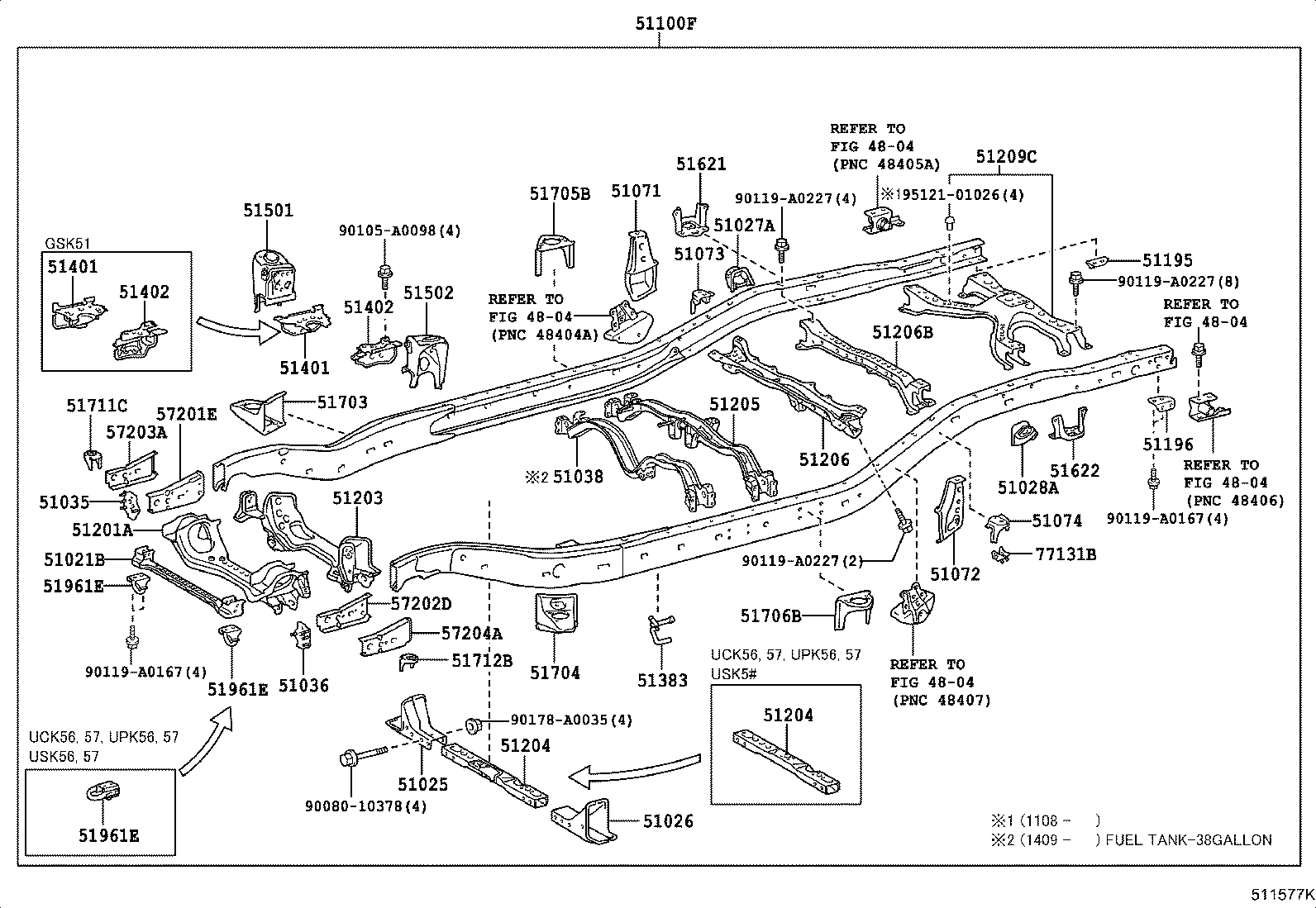

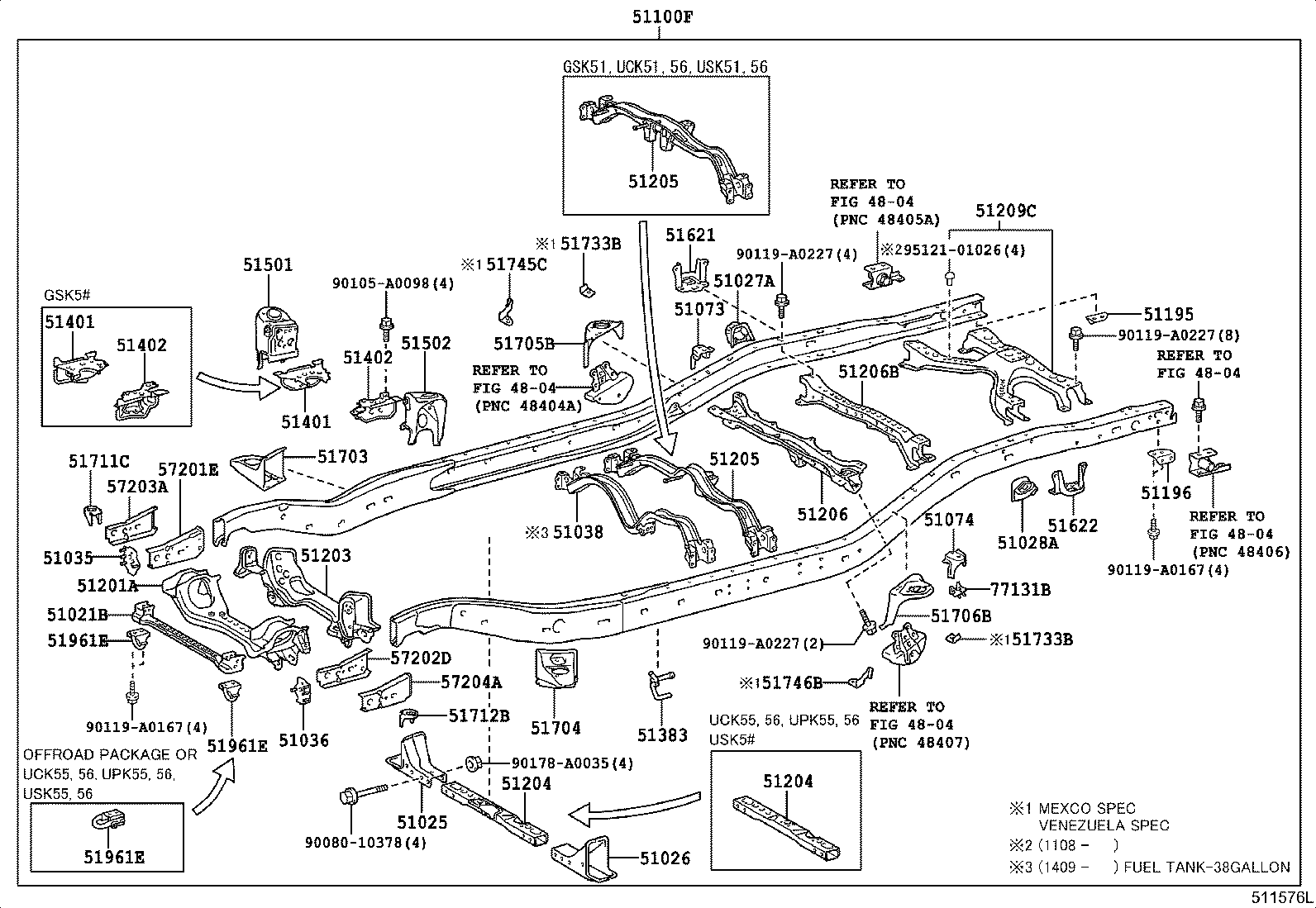

| 51100F - FRAME SUB-ASSY | ||||
| 51001-0C431 |
UPK56,USK56..D |
1 | ||
| 51001-0C721 |
USK56..CMAX..HTWC..S VENEZUELA SPEC |
1 | ||
| 51001-0C721 |
UPK56..CMAX..S;USK56..CMAX..HTWC..L MEXICO SPEC |
1 | ||
| 51001-0C721 |
USK56..CMAX..HTWC..L MEXICO SPEC |
1 | ||
| 51001-0C541 |
UPK56,USK56..CMAX |
1 | ||
| 51001-0C721 |
USK56..CMAX..HTWC..S VENEZUELA SPEC |
1 | ||
| 51001-0C722 |
UPK56..CMAX..S;USK56..CMAX..HTWC..L MEXICO SPEC |
1 | ||
| 51001-0C722 |
USK56..CMAX..HTWC..S VENEZUELA SPEC |
1 | ||
| 51001-0C542 |
USK56..CMAX;UPK56..CMAX..S |
1 | ||
| 51001-0C433 |
USK56..D |
1 | ||
| 51001-0C543 |
UPK56,USK56..CMAX |
1 | ||
| 51001-0C722 |
UPK56,USK56..CMAX..HTWC..S SOUTH AMERICA SPEC |
1 | ||
| 51001-0C432 |
USK56..D |
1 | ||
| 51001-0C723 |
UPK56..CMAX;USK56..CMAX..HTWC..L MEXICO SPEC |
1 | ||
| 51001-0C723 |
USK56..CMAX..HTWC..S VENEZUELA SPEC |
1 | ||
| 51001-0C723 |
UPK56,USK56..CMAX..HTWC..S SOUTH AMERICA SPEC |
1 | ||
| 51195 - PATCH, REAR FRAME RAIL, RH | ||||
| 51195-0C010 |
UPK52,57;UPK51,55,56,USK50..D,L |
1 | ||
| 51195-0C010 |
UPK51,56..S;GSK5#,UPK50,USK51,52,55,56,57 |
1 | ||
| 51196 - PATCH, REAR FRAME RAIL, LH | ||||
| 51196-0C010 |
UPK52,57;UPK51,55,56,USK50..D,L |
1 | ||
| 51196-0C010 |
UPK51,56..S;GSK5#,UPK50,USK51,52,55,56,57 |
1 | ||
| 51201A - CROSSMEMBER SUB-ASSY, FRAME, FRONT | ||||
| 51201-0C020 |
UPK51,56..S;GSK5#,UPK50,USK51,52,55,56,57 |
1 | ||
| 51201-0C020 |
UPK52,57;UPK51,55,56,USK50..D,L |
1 | ||
| 51203 - CROSSMEMBER SUB-ASSY, FRAME, NO.2 | ||||
| 51202-0C020 |
UPK55,56,57,USK55,56,57 |
1 | ||
| 51202-0C021 |
UPK57;UPK55,56..D,L |
1 | ||
| 51202-0C021 |
USK55,56;UPK56,USK57..S |
1 | ||
| 51204 - CROSSMEMBER SUB-ASSY, FRAME, NO.3 | ||||
| 51203-0C040 |
UPK57;UPK55,56,USK50..D,L |
1 | ||
| 51203-0C040 |
USK51,55,56;UPK56,USK52,57..S |
1 | ||
| 51204 - CROSSMEMBER SUB-ASSY, FRAME, NO.3 | ||||
| 51203-0C040 |
UPK57;UPK55,56,USK50..D,L |
1 | ||
| 51203-0C040 |
USK51,55,56;UPK56,USK52,57..S |
1 | ||
| 51205 - CROSSMEMBER SUB-ASSY, FRAME, NO.4 | ||||
| 51204-0C100 |
UPK56..S;USK56..L,S |
1 | ||
| 51204-0C130 |
UPK51..S;USK56..D;GSK51,USK51 |
1 | ||
| 51205 - CROSSMEMBER SUB-ASSY, FRAME, NO.4 | ||||
| 51204-0C100 |
UPK56..S;USK56..L,S |
1 | ||
| 51204-0C130 |
UPK51..S;USK56..D;GSK51,USK51 |
1 | ||
| 51206 - CROSSMEMBER SUB-ASSY, FRAME, NO.5 | ||||
| 51205-0C060 |
UPK51,56..S;GSK5#,UPK50,USK51,52,55,56,57 |
1 | ||
| 51205-0C060 |
UPK51,55,56,USK50..D |
1 | ||
| 51206B - CROSSMEMBER SUB-ASSY, FRAME, NO.6 | ||||
| 51206-0C040 |
UPK51,56..S;GSK5#,UPK50,USK51,52,55,56,57 |
1 | ||
| 51206-0C040 |
UPK52,57;UPK51,55,56,USK50..D,L |
1 | ||
| 51209C - CROSSMEMBER SUB-ASSY, FRAME, REAR | ||||
| 51209-0C031 |
GSK5#,UPK5#,USK5# |
1 | ||
| 51209-0C030 |
UPK51,56..S;GSK5#,UPK50,USK51,52,55,56,57 |
1 | ||
| 51209-0C030 |
UPK52,57;UPK51,55,56,USK50..D,L |
1 | ||
| 51383 - ROD, NO.3 CROSSMEMBER EXHAUST PIPE HANGER | ||||
| 51383-0C010 |
UPK52,57;UPK51,55,56,USK50..D,L |
1 | ||
| 51383-0C010 |
UPK51,56..S;GSK5#,UPK50,USK51,52,55,56,57 |
1 | ||
| 51401 - BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, RH | ||||
| 51401-0C080 |
UPK51,56..S;UPK50,USK51,52,55,56,57 |
1 | ||
| 51401-0C100 |
UPK50;USK56..CMAX..HTWC..S VENEZUELA SPEC |
1 | ||
| 51401-0C100 |
USK56..CMAX..HTWC..L;UPK51,56,USK51..CMAX..S MEXICO SPEC |
1 | ||
| 51401-0C080 |
UPK52,57;UPK51,55,56,USK50..D,L |
1 | ||
| 51401-0C100 |
UPK50,56..CMAX,RCB;USK51,56..CMAX..HTWC..S SOUTH AMERICA SPEC |
1 | ||
| 51401 - BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, RH | ||||
| 51401-0C080 |
UPK51,56..S;UPK50,USK51,52,55,56,57 |
1 | ||
| 51401-0C100 |
UPK50;USK56..CMAX..HTWC..S VENEZUELA SPEC |
1 | ||
| 51401-0C100 |
USK56..CMAX..HTWC..L;UPK51,56,USK51..CMAX..S MEXICO SPEC |
1 | ||
| 51401-0C080 |
UPK52,57;UPK51,55,56,USK50..D,L |
1 | ||
| 51401-0C100 |
UPK50,56..CMAX,RCB;USK51,56..CMAX..HTWC..S SOUTH AMERICA SPEC |
1 | ||
| 51402 - BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, LH | ||||
| 51402-0C080 |
UPK52,57;UPK51,55,56,USK50..D,L |
1 | ||
| 51402-0C100 |
USK56..CMAX..HTWC..L;UPK51,56,USK51..CMAX..S MEXICO SPEC |
1 | ||
| 51402-0C100 |
UPK50;USK56..CMAX..HTWC..S VENEZUELA SPEC |
1 | ||
| 51402-0C100 |
UPK50,56..CMAX,RCB;USK51,56..CMAX..HTWC..S SOUTH AMERICA SPEC |
1 | ||
| 51402-0C080 |
UPK51,56..S;UPK50,USK51,52,55,56,57 |
1 | ||
| 51402 - BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, LH | ||||
| 51402-0C080 |
UPK52,57;UPK51,55,56,USK50..D,L |
1 | ||
| 51402-0C100 |
USK56..CMAX..HTWC..L;UPK51,56,USK51..CMAX..S MEXICO SPEC |
1 | ||
| 51402-0C100 |
UPK50;USK56..CMAX..HTWC..S VENEZUELA SPEC |
1 | ||
| 51402-0C100 |
UPK50,56..CMAX,RCB;USK51,56..CMAX..HTWC..S SOUTH AMERICA SPEC |
1 | ||
| 51402-0C080 |
UPK51,56..S;UPK50,USK51,52,55,56,57 |
1 | ||
| 51501 - SUPPORT SUB-ASSY, SUSPENSION ARM, RH | ||||
| 51501-0C010 |
UPK52,57;UPK51,55,56,USK50..D,L |
1 | ||
| 51501-0C010 |
UPK51,56..S;GSK5#,UPK50,USK51,52,55,56,57 |
1 | ||
| 51502 - SUPPORT SUB-ASSY, SUSPENSION ARM, LH | ||||
| 51502-0C010 |
UPK52,57;UPK51,55,56,USK50..D,L |
1 | ||
| 51502-0C010 |
UPK51,56..S;GSK5#,UPK50,USK51,52,55,56,57 |
1 | ||
| 51621 - BRACKET, REAR BOUND STOPPER, RH | ||||
| 51621-0C040 |
UPK51,56..S;GSK5#,UPK50,USK51,52,55,56,57 |
1 | ||
| 51621-0C040 |
UPK52,57;UPK51,55,56,USK50..D,L |
1 | ||
| 51622 - BRACKET, REAR BOUND STOPPER, LH | ||||
| 51622-0C040 |
UPK51,56..S;GSK5#,UPK50,USK51,52,55,56,57 |
1 | ||
| 51622-0C040 |
UPK52,57;UPK51,55,56,USK50..D,L |
1 | ||
| 51703 - BRACKET SUB-ASSY, CAB MOUNTING, NO.2, RH | ||||
| 51703-0C020 |
UPK52,57;UPK51,55,56,USK50..D,L |
1 | ||
| 51703-0C020 |
UPK51,56..S;GSK5#,UPK50,USK51,52,55,56,57 |
1 | ||
| 51704 - BRACKET SUB-ASSY, CAB MOUNTING, NO.2 LH | ||||
| 51704-0C020 |
UPK52,57;UPK51,55,56,USK50..D,L |
1 | ||
| 51704-0C020 |
UPK51,56..S;GSK5#,UPK50,USK51,52,55,56,57 |
1 | ||
| 51705B - BRACKET SUB-ASSY, CAB MOUNTING, NO.3 RH | ||||
| 51705-0C020 |
UPK51,56..CMAX..L |
1 | ||
| 51705-0C020 |
USK51,56..CMAX;UPK51,56..CMAX..S |
1 | ||
| 51705-0C050 |
UPK56,USK51,56..CMAX..HTWC..S SOUTH AMERICA SPEC |
1 | ||
| 51705-0C040 |
USK52,57;GSK51,USK51,56..D |
1 | ||
| 51705-0C050 |
USK56..CMAX..HTWC..S VENEZUELA SPEC |
1 | ||
| 51705-0C040 |
UPK52,57;UPK51,56..D |
1 | ||
| 51705-0C050 |
USK56..CMAX..HTWC..L;UPK51,56,USK51..CMAX..S MEXICO SPEC |
1 | ||
| 51706B - BRACKET SUB-ASSY, CAB MOUNTING, NO.3 LH | ||||
| 51705-0C040 |
UPK52,57;UPK51,56..D |
1 | ||
| 51706-0C020 |
USK51,56..CMAX;UPK51,56..CMAX..S |
1 | ||
| 51706-0C040 |
UPK56,USK51,56..CMAX..HTWC..S SOUTH AMERICA SPEC |
1 | ||
| 51706-0C020 |
UPK51,56..CMAX..L |
1 | ||
| 51705-0C040 |
USK52,57;GSK51,USK51,56..D |
1 | ||
| 51706-0C040 |
USK56..CMAX..HTWC..S VENEZUELA SPEC |
1 | ||
| 51706-0C040 |
USK56..CMAX..HTWC..L;UPK51,56,USK51..CMAX..S MEXICO SPEC |
1 | ||
| 51711C - BRACKET, CAB MOUNTING, NO.1 RH | ||||
| 51711-0C010 |
UPK52,57;UPK51,55,56,USK50..D,L |
1 | ||
| 51711-0C010 |
UPK51,56..S;GSK5#,UPK50,USK51,52,55,56,57 |
1 | ||
| 51712B - BRACKET, CAB MOUNTING, NO.1 LH | ||||
| 51711-0C010 |
UPK52,57;UPK51,55,56,USK50..D,L |
1 | ||
| 51711-0C010 |
UPK51,56..S;GSK5#,UPK50,USK51,52,55,56,57 |
1 | ||
| 51733B - BRACKET, CAB REAR MOUNTING, UNDER | ||||
| 51733-0C010 |
USK56..CMAX..HTWC..L;UPK51,56,USK51..CMAX..S MEXICO SPEC |
2 | ||
| 51733-0C010 |
UPK56,USK51,56..CMAX..HTWC..S SOUTH AMERICA SPEC |
2 | ||
| 51733-0C010 |
USK56..CMAX..HTWC..S VENEZUELA SPEC |
2 | ||
| 51733B - BRACKET, CAB REAR MOUNTING, UNDER | ||||
| 51733-0C010 |
USK56..CMAX..HTWC..L;UPK51,56,USK51..CMAX..S MEXICO SPEC |
2 | ||
| 51733-0C010 |
UPK56,USK51,56..CMAX..HTWC..S SOUTH AMERICA SPEC |
2 | ||
| 51733-0C010 |
USK56..CMAX..HTWC..S VENEZUELA SPEC |
2 | ||
| 51745C - GUSSET, CAB MOUNTING, NO.3 RH | ||||
| 51745-0C020 |
UPK56,USK51,56..CMAX..HTWC..S SOUTH AMERICA SPEC |
1 | ||
| 51745-0C020 |
USK56..CMAX..HTWC..S VENEZUELA SPEC |
1 | ||
| 51745-0C020 |
USK56..CMAX..HTWC..L;UPK51,56,USK51..CMAX..S MEXICO SPEC |
1 | ||
| 51746B - GUSSET, CAB MOUNTING, NO.3 LH | ||||
| 51746-0C010 |
UPK56,USK51,56..CMAX..HTWC..S SOUTH AMERICA SPEC |
1 | ||
| 51746-0C010 |
USK56..CMAX..HTWC..L;UPK51,56,USK51..CMAX..S MEXICO SPEC |
1 | ||
| 51746-0C010 |
USK56..CMAX..HTWC..S VENEZUELA SPEC |
1 | ||
| 51961E - HOOK, FRONT | ||||
| 51960-0C011 |
UPK57;UPK55,56..D,L |
2 | ||
| 51960-0C011 |
USK55,56;UPK56,USK57..S |
2 | ||
| 51961E - HOOK, FRONT | ||||
| 51960-0C011 |
UPK57;UPK55,56..D,L |
2 | ||
| 51960-0C011 |
USK55,56;UPK56,USK57..S |
2 | ||
| 51961E - HOOK, FRONT | ||||
| 51960-0C011 |
UPK57;UPK55,56..D,L |
2 | ||
| 51960-0C011 |
USK55,56;UPK56,USK57..S |
2 | ||
| 57201E - EXTENSION SUB-ASSY, FRONT SIDE MEMBER, RH | ||||
| 57201-0C010 |
UPK52,57;UPK51,55,56,USK50..D,L |
1 | ||
| 57201-0C010 |
UPK51,56..S;GSK5#,UPK50,USK51,52,55,56,57 |
1 | ||
| 57202D - EXTENSION SUB-ASSY, FRONT SIDE MEMBER, LH | ||||
| 57202-0C010 |
UPK51,56..S;GSK5#,UPK50,USK51,52,55,56,57 |
1 | ||
| 57202-0C010 |
UPK52,57;UPK51,55,56,USK50..D,L |
1 | ||
| 57203A - EXTENSION SUB-ASSY, FRONT SIDE MEMBER, NO.2 RH | ||||
| 57203-0C010 |
UPK52,57;UPK51,55,56,USK50..D,L |
1 | ||
| 57203-0C010 |
UPK51,56..S;GSK5#,UPK50,USK51,52,55,56,57 |
1 | ||
| 57204A - EXTENSION SUB-ASSY, FRONT SIDE MEMBER, NO.2 LH | ||||
| 57204-0C010 |
UPK52,57;UPK51,55,56,USK50..D,L |
1 | ||
| 57204-0C010 |
UPK51,56..S;GSK5#,UPK50,USK51,52,55,56,57 |
1 | ||
| 77131B - BRACKET, FUEL INLET PIPE SUPPORT | ||||
| 77131-0C020 |
UPK51,56..S;GSK5#,UPK50,USK51,52,55,56,57 |
1 | ||
| 77131-0C020 |
UPK52,57;UPK51,55,56,USK50..D,L |
1 | ||
| Common parts | ||||
| 90080-10378 | ||||
| 90105-A0098 | ||||
| 90119-A0167 | ||||
| 90119-A0227 | ||||
| 90178-A0035 | ||||
| 95121-01026 | ||||
| Linked diagrams | ||||
| 4804 | ||||
(0611-1308)UCK52,57,UPK52,57,USK52,57 ; (0611-1308)GSK51,UCK51,56,UPK51,56,USK51,56
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51021B - CROSSMEMBER SUB-ASSY, FRAME AUXILIARY | ||||
| 51021-0C030 |
UPK52,57;UPK51,55,56,USK50..D,L |
1 | ||
| 51021-0C030 |
UPK51,56..S;GSK5#,UPK50,USK51,52,55,56,57 |
1 | ||
| 51025 - MEMBER SUB-ASSY, ENGINE FRONT MOUNTING | ||||
| 51025-0C040 |
UPK52,57;UPK51,55,56,USK50..D,L |
1 | ||
| 51025-0C040 |
UPK51,56..S;GSK5#,UPK50,USK51,52,55,56,57 |
1 | ||
| 51026 - BRACKET SUB-ASSY, FRAME NO.3 CROSS MEMBER, LH | ||||
| 51026-0C020 |
UPK51,56..S;GSK5#,UPK50,USK51,52,55,56,57 |
1 | ||
| 51026-0C020 |
UPK52,57;UPK51,55,56,USK50..D,L |
1 | ||
| 51027A - BRACKET SUB-ASSY, FRAME NO.4 CROSSMEMBER, RH | ||||
| 51027-0C010 |
UPK51,56..S;GSK5#,UPK50,USK51,52,55,56,57 |
1 | ||
| 51027-0C010 |
UPK52,57;UPK51,55,56,USK50..D,L |
1 | ||
| 51028A - BRACKET SUB-ASSY, FRAME NO.4 CROSSMEMBER, LH | ||||
| 51028-0C010 |
UPK52,57;UPK51,55,56,USK50..D,L |
1 | ||
| 51028-0C010 |
UPK51,56..S;GSK5#,UPK50,USK51,52,55,56,57 |
1 | ||
| 51035 - PLATE SUB-ASSY, FRAME SIDE RAIL, RH | ||||
| 51035-0C040 |
UPK52,57;UPK51,55,56,USK50..D,L |
1 | ||
| 51035-0C040 |
UPK51,56..S;GSK5#,UPK50,USK51,52,55,56,57 |
1 | ||
| 51036 - PLATE SUB-ASSY, FRAME SIDE RAIL, LH | ||||
| 51036-0C040 |
UPK52,57;UPK51,55,56,USK50..D,L |
1 | ||
| 51036-0C040 |
UPK51,56..S;GSK5#,UPK50,USK51,52,55,56,57 |
1 | ||
| 51071 - BRACKET SUB-ASSY, REAR BODY MOUNTING, NO.1 RH | ||||
| 51071-0C010 |
UPK52,57;UPK51,56..D |
1 | ||
| 51071-0C010 |
USK52,57;GSK51,USK51,56..D |
1 | ||
| 51072 - BRACKET SUB-ASSY, REAR BODY MOUNTING, NO.1 LH | ||||
| 51072-0C010 |
USK52,57;GSK51,USK51,56..D |
1 | ||
| 51072-0C010 |
UPK52,57;UPK51,56..D |
1 | ||
| 51073 - BRACKET SUB-ASSY, REAR BODY MOUNTING, NO.2 RH | ||||
| 51073-0C010 |
UPK51,56..S;GSK5#,UPK50,USK51,52,55,56,57 |
1 | ||
| 51073-0C010 |
UPK52,57;UPK51,55,56,USK50..D,L |
1 | ||
| 51074 - BRACKET SUB-ASSY, REAR BODY MOUNTING, NO.2 LH | ||||
| 51074-0C010 |
UPK51,56..S;GSK5#,UPK50,USK51,52,55,56,57 |
1 | ||
| 51074-0C010 |
UPK52,57;UPK51,55,56,USK50..D,L |
1 | ||
| 51100F - FRAME SUB-ASSY | ||||
| 51001-0C431 |
UPK56,USK56..D |
1 | ||
| 51001-0C721 |
USK56..CMAX..HTWC..S VENEZUELA SPEC |
1 | ||
| 51001-0C721 |
UPK56..CMAX..S;USK56..CMAX..HTWC..L MEXICO SPEC |
1 | ||
| 51001-0C721 |
USK56..CMAX..HTWC..L MEXICO SPEC |
1 | ||
| 51001-0C541 |
UPK56,USK56..CMAX |
1 | ||
| 51001-0C721 |
USK56..CMAX..HTWC..S VENEZUELA SPEC |
1 | ||
| 51001-0C722 |
UPK56..CMAX..S;USK56..CMAX..HTWC..L MEXICO SPEC |
1 | ||
| 51001-0C722 |
USK56..CMAX..HTWC..S VENEZUELA SPEC |
1 | ||
| 51001-0C542 |
USK56..CMAX;UPK56..CMAX..S |
1 | ||
| 51001-0C433 |
USK56..D |
1 | ||
| 51001-0C543 |
UPK56,USK56..CMAX |
1 | ||
| 51001-0C722 |
UPK56,USK56..CMAX..HTWC..S SOUTH AMERICA SPEC |
1 | ||
| 51001-0C432 |
USK56..D |
1 | ||
| 51001-0C723 |
UPK56..CMAX;USK56..CMAX..HTWC..L MEXICO SPEC |
1 | ||
| 51001-0C723 |
USK56..CMAX..HTWC..S VENEZUELA SPEC |
1 | ||
| 51001-0C723 |
UPK56,USK56..CMAX..HTWC..S SOUTH AMERICA SPEC |
1 | ||
| 51195 - PATCH, REAR FRAME RAIL, RH | ||||
| 51195-0C010 |
UPK52,57;UPK51,55,56,USK50..D,L |
1 | ||
| 51195-0C010 |
UPK51,56..S;GSK5#,UPK50,USK51,52,55,56,57 |
1 | ||
| 51196 - PATCH, REAR FRAME RAIL, LH | ||||
| 51196-0C010 |
UPK52,57;UPK51,55,56,USK50..D,L |
1 | ||
| 51196-0C010 |
UPK51,56..S;GSK5#,UPK50,USK51,52,55,56,57 |
1 | ||
| 51201A - CROSSMEMBER SUB-ASSY, FRAME, FRONT | ||||
| 51201-0C020 |
UPK51,56..S;GSK5#,UPK50,USK51,52,55,56,57 |
1 | ||
| 51201-0C020 |
UPK52,57;UPK51,55,56,USK50..D,L |
1 | ||
| 51203 - CROSSMEMBER SUB-ASSY, FRAME, NO.2 | ||||
| 51202-0C020 |
UPK55,56,57,USK55,56,57 |
1 | ||
| 51202-0C021 |
UPK57;UPK55,56..D,L |
1 | ||
| 51202-0C021 |
USK55,56;UPK56,USK57..S |
1 | ||
| 51204 - CROSSMEMBER SUB-ASSY, FRAME, NO.3 | ||||
| 51203-0C040 |
UPK57;UPK55,56,USK50..D,L |
1 | ||
| 51203-0C040 |
USK51,55,56;UPK56,USK52,57..S |
1 | ||
| 51204 - CROSSMEMBER SUB-ASSY, FRAME, NO.3 | ||||
| 51203-0C040 |
UPK57;UPK55,56,USK50..D,L |
1 | ||
| 51203-0C040 |
USK51,55,56;UPK56,USK52,57..S |
1 | ||
| 51205 - CROSSMEMBER SUB-ASSY, FRAME, NO.4 | ||||
| 51204-0C100 |
UPK56..S;USK56..L,S |
1 | ||
| 51204-0C130 |
UPK51..S;USK56..D;GSK51,USK51 |
1 | ||
| 51206 - CROSSMEMBER SUB-ASSY, FRAME, NO.5 | ||||
| 51205-0C060 |
UPK51,56..S;GSK5#,UPK50,USK51,52,55,56,57 |
1 | ||
| 51205-0C060 |
UPK51,55,56,USK50..D |
1 | ||
| 51206B - CROSSMEMBER SUB-ASSY, FRAME, NO.6 | ||||
| 51206-0C040 |
UPK51,56..S;GSK5#,UPK50,USK51,52,55,56,57 |
1 | ||
| 51206-0C040 |
UPK52,57;UPK51,55,56,USK50..D,L |
1 | ||
| 51209C - CROSSMEMBER SUB-ASSY, FRAME, REAR | ||||
| 51209-0C031 |
GSK5#,UPK5#,USK5# |
1 | ||
| 51209-0C030 |
UPK51,56..S;GSK5#,UPK50,USK51,52,55,56,57 |
1 | ||
| 51209-0C030 |
UPK52,57;UPK51,55,56,USK50..D,L |
1 | ||
| 51383 - ROD, NO.3 CROSSMEMBER EXHAUST PIPE HANGER | ||||
| 51383-0C010 |
UPK52,57;UPK51,55,56,USK50..D,L |
1 | ||
| 51383-0C010 |
UPK51,56..S;GSK5#,UPK50,USK51,52,55,56,57 |
1 | ||
| 51401 - BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, RH | ||||
| 51401-0C080 |
UPK51,56..S;UPK50,USK51,52,55,56,57 |
1 | ||
| 51401-0C100 |
UPK50;USK56..CMAX..HTWC..S VENEZUELA SPEC |
1 | ||
| 51401-0C100 |
USK56..CMAX..HTWC..L;UPK51,56,USK51..CMAX..S MEXICO SPEC |
1 | ||
| 51401-0C080 |
UPK52,57;UPK51,55,56,USK50..D,L |
1 | ||
| 51401-0C100 |
UPK50,56..CMAX,RCB;USK51,56..CMAX..HTWC..S SOUTH AMERICA SPEC |
1 | ||
| 51401 - BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, RH | ||||
| 51401-0C080 |
UPK51,56..S;UPK50,USK51,52,55,56,57 |
1 | ||
| 51401-0C100 |
UPK50;USK56..CMAX..HTWC..S VENEZUELA SPEC |
1 | ||
| 51401-0C100 |
USK56..CMAX..HTWC..L;UPK51,56,USK51..CMAX..S MEXICO SPEC |
1 | ||
| 51401-0C080 |
UPK52,57;UPK51,55,56,USK50..D,L |
1 | ||
| 51401-0C100 |
UPK50,56..CMAX,RCB;USK51,56..CMAX..HTWC..S SOUTH AMERICA SPEC |
1 | ||
| 51402 - BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, LH | ||||
| 51402-0C080 |
UPK52,57;UPK51,55,56,USK50..D,L |
1 | ||
| 51402-0C100 |
USK56..CMAX..HTWC..L;UPK51,56,USK51..CMAX..S MEXICO SPEC |
1 | ||
| 51402-0C100 |
UPK50;USK56..CMAX..HTWC..S VENEZUELA SPEC |
1 | ||
| 51402-0C100 |
UPK50,56..CMAX,RCB;USK51,56..CMAX..HTWC..S SOUTH AMERICA SPEC |
1 | ||
| 51402-0C080 |
UPK51,56..S;UPK50,USK51,52,55,56,57 |
1 | ||
| 51402 - BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, LH | ||||
| 51402-0C080 |
UPK52,57;UPK51,55,56,USK50..D,L |
1 | ||
| 51402-0C100 |
USK56..CMAX..HTWC..L;UPK51,56,USK51..CMAX..S MEXICO SPEC |
1 | ||
| 51402-0C100 |
UPK50;USK56..CMAX..HTWC..S VENEZUELA SPEC |
1 | ||
| 51402-0C100 |
UPK50,56..CMAX,RCB;USK51,56..CMAX..HTWC..S SOUTH AMERICA SPEC |
1 | ||
| 51402-0C080 |
UPK51,56..S;UPK50,USK51,52,55,56,57 |
1 | ||
| 51501 - SUPPORT SUB-ASSY, SUSPENSION ARM, RH | ||||
| 51501-0C010 |
UPK52,57;UPK51,55,56,USK50..D,L |
1 | ||
| 51501-0C010 |
UPK51,56..S;GSK5#,UPK50,USK51,52,55,56,57 |
1 | ||
| 51502 - SUPPORT SUB-ASSY, SUSPENSION ARM, LH | ||||
| 51502-0C010 |
UPK52,57;UPK51,55,56,USK50..D,L |
1 | ||
| 51502-0C010 |
UPK51,56..S;GSK5#,UPK50,USK51,52,55,56,57 |
1 | ||
| 51621 - BRACKET, REAR BOUND STOPPER, RH | ||||
| 51621-0C040 |
UPK51,56..S;GSK5#,UPK50,USK51,52,55,56,57 |
1 | ||
| 51621-0C040 |
UPK52,57;UPK51,55,56,USK50..D,L |
1 | ||
| 51622 - BRACKET, REAR BOUND STOPPER, LH | ||||
| 51622-0C040 |
UPK51,56..S;GSK5#,UPK50,USK51,52,55,56,57 |
1 | ||
| 51622-0C040 |
UPK52,57;UPK51,55,56,USK50..D,L |
1 | ||
| 51703 - BRACKET SUB-ASSY, CAB MOUNTING, NO.2, RH | ||||
| 51703-0C020 |
UPK52,57;UPK51,55,56,USK50..D,L |
1 | ||
| 51703-0C020 |
UPK51,56..S;GSK5#,UPK50,USK51,52,55,56,57 |
1 | ||
| 51704 - BRACKET SUB-ASSY, CAB MOUNTING, NO.2 LH | ||||
| 51704-0C020 |
UPK52,57;UPK51,55,56,USK50..D,L |
1 | ||
| 51704-0C020 |
UPK51,56..S;GSK5#,UPK50,USK51,52,55,56,57 |
1 | ||
| 51705B - BRACKET SUB-ASSY, CAB MOUNTING, NO.3 RH | ||||
| 51705-0C020 |
UPK51,56..CMAX..L |
1 | ||
| 51705-0C020 |
USK51,56..CMAX;UPK51,56..CMAX..S |
1 | ||
| 51705-0C050 |
UPK56,USK51,56..CMAX..HTWC..S SOUTH AMERICA SPEC |
1 | ||
| 51705-0C040 |
USK52,57;GSK51,USK51,56..D |
1 | ||
| 51705-0C050 |
USK56..CMAX..HTWC..S VENEZUELA SPEC |
1 | ||
| 51705-0C040 |
UPK52,57;UPK51,56..D |
1 | ||
| 51705-0C050 |
USK56..CMAX..HTWC..L;UPK51,56,USK51..CMAX..S MEXICO SPEC |
1 | ||
| 51706B - BRACKET SUB-ASSY, CAB MOUNTING, NO.3 LH | ||||
| 51705-0C040 |
UPK52,57;UPK51,56..D |
1 | ||
| 51706-0C020 |
USK51,56..CMAX;UPK51,56..CMAX..S |
1 | ||
| 51706-0C040 |
UPK56,USK51,56..CMAX..HTWC..S SOUTH AMERICA SPEC |
1 | ||
| 51706-0C020 |
UPK51,56..CMAX..L |
1 | ||
| 51705-0C040 |
USK52,57;GSK51,USK51,56..D |
1 | ||
| 51706-0C040 |
USK56..CMAX..HTWC..S VENEZUELA SPEC |
1 | ||
| 51706-0C040 |
USK56..CMAX..HTWC..L;UPK51,56,USK51..CMAX..S MEXICO SPEC |
1 | ||
| 51711C - BRACKET, CAB MOUNTING, NO.1 RH | ||||
| 51711-0C010 |
UPK52,57;UPK51,55,56,USK50..D,L |
1 | ||
| 51711-0C010 |
UPK51,56..S;GSK5#,UPK50,USK51,52,55,56,57 |
1 | ||
| 51712B - BRACKET, CAB MOUNTING, NO.1 LH | ||||
| 51711-0C010 |
UPK52,57;UPK51,55,56,USK50..D,L |
1 | ||
| 51711-0C010 |
UPK51,56..S;GSK5#,UPK50,USK51,52,55,56,57 |
1 | ||
| 51961E - HOOK, FRONT | ||||
| 51960-0C011 |
UPK57;UPK55,56..D,L |
2 | ||
| 51960-0C011 |
USK55,56;UPK56,USK57..S |
2 | ||
| 51961E - HOOK, FRONT | ||||
| 51960-0C011 |
UPK57;UPK55,56..D,L |
2 | ||
| 51960-0C011 |
USK55,56;UPK56,USK57..S |
2 | ||
| 51961E - HOOK, FRONT | ||||
| 51960-0C011 |
UPK57;UPK55,56..D,L |
2 | ||
| 51960-0C011 |
USK55,56;UPK56,USK57..S |
2 | ||
| 57201E - EXTENSION SUB-ASSY, FRONT SIDE MEMBER, RH | ||||
| 57201-0C010 |
UPK52,57;UPK51,55,56,USK50..D,L |
1 | ||
| 57201-0C010 |
UPK51,56..S;GSK5#,UPK50,USK51,52,55,56,57 |
1 | ||
| 57202D - EXTENSION SUB-ASSY, FRONT SIDE MEMBER, LH | ||||
| 57202-0C010 |
UPK51,56..S;GSK5#,UPK50,USK51,52,55,56,57 |
1 | ||
| 57202-0C010 |
UPK52,57;UPK51,55,56,USK50..D,L |
1 | ||
| 57203A - EXTENSION SUB-ASSY, FRONT SIDE MEMBER, NO.2 RH | ||||
| 57203-0C010 |
UPK52,57;UPK51,55,56,USK50..D,L |
1 | ||
| 57203-0C010 |
UPK51,56..S;GSK5#,UPK50,USK51,52,55,56,57 |
1 | ||
| 57204A - EXTENSION SUB-ASSY, FRONT SIDE MEMBER, NO.2 LH | ||||
| 57204-0C010 |
UPK52,57;UPK51,55,56,USK50..D,L |
1 | ||
| 57204-0C010 |
UPK51,56..S;GSK5#,UPK50,USK51,52,55,56,57 |
1 | ||
| 77131B - BRACKET, FUEL INLET PIPE SUPPORT | ||||
| 77131-0C020 |
UPK51,56..S;GSK5#,UPK50,USK51,52,55,56,57 |
1 | ||
| 77131-0C020 |
UPK52,57;UPK51,55,56,USK50..D,L |
1 | ||
| Common parts | ||||
| 90080-10378 | ||||
| 90105-A0098 | ||||
| 90119-A0167 | ||||
| 90119-A0227 | ||||
| 90178-A0035 | ||||
| 95121-01026 | ||||
| Linked diagrams | ||||
| 4804 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
