USK56L-PSTLKA (2007)
Toyota Tundra
Production
Mar 2007
-
Apr 2009
Engine
3URFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)

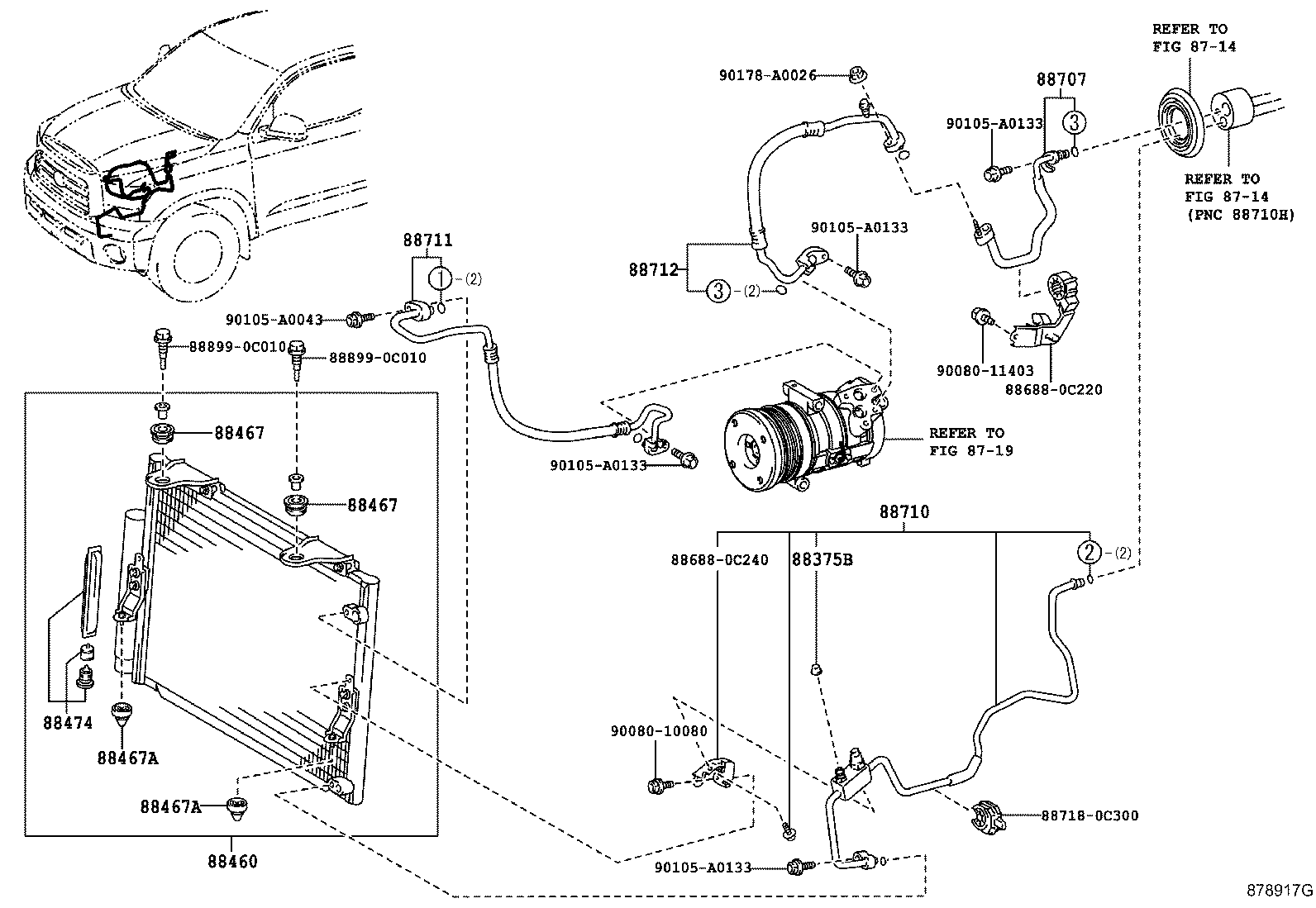

ILLUST NO. 1 OF 2(0611-0904)UCK50,51,55,56..D
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88375B - CAP, SERVICE VALVE, NO.1 | ||||
| 88375-02060 |
GSK5#,UCK5#,USK5# |
1 | ||
| 88460 - CONDENSER ASSY, COOLER | ||||
| 88460-0C100 |
GSK5#,UCK5#,USK5# |
1 | ||
| 88467 - CUSHION, COOLER CONDENSER, NO.1 | ||||
| 88467-12180 |
GSK5#,UCK5#,USK5# |
2 | ||
| 88467 - CUSHION, COOLER CONDENSER, NO.1 | ||||
| 88467-12180 |
GSK5#,UCK5#,USK5# |
2 | ||
| 88467A - CUSHION, COOLER CONDENSER, NO.2 | ||||
| 88467-05010 |
GSK5#,UCK5#,USK5# |
2 | ||
| 88467A - CUSHION, COOLER CONDENSER, NO.2 | ||||
| 88467-05010 |
GSK5#,UCK5#,USK5# |
2 | ||
| 88474 - DRYER, COOLER | ||||
| 88474-17010 |
GSK5#,UCK5#,USK5# |
1 | ||
| 88707 - PIPE SUB-ASSY, SUCTION | ||||
| 88717-0C110 |
UCK51,56,USK51,56..L,S;GSK5#,UCK52,57,USK52,57 |
1 | ||
| 88717-0C100 |
UCK50,51,55,56,USK50,51,55,56..D |
1 | ||
| 88710 - TUBE ASSY, AIR CONDITIONER | ||||
| 88710-0C090 |
GSK5#,UCK5#,USK5# |
1 | ||
| 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 | ||||
| 88712-0C090 |
UCK50,51,55,56..D |
1 | ||
| 88712-0C100 |
UCK51,52,56,57..L,S |
1 | ||
| Common parts | ||||
| 88688-0C220 | ||||
| 88688-0C240 | ||||
| 88718-0C300 | ||||
| 88899-0C010 | ||||
| 90080-10080 | ||||
| 90080-11403 | ||||
| 90105-A0043 | ||||
| 90105-A0133 | ||||
| 90178-A0026 | ||||
| Linked diagrams | ||||
| 8714 | ||||
| 8719 | ||||

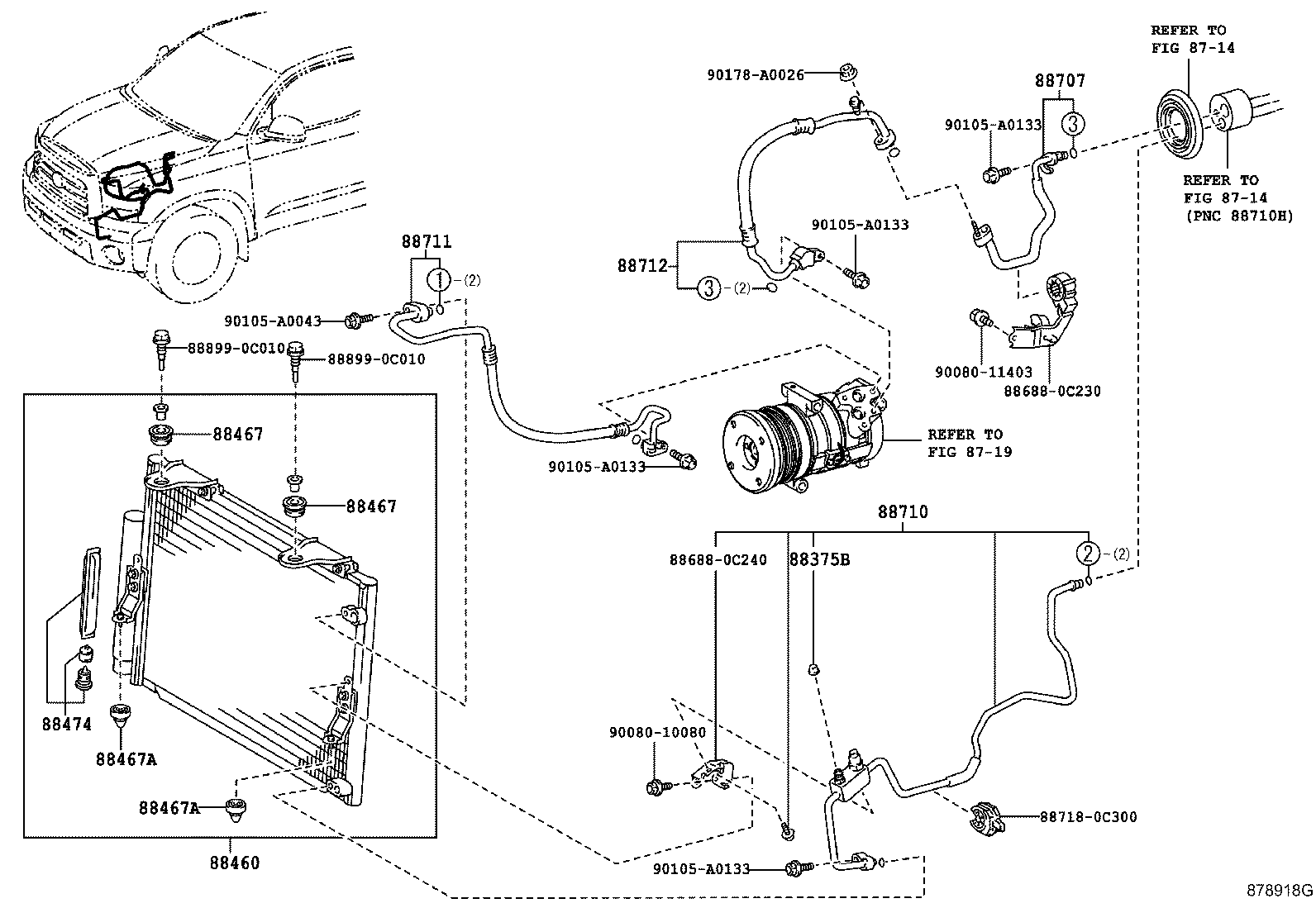

ILLUST NO. 1 OF 2(0611-0904)UCK51,52,56,57..L,S
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88375B - CAP, SERVICE VALVE, NO.1 | ||||
| 88375-02060 |
GSK5#,UCK5#,USK5# |
1 | ||
| 88460 - CONDENSER ASSY, COOLER | ||||
| 88460-0C100 |
GSK5#,UCK5#,USK5# |
1 | ||
| 88467 - CUSHION, COOLER CONDENSER, NO.1 | ||||
| 88467-12180 |
GSK5#,UCK5#,USK5# |
2 | ||
| 88467 - CUSHION, COOLER CONDENSER, NO.1 | ||||
| 88467-12180 |
GSK5#,UCK5#,USK5# |
2 | ||
| 88467A - CUSHION, COOLER CONDENSER, NO.2 | ||||
| 88467-05010 |
GSK5#,UCK5#,USK5# |
2 | ||
| 88467A - CUSHION, COOLER CONDENSER, NO.2 | ||||
| 88467-05010 |
GSK5#,UCK5#,USK5# |
2 | ||
| 88474 - DRYER, COOLER | ||||
| 88474-17010 |
GSK5#,UCK5#,USK5# |
1 | ||
| 88707 - PIPE SUB-ASSY, SUCTION | ||||
| 88717-0C110 |
UCK51,56,USK51,56..L,S;GSK5#,UCK52,57,USK52,57 |
1 | ||
| 88717-0C100 |
UCK50,51,55,56,USK50,51,55,56..D |
1 | ||
| 88710 - TUBE ASSY, AIR CONDITIONER | ||||
| 88710-0C090 |
GSK5#,UCK5#,USK5# |
1 | ||
| 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 | ||||
| 88712-0C090 |
UCK50,51,55,56..D |
1 | ||
| 88712-0C100 |
UCK51,52,56,57..L,S |
1 | ||
| Common parts | ||||
| 88688-0C230 | ||||
| 88688-0C240 | ||||
| 88718-0C300 | ||||
| 88899-0C010 | ||||
| 90080-10080 | ||||
| 90080-11403 | ||||
| 90105-A0043 | ||||
| 90105-A0133 | ||||
| 90178-A0026 | ||||
| Linked diagrams | ||||
| 8714 | ||||
| 8719 | ||||
