USK56L-PSTLGA (2013)
Toyota Tundra

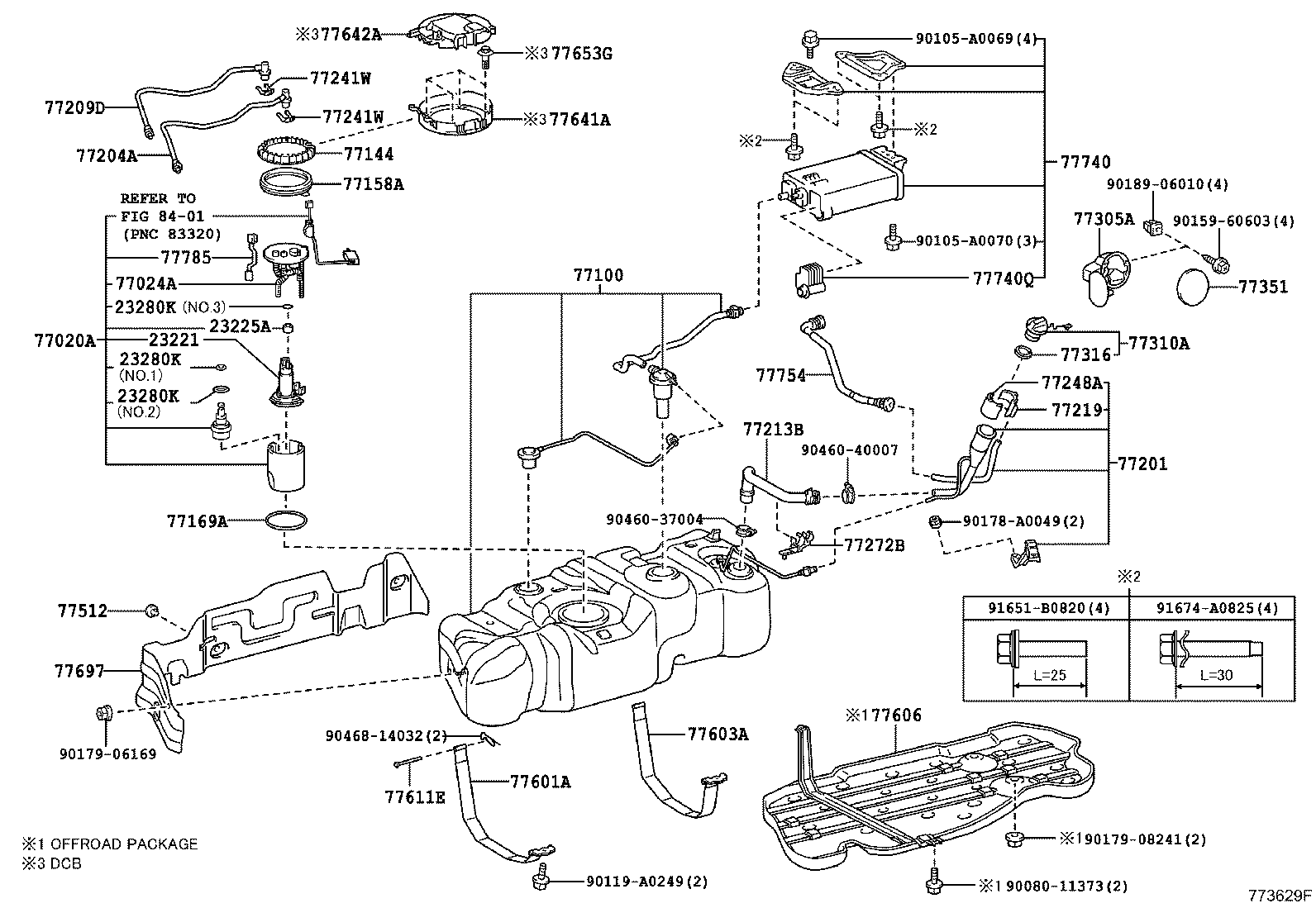

ILLUST NO. 1 OF 2(1308-1512)UPK5#,USK5#..HTWC
FUEL TANK
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77020A - TUBE ASSY, FUEL SUCTION W/PUMP & GAGE | ||||
| 77020-0C082 |
UPK5#,USK5#..HTWC |
1 | ||
| 77020-0C160 |
USK5#..HTWC FUEL TANK-38 GALLON |
1 | ||
| 77020-0C120 |
USK5#..HTWCF |
1 | ||
| 77020-0C170 |
USK5#..HTWCF FUEL TANK-38 GALLON |
1 | ||
| 77024A - PLATE SUB-ASSY, FUEL SUCTION | ||||
| 77024-0C020 |
UPK5#,USK5#..HTWC |
1 | ||
| 77100 - TANK ASSY, FUEL | ||||
| 77001-0C120 |
USK5# FUEL TANK-38 GALLON |
1 | ||
| 77001-0C060 |
UPK5#,USK5# |
1 | ||
| 77144 - RETAINER, FUEL PUMP GAUGE | ||||
| 77144-08010 |
UPK5#,USK5# |
1 | ||
| 77158A - SUPPORT, TANK SUCTION TUBE | ||||
| 77158-08010 |
UPK5#,USK5# |
1 | ||
| 77169A - GASKET, FUEL SUCTION TUBE SET | ||||
| 77169-0C010 |
UPK5#,USK5# |
1 | ||
| 77201 - PIPE SUB-ASSY, FUEL TANK INLET | ||||
| 77201-0C120 |
UPK5#,USK5# |
1 | ||
| 77204A - TUBE, FUEL TANK RETURN | ||||
| 77204-0C090 |
USK5# FUEL TANK-38 GALLON |
1 | ||
| 77204-0C070 |
UPK5#,USK5# |
1 | ||
| 77209D - TUBE SUB-ASSY, FUEL TANK MAIN | ||||
| 77209-0C110 |
UPK5#,USK5#..HTWC |
1 | ||
| 77209-0C140 |
USK5#..HTWC FUEL TANK-38 GALLON |
1 | ||
| 77209-0C120 |
USK5#..HTWCF NO.1 |
1 | ||
| 77209-0C080 |
USK5#..HTWCF NO.2 |
1 | ||
| 77209-0C160 |
USK5#..HTWCF FUEL TANK-38 GALLON |
1 | ||
| 77209-0C130 |
USK5#..HTWCF NO.3 |
1 | ||
| 77213B - HOSE, FUEL TANK TO FILLER PIPE | ||||
| 77213-0C080 |
UPK5#,USK5# |
1 | ||
| 77219 - COVER, FUEL TANK FILLER PIPE | ||||
| 77219-0E010 |
UPK5#,USK5# |
1 | ||
| 77241W - CLIP, TUBE JOINT | ||||
| 77241-06020 |
UPK5#,USK5#..HTWC |
2 | ||
| 77241-06020 |
USK5#..HTWCF |
3 | ||
| 77241W - CLIP, TUBE JOINT | ||||
| 77241-06020 |
UPK5#,USK5#..HTWC |
2 | ||
| 77241-06020 |
USK5#..HTWCF |
3 | ||
| 77248A - HOLDER, FUEL TANK FILLER PIPE COVER | ||||
| 77745-0E010 |
UPK5#,USK5# |
1 | ||
| 77272B - SUPPORT, BREATHER TUBE, NO.1 | ||||
| 77272-0C030 |
UPK5#,USK5# |
1 | ||
| 77305A - LID SUB-ASSY, FUEL FILLER OPENING | ||||
| 77305-0C060 |
UPK5#,USK5# |
1 | ||
| 77310A - CAP ASSY, FUEL TANK | ||||
| 77300-06030 |
USK5#..HTWCF |
1 | ||
| 77300-07010 |
GSK51,UPK5#,USK5#..HTWC |
1 | ||
| 77300-07030 |
UPK5#,USK5#..HTWC |
1 | ||
| 77316 - GASKET, FUEL TANK CAP | ||||
| 77316-06070 |
UPK5#,USK5# |
1 | ||
| 77351 - LID, FUEL FILLER OPENING, OUTER | ||||
| 77351-0C090 |
UPK5#,USK5# |
1 | ||
| 77512 - BRACKET, FUEL TANK, REAR | ||||
| 77512-35140 |
USK5# FUEL TANK-38 GALLON |
5 | ||
| 77512-35140 |
UPK5#,USK5# |
4 | ||
| 77601A - BAND SUB-ASSY, FUEL TANK, NO.1 | ||||
| 77601-0C040 |
UPK5#,USK5# |
1 | ||
| 77601-0C090 |
USK51..HTWCF;USK52,56,57..L,S;USK51..HTWC..(L,S) OFFROAD PACKAGE&FUEL TANK-38 GALLON |
1 | ||
| 77601-0C090 |
USK51,56..(CMAX,DCB)..S TRD PRO&FUEL TANK-38 GALLON |
1 | ||
| 77601-0C130 |
UPK5#,USK5# |
1 | ||
| 77601-0C110 |
USK5# FUEL TANK-38 GALLON |
1 | ||
| 77603A - BAND SUB-ASSY, FUEL TANK, NO.2 | ||||
| 77602-0C011 |
UPK5#,USK5#..L,S OFFROAD PACKAGE |
1 | ||
| 77602-0C021 |
UPK5#,USK5# |
1 | ||
| 77602-0C011 |
USK51,56..(CMAX,DCB)..S TRD PRO |
1 | ||
| 77602-0C120 |
USK51,56..(CMAX,DCB)..S TRD PRO&FUEL TANK-38 GALLON |
1 | ||
| 77602-0C140 |
UPK5#,USK5# |
1 | ||
| 77602-0C120 |
USK51..HTWCF;USK52,56,57..L,S;USK51..HTWC..(L,S) OFFROAD PACKAGE&FUEL TANK-38 GALLON |
1 | ||
| 77602-0C150 |
USK51..HTWCF;USK51..HTWC..(L,S);UPK5#,USK52,56,57..L,S OFFROAD PACKAGE |
1 | ||
| 77602-0C130 |
USK5# FUEL TANK-38 GALLON |
1 | ||
| 77602-0C150 |
USK51,56..(CMAX,DCB)..S TRD PRO |
1 | ||
| 77606 - PROTECTOR SUB-ASSY, FUEL TANK, NO.1 | ||||
| 77606-0C060 |
USK51,56..(CMAX,DCB)..S TRD PRO&FUEL TANK-38 GALLON |
1 | ||
| 77606-0C040 |
USK51..HTWCF;USK51..HTWC..(L,S);UPK5#,USK52,56,57..L,S OFFROAD PACKAGE |
1 | ||
| 77606-0C060 |
USK51..HTWCF;USK52,56,57..L,S;USK51..HTWC..(L,S) OFFROAD PACKAGE&FUEL TANK-38 GALLON |
1 | ||
| 77606-0C040 |
USK51,56..(CMAX,DCB)..S TRD PRO |
1 | ||
| 77611E - PIN, FUEL TANK BAND | ||||
| 77653-34050 |
USK51..HTWCF;USK52,56,57..L,S;USK51..HTWC..(L,S) OFFROAD PACKAGE&FUEL TANK-38 GALLON |
3 | ||
| 77653-34050 |
UPK5#,USK5# |
2 | ||
| 77653-34050 |
USK51,56..(CMAX,DCB)..S TRD PRO&FUEL TANK-38 GALLON |
3 | ||
| 77653-34040 |
GSK51,UPK5#,USK5# |
2 | ||
| 77653-34050 |
USK5# FUEL TANK-38 GALLON |
3 | ||
| 77697 - INSULATOR, FUEL TANK HEAT, NO.1 | ||||
| 77697-0C020 |
UPK5#,USK5# |
1 | ||
| 77697-0C050 |
USK5# FUEL TANK-38 GALLON |
1 | ||
| 77740 - CANISTER ASSY, CHARCOAL | ||||
| 77740-0C110 |
USK5# FUEL TANK-38 GALLON |
1 | ||
| 77740-0C090 |
UPK5#,USK5# |
1 | ||
| 77740Q - LEAK DETECTION PUMP SUB-ASSY, CHARCOAL CANISTER | ||||
| 90910-AF006 |
UPK5#,USK5# |
1 | ||
| 90910-AF004 |
UPK5#,USK5# |
1 | ||
| 77754 - HOSE, CHARCOAL CANISTER OUTLET, NO.1 | ||||
| 77754-0C130 |
USK5# FUEL TANK-38 GALLON |
1 | ||
| 77754-0C130 |
UPK5#,USK5# |
1 | ||
| 77785 - HARNESS, FUEL PUMP | ||||
| 77785-0C030 |
UPK5#,USK5#..HTWC |
1 | ||
| Common parts | ||||
| 90080-11373 | ||||
| 90105-A0069 | ||||
| 90105-A0070 | ||||
| 90119-A0249 | ||||
| 90159-60603 | ||||
| 90178-A0049 | ||||
| 90179-06169 | ||||
| 90179-08241 | ||||
| 90189-06010 | ||||
| 90460-37004 | ||||
| 90460-40007 | ||||
| 90468-14032 | ||||
| 91651-B0820 | ||||
| 91674-A0825 | ||||
| Linked diagrams | ||||
| 8401 | ||||

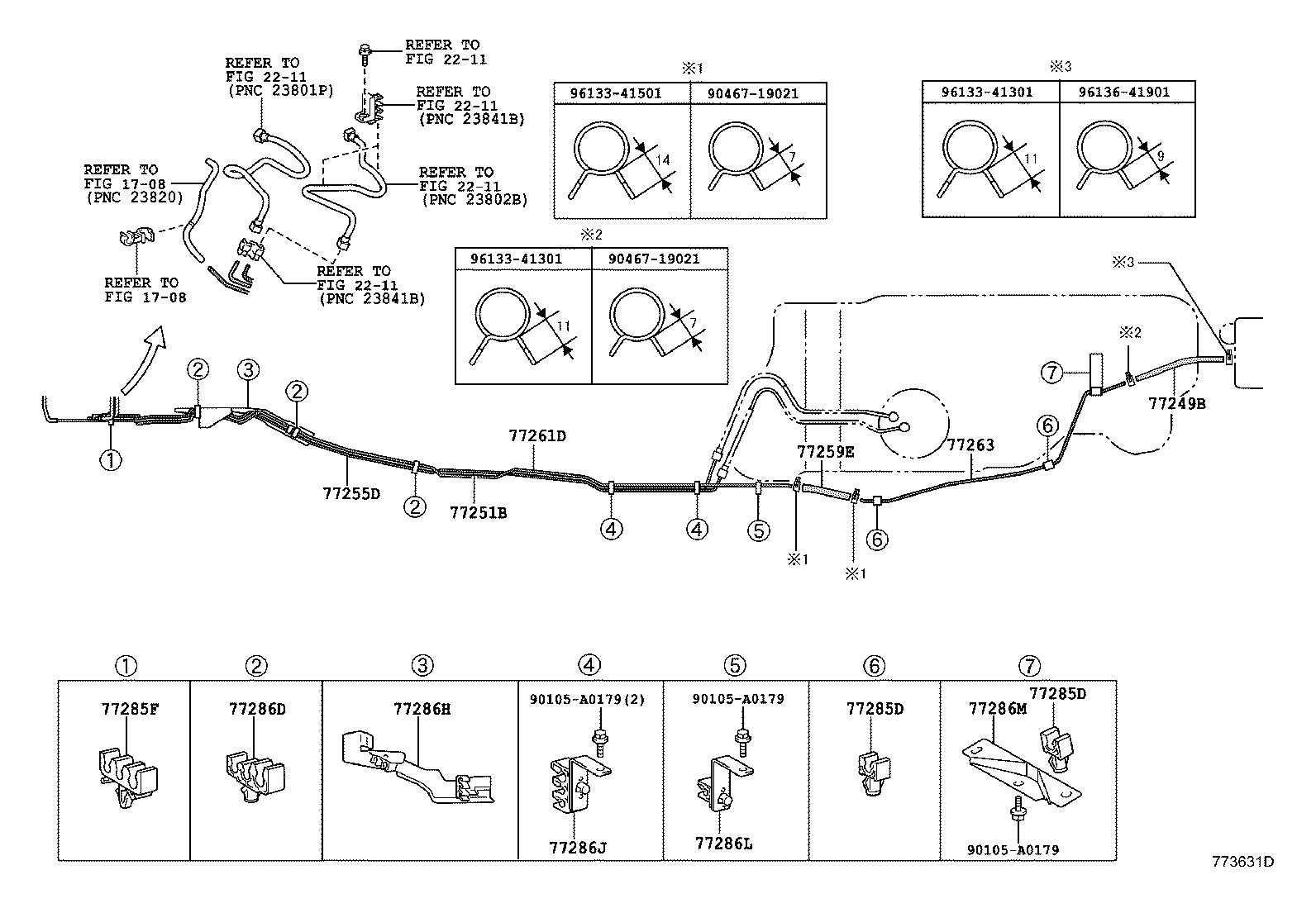

ILLUST NO. 2 OF 2(1308- )USK56 ; (1308- )GSK51,UPK5#,USK51..HTWC
FUEL TUBE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77249B - HOSE, FUEL | ||||
| 77249-0C030 |
USK5# FUEL TANK-38 GALLON |
1 | ||
| 77249-0C020 |
UPK5#,USK5# |
1 | ||
| 77251B - TUBE, FUEL MAIN | ||||
| 77251-0C080 |
UPK5#,USK51,56 |
1 | ||
| 77251-0C070 |
USK51,56 FUEL TANK-38 GALLON |
1 | ||
| 77255D - TUBE, FUEL RETURN | ||||
| 77255-0C110 |
UPK5#,USK51,56 |
1 | ||
| 77255-0C100 |
USK51,56 FUEL TANK-38 GALLON |
1 | ||
| 77259E - HOSE, FUEL | ||||
| 77259-0C210 |
UPK5#,USK5# |
1 | ||
| 77259-0C190 |
USK5# FUEL TANK-38 GALLON |
1 | ||
| 77261D - TUBE, FUEL TANK TO CANISTER | ||||
| 77262-0C170 |
USK51,56 FUEL TANK-38 GALLON |
1 | ||
| 77262-0C120 |
UPK5#,USK51,56 |
1 | ||
| 77263 - TUBE, FUEL TANK TO CANISTER, NO.3 | ||||
| 77263-0C060 |
UPK5#,USK5# |
1 | ||
| 77263-0C070 |
USK5# FUEL TANK-38 GALLON |
1 | ||
| 77285D - CLAMP, FUEL TUBE, NO.1 | ||||
| 77285-34380 |
UPK5#,USK5# |
3 | ||
| 77285-0C060 |
USK5# FUEL TANK-38 GALLON |
3 | ||
| 77285D - CLAMP, FUEL TUBE, NO.1 | ||||
| 77285-34380 |
UPK5#,USK5# |
3 | ||
| 77285-0C060 |
USK5# FUEL TANK-38 GALLON |
3 | ||
| 77285F - CLAMP, FUEL TUBE, NO.1 | ||||
| 77289-26010 |
UPK5#,USK5# |
1 | ||
| 77289-0C030 |
USK5# FUEL TANK-38 GALLON |
1 | ||
| 77286D - CLAMP, FUEL TUBE, NO.2 | ||||
| 77285-34370 |
UPK5#,USK5# |
3 | ||
| 77286H - CLAMP, FUEL TUBE, NO.3 | ||||
| 77296-0C020 |
USK5# FUEL TANK-38 GALLON |
1 | ||
| 77296-0C020 |
UPK5#,USK5# |
1 | ||
| 77296-0C010 |
UPK5#,USK5# |
1 | ||
| 77286J - CLAMP, FUEL TUBE, NO.4 | ||||
| 77412-0C010 |
USK51,56 FUEL TANK-38 GALLON |
1 | ||
| 77412-34010 |
UPK5#,USK51,56 |
2 | ||
| 77286L - CLAMP, FUEL TUBE, NO.5 | ||||
| 77413-0C010 |
USK5# FUEL TANK-38 GALLON |
1 | ||
| 77413-34010 |
UPK5#,USK5# |
1 | ||
| 77286M - CLAMP, FUEL TUBE, NO.6 | ||||
| 77414-0C010 |
UPK5#,USK5# |
1 | ||
| Common parts | ||||
| 90105-A0179 | ||||
| 90467-19021 | ||||
| 96133-41301 | ||||
| 96133-41501 | ||||
| 96136-41901 | ||||
| Linked diagrams | ||||
| 1708 | ||||
| 2211 | ||||

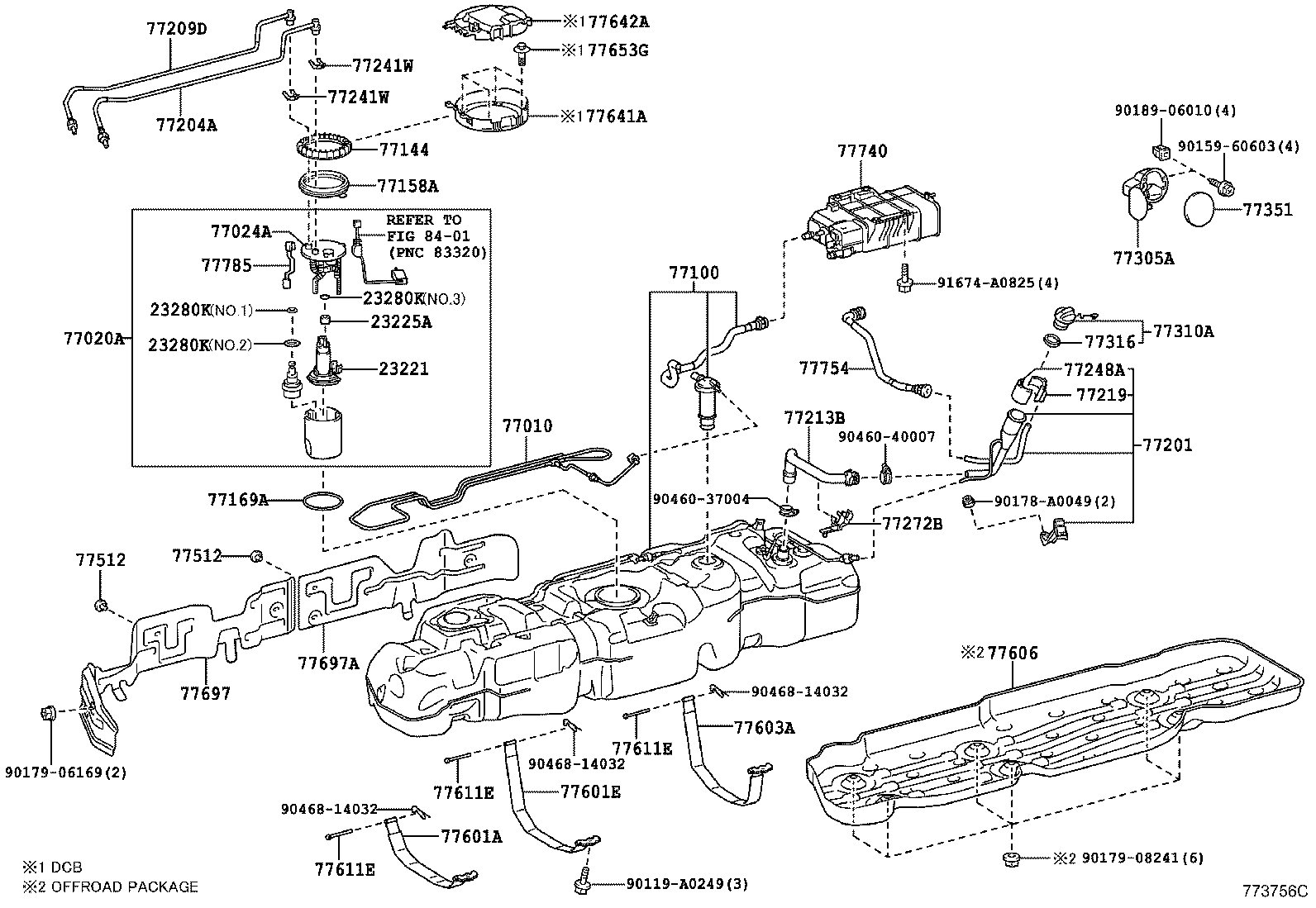

ILLUST NO. 1 OF 2(1409- )USK5#..HTWC
FUEL TANK - 38 GALLON
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77010 - TUBE ASSY, FUEL TANK VENT | ||||
| 77010-0C010 |
USK5# FUEL TANK-38 GALLON |
1 | ||
| 77020A - TUBE ASSY, FUEL SUCTION W/PUMP & GAGE | ||||
| 77020-0C082 |
UPK5#,USK5#..HTWC |
1 | ||
| 77020-0C160 |
USK5#..HTWC FUEL TANK-38 GALLON |
1 | ||
| 77020-0C120 |
USK5#..HTWCF |
1 | ||
| 77020-0C170 |
USK5#..HTWCF FUEL TANK-38 GALLON |
1 | ||
| 77024A - PLATE SUB-ASSY, FUEL SUCTION | ||||
| 77024-0C020 |
UPK5#,USK5#..HTWC |
1 | ||
| 77100 - TANK ASSY, FUEL | ||||
| 77001-0C120 |
USK5# FUEL TANK-38 GALLON |
1 | ||
| 77001-0C060 |
UPK5#,USK5# |
1 | ||
| 77144 - RETAINER, FUEL PUMP GAUGE | ||||
| 77144-08010 |
UPK5#,USK5# |
1 | ||
| 77158A - SUPPORT, TANK SUCTION TUBE | ||||
| 77158-08010 |
UPK5#,USK5# |
1 | ||
| 77169A - GASKET, FUEL SUCTION TUBE SET | ||||
| 77169-0C010 |
UPK5#,USK5# |
1 | ||
| 77201 - PIPE SUB-ASSY, FUEL TANK INLET | ||||
| 77201-0C120 |
UPK5#,USK5# |
1 | ||
| 77204A - TUBE, FUEL TANK RETURN | ||||
| 77204-0C090 |
USK5# FUEL TANK-38 GALLON |
1 | ||
| 77204-0C070 |
UPK5#,USK5# |
1 | ||
| 77209D - TUBE SUB-ASSY, FUEL TANK MAIN | ||||
| 77209-0C110 |
UPK5#,USK5#..HTWC |
1 | ||
| 77209-0C140 |
USK5#..HTWC FUEL TANK-38 GALLON |
1 | ||
| 77209-0C120 |
USK5#..HTWCF NO.1 |
1 | ||
| 77209-0C080 |
USK5#..HTWCF NO.2 |
1 | ||
| 77209-0C160 |
USK5#..HTWCF FUEL TANK-38 GALLON |
1 | ||
| 77209-0C130 |
USK5#..HTWCF NO.3 |
1 | ||
| 77213B - HOSE, FUEL TANK TO FILLER PIPE | ||||
| 77213-0C080 |
UPK5#,USK5# |
1 | ||
| 77219 - COVER, FUEL TANK FILLER PIPE | ||||
| 77219-0E010 |
UPK5#,USK5# |
1 | ||
| 77241W - CLIP, TUBE JOINT | ||||
| 77241-06020 |
UPK5#,USK5#..HTWC |
2 | ||
| 77241-06020 |
USK5#..HTWCF |
3 | ||
| 77241W - CLIP, TUBE JOINT | ||||
| 77241-06020 |
UPK5#,USK5#..HTWC |
2 | ||
| 77241-06020 |
USK5#..HTWCF |
3 | ||
| 77248A - HOLDER, FUEL TANK FILLER PIPE COVER | ||||
| 77745-0E010 |
UPK5#,USK5# |
1 | ||
| 77272B - SUPPORT, BREATHER TUBE, NO.1 | ||||
| 77272-0C030 |
UPK5#,USK5# |
1 | ||
| 77305A - LID SUB-ASSY, FUEL FILLER OPENING | ||||
| 77305-0C060 |
UPK5#,USK5# |
1 | ||
| 77310A - CAP ASSY, FUEL TANK | ||||
| 77300-06030 |
USK5#..HTWCF |
1 | ||
| 77300-07010 |
GSK51,UPK5#,USK5#..HTWC |
1 | ||
| 77300-07030 |
UPK5#,USK5#..HTWC |
1 | ||
| 77316 - GASKET, FUEL TANK CAP | ||||
| 77316-06070 |
UPK5#,USK5# |
1 | ||
| 77351 - LID, FUEL FILLER OPENING, OUTER | ||||
| 77351-0C090 |
UPK5#,USK5# |
1 | ||
| 77512 - BRACKET, FUEL TANK, REAR | ||||
| 77512-35140 |
USK5# FUEL TANK-38 GALLON |
5 | ||
| 77512-35140 |
UPK5#,USK5# |
4 | ||
| 77512 - BRACKET, FUEL TANK, REAR | ||||
| 77512-35140 |
USK5# FUEL TANK-38 GALLON |
5 | ||
| 77512-35140 |
UPK5#,USK5# |
4 | ||
| 77601A - BAND SUB-ASSY, FUEL TANK, NO.1 | ||||
| 77601-0C040 |
UPK5#,USK5# |
1 | ||
| 77601-0C090 |
USK51..HTWCF;USK52,56,57..L,S;USK51..HTWC..(L,S) OFFROAD PACKAGE&FUEL TANK-38 GALLON |
1 | ||
| 77601-0C090 |
USK51,56..(CMAX,DCB)..S TRD PRO&FUEL TANK-38 GALLON |
1 | ||
| 77601-0C130 |
UPK5#,USK5# |
1 | ||
| 77601-0C110 |
USK5# FUEL TANK-38 GALLON |
1 | ||
| 77601E - BAND SUB-ASSY, FUEL TANK | ||||
| 77601-0C100 |
USK51..HTWCF;USK52,56,57..L,S;USK51..HTWC..(L,S) OFFROAD PACKAGE&FUEL TANK-38 GALLON |
1 | ||
| 77601-0C100 |
USK51,56..(CMAX,DCB)..S TRD PRO&FUEL TANK-38 GALLON |
1 | ||
| 77601-0C120 |
USK5# FUEL TANK-38 GALLON |
1 | ||
| 77603A - BAND SUB-ASSY, FUEL TANK, NO.2 | ||||
| 77602-0C011 |
UPK5#,USK5#..L,S OFFROAD PACKAGE |
1 | ||
| 77602-0C021 |
UPK5#,USK5# |
1 | ||
| 77602-0C011 |
USK51,56..(CMAX,DCB)..S TRD PRO |
1 | ||
| 77602-0C120 |
USK51,56..(CMAX,DCB)..S TRD PRO&FUEL TANK-38 GALLON |
1 | ||
| 77602-0C140 |
UPK5#,USK5# |
1 | ||
| 77602-0C120 |
USK51..HTWCF;USK52,56,57..L,S;USK51..HTWC..(L,S) OFFROAD PACKAGE&FUEL TANK-38 GALLON |
1 | ||
| 77602-0C150 |
USK51..HTWCF;USK51..HTWC..(L,S);UPK5#,USK52,56,57..L,S OFFROAD PACKAGE |
1 | ||
| 77602-0C130 |
USK5# FUEL TANK-38 GALLON |
1 | ||
| 77602-0C150 |
USK51,56..(CMAX,DCB)..S TRD PRO |
1 | ||
| 77606 - PROTECTOR SUB-ASSY, FUEL TANK, NO.1 | ||||
| 77606-0C060 |
USK51,56..(CMAX,DCB)..S TRD PRO&FUEL TANK-38 GALLON |
1 | ||
| 77606-0C040 |
USK51..HTWCF;USK51..HTWC..(L,S);UPK5#,USK52,56,57..L,S OFFROAD PACKAGE |
1 | ||
| 77606-0C060 |
USK51..HTWCF;USK52,56,57..L,S;USK51..HTWC..(L,S) OFFROAD PACKAGE&FUEL TANK-38 GALLON |
1 | ||
| 77606-0C040 |
USK51,56..(CMAX,DCB)..S TRD PRO |
1 | ||
| 77611E - PIN, FUEL TANK BAND | ||||
| 77653-34050 |
USK51..HTWCF;USK52,56,57..L,S;USK51..HTWC..(L,S) OFFROAD PACKAGE&FUEL TANK-38 GALLON |
3 | ||
| 77653-34050 |
UPK5#,USK5# |
2 | ||
| 77653-34050 |
USK51,56..(CMAX,DCB)..S TRD PRO&FUEL TANK-38 GALLON |
3 | ||
| 77653-34040 |
GSK51,UPK5#,USK5# |
2 | ||
| 77653-34050 |
USK5# FUEL TANK-38 GALLON |
3 | ||
| 77611E - PIN, FUEL TANK BAND | ||||
| 77653-34050 |
USK51..HTWCF;USK52,56,57..L,S;USK51..HTWC..(L,S) OFFROAD PACKAGE&FUEL TANK-38 GALLON |
3 | ||
| 77653-34050 |
UPK5#,USK5# |
2 | ||
| 77653-34050 |
USK51,56..(CMAX,DCB)..S TRD PRO&FUEL TANK-38 GALLON |
3 | ||
| 77653-34040 |
GSK51,UPK5#,USK5# |
2 | ||
| 77653-34050 |
USK5# FUEL TANK-38 GALLON |
3 | ||
| 77611E - PIN, FUEL TANK BAND | ||||
| 77653-34050 |
USK51..HTWCF;USK52,56,57..L,S;USK51..HTWC..(L,S) OFFROAD PACKAGE&FUEL TANK-38 GALLON |
3 | ||
| 77653-34050 |
UPK5#,USK5# |
2 | ||
| 77653-34050 |
USK51,56..(CMAX,DCB)..S TRD PRO&FUEL TANK-38 GALLON |
3 | ||
| 77653-34040 |
GSK51,UPK5#,USK5# |
2 | ||
| 77653-34050 |
USK5# FUEL TANK-38 GALLON |
3 | ||
| 77697 - INSULATOR, FUEL TANK HEAT, NO.1 | ||||
| 77697-0C020 |
UPK5#,USK5# |
1 | ||
| 77697-0C050 |
USK5# FUEL TANK-38 GALLON |
1 | ||
| 77697A - INSULATOR, FUEL TANK HEAT, NO.2 | ||||
| 77697-0C060 |
USK5# FUEL TANK-38 GALLON |
1 | ||
| 77740 - CANISTER ASSY, CHARCOAL | ||||
| 77740-0C110 |
USK5# FUEL TANK-38 GALLON |
1 | ||
| 77740-0C090 |
UPK5#,USK5# |
1 | ||
| 77754 - HOSE, CHARCOAL CANISTER OUTLET, NO.1 | ||||
| 77754-0C130 |
USK5# FUEL TANK-38 GALLON |
1 | ||
| 77754-0C130 |
UPK5#,USK5# |
1 | ||
| 77785 - HARNESS, FUEL PUMP | ||||
| 77785-0C030 |
UPK5#,USK5#..HTWC |
1 | ||
| Common parts | ||||
| 90119-A0249 | ||||
| 90159-60603 | ||||
| 90178-A0049 | ||||
| 90179-06169 | ||||
| 90179-08241 | ||||
| 90189-06010 | ||||
| 90460-37004 | ||||
| 90460-40007 | ||||
| 90468-14032 | ||||
| 91674-A0825 | ||||
| Linked diagrams | ||||
| 8401 | ||||

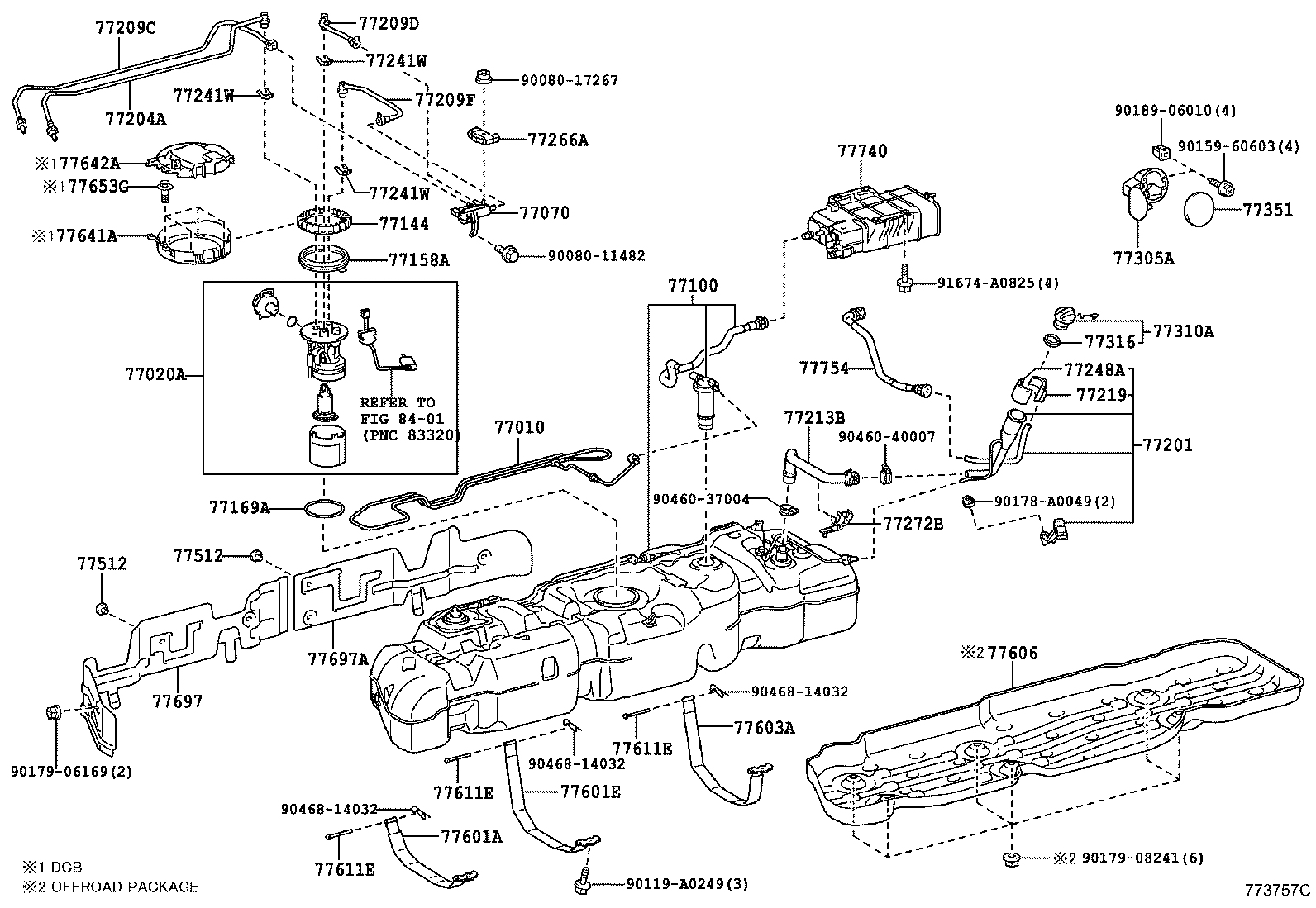

ILLUST NO. 1 OF 2(1409- )HTWCF
FUEL TANK - 38 GALLON
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77010 - TUBE ASSY, FUEL TANK VENT | ||||
| 77010-0C010 |
USK5# FUEL TANK-38 GALLON |
1 | ||
| 77020A - TUBE ASSY, FUEL SUCTION W/PUMP & GAGE | ||||
| 77020-0C082 |
UPK5#,USK5#..HTWC |
1 | ||
| 77020-0C160 |
USK5#..HTWC FUEL TANK-38 GALLON |
1 | ||
| 77020-0C120 |
USK5#..HTWCF |
1 | ||
| 77020-0C170 |
USK5#..HTWCF FUEL TANK-38 GALLON |
1 | ||
| 77070 - VALVE ASSY, FUEL TANK SOLENOID W/HOSE | ||||
| 77070-34010 |
USK5#..HTWCF |
1 | ||
| 77100 - TANK ASSY, FUEL | ||||
| 77001-0C120 |
USK5# FUEL TANK-38 GALLON |
1 | ||
| 77001-0C060 |
UPK5#,USK5# |
1 | ||
| 77144 - RETAINER, FUEL PUMP GAUGE | ||||
| 77144-08010 |
UPK5#,USK5# |
1 | ||
| 77158A - SUPPORT, TANK SUCTION TUBE | ||||
| 77158-08010 |
UPK5#,USK5# |
1 | ||
| 77169A - GASKET, FUEL SUCTION TUBE SET | ||||
| 77169-0C010 |
UPK5#,USK5# |
1 | ||
| 77201 - PIPE SUB-ASSY, FUEL TANK INLET | ||||
| 77201-0C120 |
UPK5#,USK5# |
1 | ||
| 77204A - TUBE, FUEL TANK RETURN | ||||
| 77204-0C090 |
USK5# FUEL TANK-38 GALLON |
1 | ||
| 77204-0C070 |
UPK5#,USK5# |
1 | ||
| 77209C - TUBE SUB-ASSY, FUEL TANK MAIN | ||||
| 77209-0C150 |
USK5#..HTWCF FUEL TANK-38 GALLON |
1 | ||
| 77209D - TUBE SUB-ASSY, FUEL TANK MAIN | ||||
| 77209-0C110 |
UPK5#,USK5#..HTWC |
1 | ||
| 77209-0C140 |
USK5#..HTWC FUEL TANK-38 GALLON |
1 | ||
| 77209-0C120 |
USK5#..HTWCF NO.1 |
1 | ||
| 77209-0C080 |
USK5#..HTWCF NO.2 |
1 | ||
| 77209-0C160 |
USK5#..HTWCF FUEL TANK-38 GALLON |
1 | ||
| 77209-0C130 |
USK5#..HTWCF NO.3 |
1 | ||
| 77209F - TUBE SUB-ASSY, FUEL TANK MAIN | ||||
| 77209-0C170 |
USK5#..HTWCF FUEL TANK-38 GALLON |
1 | ||
| 77213B - HOSE, FUEL TANK TO FILLER PIPE | ||||
| 77213-0C080 |
UPK5#,USK5# |
1 | ||
| 77219 - COVER, FUEL TANK FILLER PIPE | ||||
| 77219-0E010 |
UPK5#,USK5# |
1 | ||
| 77241W - CLIP, TUBE JOINT | ||||
| 77241-06020 |
UPK5#,USK5#..HTWC |
2 | ||
| 77241-06020 |
USK5#..HTWCF |
3 | ||
| 77241W - CLIP, TUBE JOINT | ||||
| 77241-06020 |
UPK5#,USK5#..HTWC |
2 | ||
| 77241-06020 |
USK5#..HTWCF |
3 | ||
| 77241W - CLIP, TUBE JOINT | ||||
| 77241-06020 |
UPK5#,USK5#..HTWC |
2 | ||
| 77241-06020 |
USK5#..HTWCF |
3 | ||
| 77248A - HOLDER, FUEL TANK FILLER PIPE COVER | ||||
| 77745-0E010 |
UPK5#,USK5# |
1 | ||
| 77266A - PROTECTOR, FUEL TUBE, NO.1 | ||||
| 77266-0C010 |
USK5#..HTWCF |
1 | ||
| 77272B - SUPPORT, BREATHER TUBE, NO.1 | ||||
| 77272-0C030 |
UPK5#,USK5# |
1 | ||
| 77305A - LID SUB-ASSY, FUEL FILLER OPENING | ||||
| 77305-0C060 |
UPK5#,USK5# |
1 | ||
| 77310A - CAP ASSY, FUEL TANK | ||||
| 77300-06030 |
USK5#..HTWCF |
1 | ||
| 77300-07010 |
GSK51,UPK5#,USK5#..HTWC |
1 | ||
| 77300-07030 |
UPK5#,USK5#..HTWC |
1 | ||
| 77316 - GASKET, FUEL TANK CAP | ||||
| 77316-06070 |
UPK5#,USK5# |
1 | ||
| 77351 - LID, FUEL FILLER OPENING, OUTER | ||||
| 77351-0C090 |
UPK5#,USK5# |
1 | ||
| 77512 - BRACKET, FUEL TANK, REAR | ||||
| 77512-35140 |
USK5# FUEL TANK-38 GALLON |
5 | ||
| 77512-35140 |
UPK5#,USK5# |
4 | ||
| 77512 - BRACKET, FUEL TANK, REAR | ||||
| 77512-35140 |
USK5# FUEL TANK-38 GALLON |
5 | ||
| 77512-35140 |
UPK5#,USK5# |
4 | ||
| 77601A - BAND SUB-ASSY, FUEL TANK, NO.1 | ||||
| 77601-0C040 |
UPK5#,USK5# |
1 | ||
| 77601-0C090 |
USK51..HTWCF;USK52,56,57..L,S;USK51..HTWC..(L,S) OFFROAD PACKAGE&FUEL TANK-38 GALLON |
1 | ||
| 77601-0C090 |
USK51,56..(CMAX,DCB)..S TRD PRO&FUEL TANK-38 GALLON |
1 | ||
| 77601-0C130 |
UPK5#,USK5# |
1 | ||
| 77601-0C110 |
USK5# FUEL TANK-38 GALLON |
1 | ||
| 77601E - BAND SUB-ASSY, FUEL TANK | ||||
| 77601-0C100 |
USK51..HTWCF;USK52,56,57..L,S;USK51..HTWC..(L,S) OFFROAD PACKAGE&FUEL TANK-38 GALLON |
1 | ||
| 77601-0C100 |
USK51,56..(CMAX,DCB)..S TRD PRO&FUEL TANK-38 GALLON |
1 | ||
| 77601-0C120 |
USK5# FUEL TANK-38 GALLON |
1 | ||
| 77603A - BAND SUB-ASSY, FUEL TANK, NO.2 | ||||
| 77602-0C011 |
UPK5#,USK5#..L,S OFFROAD PACKAGE |
1 | ||
| 77602-0C021 |
UPK5#,USK5# |
1 | ||
| 77602-0C011 |
USK51,56..(CMAX,DCB)..S TRD PRO |
1 | ||
| 77602-0C120 |
USK51,56..(CMAX,DCB)..S TRD PRO&FUEL TANK-38 GALLON |
1 | ||
| 77602-0C140 |
UPK5#,USK5# |
1 | ||
| 77602-0C120 |
USK51..HTWCF;USK52,56,57..L,S;USK51..HTWC..(L,S) OFFROAD PACKAGE&FUEL TANK-38 GALLON |
1 | ||
| 77602-0C150 |
USK51..HTWCF;USK51..HTWC..(L,S);UPK5#,USK52,56,57..L,S OFFROAD PACKAGE |
1 | ||
| 77602-0C130 |
USK5# FUEL TANK-38 GALLON |
1 | ||
| 77602-0C150 |
USK51,56..(CMAX,DCB)..S TRD PRO |
1 | ||
| 77606 - PROTECTOR SUB-ASSY, FUEL TANK, NO.1 | ||||
| 77606-0C060 |
USK51,56..(CMAX,DCB)..S TRD PRO&FUEL TANK-38 GALLON |
1 | ||
| 77606-0C040 |
USK51..HTWCF;USK51..HTWC..(L,S);UPK5#,USK52,56,57..L,S OFFROAD PACKAGE |
1 | ||
| 77606-0C060 |
USK51..HTWCF;USK52,56,57..L,S;USK51..HTWC..(L,S) OFFROAD PACKAGE&FUEL TANK-38 GALLON |
1 | ||
| 77606-0C040 |
USK51,56..(CMAX,DCB)..S TRD PRO |
1 | ||
| 77611E - PIN, FUEL TANK BAND | ||||
| 77653-34050 |
USK51..HTWCF;USK52,56,57..L,S;USK51..HTWC..(L,S) OFFROAD PACKAGE&FUEL TANK-38 GALLON |
3 | ||
| 77653-34050 |
UPK5#,USK5# |
2 | ||
| 77653-34050 |
USK51,56..(CMAX,DCB)..S TRD PRO&FUEL TANK-38 GALLON |
3 | ||
| 77653-34040 |
GSK51,UPK5#,USK5# |
2 | ||
| 77653-34050 |
USK5# FUEL TANK-38 GALLON |
3 | ||
| 77611E - PIN, FUEL TANK BAND | ||||
| 77653-34050 |
USK51..HTWCF;USK52,56,57..L,S;USK51..HTWC..(L,S) OFFROAD PACKAGE&FUEL TANK-38 GALLON |
3 | ||
| 77653-34050 |
UPK5#,USK5# |
2 | ||
| 77653-34050 |
USK51,56..(CMAX,DCB)..S TRD PRO&FUEL TANK-38 GALLON |
3 | ||
| 77653-34040 |
GSK51,UPK5#,USK5# |
2 | ||
| 77653-34050 |
USK5# FUEL TANK-38 GALLON |
3 | ||
| 77611E - PIN, FUEL TANK BAND | ||||
| 77653-34050 |
USK51..HTWCF;USK52,56,57..L,S;USK51..HTWC..(L,S) OFFROAD PACKAGE&FUEL TANK-38 GALLON |
3 | ||
| 77653-34050 |
UPK5#,USK5# |
2 | ||
| 77653-34050 |
USK51,56..(CMAX,DCB)..S TRD PRO&FUEL TANK-38 GALLON |
3 | ||
| 77653-34040 |
GSK51,UPK5#,USK5# |
2 | ||
| 77653-34050 |
USK5# FUEL TANK-38 GALLON |
3 | ||
| 77697 - INSULATOR, FUEL TANK HEAT, NO.1 | ||||
| 77697-0C020 |
UPK5#,USK5# |
1 | ||
| 77697-0C050 |
USK5# FUEL TANK-38 GALLON |
1 | ||
| 77697A - INSULATOR, FUEL TANK HEAT, NO.2 | ||||
| 77697-0C060 |
USK5# FUEL TANK-38 GALLON |
1 | ||
| 77740 - CANISTER ASSY, CHARCOAL | ||||
| 77740-0C110 |
USK5# FUEL TANK-38 GALLON |
1 | ||
| 77740-0C090 |
UPK5#,USK5# |
1 | ||
| 77754 - HOSE, CHARCOAL CANISTER OUTLET, NO.1 | ||||
| 77754-0C130 |
USK5# FUEL TANK-38 GALLON |
1 | ||
| 77754-0C130 |
UPK5#,USK5# |
1 | ||
| Common parts | ||||
| 90080-11482 | ||||
| 90080-17267 | ||||
| 90119-A0249 | ||||
| 90159-60603 | ||||
| 90178-A0049 | ||||
| 90179-06169 | ||||
| 90179-08241 | ||||
| 90189-06010 | ||||
| 90460-37004 | ||||
| 90460-40007 | ||||
| 90468-14032 | ||||
| 91674-A0825 | ||||
| Linked diagrams | ||||
| 8401 | ||||

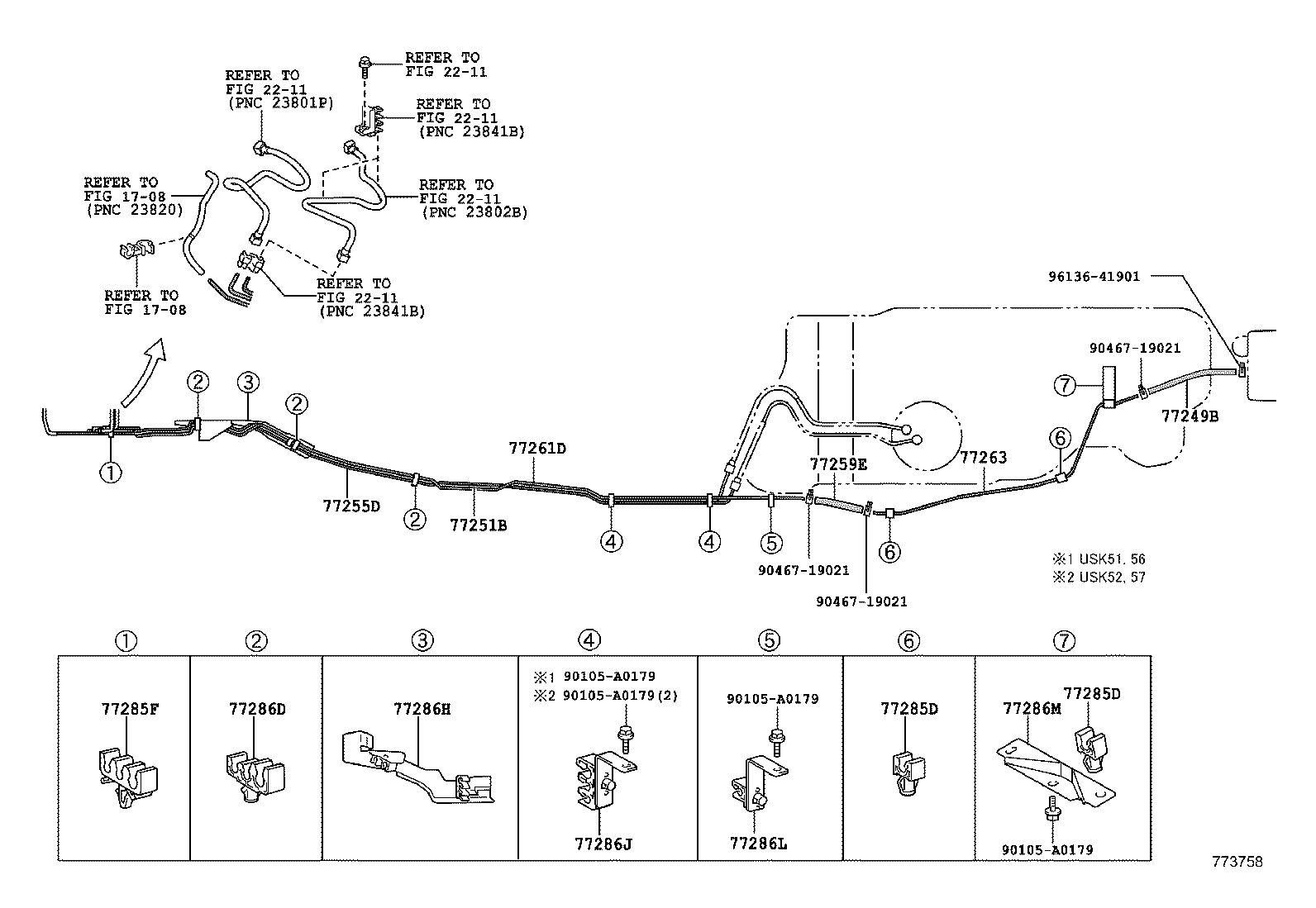

ILLUST NO. 2 OF 2(1409- )USK5#
FUEL TUBE - W(FUEL TANK = 38 GALLON
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77249B - HOSE, FUEL | ||||
| 77249-0C030 |
USK5# FUEL TANK-38 GALLON |
1 | ||
| 77249-0C020 |
UPK5#,USK5# |
1 | ||
| 77251B - TUBE, FUEL MAIN | ||||
| 77251-0C080 |
UPK5#,USK51,56 |
1 | ||
| 77251-0C070 |
USK51,56 FUEL TANK-38 GALLON |
1 | ||
| 77255D - TUBE, FUEL RETURN | ||||
| 77255-0C110 |
UPK5#,USK51,56 |
1 | ||
| 77255-0C100 |
USK51,56 FUEL TANK-38 GALLON |
1 | ||
| 77259E - HOSE, FUEL | ||||
| 77259-0C210 |
UPK5#,USK5# |
1 | ||
| 77259-0C190 |
USK5# FUEL TANK-38 GALLON |
1 | ||
| 77261D - TUBE, FUEL TANK TO CANISTER | ||||
| 77262-0C170 |
USK51,56 FUEL TANK-38 GALLON |
1 | ||
| 77262-0C120 |
UPK5#,USK51,56 |
1 | ||
| 77263 - TUBE, FUEL TANK TO CANISTER, NO.3 | ||||
| 77263-0C060 |
UPK5#,USK5# |
1 | ||
| 77263-0C070 |
USK5# FUEL TANK-38 GALLON |
1 | ||
| 77285D - CLAMP, FUEL TUBE, NO.1 | ||||
| 77285-34380 |
UPK5#,USK5# |
3 | ||
| 77285-0C060 |
USK5# FUEL TANK-38 GALLON |
3 | ||
| 77285D - CLAMP, FUEL TUBE, NO.1 | ||||
| 77285-34380 |
UPK5#,USK5# |
3 | ||
| 77285-0C060 |
USK5# FUEL TANK-38 GALLON |
3 | ||
| 77285F - CLAMP, FUEL TUBE, NO.1 | ||||
| 77289-26010 |
UPK5#,USK5# |
1 | ||
| 77289-0C030 |
USK5# FUEL TANK-38 GALLON |
1 | ||
| 77286D - CLAMP, FUEL TUBE, NO.2 | ||||
| 77285-34370 |
UPK5#,USK5# |
3 | ||
| 77286H - CLAMP, FUEL TUBE, NO.3 | ||||
| 77296-0C020 |
USK5# FUEL TANK-38 GALLON |
1 | ||
| 77296-0C020 |
UPK5#,USK5# |
1 | ||
| 77296-0C010 |
UPK5#,USK5# |
1 | ||
| 77286J - CLAMP, FUEL TUBE, NO.4 | ||||
| 77412-0C010 |
USK51,56 FUEL TANK-38 GALLON |
1 | ||
| 77412-34010 |
UPK5#,USK51,56 |
2 | ||
| 77286L - CLAMP, FUEL TUBE, NO.5 | ||||
| 77413-0C010 |
USK5# FUEL TANK-38 GALLON |
1 | ||
| 77413-34010 |
UPK5#,USK5# |
1 | ||
| 77286M - CLAMP, FUEL TUBE, NO.6 | ||||
| 77414-0C010 |
UPK5#,USK5# |
1 | ||
| Common parts | ||||
| 90105-A0179 | ||||
| 90467-19021 | ||||
| 96136-41901 | ||||
| Linked diagrams | ||||
| 1708 | ||||
| 2211 | ||||

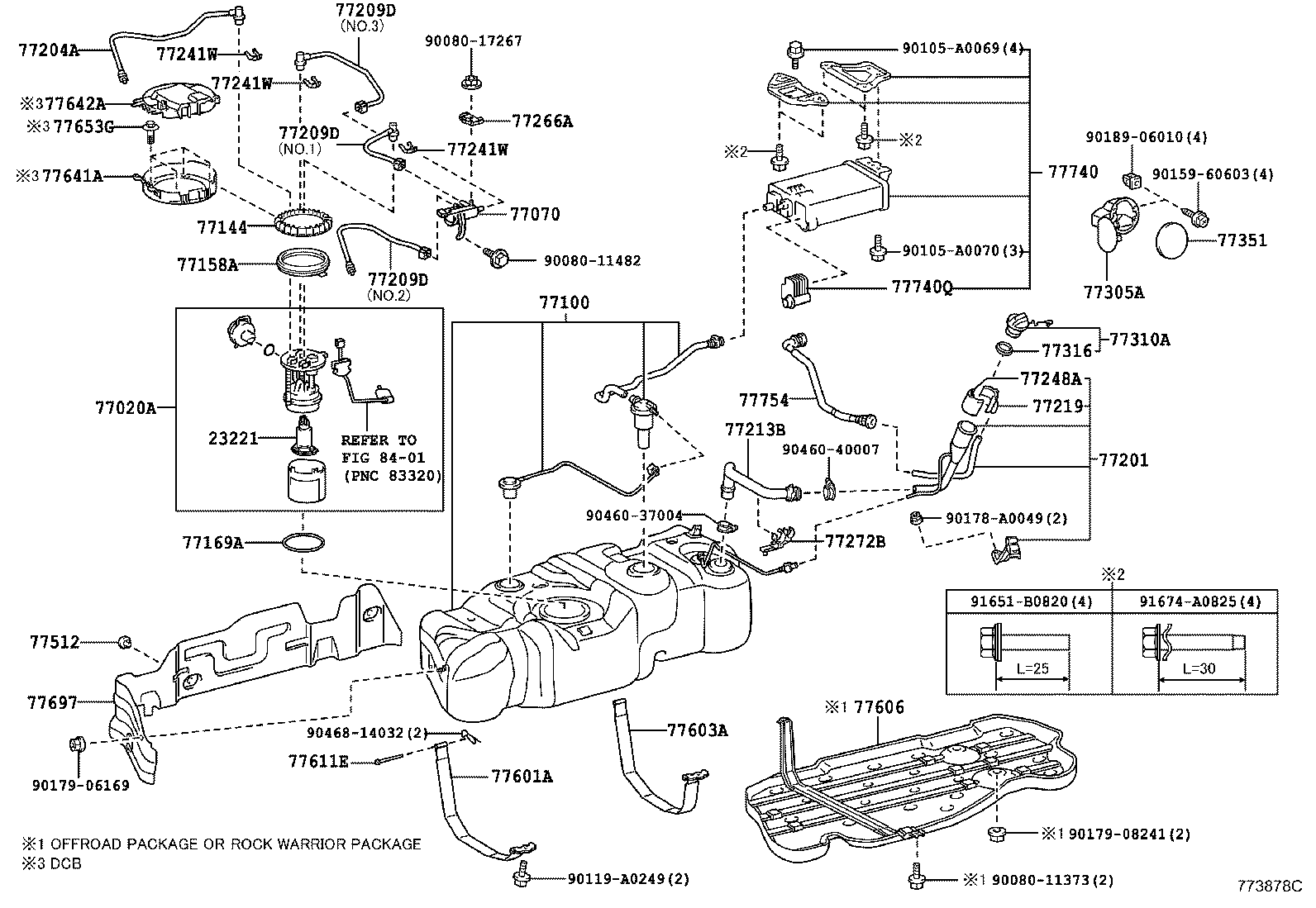

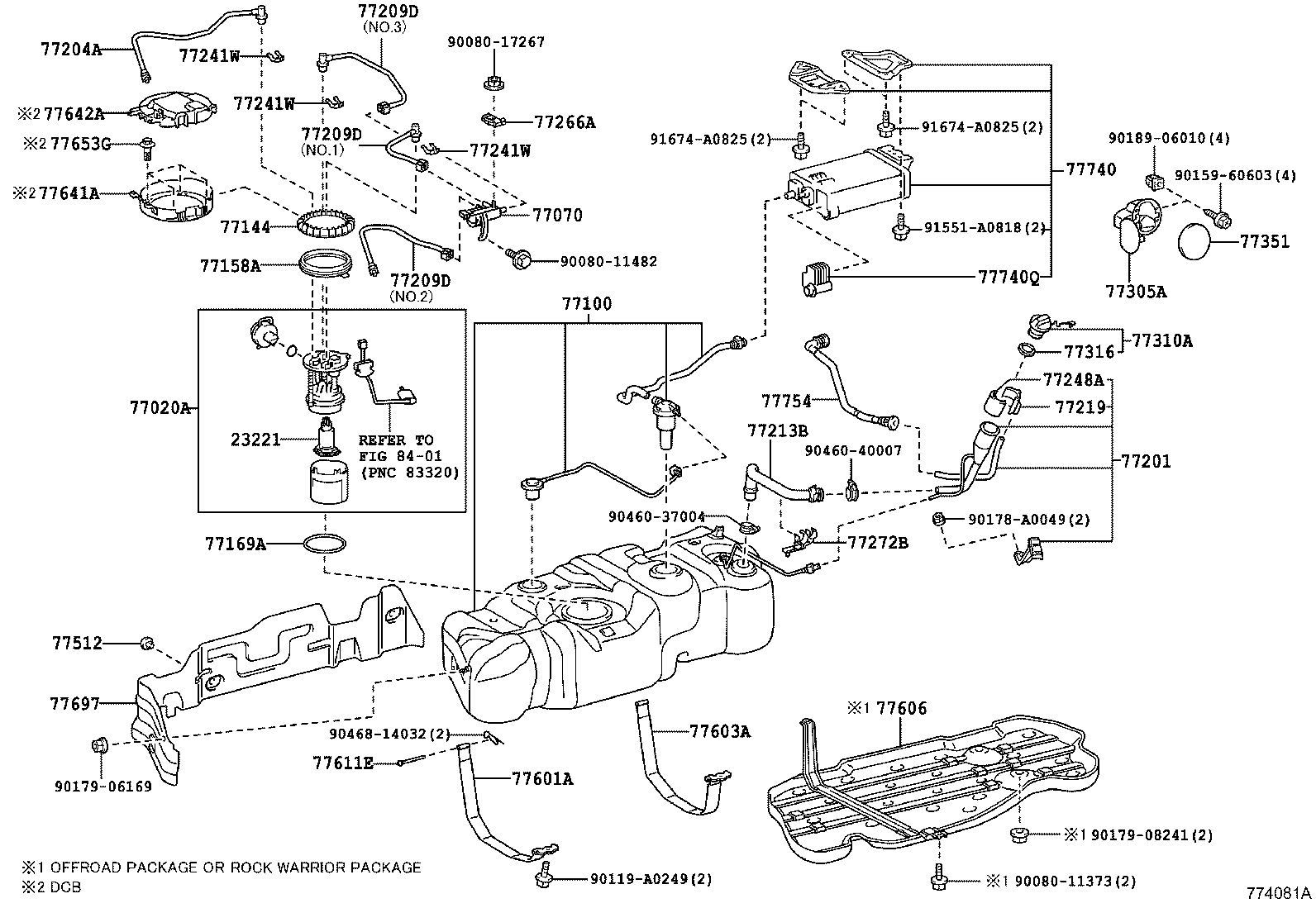

ILLUST NO. 1 OF 2(1308-1512)HTWCF
FUEL TANK
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77020A - TUBE ASSY, FUEL SUCTION W/PUMP & GAGE | ||||
| 77020-0C082 |
UPK5#,USK5#..HTWC |
1 | ||
| 77020-0C160 |
USK5#..HTWC FUEL TANK-38 GALLON |
1 | ||
| 77020-0C120 |
USK5#..HTWCF |
1 | ||
| 77020-0C170 |
USK5#..HTWCF FUEL TANK-38 GALLON |
1 | ||
| 77070 - VALVE ASSY, FUEL TANK SOLENOID W/HOSE | ||||
| 77070-34010 |
USK5#..HTWCF |
1 | ||
| 77100 - TANK ASSY, FUEL | ||||
| 77001-0C120 |
USK5# FUEL TANK-38 GALLON |
1 | ||
| 77001-0C060 |
UPK5#,USK5# |
1 | ||
| 77144 - RETAINER, FUEL PUMP GAUGE | ||||
| 77144-08010 |
UPK5#,USK5# |
1 | ||
| 77158A - SUPPORT, TANK SUCTION TUBE | ||||
| 77158-08010 |
UPK5#,USK5# |
1 | ||
| 77169A - GASKET, FUEL SUCTION TUBE SET | ||||
| 77169-0C010 |
UPK5#,USK5# |
1 | ||
| 77201 - PIPE SUB-ASSY, FUEL TANK INLET | ||||
| 77201-0C120 |
UPK5#,USK5# |
1 | ||
| 77204A - TUBE, FUEL TANK RETURN | ||||
| 77204-0C090 |
USK5# FUEL TANK-38 GALLON |
1 | ||
| 77204-0C070 |
UPK5#,USK5# |
1 | ||
| 77209D - TUBE SUB-ASSY, FUEL TANK MAIN | ||||
| 77209-0C110 |
UPK5#,USK5#..HTWC |
1 | ||
| 77209-0C140 |
USK5#..HTWC FUEL TANK-38 GALLON |
1 | ||
| 77209-0C120 |
USK5#..HTWCF NO.1 |
1 | ||
| 77209-0C080 |
USK5#..HTWCF NO.2 |
1 | ||
| 77209-0C160 |
USK5#..HTWCF FUEL TANK-38 GALLON |
1 | ||
| 77209-0C130 |
USK5#..HTWCF NO.3 |
1 | ||
| 77209D - TUBE SUB-ASSY, FUEL TANK MAIN | ||||
| 77209-0C110 |
UPK5#,USK5#..HTWC |
1 | ||
| 77209-0C140 |
USK5#..HTWC FUEL TANK-38 GALLON |
1 | ||
| 77209-0C120 |
USK5#..HTWCF NO.1 |
1 | ||
| 77209-0C080 |
USK5#..HTWCF NO.2 |
1 | ||
| 77209-0C160 |
USK5#..HTWCF FUEL TANK-38 GALLON |
1 | ||
| 77209-0C130 |
USK5#..HTWCF NO.3 |
1 | ||
| 77209D - TUBE SUB-ASSY, FUEL TANK MAIN | ||||
| 77209-0C110 |
UPK5#,USK5#..HTWC |
1 | ||
| 77209-0C140 |
USK5#..HTWC FUEL TANK-38 GALLON |
1 | ||
| 77209-0C120 |
USK5#..HTWCF NO.1 |
1 | ||
| 77209-0C080 |
USK5#..HTWCF NO.2 |
1 | ||
| 77209-0C160 |
USK5#..HTWCF FUEL TANK-38 GALLON |
1 | ||
| 77209-0C130 |
USK5#..HTWCF NO.3 |
1 | ||
| 77213B - HOSE, FUEL TANK TO FILLER PIPE | ||||
| 77213-0C080 |
UPK5#,USK5# |
1 | ||
| 77219 - COVER, FUEL TANK FILLER PIPE | ||||
| 77219-0E010 |
UPK5#,USK5# |
1 | ||
| 77241W - CLIP, TUBE JOINT | ||||
| 77241-06020 |
UPK5#,USK5#..HTWC |
2 | ||
| 77241-06020 |
USK5#..HTWCF |
3 | ||
| 77241W - CLIP, TUBE JOINT | ||||
| 77241-06020 |
UPK5#,USK5#..HTWC |
2 | ||
| 77241-06020 |
USK5#..HTWCF |
3 | ||
| 77241W - CLIP, TUBE JOINT | ||||
| 77241-06020 |
UPK5#,USK5#..HTWC |
2 | ||
| 77241-06020 |
USK5#..HTWCF |
3 | ||
| 77248A - HOLDER, FUEL TANK FILLER PIPE COVER | ||||
| 77745-0E010 |
UPK5#,USK5# |
1 | ||
| 77266A - PROTECTOR, FUEL TUBE, NO.1 | ||||
| 77266-0C010 |
USK5#..HTWCF |
1 | ||
| 77272B - SUPPORT, BREATHER TUBE, NO.1 | ||||
| 77272-0C030 |
UPK5#,USK5# |
1 | ||
| 77305A - LID SUB-ASSY, FUEL FILLER OPENING | ||||
| 77305-0C060 |
UPK5#,USK5# |
1 | ||
| 77310A - CAP ASSY, FUEL TANK | ||||
| 77300-06030 |
USK5#..HTWCF |
1 | ||
| 77300-07010 |
GSK51,UPK5#,USK5#..HTWC |
1 | ||
| 77300-07030 |
UPK5#,USK5#..HTWC |
1 | ||
| 77316 - GASKET, FUEL TANK CAP | ||||
| 77316-06070 |
UPK5#,USK5# |
1 | ||
| 77351 - LID, FUEL FILLER OPENING, OUTER | ||||
| 77351-0C090 |
UPK5#,USK5# |
1 | ||
| 77512 - BRACKET, FUEL TANK, REAR | ||||
| 77512-35140 |
USK5# FUEL TANK-38 GALLON |
5 | ||
| 77512-35140 |
UPK5#,USK5# |
4 | ||
| 77601A - BAND SUB-ASSY, FUEL TANK, NO.1 | ||||
| 77601-0C040 |
UPK5#,USK5# |
1 | ||
| 77601-0C090 |
USK51..HTWCF;USK52,56,57..L,S;USK51..HTWC..(L,S) OFFROAD PACKAGE&FUEL TANK-38 GALLON |
1 | ||
| 77601-0C090 |
USK51,56..(CMAX,DCB)..S TRD PRO&FUEL TANK-38 GALLON |
1 | ||
| 77601-0C130 |
UPK5#,USK5# |
1 | ||
| 77601-0C110 |
USK5# FUEL TANK-38 GALLON |
1 | ||
| 77603A - BAND SUB-ASSY, FUEL TANK, NO.2 | ||||
| 77602-0C011 |
UPK5#,USK5#..L,S OFFROAD PACKAGE |
1 | ||
| 77602-0C021 |
UPK5#,USK5# |
1 | ||
| 77602-0C011 |
USK51,56..(CMAX,DCB)..S TRD PRO |
1 | ||
| 77602-0C120 |
USK51,56..(CMAX,DCB)..S TRD PRO&FUEL TANK-38 GALLON |
1 | ||
| 77602-0C140 |
UPK5#,USK5# |
1 | ||
| 77602-0C120 |
USK51..HTWCF;USK52,56,57..L,S;USK51..HTWC..(L,S) OFFROAD PACKAGE&FUEL TANK-38 GALLON |
1 | ||
| 77602-0C150 |
USK51..HTWCF;USK51..HTWC..(L,S);UPK5#,USK52,56,57..L,S OFFROAD PACKAGE |
1 | ||
| 77602-0C130 |
USK5# FUEL TANK-38 GALLON |
1 | ||
| 77602-0C150 |
USK51,56..(CMAX,DCB)..S TRD PRO |
1 | ||
| 77606 - PROTECTOR SUB-ASSY, FUEL TANK, NO.1 | ||||
| 77606-0C060 |
USK51,56..(CMAX,DCB)..S TRD PRO&FUEL TANK-38 GALLON |
1 | ||
| 77606-0C040 |
USK51..HTWCF;USK51..HTWC..(L,S);UPK5#,USK52,56,57..L,S OFFROAD PACKAGE |
1 | ||
| 77606-0C060 |
USK51..HTWCF;USK52,56,57..L,S;USK51..HTWC..(L,S) OFFROAD PACKAGE&FUEL TANK-38 GALLON |
1 | ||
| 77606-0C040 |
USK51,56..(CMAX,DCB)..S TRD PRO |
1 | ||
| 77611E - PIN, FUEL TANK BAND | ||||
| 77653-34050 |
USK51..HTWCF;USK52,56,57..L,S;USK51..HTWC..(L,S) OFFROAD PACKAGE&FUEL TANK-38 GALLON |
3 | ||
| 77653-34050 |
UPK5#,USK5# |
2 | ||
| 77653-34050 |
USK51,56..(CMAX,DCB)..S TRD PRO&FUEL TANK-38 GALLON |
3 | ||
| 77653-34040 |
GSK51,UPK5#,USK5# |
2 | ||
| 77653-34050 |
USK5# FUEL TANK-38 GALLON |
3 | ||
| 77697 - INSULATOR, FUEL TANK HEAT, NO.1 | ||||
| 77697-0C020 |
UPK5#,USK5# |
1 | ||
| 77697-0C050 |
USK5# FUEL TANK-38 GALLON |
1 | ||
| 77740 - CANISTER ASSY, CHARCOAL | ||||
| 77740-0C110 |
USK5# FUEL TANK-38 GALLON |
1 | ||
| 77740-0C090 |
UPK5#,USK5# |
1 | ||
| 77740Q - LEAK DETECTION PUMP SUB-ASSY, CHARCOAL CANISTER | ||||
| 90910-AF006 |
UPK5#,USK5# |
1 | ||
| 90910-AF004 |
UPK5#,USK5# |
1 | ||
| 77754 - HOSE, CHARCOAL CANISTER OUTLET, NO.1 | ||||
| 77754-0C130 |
USK5# FUEL TANK-38 GALLON |
1 | ||
| 77754-0C130 |
UPK5#,USK5# |
1 | ||
| Common parts | ||||
| 90080-11373 | ||||
| 90080-11482 | ||||
| 90080-17267 | ||||
| 90105-A0069 | ||||
| 90105-A0070 | ||||
| 90119-A0249 | ||||
| 90159-60603 | ||||
| 90178-A0049 | ||||
| 90179-06169 | ||||
| 90179-08241 | ||||
| 90189-06010 | ||||
| 90460-37004 | ||||
| 90460-40007 | ||||
| 90468-14032 | ||||
| 91651-B0820 | ||||
| 91674-A0825 | ||||
| Linked diagrams | ||||
| 8401 | ||||

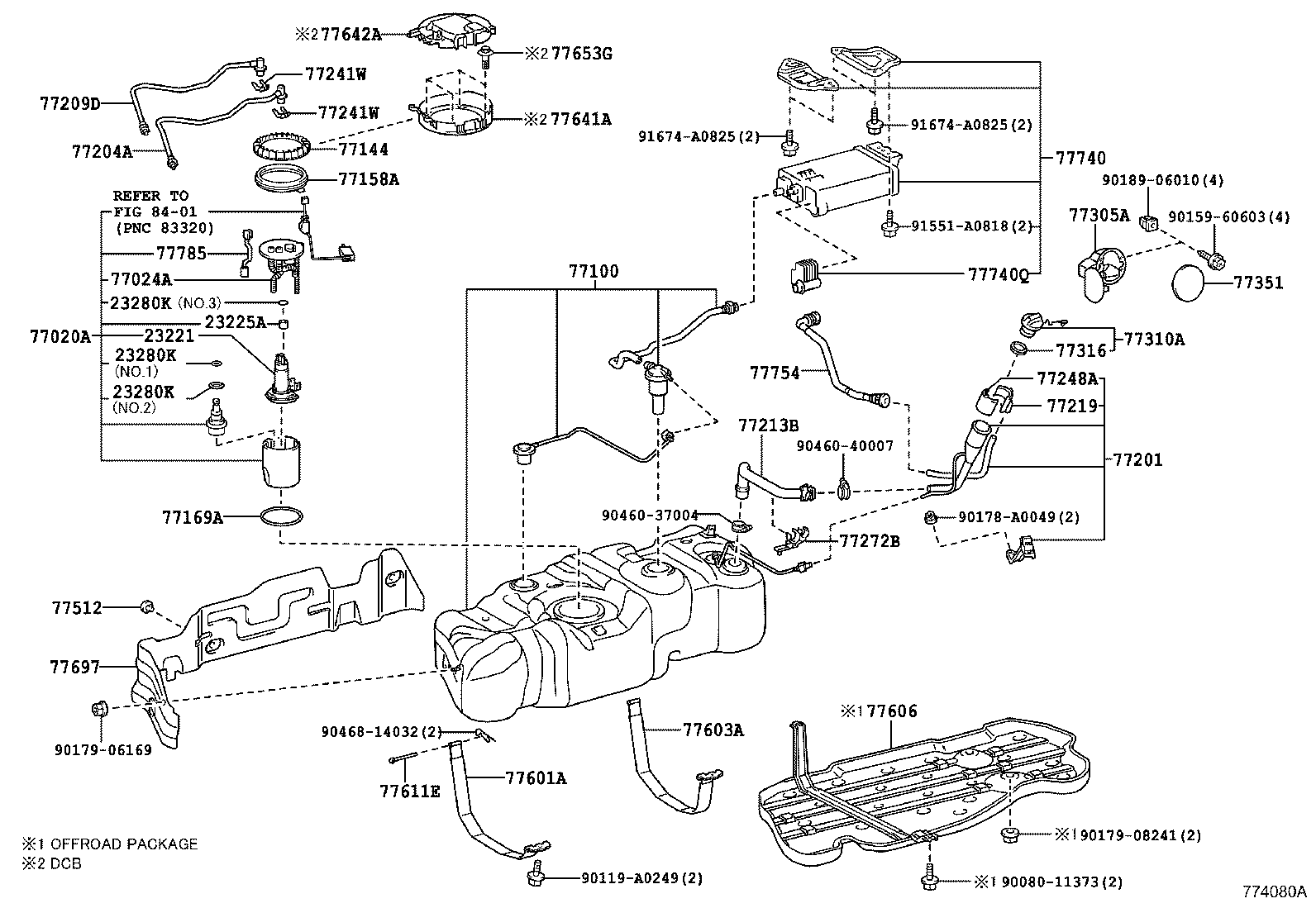

ILLUST NO. 1 OF 2(1512- )HTWC
FUEL TANK
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77020A - TUBE ASSY, FUEL SUCTION W/PUMP & GAGE | ||||
| 77020-0C082 |
UPK5#,USK5#..HTWC |
1 | ||
| 77020-0C160 |
USK5#..HTWC FUEL TANK-38 GALLON |
1 | ||
| 77020-0C120 |
USK5#..HTWCF |
1 | ||
| 77020-0C170 |
USK5#..HTWCF FUEL TANK-38 GALLON |
1 | ||
| 77024A - PLATE SUB-ASSY, FUEL SUCTION | ||||
| 77024-0C020 |
UPK5#,USK5#..HTWC |
1 | ||
| 77100 - TANK ASSY, FUEL | ||||
| 77001-0C120 |
USK5# FUEL TANK-38 GALLON |
1 | ||
| 77001-0C060 |
UPK5#,USK5# |
1 | ||
| 77144 - RETAINER, FUEL PUMP GAUGE | ||||
| 77144-08010 |
UPK5#,USK5# |
1 | ||
| 77158A - SUPPORT, TANK SUCTION TUBE | ||||
| 77158-08010 |
UPK5#,USK5# |
1 | ||
| 77169A - GASKET, FUEL SUCTION TUBE SET | ||||
| 77169-0C010 |
UPK5#,USK5# |
1 | ||
| 77201 - PIPE SUB-ASSY, FUEL TANK INLET | ||||
| 77201-0C120 |
UPK5#,USK5# |
1 | ||
| 77204A - TUBE, FUEL TANK RETURN | ||||
| 77204-0C090 |
USK5# FUEL TANK-38 GALLON |
1 | ||
| 77204-0C070 |
UPK5#,USK5# |
1 | ||
| 77209D - TUBE SUB-ASSY, FUEL TANK MAIN | ||||
| 77209-0C110 |
UPK5#,USK5#..HTWC |
1 | ||
| 77209-0C140 |
USK5#..HTWC FUEL TANK-38 GALLON |
1 | ||
| 77209-0C120 |
USK5#..HTWCF NO.1 |
1 | ||
| 77209-0C080 |
USK5#..HTWCF NO.2 |
1 | ||
| 77209-0C160 |
USK5#..HTWCF FUEL TANK-38 GALLON |
1 | ||
| 77209-0C130 |
USK5#..HTWCF NO.3 |
1 | ||
| 77213B - HOSE, FUEL TANK TO FILLER PIPE | ||||
| 77213-0C080 |
UPK5#,USK5# |
1 | ||
| 77219 - COVER, FUEL TANK FILLER PIPE | ||||
| 77219-0E010 |
UPK5#,USK5# |
1 | ||
| 77241W - CLIP, TUBE JOINT | ||||
| 77241-06020 |
UPK5#,USK5#..HTWC |
2 | ||
| 77241-06020 |
USK5#..HTWCF |
3 | ||
| 77241W - CLIP, TUBE JOINT | ||||
| 77241-06020 |
UPK5#,USK5#..HTWC |
2 | ||
| 77241-06020 |
USK5#..HTWCF |
3 | ||
| 77248A - HOLDER, FUEL TANK FILLER PIPE COVER | ||||
| 77745-0E010 |
UPK5#,USK5# |
1 | ||
| 77272B - SUPPORT, BREATHER TUBE, NO.1 | ||||
| 77272-0C030 |
UPK5#,USK5# |
1 | ||
| 77305A - LID SUB-ASSY, FUEL FILLER OPENING | ||||
| 77305-0C060 |
UPK5#,USK5# |
1 | ||
| 77310A - CAP ASSY, FUEL TANK | ||||
| 77300-06030 |
USK5#..HTWCF |
1 | ||
| 77300-07010 |
GSK51,UPK5#,USK5#..HTWC |
1 | ||
| 77300-07030 |
UPK5#,USK5#..HTWC |
1 | ||
| 77316 - GASKET, FUEL TANK CAP | ||||
| 77316-06070 |
UPK5#,USK5# |
1 | ||
| 77351 - LID, FUEL FILLER OPENING, OUTER | ||||
| 77351-0C090 |
UPK5#,USK5# |
1 | ||
| 77512 - BRACKET, FUEL TANK, REAR | ||||
| 77512-35140 |
USK5# FUEL TANK-38 GALLON |
5 | ||
| 77512-35140 |
UPK5#,USK5# |
4 | ||
| 77601A - BAND SUB-ASSY, FUEL TANK, NO.1 | ||||
| 77601-0C040 |
UPK5#,USK5# |
1 | ||
| 77601-0C090 |
USK51..HTWCF;USK52,56,57..L,S;USK51..HTWC..(L,S) OFFROAD PACKAGE&FUEL TANK-38 GALLON |
1 | ||
| 77601-0C090 |
USK51,56..(CMAX,DCB)..S TRD PRO&FUEL TANK-38 GALLON |
1 | ||
| 77601-0C130 |
UPK5#,USK5# |
1 | ||
| 77601-0C110 |
USK5# FUEL TANK-38 GALLON |
1 | ||
| 77603A - BAND SUB-ASSY, FUEL TANK, NO.2 | ||||
| 77602-0C011 |
UPK5#,USK5#..L,S OFFROAD PACKAGE |
1 | ||
| 77602-0C021 |
UPK5#,USK5# |
1 | ||
| 77602-0C011 |
USK51,56..(CMAX,DCB)..S TRD PRO |
1 | ||
| 77602-0C120 |
USK51,56..(CMAX,DCB)..S TRD PRO&FUEL TANK-38 GALLON |
1 | ||
| 77602-0C140 |
UPK5#,USK5# |
1 | ||
| 77602-0C120 |
USK51..HTWCF;USK52,56,57..L,S;USK51..HTWC..(L,S) OFFROAD PACKAGE&FUEL TANK-38 GALLON |
1 | ||
| 77602-0C150 |
USK51..HTWCF;USK51..HTWC..(L,S);UPK5#,USK52,56,57..L,S OFFROAD PACKAGE |
1 | ||
| 77602-0C130 |
USK5# FUEL TANK-38 GALLON |
1 | ||
| 77602-0C150 |
USK51,56..(CMAX,DCB)..S TRD PRO |
1 | ||
| 77606 - PROTECTOR SUB-ASSY, FUEL TANK, NO.1 | ||||
| 77606-0C060 |
USK51,56..(CMAX,DCB)..S TRD PRO&FUEL TANK-38 GALLON |
1 | ||
| 77606-0C040 |
USK51..HTWCF;USK51..HTWC..(L,S);UPK5#,USK52,56,57..L,S OFFROAD PACKAGE |
1 | ||
| 77606-0C060 |
USK51..HTWCF;USK52,56,57..L,S;USK51..HTWC..(L,S) OFFROAD PACKAGE&FUEL TANK-38 GALLON |
1 | ||
| 77606-0C040 |
USK51,56..(CMAX,DCB)..S TRD PRO |
1 | ||
| 77611E - PIN, FUEL TANK BAND | ||||
| 77653-34050 |
USK51..HTWCF;USK52,56,57..L,S;USK51..HTWC..(L,S) OFFROAD PACKAGE&FUEL TANK-38 GALLON |
3 | ||
| 77653-34050 |
UPK5#,USK5# |
2 | ||
| 77653-34050 |
USK51,56..(CMAX,DCB)..S TRD PRO&FUEL TANK-38 GALLON |
3 | ||
| 77653-34040 |
GSK51,UPK5#,USK5# |
2 | ||
| 77653-34050 |
USK5# FUEL TANK-38 GALLON |
3 | ||
| 77697 - INSULATOR, FUEL TANK HEAT, NO.1 | ||||
| 77697-0C020 |
UPK5#,USK5# |
1 | ||
| 77697-0C050 |
USK5# FUEL TANK-38 GALLON |
1 | ||
| 77740 - CANISTER ASSY, CHARCOAL | ||||
| 77740-0C110 |
USK5# FUEL TANK-38 GALLON |
1 | ||
| 77740-0C090 |
UPK5#,USK5# |
1 | ||
| 77740Q - LEAK DETECTION PUMP SUB-ASSY, CHARCOAL CANISTER | ||||
| 90910-AF006 |
UPK5#,USK5# |
1 | ||
| 90910-AF004 |
UPK5#,USK5# |
1 | ||
| 77754 - HOSE, CHARCOAL CANISTER OUTLET, NO.1 | ||||
| 77754-0C130 |
USK5# FUEL TANK-38 GALLON |
1 | ||
| 77754-0C130 |
UPK5#,USK5# |
1 | ||
| 77785 - HARNESS, FUEL PUMP | ||||
| 77785-0C030 |
UPK5#,USK5#..HTWC |
1 | ||
| Common parts | ||||
| 90080-11373 | ||||
| 90119-A0249 | ||||
| 90159-60603 | ||||
| 90178-A0049 | ||||
| 90179-06169 | ||||
| 90179-08241 | ||||
| 90189-06010 | ||||
| 90460-37004 | ||||
| 90460-40007 | ||||
| 90468-14032 | ||||
| 91551-A0818 | ||||
| 91674-A0825 | ||||
| Linked diagrams | ||||
| 8401 | ||||
ILLUST NO. 1 OF 2(1512- )HTWCF
FUEL TANK
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77020A - TUBE ASSY, FUEL SUCTION W/PUMP & GAGE | ||||
| 77020-0C082 |
UPK5#,USK5#..HTWC |
1 | ||
| 77020-0C160 |
USK5#..HTWC FUEL TANK-38 GALLON |
1 | ||
| 77020-0C120 |
USK5#..HTWCF |
1 | ||
| 77020-0C170 |
USK5#..HTWCF FUEL TANK-38 GALLON |
1 | ||
| 77070 - VALVE ASSY, FUEL TANK SOLENOID W/HOSE | ||||
| 77070-34010 |
USK5#..HTWCF |
1 | ||
| 77100 - TANK ASSY, FUEL | ||||
| 77001-0C120 |
USK5# FUEL TANK-38 GALLON |
1 | ||
| 77001-0C060 |
UPK5#,USK5# |
1 | ||
| 77144 - RETAINER, FUEL PUMP GAUGE | ||||
| 77144-08010 |
UPK5#,USK5# |
1 | ||
| 77158A - SUPPORT, TANK SUCTION TUBE | ||||
| 77158-08010 |
UPK5#,USK5# |
1 | ||
| 77169A - GASKET, FUEL SUCTION TUBE SET | ||||
| 77169-0C010 |
UPK5#,USK5# |
1 | ||
| 77201 - PIPE SUB-ASSY, FUEL TANK INLET | ||||
| 77201-0C120 |
UPK5#,USK5# |
1 | ||
| 77204A - TUBE, FUEL TANK RETURN | ||||
| 77204-0C090 |
USK5# FUEL TANK-38 GALLON |
1 | ||
| 77204-0C070 |
UPK5#,USK5# |
1 | ||
| 77209D - TUBE SUB-ASSY, FUEL TANK MAIN | ||||
| 77209-0C110 |
UPK5#,USK5#..HTWC |
1 | ||
| 77209-0C140 |
USK5#..HTWC FUEL TANK-38 GALLON |
1 | ||
| 77209-0C120 |
USK5#..HTWCF NO.1 |
1 | ||
| 77209-0C080 |
USK5#..HTWCF NO.2 |
1 | ||
| 77209-0C160 |
USK5#..HTWCF FUEL TANK-38 GALLON |
1 | ||
| 77209-0C130 |
USK5#..HTWCF NO.3 |
1 | ||
| 77209D - TUBE SUB-ASSY, FUEL TANK MAIN | ||||
| 77209-0C110 |
UPK5#,USK5#..HTWC |
1 | ||
| 77209-0C140 |
USK5#..HTWC FUEL TANK-38 GALLON |
1 | ||
| 77209-0C120 |
USK5#..HTWCF NO.1 |
1 | ||
| 77209-0C080 |
USK5#..HTWCF NO.2 |
1 | ||
| 77209-0C160 |
USK5#..HTWCF FUEL TANK-38 GALLON |
1 | ||
| 77209-0C130 |
USK5#..HTWCF NO.3 |
1 | ||
| 77209D - TUBE SUB-ASSY, FUEL TANK MAIN | ||||
| 77209-0C110 |
UPK5#,USK5#..HTWC |
1 | ||
| 77209-0C140 |
USK5#..HTWC FUEL TANK-38 GALLON |
1 | ||
| 77209-0C120 |
USK5#..HTWCF NO.1 |
1 | ||
| 77209-0C080 |
USK5#..HTWCF NO.2 |
1 | ||
| 77209-0C160 |
USK5#..HTWCF FUEL TANK-38 GALLON |
1 | ||
| 77209-0C130 |
USK5#..HTWCF NO.3 |
1 | ||
| 77213B - HOSE, FUEL TANK TO FILLER PIPE | ||||
| 77213-0C080 |
UPK5#,USK5# |
1 | ||
| 77219 - COVER, FUEL TANK FILLER PIPE | ||||
| 77219-0E010 |
UPK5#,USK5# |
1 | ||
| 77241W - CLIP, TUBE JOINT | ||||
| 77241-06020 |
UPK5#,USK5#..HTWC |
2 | ||
| 77241-06020 |
USK5#..HTWCF |
3 | ||
| 77241W - CLIP, TUBE JOINT | ||||
| 77241-06020 |
UPK5#,USK5#..HTWC |
2 | ||
| 77241-06020 |
USK5#..HTWCF |
3 | ||
| 77241W - CLIP, TUBE JOINT | ||||
| 77241-06020 |
UPK5#,USK5#..HTWC |
2 | ||
| 77241-06020 |
USK5#..HTWCF |
3 | ||
| 77248A - HOLDER, FUEL TANK FILLER PIPE COVER | ||||
| 77745-0E010 |
UPK5#,USK5# |
1 | ||
| 77266A - PROTECTOR, FUEL TUBE, NO.1 | ||||
| 77266-0C010 |
USK5#..HTWCF |
1 | ||
| 77272B - SUPPORT, BREATHER TUBE, NO.1 | ||||
| 77272-0C030 |
UPK5#,USK5# |
1 | ||
| 77305A - LID SUB-ASSY, FUEL FILLER OPENING | ||||
| 77305-0C060 |
UPK5#,USK5# |
1 | ||
| 77310A - CAP ASSY, FUEL TANK | ||||
| 77300-06030 |
USK5#..HTWCF |
1 | ||
| 77300-07010 |
GSK51,UPK5#,USK5#..HTWC |
1 | ||
| 77300-07030 |
UPK5#,USK5#..HTWC |
1 | ||
| 77316 - GASKET, FUEL TANK CAP | ||||
| 77316-06070 |
UPK5#,USK5# |
1 | ||
| 77351 - LID, FUEL FILLER OPENING, OUTER | ||||
| 77351-0C090 |
UPK5#,USK5# |
1 | ||
| 77512 - BRACKET, FUEL TANK, REAR | ||||
| 77512-35140 |
USK5# FUEL TANK-38 GALLON |
5 | ||
| 77512-35140 |
UPK5#,USK5# |
4 | ||
| 77601A - BAND SUB-ASSY, FUEL TANK, NO.1 | ||||
| 77601-0C040 |
UPK5#,USK5# |
1 | ||
| 77601-0C090 |
USK51..HTWCF;USK52,56,57..L,S;USK51..HTWC..(L,S) OFFROAD PACKAGE&FUEL TANK-38 GALLON |
1 | ||
| 77601-0C090 |
USK51,56..(CMAX,DCB)..S TRD PRO&FUEL TANK-38 GALLON |
1 | ||
| 77601-0C130 |
UPK5#,USK5# |
1 | ||
| 77601-0C110 |
USK5# FUEL TANK-38 GALLON |
1 | ||
| 77603A - BAND SUB-ASSY, FUEL TANK, NO.2 | ||||
| 77602-0C011 |
UPK5#,USK5#..L,S OFFROAD PACKAGE |
1 | ||
| 77602-0C021 |
UPK5#,USK5# |
1 | ||
| 77602-0C011 |
USK51,56..(CMAX,DCB)..S TRD PRO |
1 | ||
| 77602-0C120 |
USK51,56..(CMAX,DCB)..S TRD PRO&FUEL TANK-38 GALLON |
1 | ||
| 77602-0C140 |
UPK5#,USK5# |
1 | ||
| 77602-0C120 |
USK51..HTWCF;USK52,56,57..L,S;USK51..HTWC..(L,S) OFFROAD PACKAGE&FUEL TANK-38 GALLON |
1 | ||
| 77602-0C150 |
USK51..HTWCF;USK51..HTWC..(L,S);UPK5#,USK52,56,57..L,S OFFROAD PACKAGE |
1 | ||
| 77602-0C130 |
USK5# FUEL TANK-38 GALLON |
1 | ||
| 77602-0C150 |
USK51,56..(CMAX,DCB)..S TRD PRO |
1 | ||
| 77606 - PROTECTOR SUB-ASSY, FUEL TANK, NO.1 | ||||
| 77606-0C060 |
USK51,56..(CMAX,DCB)..S TRD PRO&FUEL TANK-38 GALLON |
1 | ||
| 77606-0C040 |
USK51..HTWCF;USK51..HTWC..(L,S);UPK5#,USK52,56,57..L,S OFFROAD PACKAGE |
1 | ||
| 77606-0C060 |
USK51..HTWCF;USK52,56,57..L,S;USK51..HTWC..(L,S) OFFROAD PACKAGE&FUEL TANK-38 GALLON |
1 | ||
| 77606-0C040 |
USK51,56..(CMAX,DCB)..S TRD PRO |
1 | ||
| 77611E - PIN, FUEL TANK BAND | ||||
| 77653-34050 |
USK51..HTWCF;USK52,56,57..L,S;USK51..HTWC..(L,S) OFFROAD PACKAGE&FUEL TANK-38 GALLON |
3 | ||
| 77653-34050 |
UPK5#,USK5# |
2 | ||
| 77653-34050 |
USK51,56..(CMAX,DCB)..S TRD PRO&FUEL TANK-38 GALLON |
3 | ||
| 77653-34040 |
GSK51,UPK5#,USK5# |
2 | ||
| 77653-34050 |
USK5# FUEL TANK-38 GALLON |
3 | ||
| 77697 - INSULATOR, FUEL TANK HEAT, NO.1 | ||||
| 77697-0C020 |
UPK5#,USK5# |
1 | ||
| 77697-0C050 |
USK5# FUEL TANK-38 GALLON |
1 | ||
| 77740 - CANISTER ASSY, CHARCOAL | ||||
| 77740-0C110 |
USK5# FUEL TANK-38 GALLON |
1 | ||
| 77740-0C090 |
UPK5#,USK5# |
1 | ||
| 77740Q - LEAK DETECTION PUMP SUB-ASSY, CHARCOAL CANISTER | ||||
| 90910-AF006 |
UPK5#,USK5# |
1 | ||
| 90910-AF004 |
UPK5#,USK5# |
1 | ||
| 77754 - HOSE, CHARCOAL CANISTER OUTLET, NO.1 | ||||
| 77754-0C130 |
USK5# FUEL TANK-38 GALLON |
1 | ||
| 77754-0C130 |
UPK5#,USK5# |
1 | ||
| Common parts | ||||
| 90080-11373 | ||||
| 90080-11482 | ||||
| 90080-17267 | ||||
| 90119-A0249 | ||||
| 90159-60603 | ||||
| 90178-A0049 | ||||
| 90179-06169 | ||||
| 90179-08241 | ||||
| 90189-06010 | ||||
| 90460-37004 | ||||
| 90460-40007 | ||||
| 90468-14032 | ||||
| 91551-A0818 | ||||
| 91674-A0825 | ||||
| Linked diagrams | ||||
| 8401 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
