USK56L-PSTLGA (2009)

Toyota Tundra

Production Apr 2009 - Aug 2013
Engine 3URFBE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

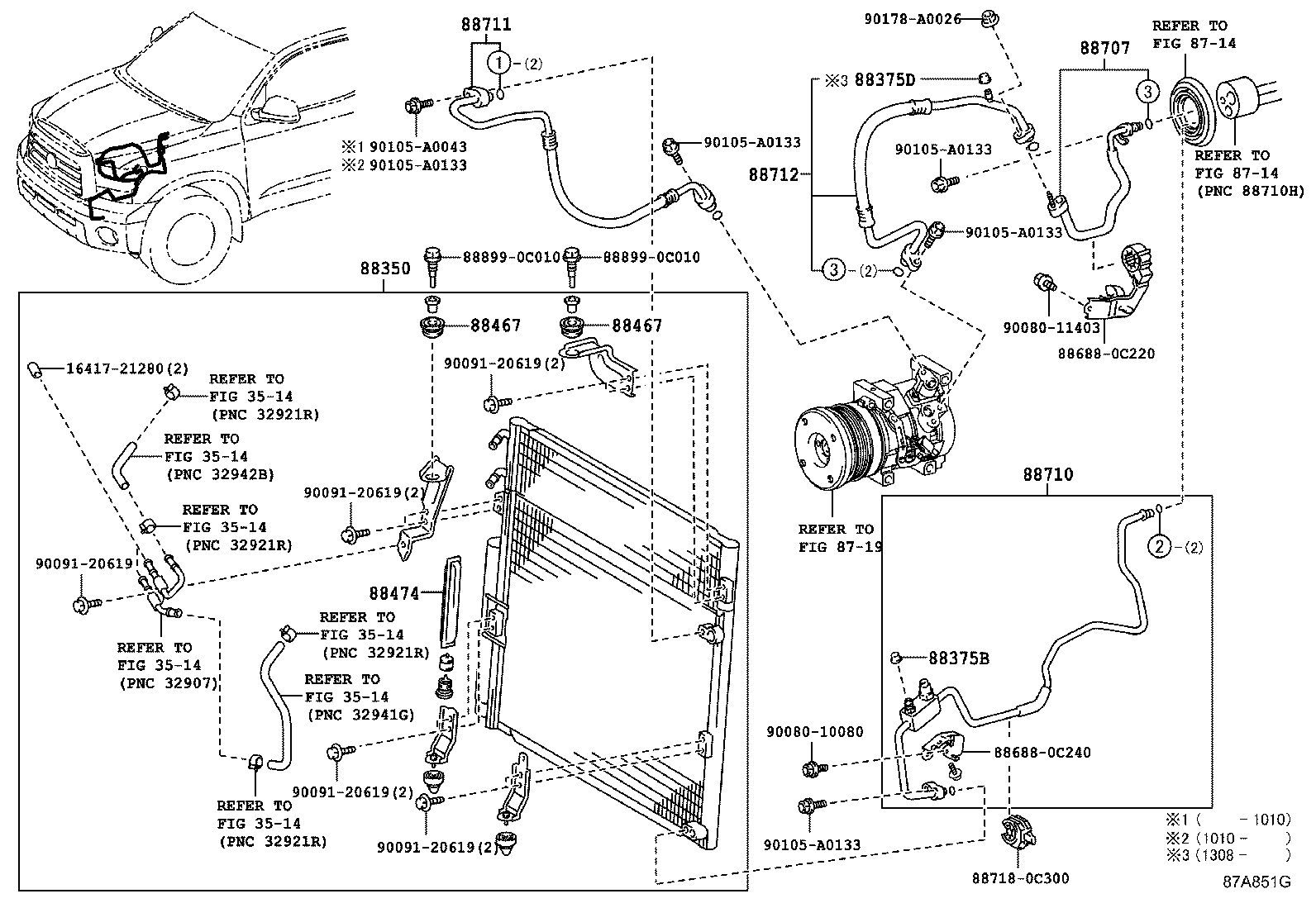

ILLUST NO. 1 OF 2(0904-1308)UPK51,52,56,57,USK51,52,56,57..L,S

Click highlighted areas on diagram

W(TRANSMISSION OIL COOLER)

diagram 1641721280 3514 3514 3514 3514 3514 3514 3514 8714 8714 8719 88350 88375B 8844608030 88467 88467 88474 886880C220 886880C240 88707 88710 88711 88712 887180C300 888990C010 888990C010 9008010080 9008011403 9009120619 9009120619 9009120619 9009120619 9009120619 90105A0043 90105A0133 90105A0133 90105A0133 90105A0133 90105A0133 90178A0026
Part # Description Qty Price
88350 - UNIT ASSY, COOLER
88350-0C010

UPK51,55,56..D,L

TOWING PACKAGE-WITH

 1
88350-0C010

UPK50;UPK51,56..S

TOWING PACKAGE-WITH

 1
88350-0C010

USK51,55,56

TOWING PACKAGE-WITH

 1
88375B - CAP, SERVICE VALVE, NO.1
88375-02060

UPK52,57;UPK51,55,56,USK50..D,L

 1
88375-02060

UPK51,56..S;GSK5#,UPK50,USK51,52,55,56,57

 1
88375-02060

UPK52,57;UPK51,55,56,USK50..D

AIR CONDITIONER-WITHOUT

 1
88467 - CUSHION, COOLER CONDENSER, NO.1
88467-12180

UPK51,56..S;GSK5#,UPK50,USK51,52,55,56,57

 2
88467-12180

UPK51,55,56,USK50..D

AIR CONDITIONER-WITHOUT

 2
88467-12180

UPK52,57;UPK51,55,56,USK50..D,L

 2
88467 - CUSHION, COOLER CONDENSER, NO.1
88467-12180

UPK51,56..S;GSK5#,UPK50,USK51,52,55,56,57

 2
88467-12180

UPK51,55,56,USK50..D

AIR CONDITIONER-WITHOUT

 2
88467-12180

UPK52,57;UPK51,55,56,USK50..D,L

 2
88474 - DRYER, COOLER
88474-17010

UPK51,55,56,USK50..D

AIR CONDITIONER-WITHOUT

 1
88474-08010

UPK50;UPK51,56..S

TOWING PACKAGE-WITH

 1
88474-08010

UPK51,55,56..D,L

TOWING PACKAGE-WITH

 1
88474-17010

UPK51,56..S;GSK5#,UPK50,USK51,55,56

 1
88474-17010

UPK51,55,56,USK50..D,L

 1
88474-08010

USK51,55,56

TOWING PACKAGE-WITH

 1
88707 - PIPE SUB-ASSY, SUCTION
88717-0C100

UPK51,55,56..D

AIR CONDITIONER-WITHOUT

 1
88717-0C110

UPK52,57;UPK51,56..L

 1
88717-0C150

USK51,56..L,S;GSK5#,UPK51,56,USK52,57

 1
88717-0C100

UPK51,55,56,USK50..D

 1
88717-0C110

UPK51,56..S;USK51,56..L,S;GSK5#,USK52,57

 1
88717-0C100

UPK50,USK51,55,56..D

 1
88710 - TUBE ASSY, AIR CONDITIONER
88710-0C090

UPK52,57;UPK51,55,56,USK50..D,L

 1
88710-0C090

UPK52,57;UPK51,55,56,USK50..D

AIR CONDITIONER-WITHOUT

 1
88710-0C090

UPK51,56..S;GSK5#,UPK50,USK51,52,55,56,57

 1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-0C160

UPK52,57;UPK51,55,56,USK50..D,L

 1
88711-0C160

UPK52,57;UPK51,55,56,USK50..D

AIR CONDITIONER-WITHOUT

 1
88711-0C160

UPK51,56..S;UPK50,USK51,52,55,56,57

 1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-0C110

UPK51,55,56,USK50..D

AIR CONDITIONER-WITHOUT

 1
88712-0C120

UPK52,57;UPK51,56..L

 1
88712-0C110

UPK51,55,56,USK50..D

 1
88712-0C110

UPK50,USK51,55,56..D

 1
88712-0C120

USK51,56..L,S;UPK51,56,USK52,57..S

 1
88712-0C110

UPK50,USK51,55,56..D

AIR CONDITIONER-WITHOUT

 1
Common parts
16417-21280
88446-08030
88688-0C220
88688-0C240
88718-0C300
88899-0C010
90080-10080
90080-11403
90091-20619
90105-A0043
90105-A0133
90178-A0026
Linked diagrams
3514
8714
8719

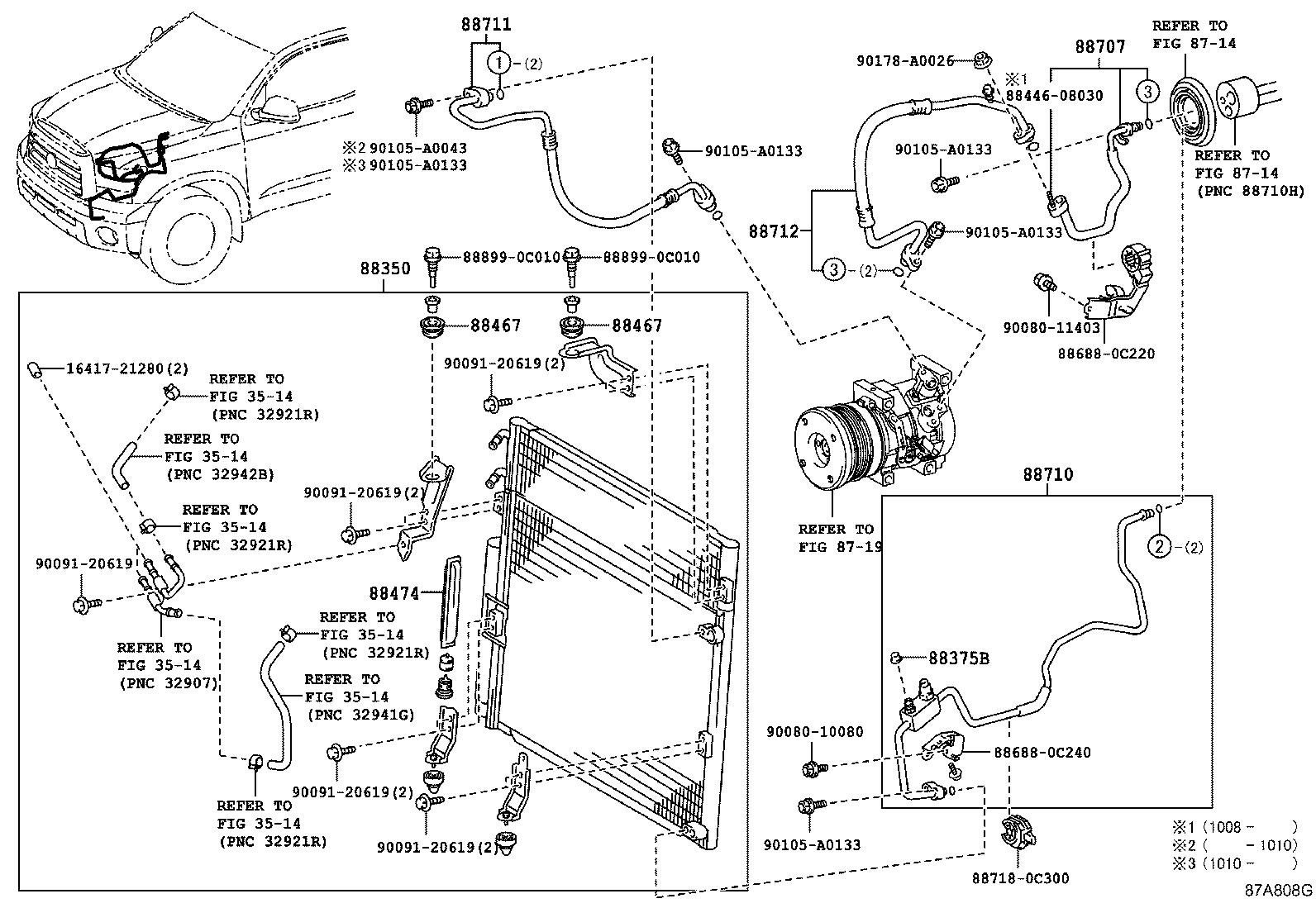

ILLUST NO. 1 OF 2(0904-1308)UPK50,51,55,56,USK50,51,55,56..D ; (1308-1708)USK51,56..RCB

Click highlighted areas on diagram

W(TRANSMISSION OIL COOLER)

diagram 1641721280 3514 3514 3514 3514 3514 3514 3514 8714 8714 8719 88350 88375B 88375D 88467 88467 88474 886880C220 886880C240 88707 88710 88711 88712 887180C300 888990C010 888990C010 9008010080 9008011403 9009120619 9009120619 9009120619 9009120619 9009120619 90105A0043 90105A0133 90105A0133 90105A0133 90105A0133 90105A0133 90178A0026
Part # Description Qty Price
88350 - UNIT ASSY, COOLER
88350-0C010

UPK51,55,56..D,L

TOWING PACKAGE-WITH

 1
88350-0C010

UPK50;UPK51,56..S

TOWING PACKAGE-WITH

 1
88350-0C010

USK51,55,56

TOWING PACKAGE-WITH

 1
88375B - CAP, SERVICE VALVE, NO.1
88375-02060

UPK52,57;UPK51,55,56,USK50..D,L

 1
88375-02060

UPK51,56..S;GSK5#,UPK50,USK51,52,55,56,57

 1
88375-02060

UPK52,57;UPK51,55,56,USK50..D

AIR CONDITIONER-WITHOUT

 1
88467 - CUSHION, COOLER CONDENSER, NO.1
88467-12180

UPK51,56..S;GSK5#,UPK50,USK51,52,55,56,57

 2
88467-12180

UPK51,55,56,USK50..D

AIR CONDITIONER-WITHOUT

 2
88467-12180

UPK52,57;UPK51,55,56,USK50..D,L

 2
88467 - CUSHION, COOLER CONDENSER, NO.1
88467-12180

UPK51,56..S;GSK5#,UPK50,USK51,52,55,56,57

 2
88467-12180

UPK51,55,56,USK50..D

AIR CONDITIONER-WITHOUT

 2
88467-12180

UPK52,57;UPK51,55,56,USK50..D,L

 2
88474 - DRYER, COOLER
88474-17010

UPK51,55,56,USK50..D

AIR CONDITIONER-WITHOUT

 1
88474-08010

UPK50;UPK51,56..S

TOWING PACKAGE-WITH

 1
88474-08010

UPK51,55,56..D,L

TOWING PACKAGE-WITH

 1
88474-17010

UPK51,56..S;GSK5#,UPK50,USK51,55,56

 1
88474-17010

UPK51,55,56,USK50..D,L

 1
88474-08010

USK51,55,56

TOWING PACKAGE-WITH

 1
88707 - PIPE SUB-ASSY, SUCTION
88717-0C100

UPK51,55,56..D

AIR CONDITIONER-WITHOUT

 1
88717-0C110

UPK52,57;UPK51,56..L

 1
88717-0C150

USK51,56..L,S;GSK5#,UPK51,56,USK52,57

 1
88717-0C100

UPK51,55,56,USK50..D

 1
88717-0C110

UPK51,56..S;USK51,56..L,S;GSK5#,USK52,57

 1
88717-0C100

UPK50,USK51,55,56..D

 1
88710 - TUBE ASSY, AIR CONDITIONER
88710-0C090

UPK52,57;UPK51,55,56,USK50..D,L

 1
88710-0C090

UPK52,57;UPK51,55,56,USK50..D

AIR CONDITIONER-WITHOUT

 1
88710-0C090

UPK51,56..S;GSK5#,UPK50,USK51,52,55,56,57

 1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-0C160

UPK52,57;UPK51,55,56,USK50..D,L

 1
88711-0C160

UPK52,57;UPK51,55,56,USK50..D

AIR CONDITIONER-WITHOUT

 1
88711-0C160

UPK51,56..S;UPK50,USK51,52,55,56,57

 1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-0C110

UPK51,55,56,USK50..D

AIR CONDITIONER-WITHOUT

 1
88712-0C120

UPK52,57;UPK51,56..L

 1
88712-0C110

UPK51,55,56,USK50..D

 1
88712-0C110

UPK50,USK51,55,56..D

 1
88712-0C120

USK51,56..L,S;UPK51,56,USK52,57..S

 1
88712-0C110

UPK50,USK51,55,56..D

AIR CONDITIONER-WITHOUT

 1
Common parts
16417-21280
88688-0C220
88688-0C240
88718-0C300
88899-0C010
90080-10080
90080-11403
90091-20619
90105-A0043
90105-A0133
90178-A0026
Linked diagrams
3514
8714
8719

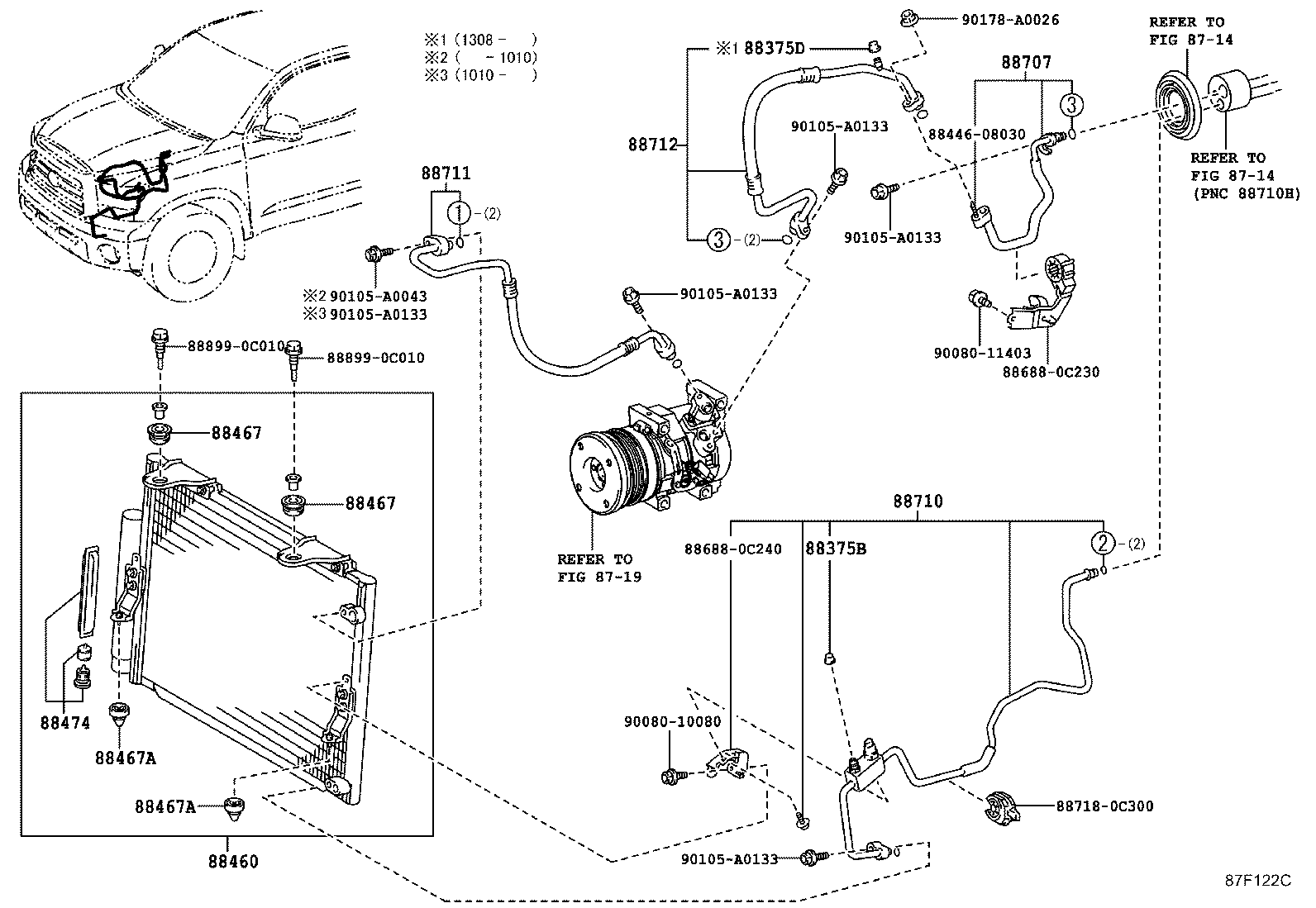

ILLUST NO. 1 OF 2(0904-1308)USK51,52,56,57..L,S ; (1308-1708)UPK5#,USK5#..CMAX,DCB

Click highlighted areas on diagram

diagram 8714 8714 8719 88375B 88375D 8844608030 88460 88467 88467 88467A 88467A 88474 886880C230 886880C240 88707 88710 88711 88712 887180C300 888990C010 888990C010 9008010080 9008011403 90105A0043 90105A0133 90105A0133 90105A0133 90105A0133 90105A0133 90178A0026
Part # Description Qty Price
88375B - CAP, SERVICE VALVE, NO.1
88375-02060

UPK52,57;UPK51,55,56,USK50..D,L

 1
88375-02060

UPK51,56..S;GSK5#,UPK50,USK51,52,55,56,57

 1
88375-02060

UPK52,57;UPK51,55,56,USK50..D

AIR CONDITIONER-WITHOUT

 1
88460 - CONDENSER ASSY, COOLER
88460-0C100

UPK51,55,56,USK50..D

AIR CONDITIONER-WITHOUT

 1
88460-0C100

UPK51,55,56,USK50..D,L

 1
88460-0C100

UPK51,56..S;GSK5#,UPK50,USK51,55,56

 1
88467 - CUSHION, COOLER CONDENSER, NO.1
88467-12180

UPK51,56..S;GSK5#,UPK50,USK51,52,55,56,57

 2
88467-12180

UPK51,55,56,USK50..D

AIR CONDITIONER-WITHOUT

 2
88467-12180

UPK52,57;UPK51,55,56,USK50..D,L

 2
88467 - CUSHION, COOLER CONDENSER, NO.1
88467-12180

UPK51,56..S;GSK5#,UPK50,USK51,52,55,56,57

 2
88467-12180

UPK51,55,56,USK50..D

AIR CONDITIONER-WITHOUT

 2
88467-12180

UPK52,57;UPK51,55,56,USK50..D,L

 2
88467A - CUSHION, COOLER CONDENSER, NO.2
88467-05010

UPK51,55,56,USK50..D,L

 2
88467-05010

UPK51,56..S;GSK5#,UPK50,USK51,55,56

 2
88467-05010

UPK51,55,56,USK50..D

AIR CONDITIONER-WITHOUT

 2
88467A - CUSHION, COOLER CONDENSER, NO.2
88467-05010

UPK51,55,56,USK50..D,L

 2
88467-05010

UPK51,56..S;GSK5#,UPK50,USK51,55,56

 2
88467-05010

UPK51,55,56,USK50..D

AIR CONDITIONER-WITHOUT

 2
88474 - DRYER, COOLER
88474-17010

UPK51,55,56,USK50..D

AIR CONDITIONER-WITHOUT

 1
88474-08010

UPK50;UPK51,56..S

TOWING PACKAGE-WITH

 1
88474-08010

UPK51,55,56..D,L

TOWING PACKAGE-WITH

 1
88474-17010

UPK51,56..S;GSK5#,UPK50,USK51,55,56

 1
88474-17010

UPK51,55,56,USK50..D,L

 1
88474-08010

USK51,55,56

TOWING PACKAGE-WITH

 1
88707 - PIPE SUB-ASSY, SUCTION
88717-0C100

UPK51,55,56..D

AIR CONDITIONER-WITHOUT

 1
88717-0C110

UPK52,57;UPK51,56..L

 1
88717-0C150

USK51,56..L,S;GSK5#,UPK51,56,USK52,57

 1
88717-0C100

UPK51,55,56,USK50..D

 1
88717-0C110

UPK51,56..S;USK51,56..L,S;GSK5#,USK52,57

 1
88717-0C100

UPK50,USK51,55,56..D

 1
88710 - TUBE ASSY, AIR CONDITIONER
88710-0C090

UPK52,57;UPK51,55,56,USK50..D,L

 1
88710-0C090

UPK52,57;UPK51,55,56,USK50..D

AIR CONDITIONER-WITHOUT

 1
88710-0C090

UPK51,56..S;GSK5#,UPK50,USK51,52,55,56,57

 1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-0C160

UPK52,57;UPK51,55,56,USK50..D,L

 1
88711-0C160

UPK52,57;UPK51,55,56,USK50..D

AIR CONDITIONER-WITHOUT

 1
88711-0C160

UPK51,56..S;UPK50,USK51,52,55,56,57

 1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-0C110

UPK51,55,56,USK50..D

AIR CONDITIONER-WITHOUT

 1
88712-0C120

UPK52,57;UPK51,56..L

 1
88712-0C110

UPK51,55,56,USK50..D

 1
88712-0C110

UPK50,USK51,55,56..D

 1
88712-0C120

USK51,56..L,S;UPK51,56,USK52,57..S

 1
88712-0C110

UPK50,USK51,55,56..D

AIR CONDITIONER-WITHOUT

 1
Common parts
88446-08030
88688-0C230
88688-0C240
88718-0C300
88899-0C010
90080-10080
90080-11403
90105-A0043
90105-A0133
90178-A0026
Linked diagrams
8714
8719
