USK56L-CRTLKA (2013)
Toyota Tundra

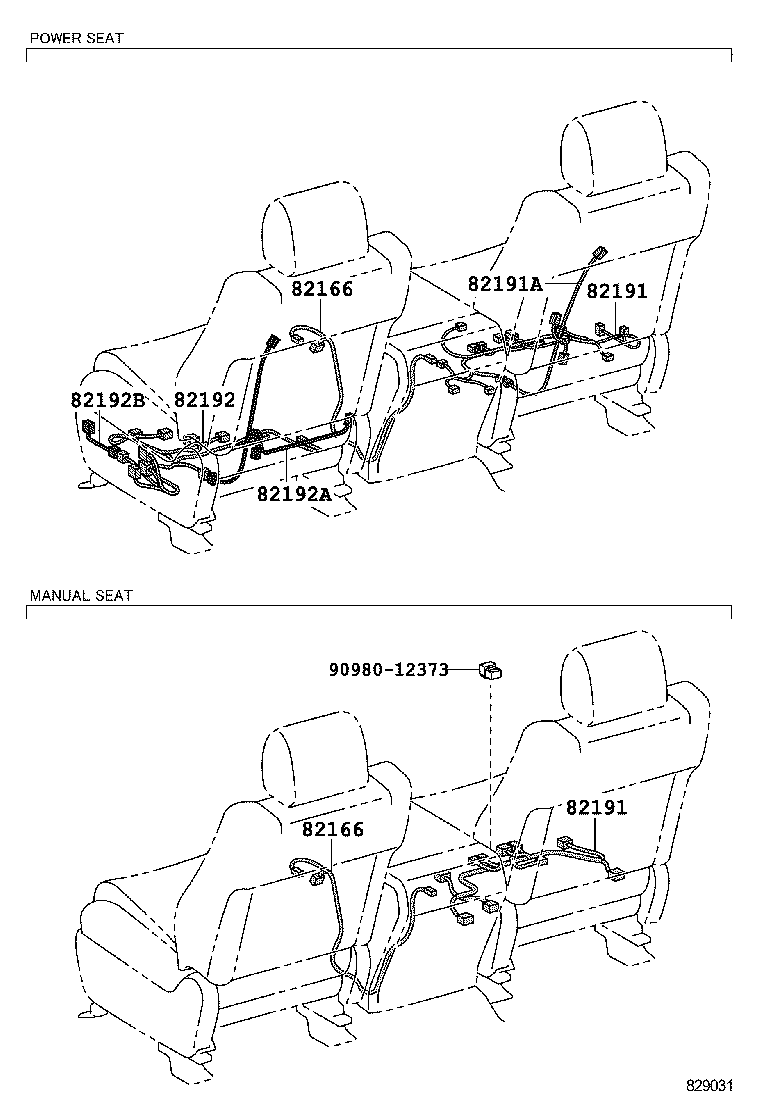

ILLUST NO. 6 OF 9(1308- )
SEAT (NUMBER OF PASSENGER-FRONT:2)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82166 - WIRE, CONSOLE BOX | ||||
| 82166-0C230 |
USK51,56..DCB..L |
1 | ||
| 82166-0C220 |
GSK51,UPK5#,USK5#..(CMAX,DCB)..S |
1 | ||
| 82166-0C230 |
GSK51,UPK5#,USK5#..DCB..S NUMBER OF PASSENGER-FRONT:2 REAR:3 |
1 | ||
| 82166 - WIRE, CONSOLE BOX | ||||
| 82166-0C230 |
USK51,56..DCB..L |
1 | ||
| 82166-0C220 |
GSK51,UPK5#,USK5#..(CMAX,DCB)..S |
1 | ||
| 82166-0C230 |
GSK51,UPK5#,USK5#..DCB..S NUMBER OF PASSENGER-FRONT:2 REAR:3 |
1 | ||
| 82191 - WIRE, FRONT SEAT, RH | ||||
| 82191-0C060 |
UPK5#,USK5#..S |
1 | ||
| 82191-0C080 |
USK51,56..L COLD AREA SPEC |
1 | ||
| 82191-0C080 |
USK51,56..L |
1 | ||
| 82191-0C100 |
USK51,56..L |
1 | ||
| 82191-0C060 |
USK51,56..L |
1 | ||
| 82191 - WIRE, FRONT SEAT, RH | ||||
| 82191-0C060 |
UPK5#,USK5#..S |
1 | ||
| 82191-0C080 |
USK51,56..L COLD AREA SPEC |
1 | ||
| 82191-0C080 |
USK51,56..L |
1 | ||
| 82191-0C100 |
USK51,56..L |
1 | ||
| 82191-0C060 |
USK51,56..L |
1 | ||
| 82191A - WIRE, FRONT SEAT, RH | ||||
| 82191-0C110 |
USK51,56..L |
1 | ||
| 82192 - WIRE, FRONT SEAT, LH | ||||
| 82192-0C060 |
USK51,56..L |
1 | ||
| 82192-0C080 |
USK51,56..L |
1 | ||
| 82192-0C080 |
USK51,56..L COLD AREA SPEC |
1 | ||
| 82192-0C060 |
USK51,56..DCB..S NUMBER OF PASSENGER-FRONT:2 REAR:3&TRD PRO&FRONT SEAT-*DRS:8-WAY POWER & *PAS:MANUAL SEAT |
1 | ||
| 82192-0C060 |
UPK5#,USK5#..(CMAX,DCB)..S NUMBER OF PASSENGER-FRONT:2 REAR:3&FRONT SEAT-*DRS:8-WAY POWER & *PAS:MANUAL SEAT |
1 | ||
| 82192-0C060 |
USK51,56..DCB..S NUMBER OF PASSENGER-FRONT:2 REAR:3&TRD PRO&FRONT SEAT-*DRS:8-WAY POWER & *PAS:MANUAL SEAT&SEAT COVER MATERIAL-LEATHER & VINYL LEATHER |
1 | ||
| 82192A - WIRE, REAR SEAT, LH | ||||
| 82192-0C090 |
UPK5#,USK5#..(CMAX,DCB)..S NUMBER OF PASSENGER-FRONT:2 REAR:3&FRONT SEAT-*DRS:8-WAY POWER & *PAS:MANUAL SEAT |
1 | ||
| 82192-0C090 |
USK51,56..DCB..S NUMBER OF PASSENGER-FRONT:2 REAR:3&TRD PRO&FRONT SEAT-*DRS:8-WAY POWER & *PAS:MANUAL SEAT&SEAT COVER MATERIAL-LEATHER & VINYL LEATHER |
1 | ||
| 82192-0C090 |
USK51,56..DCB..S NUMBER OF PASSENGER-FRONT:2 REAR:3&TRD PRO&FRONT SEAT-*DRS:8-WAY POWER & *PAS:MANUAL SEAT |
1 | ||
| 82192-0C090 |
USK51,56..L |
1 | ||
| Common parts | ||||
| 90980-12373 | ||||

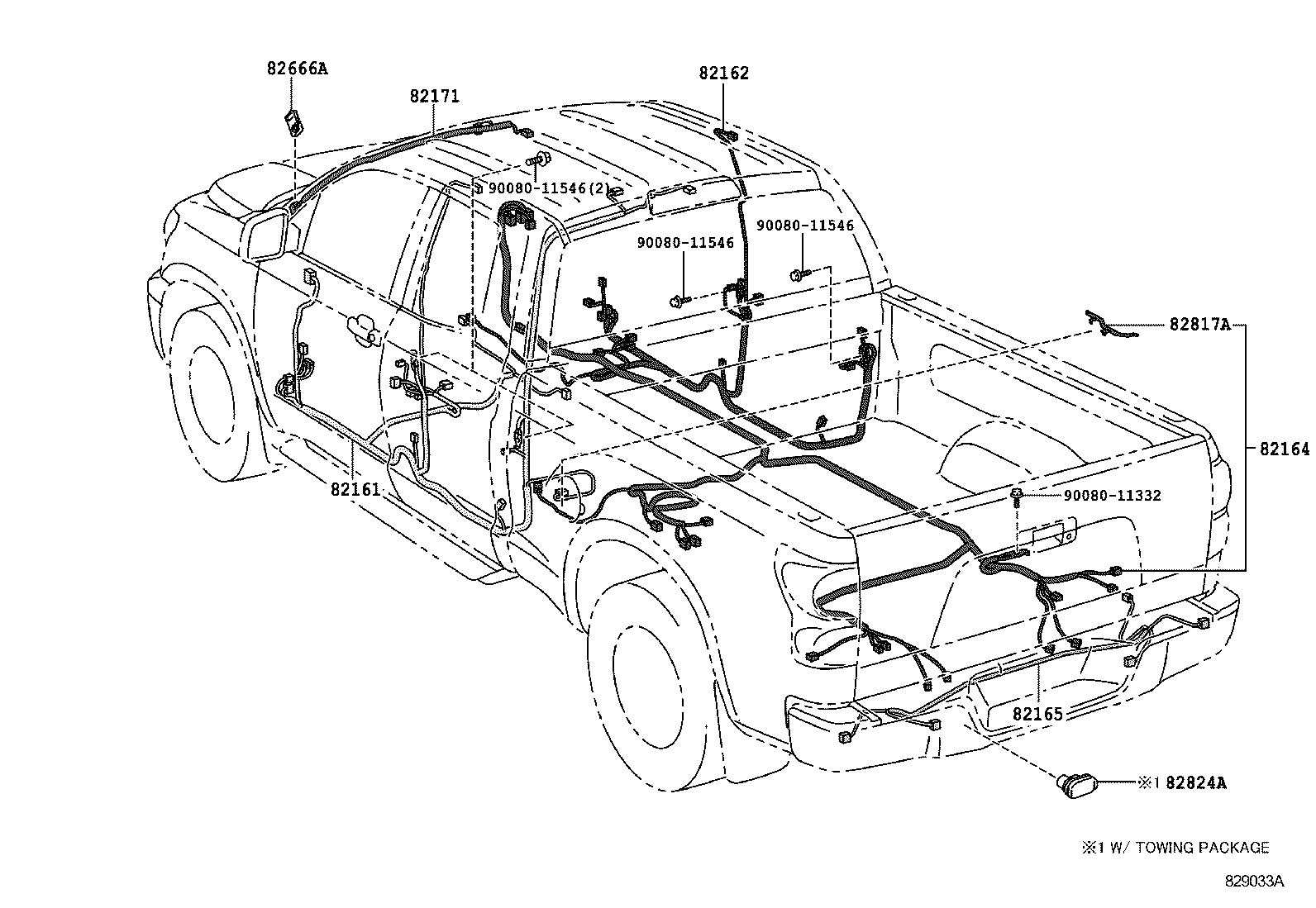

ILLUST NO. 5 OF 9(1308- )CMAX,DCB
FLOOR & ROOF
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82161 - WIRE, FLOOR | ||||
| 82161-0C520 |
UPK56,USK56,57..DCB |
1 | ||
| 82161-0C520 |
UPK56,USK56,57..DCB |
1 | ||
| 82162 - WIRE, FLOOR, NO.2 | ||||
| 82162-0C511 |
UPK5#,USK5#..DCB |
1 | ||
| 82162-0C530 |
UPK5#,USK5#..DCB BACK GLASS-POWER SLIDING TYPE(PRIVACY) |
1 | ||
| 82162-0C511 |
UPK5#,USK5#..DCB |
1 | ||
| 82162-0C510 |
UPK5#,USK5#..DCB |
1 | ||
| 82162-0C531 |
UPK5#,USK5#..DCB BACK GLASS-POWER SLIDING TYPE(PRIVACY) |
1 | ||
| 82162-0C530 |
UPK5#,USK5#..DCB BACK GLASS-POWER SLIDING TYPE(PRIVACY) |
1 | ||
| 82162-0C510 |
UPK5#,USK5#..DCB |
1 | ||
| 82162-0C531 |
UPK5#,USK5#..DCB BACK GLASS-POWER SLIDING TYPE(PRIVACY) |
1 | ||
| 82164 - WIRE, FRAME | ||||
| 82164-0C390 |
GSK51,UPK5#,USK51,56..HTWC CLEARANCE & BACK SONAR-WITH(FRONT & REAR)&LANE CHANGE ASSIST-WITH(BLIND SPOT MONITOR) |
1 | ||
| 82164-0C400 |
GSK51,UPK5#,USK51,56..DCB..HTWC CLEARANCE & BACK SONAR-WITH(FRONT & REAR) |
1 | ||
| 82164-0C230 |
GSK51,UPK5#,USK51,56..DCB..HTWC |
1 | ||
| 82164-0C231 |
UPK5#,USK51,56..DCB..HTWC |
1 | ||
| 82164-0C480 |
USK51,56..DCB..HTWC FUEL TANK-38 GALLON |
1 | ||
| 82164-0C401 |
UPK5#,USK51,56..DCB..HTWC CLEARANCE & BACK SONAR-WITH(FRONT & REAR) |
1 | ||
| 82164-0C391 |
UPK5#,USK51,56..HTWC CLEARANCE & BACK SONAR-WITH(FRONT & REAR)&LANE CHANGE ASSIST-WITH(BLIND SPOT MONITOR) |
1 | ||
| 82164-0C510 |
USK51,56..HTWC FUEL TANK-38 GALLON&CLEARANCE & BACK SONAR-WITH(FRONT & REAR)&LANE CHANGE ASSIST-WITH(BLIND SPOT MONITOR) |
1 | ||
| 82164-0C520 |
USK51,56..DCB..HTWC FUEL TANK-38 GALLON&CLEARANCE & BACK SONAR-WITH(FRONT & REAR) |
1 | ||
| 82165 - WIRE, FRAME, NO.2 | ||||
| 82165-0C070 |
USK5# TOWING PACKAGE-WITH&CLEARANCE & BACK SONAR-WITH(FRONT & REAR)&LANE CHANGE ASSIST-WITH(BLIND SPOT MONITOR) |
1 | ||
| 82165-0C080 |
UPK5#,USK5# CLEARANCE & BACK SONAR-WITH(FRONT & REAR)&LANE CHANGE ASSIST-WITH(BLIND SPOT MONITOR) |
1 | ||
| 82165-0C071 |
USK51,56..(CMAX,DCB)..S TRD PRO&TOWING PACKAGE-WITH&CLEARANCE & BACK SONAR-WITH(FRONT & REAR)&LANE CHANGEASSIST-WITH(BLIND SPOT MONITOR) |
1 | ||
| 82165-0C090 |
GSK51,UPK5#,USK5#..L,S CLEARANCE & BACK SONAR-WITH(FRONT & REAR) |
1 | ||
| 82165-0C071 |
USK5# TOWING PACKAGE-WITH&CLEARANCE & BACK SONAR-WITH(FRONT & REAR)&LANE CHANGE ASSIST-WITH(BLIND SPOT MONITOR) |
1 | ||
| 82165-0C060 |
GSK51,UPK5#,USK5# |
1 | ||
| 82165-0C140 |
USK51,56..(CMAX,DCB)..S TRD PRO&CLEARANCE & BACK SONAR-WITH(FRONT & REAR) |
1 | ||
| 82165-0C070 |
USK5# TOWING PACKAGE-WITH&CLEARANCE & BACK SONAR-WITH(FRONT & REAR)&LANE CHANGE ASSIST-WITH(BLIND SPOT MONITOR) |
1 | ||
| 82165-0C080 |
UPK5#,USK5# CLEARANCE & BACK SONAR-WITH(FRONT & REAR)&LANE CHANGE ASSIST-WITH(BLIND SPOT MONITOR) |
1 | ||
| 82165-0C081 |
UPK5#,USK5# CLEARANCE & BACK SONAR-WITH(FRONT & REAR)&LANE CHANGE ASSIST-WITH(BLIND SPOT MONITOR) |
1 | ||
| 82165-0C081 |
USK51,56..(CMAX,DCB)..S TRD PRO&CLEARANCE & BACK SONAR-WITH(FRONT & REAR)&LANE CHANGE ASSIST-WITH(BLIND SPOT MONITOR) |
1 | ||
| 82171 - WIRE, ROOF, NO.1 | ||||
| 82171-0C830 |
GSK51,UPK5#,USK5#..DCB..S LOW PACKAGE |
1 | ||
| 82171-0C830 |
UPK5#,USK5#..DCB..S LOW PACKAGE&AUDIO-ENTRY DISPLAY |
1 | ||
| 82171-0C370 |
GSK51,UPK5#,USK5#..(CMAX,DCB)..S |
1 | ||
| 82171-0C790 |
USK51,56..L,Z |
1 | ||
| 82171-0C790 |
GSK51,UPK5#,USK5#..(CMAX,DCB)..S INSIDE REAR VIEW MIRROR-*218 & HOME LINK |
1 | ||
| 82171-0C370 |
GSK51,UPK5#,USK5#..(CMAX,DCB)..S |
1 | ||
| 82171-0C790 |
USK51,56..L,Z |
1 | ||
| 82171-0C790 |
GSK51,UPK5#,USK5#..(CMAX,DCB)..S INSIDE REAR VIEW MIRROR-*218 & HOME LINK |
1 | ||
| 82171-0C830 |
UPK5#,USK5#..DCB..S LOW PACKAGE&AUDIO-ENTRY DISPLAY |
1 | ||
| 82171-0C830 |
GSK51,UPK5#,USK5#..DCB..S LOW PACKAGE |
1 | ||
| 82666A - HOLDER, CONNECTOR NO.2 | ||||
| 82666-60310 |
GSK51,UPK5#,USK5#..(CMAX,DCB)..S |
1 | ||
| 82817A - PROTECTOR, WIRING HARNESS, NO.2 | ||||
| 82817-0C140 |
UPK5#,USK5# |
1 | ||
| 82824A - CONNECTOR, WIRING HARNESS | ||||
| 82824-0C150 |
USK5# TOWING PACKAGE-WITH |
1 | ||
| Common parts | ||||
| 90080-11332 | ||||
| 90080-11546 | ||||
