USK56L-CRTLKA (2007)

Toyota Tundra

Production Jan 2007 - Apr 2009
Engine 3URFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(0611-0904)UCK50,51,55,56..D

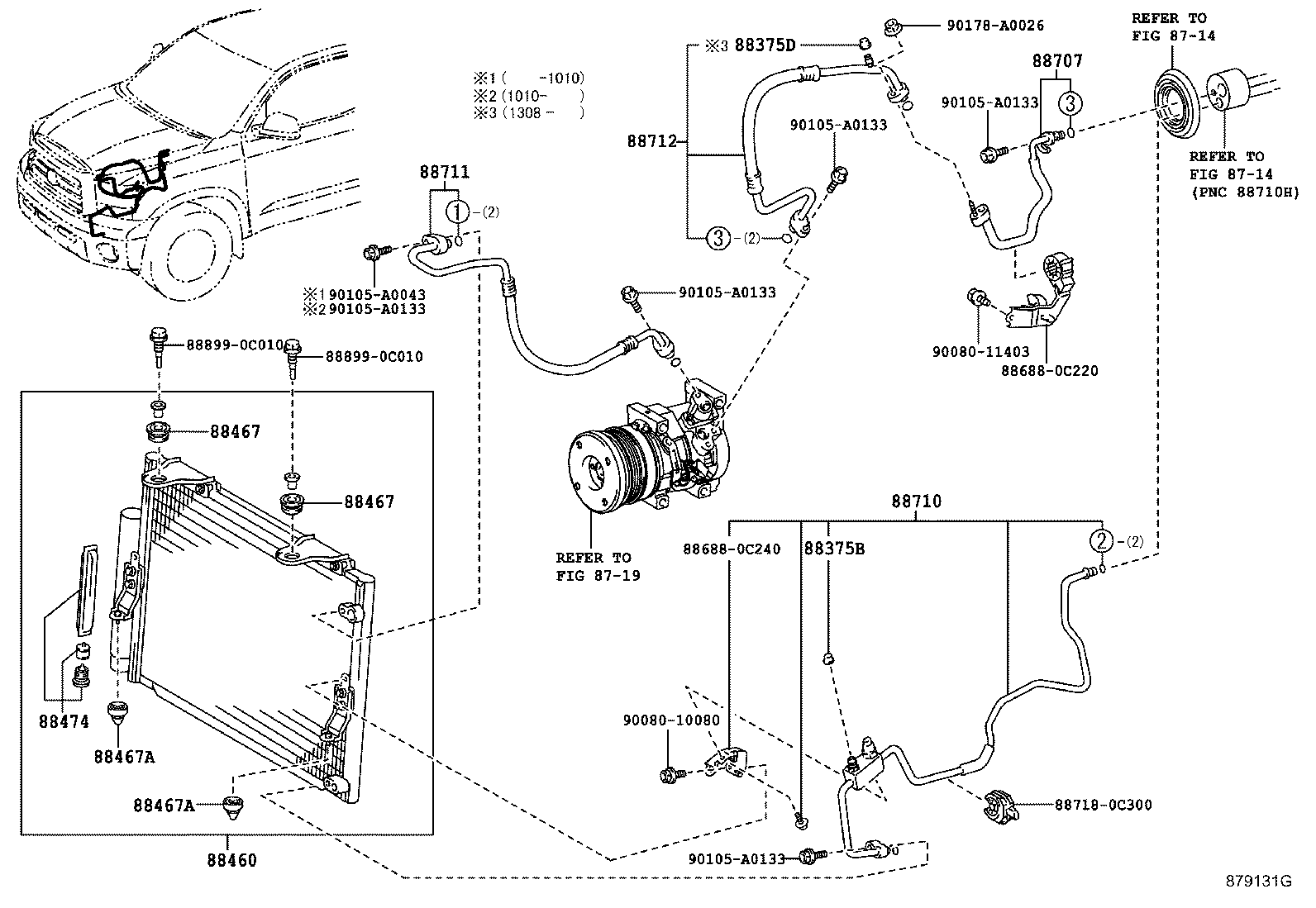

Click highlighted areas on diagram

diagram 8714 8714 8719 88375B 88460 88467 88467 88467A 88467A 88474 886880C220 886880C240 88707 88710 88711 88712 887180C300 888990C010 888990C010 9008010080 9008011403 90105A0043 90105A0133 90105A0133 90105A0133 90105A0133 90178A0026
Part # Description Qty Price
88375B - CAP, SERVICE VALVE, NO.1
88375-02060

GSK5#,UCK5#,USK5#

 1
88460 - CONDENSER ASSY, COOLER
88460-0C100

GSK5#,UCK5#,USK5#

 1
88467 - CUSHION, COOLER CONDENSER, NO.1
88467-12180

GSK5#,UCK5#,USK5#

 2
88467 - CUSHION, COOLER CONDENSER, NO.1
88467-12180

GSK5#,UCK5#,USK5#

 2
88467A - CUSHION, COOLER CONDENSER, NO.2
88467-05010

GSK5#,UCK5#,USK5#

 2
88467A - CUSHION, COOLER CONDENSER, NO.2
88467-05010

GSK5#,UCK5#,USK5#

 2
88474 - DRYER, COOLER
88474-17010

GSK5#,UCK5#,USK5#

 1
88707 - PIPE SUB-ASSY, SUCTION
88717-0C110

UCK51,56,USK51,56..L,S;GSK5#,UCK52,57,USK52,57

 1
88717-0C100

UCK50,51,55,56,USK50,51,55,56..D

 1
88710 - TUBE ASSY, AIR CONDITIONER
88710-0C090

GSK5#,UCK5#,USK5#

 1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-0C130

USK5#

 1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-0C090

UCK50,51,55,56..D

 1
88712-0C120

USK51,52,56,57..L,S

 1
88712-0C100

UCK51,52,56,57..L,S

 1
88712-0C110

USK50,51,55,56..D

 1
Common parts
88688-0C220
88688-0C240
88718-0C300
88899-0C010
90080-10080
90080-11403
90105-A0043
90105-A0133
90178-A0026
Linked diagrams
8714
8719

ILLUST NO. 1 OF 2(0611-0904)UCK51,52,56,57..L,S

Click highlighted areas on diagram

diagram 8714 8714 8719 88375B 88460 88467 88467 88467A 88467A 88474 886880C230 886880C240 88707 88710 88711 88712 887180C300 888990C010 888990C010 9008010080 9008011403 90105A0043 90105A0133 90105A0133 90105A0133 90105A0133 90178A0026
Part # Description Qty Price
88375B - CAP, SERVICE VALVE, NO.1
88375-02060

GSK5#,UCK5#,USK5#

 1
88460 - CONDENSER ASSY, COOLER
88460-0C100

GSK5#,UCK5#,USK5#

 1
88467 - CUSHION, COOLER CONDENSER, NO.1
88467-12180

GSK5#,UCK5#,USK5#

 2
88467 - CUSHION, COOLER CONDENSER, NO.1
88467-12180

GSK5#,UCK5#,USK5#

 2
88467A - CUSHION, COOLER CONDENSER, NO.2
88467-05010

GSK5#,UCK5#,USK5#

 2
88467A - CUSHION, COOLER CONDENSER, NO.2
88467-05010

GSK5#,UCK5#,USK5#

 2
88474 - DRYER, COOLER
88474-17010

GSK5#,UCK5#,USK5#

 1
88707 - PIPE SUB-ASSY, SUCTION
88717-0C110

UCK51,56,USK51,56..L,S;GSK5#,UCK52,57,USK52,57

 1
88717-0C100

UCK50,51,55,56,USK50,51,55,56..D

 1
88710 - TUBE ASSY, AIR CONDITIONER
88710-0C090

GSK5#,UCK5#,USK5#

 1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-0C130

USK5#

 1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-0C090

UCK50,51,55,56..D

 1
88712-0C120

USK51,52,56,57..L,S

 1
88712-0C100

UCK51,52,56,57..L,S

 1
88712-0C110

USK50,51,55,56..D

 1
Common parts
88688-0C230
88688-0C240
88718-0C300
88899-0C010
90080-10080
90080-11403
90105-A0043
90105-A0133
90178-A0026
Linked diagrams
8714
8719

ILLUST NO. 1 OF 2(0701-0904)USK50,51,55,56..D ; (0904-1308)UPK50,51,55,56..D ; (1308-1708)USK51,56..

Click highlighted areas on diagram

diagram 8714 8714 8719 88375B 88375D 88460 88467 88467 88467A 88467A 88474 886880C220 886880C240 88707 88710 88711 88712 887180C300 888990C010 888990C010 9008010080 9008011403 90105A0043 90105A0133 90105A0133 90105A0133 90105A0133 90105A0133 90178A0026
Part # Description Qty Price
88375B - CAP, SERVICE VALVE, NO.1
88375-02060

GSK5#,UCK5#,USK5#

 1
88460 - CONDENSER ASSY, COOLER
88460-0C100

GSK5#,UCK5#,USK5#

 1
88467 - CUSHION, COOLER CONDENSER, NO.1
88467-12180

GSK5#,UCK5#,USK5#

 2
88467 - CUSHION, COOLER CONDENSER, NO.1
88467-12180

GSK5#,UCK5#,USK5#

 2
88467A - CUSHION, COOLER CONDENSER, NO.2
88467-05010

GSK5#,UCK5#,USK5#

 2
88467A - CUSHION, COOLER CONDENSER, NO.2
88467-05010

GSK5#,UCK5#,USK5#

 2
88474 - DRYER, COOLER
88474-17010

GSK5#,UCK5#,USK5#

 1
88707 - PIPE SUB-ASSY, SUCTION
88717-0C110

UCK51,56,USK51,56..L,S;GSK5#,UCK52,57,USK52,57

 1
88717-0C100

UCK50,51,55,56,USK50,51,55,56..D

 1
88710 - TUBE ASSY, AIR CONDITIONER
88710-0C090

GSK5#,UCK5#,USK5#

 1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-0C130

USK5#

 1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-0C090

UCK50,51,55,56..D

 1
88712-0C120

USK51,52,56,57..L,S

 1
88712-0C100

UCK51,52,56,57..L,S

 1
88712-0C110

USK50,51,55,56..D

 1
Common parts
88688-0C220
88688-0C240
88718-0C300
88899-0C010
90080-10080
90080-11403
90105-A0043
90105-A0133
90178-A0026
Linked diagrams
8714
8719

ILLUST NO. 1 OF 2(0701-0904)USK51,52,56,57..L,S ; (0904-1308)UPK51,56..L,S

Click highlighted areas on diagram

diagram 8714 8714 8719 88375B 8844608030 88460 88467 88467 88467A 88467A 88474 886880C220 886880C240 88707 88710 88711 88712 887180C300 888990C010 888990C010 9008010080 9008011403 90105A0043 90105A0133 90105A0133 90105A0133 90105A0133 90105A0133 90178A0026
Part # Description Qty Price
88375B - CAP, SERVICE VALVE, NO.1
88375-02060

GSK5#,UCK5#,USK5#

 1
88460 - CONDENSER ASSY, COOLER
88460-0C100

GSK5#,UCK5#,USK5#

 1
88467 - CUSHION, COOLER CONDENSER, NO.1
88467-12180

GSK5#,UCK5#,USK5#

 2
88467 - CUSHION, COOLER CONDENSER, NO.1
88467-12180

GSK5#,UCK5#,USK5#

 2
88467A - CUSHION, COOLER CONDENSER, NO.2
88467-05010

GSK5#,UCK5#,USK5#

 2
88467A - CUSHION, COOLER CONDENSER, NO.2
88467-05010

GSK5#,UCK5#,USK5#

 2
88474 - DRYER, COOLER
88474-17010

GSK5#,UCK5#,USK5#

 1
88707 - PIPE SUB-ASSY, SUCTION
88717-0C110

UCK51,56,USK51,56..L,S;GSK5#,UCK52,57,USK52,57

 1
88717-0C100

UCK50,51,55,56,USK50,51,55,56..D

 1
88710 - TUBE ASSY, AIR CONDITIONER
88710-0C090

GSK5#,UCK5#,USK5#

 1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-0C130

USK5#

 1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-0C090

UCK50,51,55,56..D

 1
88712-0C120

USK51,52,56,57..L,S

 1
88712-0C100

UCK51,52,56,57..L,S

 1
88712-0C110

USK50,51,55,56..D

 1
Common parts
88446-08030
88688-0C220
88688-0C240
88718-0C300
88899-0C010
90080-10080
90080-11403
90105-A0043
90105-A0133
90178-A0026
Linked diagrams
8714
8719
