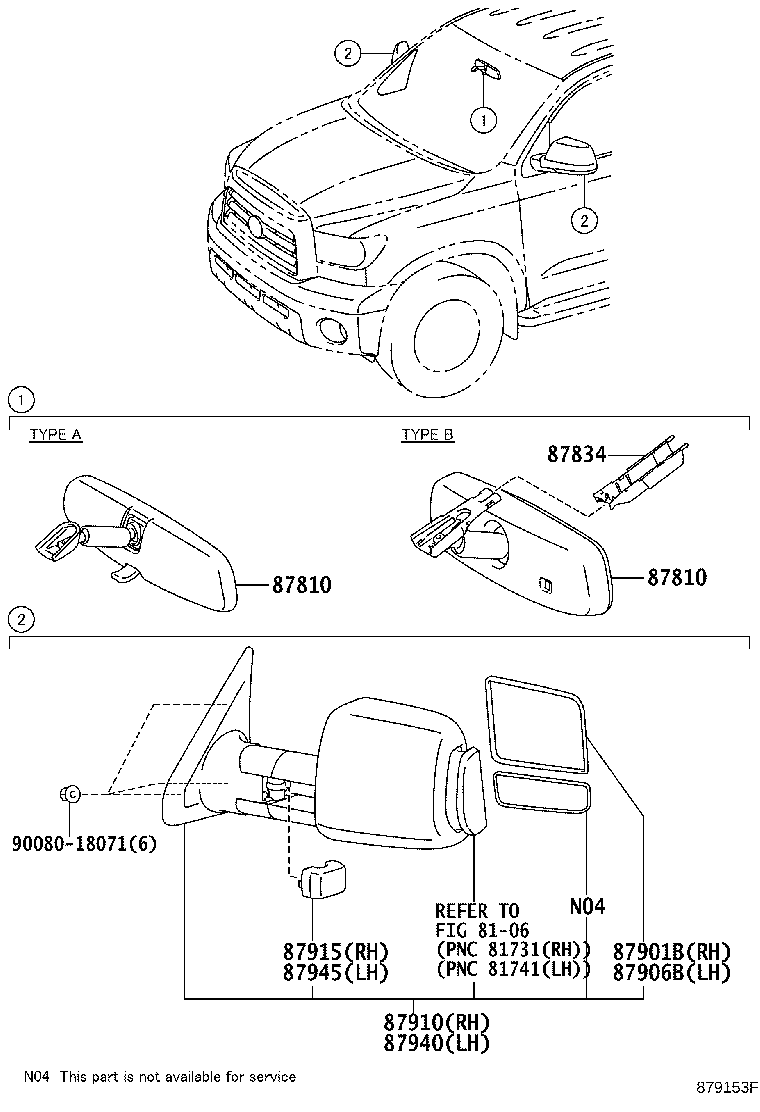

USK56L-CRTLKA (2007)
Toyota Tundra
(0611-0904)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81880C - LAMP ASSY, OUTER MIRROR, RH | ||||
| 81880-0C010 |
USK51,56..L POWER MEMORY PACKAGE&OUTSIDE REAR VIEW MIRROR-*273 & *MIH & W(TURN SIGNAL) & MEMORY |
1 | ||
| 81880-0C010 |
USK51,56..L OUTSIDE REAR VIEW MIRROR-*273 & *MIH & W(TURN SIGNAL) & MEMORY |
1 | ||
| 81880-0C010 |
UCK51,56..L POWER MEMORY PACKAGE |
1 | ||
| 81890C - LAMP ASSY, OUTER MIRROR, LH | ||||
| 81880-0C010 |
USK51,56..L OUTSIDE REAR VIEW MIRROR-*273 & *MIH & W(TURN SIGNAL) & MEMORY |
1 | ||
| 81880-0C010 |
USK51,56..L POWER MEMORY PACKAGE&OUTSIDE REAR VIEW MIRROR-*273 & *MIH & W(TURN SIGNAL) & MEMORY |
1 | ||
| 81880-0C010 |
UCK51,56..L POWER MEMORY PACKAGE |
1 | ||
| 87810 - MIRROR ASSY, INNER REAR VIEW | ||||
| 87810-0C050 |
UCK51,56,USK51,56..L TYPE B:REFER ILLUST. |
1 | ||
| 87810 - MIRROR ASSY, INNER REAR VIEW | ||||
| 87810-0C050 |
UCK51,56,USK51,56..L TYPE B:REFER ILLUST. |
1 | ||
| 87834 - COVER, INNER REAR VIEW MIRROR STAY HOLDER | ||||
| 87818-0C020 |
UCK51,56,USK51,56..L |
1 | ||
| 87901B - MIRROR SUB-ASSY, OUTER REAR VIEW, RH | ||||
| 87903-0C030 |
UCK51,56,USK51,56..L |
1 | ||
| 87903-0C040 |
USK50,51,55,56..HTWC OUTSIDE REAR VIEW MIRROR-EXTENDED TYPE & *RCM & *MIH |
1 | ||
| 87903-0C020 |
GSK5#,UCK50,51,55,56..D WITHOUT(SR-5 PACKAGE)&COLD AREA SPEC |
1 | ||
| 87903-0C020 |
GSK51,UCK51,52,56,57..DCB..S C-CAB DX GRADE PACKAGE&COLD AREA SPEC |
1 | ||
| 87903-0C040 |
USK50,51,55,56 TOWING PACKAGE-WITH&OUTSIDE REAR VIEW MIRROR-EXTENDED TYPE & *RCM & *MIH |
1 | ||
| 87906B - MIRROR SUB-ASSY, OUTER REAR VIEW, LH | ||||
| 87906-0C040 |
USK50,51,55,56 TOWING PACKAGE-WITH&OUTSIDE REAR VIEW MIRROR-EXTENDED TYPE & *RCM & *MIH |
1 | ||
| 87906-0C020 |
GSK5#,UCK50,51,55,56..D WITHOUT(SR-5 PACKAGE)&COLD AREA SPEC |
1 | ||
| 87906-0C020 |
GSK51,UCK51,52,56,57..DCB..S C-CAB DX GRADE PACKAGE&COLD AREA SPEC |
1 | ||
| 87906-0C040 |
USK50,51,55,56..HTWC OUTSIDE REAR VIEW MIRROR-EXTENDED TYPE & *RCM & *MIH |
1 | ||
| 87906-0C030 |
UCK51,56,USK51,56..L |
1 | ||
| 87910 - MIRROR ASSY, OUTER REAR VIEW, RH | ||||
| 87910-0C180 |
GSK5#,UCK50,51,55,56..D NO PAINT REQ.,WITHOUT(SR-5 PACKAGE)&COLD AREA SPEC |
1 | ||
| 87910-0C210 |
USK51,56..L PLATED,POWER MEMORY PACKAGE&OUTSIDE REAR VIEW MIRROR-*273 & *MIH & W(TURN SIGNAL)& MEMORY |
1 | ||
| 87910-0C210 |
UCK51,56..L PLATED,POWER MEMORY PACKAGE |
1 | ||
| 87910-0C200 |
UCK51,56,USK51,56..L PLATED |
1 | ||
| 87910-0C220 |
USK50,51,55,56 NO PAINT REQ.,TOWING PACKAGE-WITH&OUTSIDE REAR VIEW MIRROR-EXTENDED TYPE & *RCM &*MIH |
1 | ||
| 87910-0C190 |
USK50,51,55,56..D NO PAINT REQ.,WITHOUT(SR-5 PACKAGE)&OUTSIDE REAR VIEW MIRROR-MANUAL |
1 | ||
| 87910-0C210 |
USK51,56..L PLATED,OUTSIDE REAR VIEW MIRROR-*273 & *MIH & W(TURN SIGNAL) & MEMORY |
1 | ||
| 87910-0C180 |
GSK51,UCK51,52,56,57..DCB..S NO PAINT REQ.,C-CAB DX GRADE PACKAGE&COLD AREA SPEC |
1 | ||
| 87910-0C220 |
USK50,51,55,56..HTWC NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-EXTENDED TYPE & *RCM & *MIH |
1 | ||
| 87910-0C190 |
GSK51,UCK51,52,56,57..DCB..S NO PAINT REQ.,C-CAB DX GRADE PACKAGE |
1 | ||
| 87910-0C190 |
GSK5#,UCK50,51,55,56..D NO PAINT REQ.,WITHOUT(SR-5 PACKAGE) |
1 | ||
| 87940 - MIRROR ASSY, OUTER REAR VIEW, LH | ||||
| 87940-0C190 |
USK50,51,55,56..D NO PAINT REQ.,WITHOUT(SR-5 PACKAGE)&OUTSIDE REAR VIEW MIRROR-MANUAL |
1 | ||
| 87940-0C180 |
GSK5#,UCK50,51,55,56..D NO PAINT REQ.,WITHOUT(SR-5 PACKAGE)&COLD AREA SPEC |
1 | ||
| 87940-0C190 |
GSK51,UCK51,52,56,57..DCB..S NO PAINT REQ.,C-CAB DX GRADE PACKAGE |
1 | ||
| 87940-0C210 |
USK51,56..L PLATED,POWER MEMORY PACKAGE&OUTSIDE REAR VIEW MIRROR-*273 & *MIH & W(TURN SIGNAL)& MEMORY |
1 | ||
| 87940-0C220 |
USK50,51,55,56 NO PAINT REQ.,TOWING PACKAGE-WITH&OUTSIDE REAR VIEW MIRROR-EXTENDED TYPE & *RCM &*MIH |
1 | ||
| 87940-0C210 |
USK51,56..L PLATED,OUTSIDE REAR VIEW MIRROR-*273 & *MIH & W(TURN SIGNAL) & MEMORY |
1 | ||
| 87940-0C210 |
UCK51,56..L PLATED,POWER MEMORY PACKAGE |
1 | ||
| 87940-0C180 |
GSK51,UCK51,52,56,57..DCB..S NO PAINT REQ.,C-CAB DX GRADE PACKAGE&COLD AREA SPEC |
1 | ||
| 87940-0C200 |
UCK51,56,USK51,56..L PLATED |
1 | ||
| 87940-0C190 |
GSK5#,UCK50,51,55,56..D NO PAINT REQ.,WITHOUT(SR-5 PACKAGE) |
1 | ||
| 87940-0C220 |
USK50,51,55,56..HTWC NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-EXTENDED TYPE & *RCM & *MIH |
1 | ||
| Common parts | ||||
| 90080-18071 | ||||
(0701-0904)USK5#
EXTENDED TYPE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87810 - MIRROR ASSY, INNER REAR VIEW | ||||
| 87810-0C050 |
UCK51,56,USK51,56..L TYPE B:REFER ILLUST. |
1 | ||
| 87810 - MIRROR ASSY, INNER REAR VIEW | ||||
| 87810-0C050 |
UCK51,56,USK51,56..L TYPE B:REFER ILLUST. |
1 | ||
| 87834 - COVER, INNER REAR VIEW MIRROR STAY HOLDER | ||||
| 87818-0C020 |
UCK51,56,USK51,56..L |
1 | ||
| 87901B - MIRROR SUB-ASSY, OUTER REAR VIEW, RH | ||||
| 87903-0C030 |
UCK51,56,USK51,56..L |
1 | ||
| 87903-0C040 |
USK50,51,55,56..HTWC OUTSIDE REAR VIEW MIRROR-EXTENDED TYPE & *RCM & *MIH |
1 | ||
| 87903-0C020 |
GSK5#,UCK50,51,55,56..D WITHOUT(SR-5 PACKAGE)&COLD AREA SPEC |
1 | ||
| 87903-0C020 |
GSK51,UCK51,52,56,57..DCB..S C-CAB DX GRADE PACKAGE&COLD AREA SPEC |
1 | ||
| 87903-0C040 |
USK50,51,55,56 TOWING PACKAGE-WITH&OUTSIDE REAR VIEW MIRROR-EXTENDED TYPE & *RCM & *MIH |
1 | ||
| 87906B - MIRROR SUB-ASSY, OUTER REAR VIEW, LH | ||||
| 87906-0C040 |
USK50,51,55,56 TOWING PACKAGE-WITH&OUTSIDE REAR VIEW MIRROR-EXTENDED TYPE & *RCM & *MIH |
1 | ||
| 87906-0C020 |
GSK5#,UCK50,51,55,56..D WITHOUT(SR-5 PACKAGE)&COLD AREA SPEC |
1 | ||
| 87906-0C020 |
GSK51,UCK51,52,56,57..DCB..S C-CAB DX GRADE PACKAGE&COLD AREA SPEC |
1 | ||
| 87906-0C040 |
USK50,51,55,56..HTWC OUTSIDE REAR VIEW MIRROR-EXTENDED TYPE & *RCM & *MIH |
1 | ||
| 87906-0C030 |
UCK51,56,USK51,56..L |
1 | ||
| 87910 - MIRROR ASSY, OUTER REAR VIEW, RH | ||||
| 87910-0C180 |
GSK5#,UCK50,51,55,56..D NO PAINT REQ.,WITHOUT(SR-5 PACKAGE)&COLD AREA SPEC |
1 | ||
| 87910-0C210 |
USK51,56..L PLATED,POWER MEMORY PACKAGE&OUTSIDE REAR VIEW MIRROR-*273 & *MIH & W(TURN SIGNAL)& MEMORY |
1 | ||
| 87910-0C210 |
UCK51,56..L PLATED,POWER MEMORY PACKAGE |
1 | ||
| 87910-0C200 |
UCK51,56,USK51,56..L PLATED |
1 | ||
| 87910-0C220 |
USK50,51,55,56 NO PAINT REQ.,TOWING PACKAGE-WITH&OUTSIDE REAR VIEW MIRROR-EXTENDED TYPE & *RCM &*MIH |
1 | ||
| 87910-0C190 |
USK50,51,55,56..D NO PAINT REQ.,WITHOUT(SR-5 PACKAGE)&OUTSIDE REAR VIEW MIRROR-MANUAL |
1 | ||
| 87910-0C210 |
USK51,56..L PLATED,OUTSIDE REAR VIEW MIRROR-*273 & *MIH & W(TURN SIGNAL) & MEMORY |
1 | ||
| 87910-0C180 |
GSK51,UCK51,52,56,57..DCB..S NO PAINT REQ.,C-CAB DX GRADE PACKAGE&COLD AREA SPEC |
1 | ||
| 87910-0C220 |
USK50,51,55,56..HTWC NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-EXTENDED TYPE & *RCM & *MIH |
1 | ||
| 87910-0C190 |
GSK51,UCK51,52,56,57..DCB..S NO PAINT REQ.,C-CAB DX GRADE PACKAGE |
1 | ||
| 87910-0C190 |
GSK5#,UCK50,51,55,56..D NO PAINT REQ.,WITHOUT(SR-5 PACKAGE) |
1 | ||
| 87915 - COVER, OUTER MIRROR, RH | ||||
| 87915-0C030 |
USK50,51,55,56 NO PAINT REQ.,TOWING PACKAGE-WITH&OUTSIDE REAR VIEW MIRROR-EXTENDED TYPE & *RCM &*MIH |
1 | ||
| 87915-0C030 |
USK50,51,55,56..HTWC NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-EXTENDED TYPE & *RCM & *MIH |
1 | ||
| 87940 - MIRROR ASSY, OUTER REAR VIEW, LH | ||||
| 87940-0C190 |
USK50,51,55,56..D NO PAINT REQ.,WITHOUT(SR-5 PACKAGE)&OUTSIDE REAR VIEW MIRROR-MANUAL |
1 | ||
| 87940-0C180 |
GSK5#,UCK50,51,55,56..D NO PAINT REQ.,WITHOUT(SR-5 PACKAGE)&COLD AREA SPEC |
1 | ||
| 87940-0C190 |
GSK51,UCK51,52,56,57..DCB..S NO PAINT REQ.,C-CAB DX GRADE PACKAGE |
1 | ||
| 87940-0C210 |
USK51,56..L PLATED,POWER MEMORY PACKAGE&OUTSIDE REAR VIEW MIRROR-*273 & *MIH & W(TURN SIGNAL)& MEMORY |
1 | ||
| 87940-0C220 |
USK50,51,55,56 NO PAINT REQ.,TOWING PACKAGE-WITH&OUTSIDE REAR VIEW MIRROR-EXTENDED TYPE & *RCM &*MIH |
1 | ||
| 87940-0C210 |
USK51,56..L PLATED,OUTSIDE REAR VIEW MIRROR-*273 & *MIH & W(TURN SIGNAL) & MEMORY |
1 | ||
| 87940-0C210 |
UCK51,56..L PLATED,POWER MEMORY PACKAGE |
1 | ||
| 87940-0C180 |
GSK51,UCK51,52,56,57..DCB..S NO PAINT REQ.,C-CAB DX GRADE PACKAGE&COLD AREA SPEC |
1 | ||
| 87940-0C200 |
UCK51,56,USK51,56..L PLATED |
1 | ||
| 87940-0C190 |
GSK5#,UCK50,51,55,56..D NO PAINT REQ.,WITHOUT(SR-5 PACKAGE) |
1 | ||
| 87940-0C220 |
USK50,51,55,56..HTWC NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-EXTENDED TYPE & *RCM & *MIH |
1 | ||
| 87945 - COVER, OUTER MIRROR, LH | ||||
| 87915-0C030 |
USK50,51,55,56 NO PAINT REQ.,TOWING PACKAGE-WITH&OUTSIDE REAR VIEW MIRROR-EXTENDED TYPE & *RCM &*MIH |
1 | ||
| 87915-0C030 |
USK50,51,55,56..HTWC NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-EXTENDED TYPE & *RCM & *MIH |
1 | ||
| Common parts | ||||
| 90080-18071 | ||||
| Linked diagrams | ||||
| 8106 | ||||
