USK56L-CRTLKA (2007)
Toyota Tundra

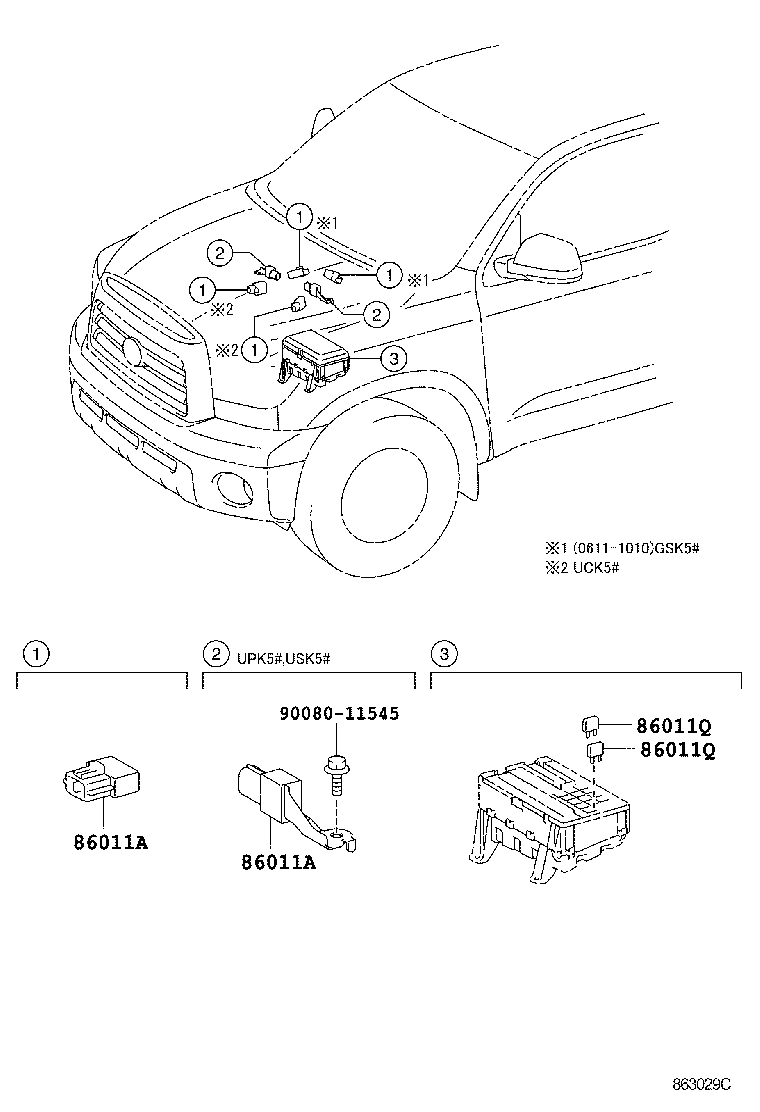

ILLUST NO. 3 OF 3(0611-1308)
CONDENSER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86011A - CONDENSER, RADIO SETTING | ||||
| 90980-04177 |
USK5# |
2 | ||
| 86011A - CONDENSER, RADIO SETTING | ||||
| 90980-04177 |
USK5# |
2 | ||
| 86011Q - CONDENSER, RADIO SETTING | ||||
| 90980-04161 |
GSK5#,UCK5#,USK5# |
2 | ||
| 86011Q - CONDENSER, RADIO SETTING | ||||
| 90980-04161 |
GSK5#,UCK5#,USK5# |
2 | ||
| Common parts | ||||
| 90080-11545 | ||||

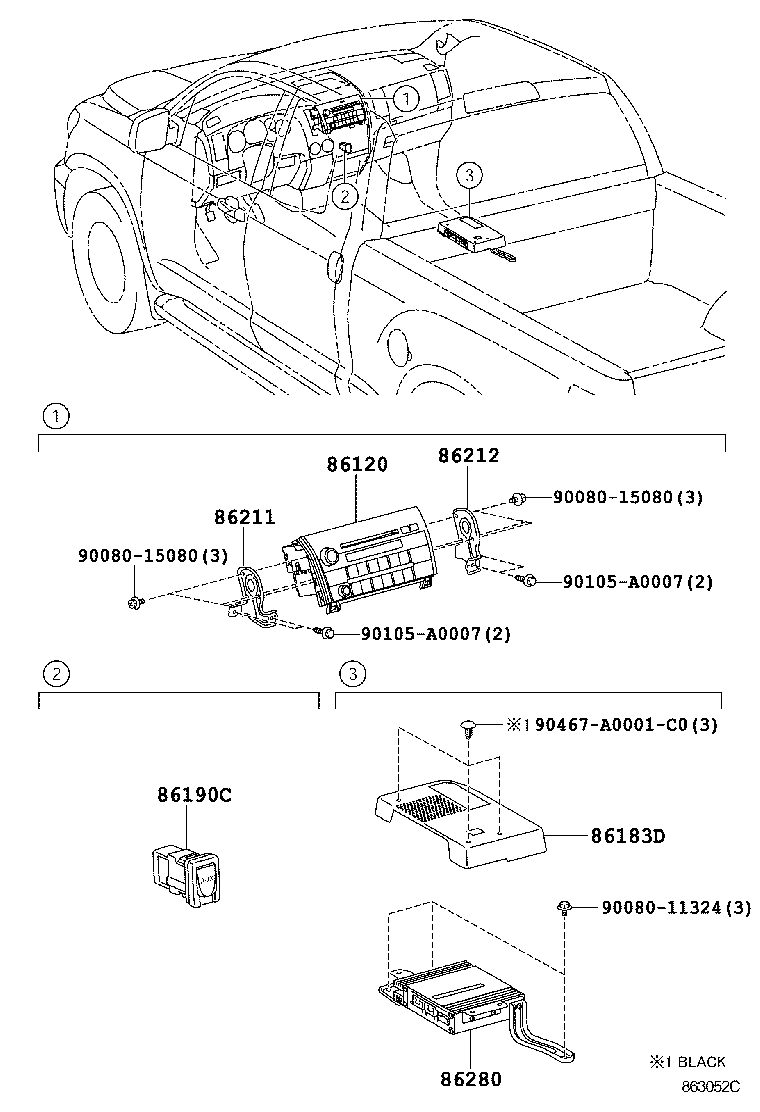

ILLUST NO. 1 OF 3(0611-0904)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86120 - RECEIVER ASSY, RADIO | ||||
| 86120-0C211 |
GSK51,UCK51,52,56,57,USK51,52,56,57..DCB..S DELPHI,ID=AD1803,AUDIO-AVN & CD CHANGER 8SPEAKER & 2TWEETER JBL |
1 | ||
| 86120-0C201 |
GSK5#,UCK50,51,55,56,USK50,51,55,56..D DELPHI,ID=AD1804,AUDIO-AM/FM & CD CHANGER & 4SPEAKER |
1 | ||
| 86120-0C201 |
GSK51,UCK51,52,56,57,USK51,52,56,57..S DELPHI,ID=AD1804,AUDIO-AM/FM & CD CHANGER & 6SPEAKER |
1 | ||
| 86120-0C191 |
UCK51,56,USK51,56..DCB..L PANASONIC,ID=A51828,AUDIO-AVN & CD CHANGER 8SPEAKER & 2TWEETER JBL |
1 | ||
| 86120-0C181 |
GSK5#,UCK50,51,55,56,USK50,51,55,56..D PANASONIC,ID=A51829,AUDIO-AM/FM & CD CHANGER & 4SPEAKER |
1 | ||
| 86120-0C181 |
GSK51,UCK51,52,56,57,USK51,52,56,57..S PANASONIC,ID=A51829,AUDIO-AM/FM & CD CHANGER & 6SPEAKER |
1 | ||
| 86120-0C191 |
UCK51,56,USK51,56..L PANASONIC,ID=A51828 |
1 | ||
| 86120-0C191 |
GSK51,UCK51,52,56,57,USK51,52,56,57..DCB..S PANASONIC,ID=A51828,AUDIO-AM/FM CD CHANGER 8SPEAKER & 2TWEETER JBL |
1 | ||
| 86120-0C202 |
GSK51,UCK51,52,56,57,USK51,52,56,57..S DELPHI,ID=AD1804,AUDIO-AM/FM & CD CHANGER & 6SPEAKER |
1 | ||
| 86120-0C212 |
GSK51,UCK51,52,56,57,USK51,52,56,57..DCB..S DELPHI,ID=AD1803,AUDIO-AVN & CD CHANGER 8SPEAKER & 2TWEETER JBL |
1 | ||
| 86120-0C182 |
GSK5#,UCK50,51,55,56,USK50,51,55,56..D PANASONIC,ID=A51829,AUDIO-AM/FM & CD CHANGER & 4SPEAKER |
1 | ||
| 86120-0C202 |
GSK5#,UCK50,51,55,56,USK50,51,55,56..D DELPHI,ID=AD1804,AUDIO-AM/FM & CD CHANGER & 4SPEAKER |
1 | ||
| 86120-0C192 |
UCK51,56,USK51,56..L PANASONIC,ID=A51828 |
1 | ||
| 86120-0C203 |
GSK5#,UCK50,51,55,56,USK50,51,55,56..D DELPHI,ID=AD1804,AUDIO-AM/FM & CD CHANGER & 4SPEAKER |
1 | ||
| 86120-0C203 |
GSK51,UCK51,52,56,57,USK51,52,56,57..S DELPHI,ID=AD1804,AUDIO-AM/FM & CD CHANGER & 6SPEAKER |
1 | ||
| 86120-0C192 |
GSK51,UCK51,52,56,57,USK51,52,56,57..DCB..S PANASONIC,ID=A51828,AUDIO-AM/FM CD CHANGER 8SPEAKER & 2TWEETER JBL |
1 | ||
| 86120-0C182 |
GSK51,UCK51,52,56,57,USK51,52,56,57..S PANASONIC,ID=A51829,AUDIO-AM/FM & CD CHANGER & 6SPEAKER |
1 | ||
| 86120-0C192 |
UCK51,56,USK51,56..DCB..L PANASONIC,ID=A51828,AUDIO-AVN & CD CHANGER 8SPEAKER & 2TWEETER JBL |
1 | ||
| 86120-0C213 |
GSK51,UCK51,52,56,57,USK51,52,56,57..DCB..S DELPHI,ID=AD1803,AUDIO-AVN & CD CHANGER 8SPEAKER & 2TWEETER JBL |
1 | ||
| 86120-0C201 |

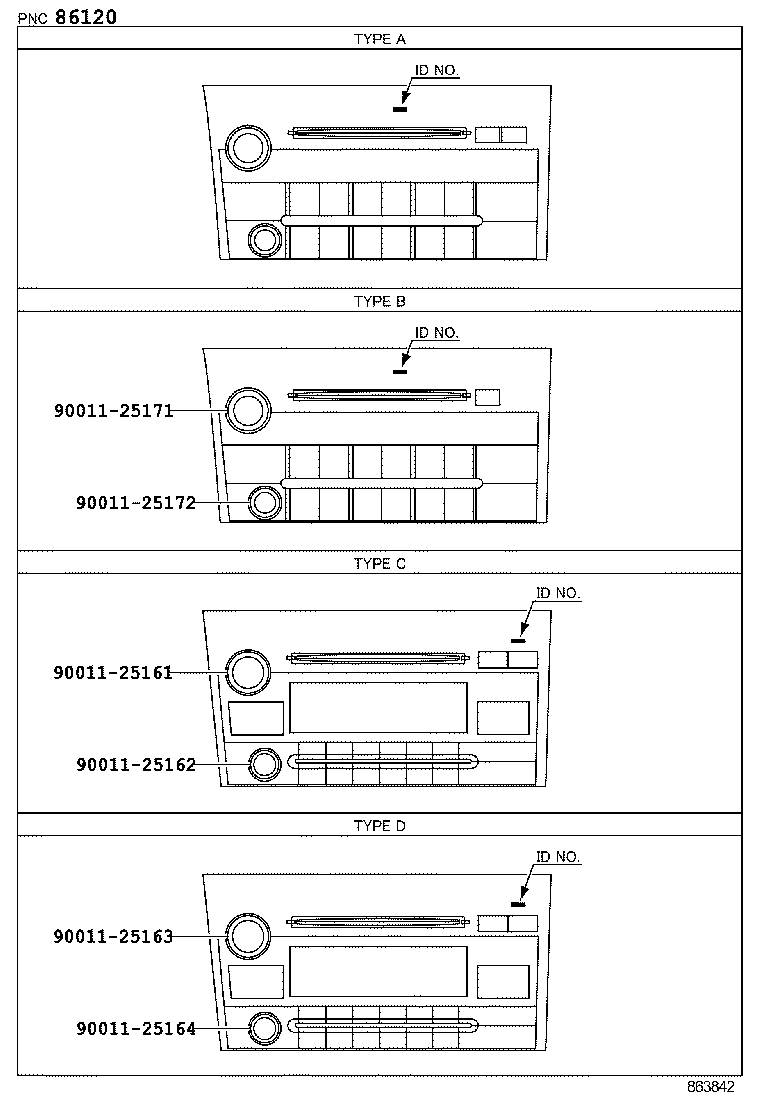

GSK5#,UCK50,51,55,56,USK50,51,55,56..D DELPHI,ID=AD1804,TYPE A:REFER ILLUST. |
1 | ||
| 86120-0C201 |
GSK51,UCK51,52,56,57,USK51,52,56,57..S DELPHI,ID=AD1804,TYPE A:REFER ILLUST. |
1 | ||
| 86120-0C211 |
GSK51,UCK51,52,56,57,USK51,52,56,57..DCB..S DELPHI,ID=AD1803,TYPE A:REFER ILLUST. |
1 | ||
| 86120-0C191 |
GSK51,UCK51,52,56,57,USK51,52,56,57..DCB..S PANASONIC,ID=A51828,TYPE A:REFER ILLUST. |
1 | ||
| 86120-0C181 |
GSK51,UCK51,52,56,57,USK51,52,56,57..S PANASONIC,ID=A51829,TYPE A:REFER ILLUST. |
1 | ||
| 86120-0C191 |
UCK51,56,USK51,56..DCB..L PANASONIC,ID=A51828,TYPE A:REFER ILLUST. |
1 | ||
| 86120-0C181 |
GSK5#,UCK50,51,55,56,USK50,51,55,56..D PANASONIC,ID=A51829,TYPE A:REFER ILLUST. |
1 | ||
| 86120-0C202 |
GSK51,UCK51,52,56,57,USK51,52,56,57..S DELPHI,ID=AD1804,TYPE A:REFER ILLUST. |
1 | ||
| 86120-0C191 |
UCK51,56,USK51,56..L PANASONIC,ID=A51828,TYPE A:REFER ILLUST. |
1 | ||
| 86120-0C202 |
GSK5#,UCK50,51,55,56,USK50,51,55,56..D DELPHI,ID=AD1804,TYPE A:REFER ILLUST. |
1 | ||
| 86120-0C182 |
GSK51,UCK51,52,56,57,USK51,52,56,57..S PANASONIC,ID=A51829,TYPE A:REFER ILLUST. |
1 | ||
| 86120-0C192 |
GSK51,UCK51,52,56,57,USK51,52,56,57..DCB..S PANASONIC,ID=A51828,TYPE A:REFER ILLUST. |
1 | ||
| 86120-0C192 |
UCK51,56,USK51,56..DCB..L PANASONIC,ID=A51828,TYPE A:REFER ILLUST. |
1 | ||
| 86120-0C212 |
GSK51,UCK51,52,56,57,USK51,52,56,57..DCB..S DELPHI,ID=AD1803,TYPE A:REFER ILLUST. |
1 | ||
| 86120-0C203 |
GSK5#,UCK50,51,55,56,USK50,51,55,56..D DELPHI,ID=AD1804,TYPE A:REFER ILLUST. |
1 | ||
| 86120-0C182 |
GSK5#,UCK50,51,55,56,USK50,51,55,56..D PANASONIC,ID=A51829,TYPE A:REFER ILLUST. |
1 | ||
| 86120-0C203 |
GSK51,UCK51,52,56,57,USK51,52,56,57..S DELPHI,ID=AD1804,TYPE A:REFER ILLUST. |
1 | ||
| 86120-0C213 |
GSK51,UCK51,52,56,57,USK51,52,56,57..DCB..S DELPHI,ID=AD1803,TYPE A:REFER ILLUST. |
1 | ||
| 86120-0C192 |
UCK51,56,USK51,56..L PANASONIC,ID=A51828,TYPE A:REFER ILLUST. |
1 | ||
| 86183D - COVER, AUDIO AMPLIFIER | ||||
| 86183-0C030 |
GSK51,UCK51,52,56,57,USK51,52,56,57..DCB..S AUDIO-AVN & CD CHANGER 8SPEAKER & 2TWEETER JBL |
1 | ||
| 86183-0C030 |
UCK51,56,USK51,56..L |
1 | ||
| 86183-0C030 |
GSK51,UCK51,52,56,57,USK51,52,56,57..DCB..S AUDIO-AM/FM CD CHANGER 8SPEAKER & 2TWEETER JBL |
1 | ||
| 86190C - ADAPTER ASSY, STEREO JACK, NO.1 | ||||
| 86190-02010 |
GSK5#,UCK5#,USK5# |
1 | ||
| 86211 - BRACKET, RADIO, NO.1 | ||||
| 86211-0C030 |
GSK5#,UCK5#,USK5# |
1 | ||
| 86211-0C030 |
GSK51,UCK51,52,56,57,USK51,52,56,57..DCB AUDIO-AVN & CD CHANGER 8SPEAKER & 2TWEETER JBL |
1 | ||
| 86212 - BRACKET, RADIO, NO.2 | ||||
| 86212-0C030 |
GSK5#,UCK5#,USK5# |
1 | ||
| 86212-0C030 |
GSK51,UCK51,52,56,57,USK51,52,56,57..DCB AUDIO-AVN & CD CHANGER 8SPEAKER & 2TWEETER JBL |
1 | ||
| 86280 - AMPLIFIER ASSY, STEREO COMPONENT | ||||
| 86280-0C100 |
GSK51,UCK51,52,56,57,USK51,52,56,57..DCB..S AUDIO-AM/FM CD CHANGER 8SPEAKER & 2TWEETER JBL |
1 | ||
| 86280-0C100 |
UCK51,56,USK51,56..DCB..L |
1 | ||
| 86280-0C100 |
GSK51,UCK51,52,56,57,USK51,52,56,57..DCB..S AUDIO-AVN & CD CHANGER 8SPEAKER & 2TWEETER JBL |
1 | ||
| Common parts | ||||
| 90080-11324 | ||||
| 90080-15080 | ||||
| 90105-A0007 | ||||
| 90467-A0001C0 | ||||
ILLUST NO. 2 OF 3(0611-1308)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86120 - RECEIVER ASSY, RADIO | ||||
| 86120-0C211 |
GSK51,UCK51,52,56,57,USK51,52,56,57..DCB..S DELPHI,ID=AD1803,AUDIO-AVN & CD CHANGER 8SPEAKER & 2TWEETER JBL |
1 | ||
| 86120-0C201 |
GSK5#,UCK50,51,55,56,USK50,51,55,56..D DELPHI,ID=AD1804,AUDIO-AM/FM & CD CHANGER & 4SPEAKER |
1 | ||
| 86120-0C201 |
GSK51,UCK51,52,56,57,USK51,52,56,57..S DELPHI,ID=AD1804,AUDIO-AM/FM & CD CHANGER & 6SPEAKER |
1 | ||
| 86120-0C191 |
UCK51,56,USK51,56..DCB..L PANASONIC,ID=A51828,AUDIO-AVN & CD CHANGER 8SPEAKER & 2TWEETER JBL |
1 | ||
| 86120-0C181 |
GSK5#,UCK50,51,55,56,USK50,51,55,56..D PANASONIC,ID=A51829,AUDIO-AM/FM & CD CHANGER & 4SPEAKER |
1 | ||
| 86120-0C181 |
GSK51,UCK51,52,56,57,USK51,52,56,57..S PANASONIC,ID=A51829,AUDIO-AM/FM & CD CHANGER & 6SPEAKER |
1 | ||
| 86120-0C191 |
UCK51,56,USK51,56..L PANASONIC,ID=A51828 |
1 | ||
| 86120-0C191 |
GSK51,UCK51,52,56,57,USK51,52,56,57..DCB..S PANASONIC,ID=A51828,AUDIO-AM/FM CD CHANGER 8SPEAKER & 2TWEETER JBL |
1 | ||
| 86120-0C202 |
GSK51,UCK51,52,56,57,USK51,52,56,57..S DELPHI,ID=AD1804,AUDIO-AM/FM & CD CHANGER & 6SPEAKER |
1 | ||
| 86120-0C212 |
GSK51,UCK51,52,56,57,USK51,52,56,57..DCB..S DELPHI,ID=AD1803,AUDIO-AVN & CD CHANGER 8SPEAKER & 2TWEETER JBL |
1 | ||
| 86120-0C182 |
GSK5#,UCK50,51,55,56,USK50,51,55,56..D PANASONIC,ID=A51829,AUDIO-AM/FM & CD CHANGER & 4SPEAKER |
1 | ||
| 86120-0C202 |
GSK5#,UCK50,51,55,56,USK50,51,55,56..D DELPHI,ID=AD1804,AUDIO-AM/FM & CD CHANGER & 4SPEAKER |
1 | ||
| 86120-0C192 |
UCK51,56,USK51,56..L PANASONIC,ID=A51828 |
1 | ||
| 86120-0C203 |
GSK5#,UCK50,51,55,56,USK50,51,55,56..D DELPHI,ID=AD1804,AUDIO-AM/FM & CD CHANGER & 4SPEAKER |
1 | ||
| 86120-0C203 |
GSK51,UCK51,52,56,57,USK51,52,56,57..S DELPHI,ID=AD1804,AUDIO-AM/FM & CD CHANGER & 6SPEAKER |
1 | ||
| 86120-0C192 |
GSK51,UCK51,52,56,57,USK51,52,56,57..DCB..S PANASONIC,ID=A51828,AUDIO-AM/FM CD CHANGER 8SPEAKER & 2TWEETER JBL |
1 | ||
| 86120-0C182 |
GSK51,UCK51,52,56,57,USK51,52,56,57..S PANASONIC,ID=A51829,AUDIO-AM/FM & CD CHANGER & 6SPEAKER |
1 | ||
| 86120-0C192 |
UCK51,56,USK51,56..DCB..L PANASONIC,ID=A51828,AUDIO-AVN & CD CHANGER 8SPEAKER & 2TWEETER JBL |
1 | ||
| 86120-0C213 |
GSK51,UCK51,52,56,57,USK51,52,56,57..DCB..S DELPHI,ID=AD1803,AUDIO-AVN & CD CHANGER 8SPEAKER & 2TWEETER JBL |
1 | ||
| 86120-0C201 |
GSK5#,UCK50,51,55,56,USK50,51,55,56..D DELPHI,ID=AD1804,TYPE A:REFER ILLUST. |
1 | ||
| 86120-0C201 |
GSK51,UCK51,52,56,57,USK51,52,56,57..S DELPHI,ID=AD1804,TYPE A:REFER ILLUST. |
1 | ||
| 86120-0C211 |
GSK51,UCK51,52,56,57,USK51,52,56,57..DCB..S DELPHI,ID=AD1803,TYPE A:REFER ILLUST. |
1 | ||
| 86120-0C191 |
GSK51,UCK51,52,56,57,USK51,52,56,57..DCB..S PANASONIC,ID=A51828,TYPE A:REFER ILLUST. |
1 | ||
| 86120-0C181 |
GSK51,UCK51,52,56,57,USK51,52,56,57..S PANASONIC,ID=A51829,TYPE A:REFER ILLUST. |
1 | ||
| 86120-0C191 |
UCK51,56,USK51,56..DCB..L PANASONIC,ID=A51828,TYPE A:REFER ILLUST. |
1 | ||
| 86120-0C181 |
GSK5#,UCK50,51,55,56,USK50,51,55,56..D PANASONIC,ID=A51829,TYPE A:REFER ILLUST. |
1 | ||
| 86120-0C202 |
GSK51,UCK51,52,56,57,USK51,52,56,57..S DELPHI,ID=AD1804,TYPE A:REFER ILLUST. |
1 | ||
| 86120-0C191 |
UCK51,56,USK51,56..L PANASONIC,ID=A51828,TYPE A:REFER ILLUST. |
1 | ||
| 86120-0C202 |
GSK5#,UCK50,51,55,56,USK50,51,55,56..D DELPHI,ID=AD1804,TYPE A:REFER ILLUST. |
1 | ||
| 86120-0C182 |
GSK51,UCK51,52,56,57,USK51,52,56,57..S PANASONIC,ID=A51829,TYPE A:REFER ILLUST. |
1 | ||
| 86120-0C192 |
GSK51,UCK51,52,56,57,USK51,52,56,57..DCB..S PANASONIC,ID=A51828,TYPE A:REFER ILLUST. |
1 | ||
| 86120-0C192 |
UCK51,56,USK51,56..DCB..L PANASONIC,ID=A51828,TYPE A:REFER ILLUST. |
1 | ||
| 86120-0C212 |
GSK51,UCK51,52,56,57,USK51,52,56,57..DCB..S DELPHI,ID=AD1803,TYPE A:REFER ILLUST. |
1 | ||
| 86120-0C203 |
GSK5#,UCK50,51,55,56,USK50,51,55,56..D DELPHI,ID=AD1804,TYPE A:REFER ILLUST. |
1 | ||
| 86120-0C182 |
GSK5#,UCK50,51,55,56,USK50,51,55,56..D PANASONIC,ID=A51829,TYPE A:REFER ILLUST. |
1 | ||
| 86120-0C203 |
GSK51,UCK51,52,56,57,USK51,52,56,57..S DELPHI,ID=AD1804,TYPE A:REFER ILLUST. |
1 | ||
| 86120-0C213 |
GSK51,UCK51,52,56,57,USK51,52,56,57..DCB..S DELPHI,ID=AD1803,TYPE A:REFER ILLUST. |
1 | ||
| 86120-0C192 |
UCK51,56,USK51,56..L PANASONIC,ID=A51828,TYPE A:REFER ILLUST. |
1 | ||
| Common parts | ||||
| 90011-25161 | ||||
| 90011-25162 | ||||
| 90011-25163 | ||||
| 90011-25164 | ||||
| 90011-25171 | ||||
| 90011-25172 | ||||
