USK56L-CRTLKA (2007)

Toyota Tundra

Production Jan 2007 - Apr 2009
Engine 3URFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0611-1308)DCB

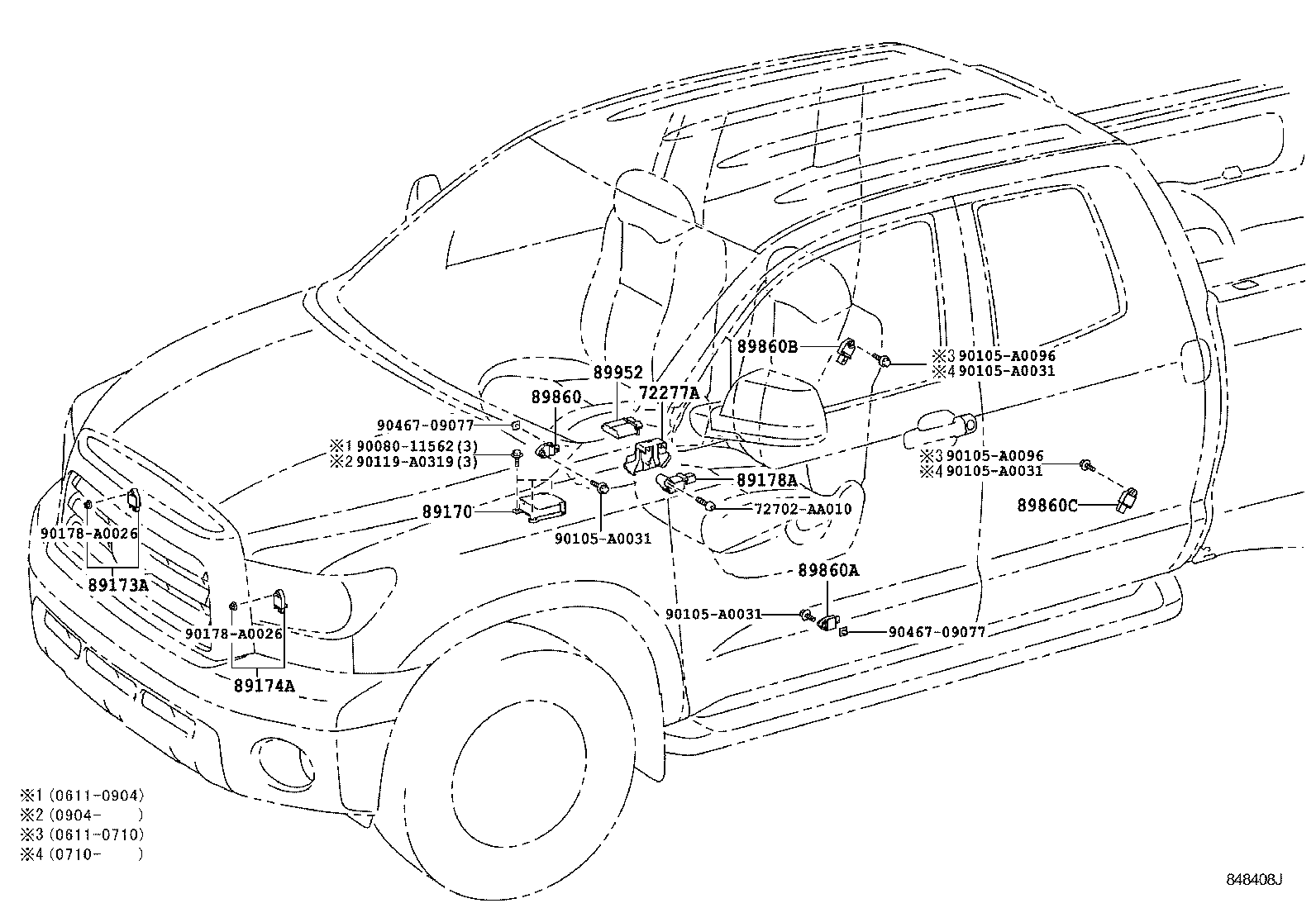

Click highlighted areas on diagram

diagram 72277A 72702AA010 89170 89173A 89174A 89178A 89860 89860A 89860B 89860C 89952 9008011562 90105A0031 90105A0031 90105A0031 90105A0031 90105A0096 90105A0096 90119A0319 90178A0026 90178A0026 9046709077 9046709077
Part # Description Qty Price
72277A - PROTECTOR, SEAT SLIDE POSITION SENSOR
72277-06020

UCK51,56,USK51,56..L

 1
72277-06020

GSK51,UCK51,52,56,57,USK51,52,56,57..S

NUMBER OF PASSENGER-FRONT:2 REAR:3&POWER SEAT PACKAGE

 1
89170 - SENSOR ASSY, AIR BAG
89170-0C272

GSK5#,UCK50,51,55,56,USK50,51,55,56..D

 1
89170-0C311

GSK51,UCK51,52,56,57,USK51,52,56,57..DCB

 1
89173A - SENSOR, AIR BAG, FRONT RH
89173-09480

GSK5#,UCK5#,USK5#

 1
89174A - SENSOR, AIR BAG, FRONT LH
89173-09480

GSK5#,UCK5#,USK5#

 1
89178A - SENSOR, SEAT POSITION AIR BAG
89178-06040

GSK51,UCK51,52,56,57,USK51,52,56,57..S

NUMBER OF PASSENGER-FRONT:2 REAR:3&POWER SEAT PACKAGE

 1
89178-06040

UCK51,56,USK51,56..L

 1
89860 - SENSOR ASSY, SIDE AIR BAG, RH
89831-0C020

GSK5#,UCK5#,USK5#

 1
89860A - SENSOR ASSY, SIDE AIR BAG, LH
89831-0C020

GSK5#,UCK5#,USK5#

 1
89860B - SENSOR ASSY, SIDE AIR BAG, RH, NO.2
89831-0C040

GSK51,UCK51,52,56,57,USK51,52,56,57..DCB

 1
89860C - SENSOR ASSY, SIDE AIR BAG, LH, NO.2
89831-0C040

GSK51,UCK51,52,56,57,USK51,52,56,57..DCB

 1
89952 - COMPUTER, OCCUPANT DETECTION
89952-35011

GSK5#,UCK5#,USK5#

 1
Common parts
72702-AA010
90080-11562
90105-A0031
90105-A0096
90119-A0319
90178-A0026
90467-09077

(0611-1308)D

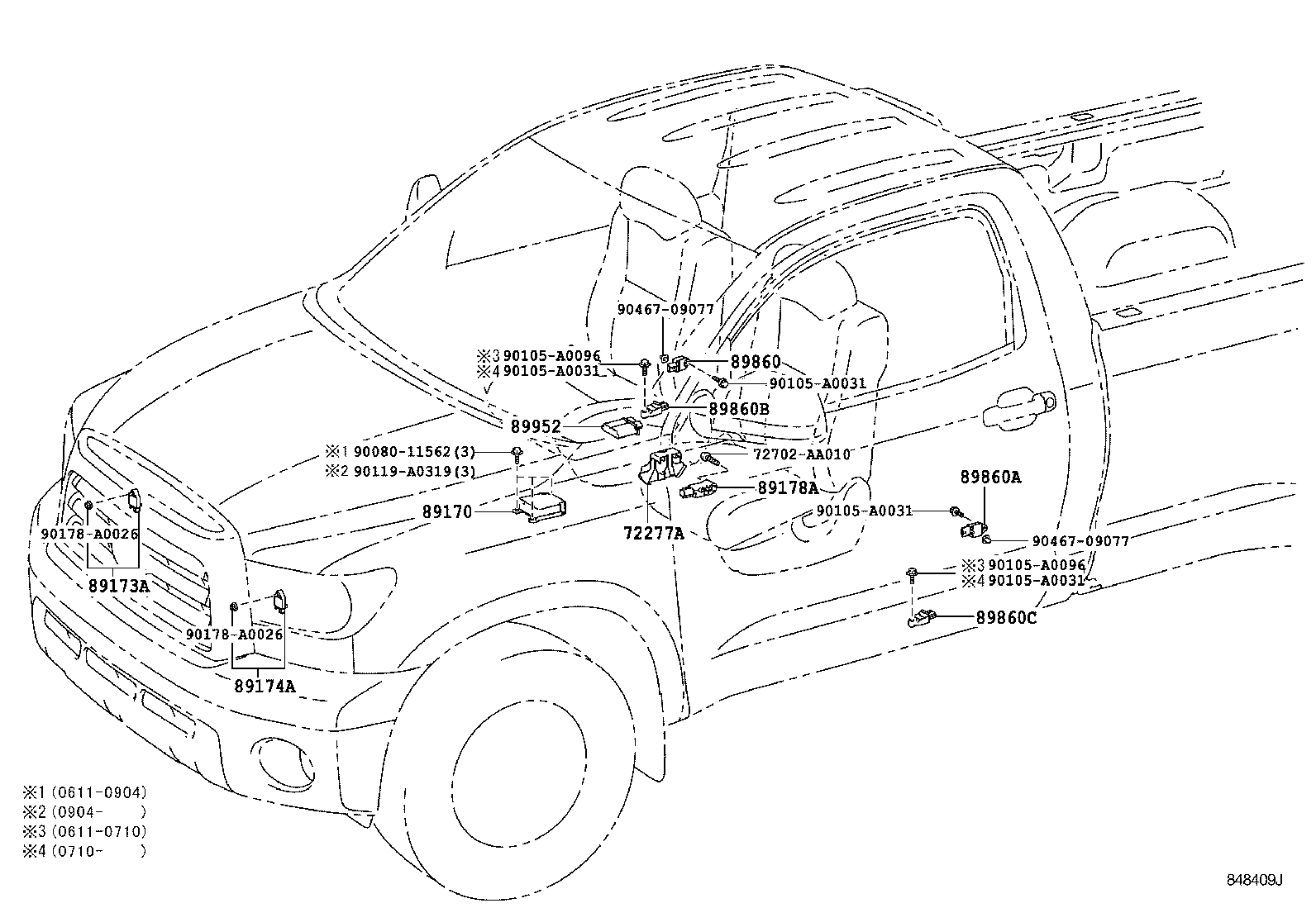

Click highlighted areas on diagram

diagram 72277A 72702AA010 89170 89173A 89174A 89178A 89860 89860A 89860B 89860C 89952 9008011562 90105A0031 90105A0031 90105A0031 90105A0031 90105A0096 90105A0096 90119A0319 90178A0026 90178A0026 9046709077 9046709077
Part # Description Qty Price
72277A - PROTECTOR, SEAT SLIDE POSITION SENSOR
72277-06020

UCK51,56,USK51,56..L

 1
72277-06020

GSK51,UCK51,52,56,57,USK51,52,56,57..S

NUMBER OF PASSENGER-FRONT:2 REAR:3&POWER SEAT PACKAGE

 1
89170 - SENSOR ASSY, AIR BAG
89170-0C272

GSK5#,UCK50,51,55,56,USK50,51,55,56..D

 1
89170-0C311

GSK51,UCK51,52,56,57,USK51,52,56,57..DCB

 1
89173A - SENSOR, AIR BAG, FRONT RH
89173-09480

GSK5#,UCK5#,USK5#

 1
89174A - SENSOR, AIR BAG, FRONT LH
89173-09480

GSK5#,UCK5#,USK5#

 1
89178A - SENSOR, SEAT POSITION AIR BAG
89178-06040

GSK51,UCK51,52,56,57,USK51,52,56,57..S

NUMBER OF PASSENGER-FRONT:2 REAR:3&POWER SEAT PACKAGE

 1
89178-06040

UCK51,56,USK51,56..L

 1
89860 - SENSOR ASSY, SIDE AIR BAG, RH
89831-0C020

GSK5#,UCK5#,USK5#

 1
89860A - SENSOR ASSY, SIDE AIR BAG, LH
89831-0C020

GSK5#,UCK5#,USK5#

 1
89860B - SENSOR ASSY, SIDE AIR BAG, RH, NO.2
89831-0C040

GSK51,UCK51,52,56,57,USK51,52,56,57..DCB

 1
89860C - SENSOR ASSY, SIDE AIR BAG, LH, NO.2
89831-0C040

GSK51,UCK51,52,56,57,USK51,52,56,57..DCB

 1
89952 - COMPUTER, OCCUPANT DETECTION
89952-35011

GSK5#,UCK5#,USK5#

 1
Common parts
72702-AA010
90080-11562
90105-A0031
90105-A0096
90119-A0319
90178-A0026
90467-09077
