USK56L-CRTLKA (2007)
Toyota Tundra
Production
Jan 2007
-
Apr 2009
Engine
3URFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(0611-1308)

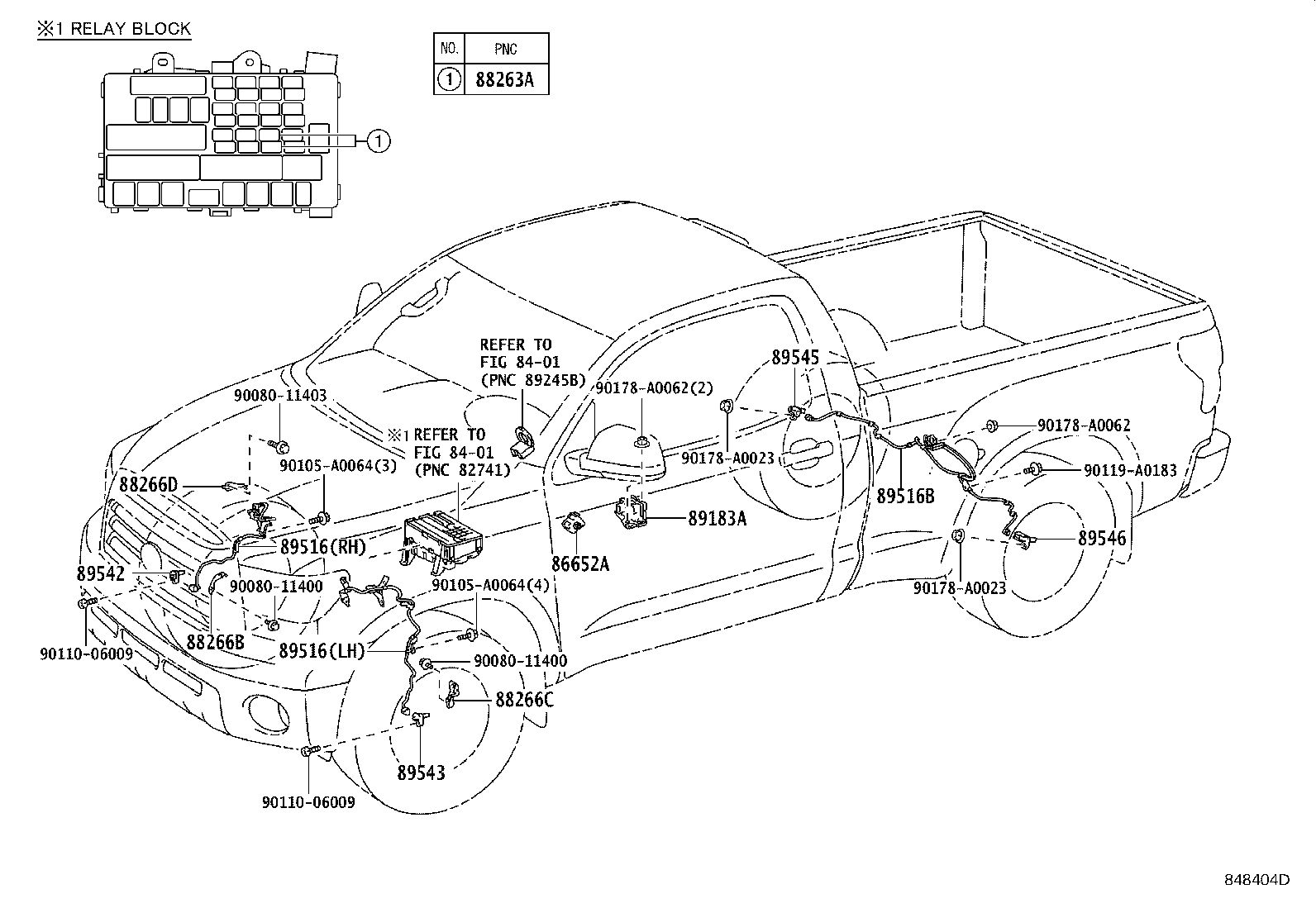

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86652A - BUZZER ASSY, SKID CONTROL | ||||
| 86652-04010 |
GSK5#,UCK5#,USK5# |
1 | ||
| 88263A - RELAY, SKID CONTROL | ||||
| 90084-98032 |
GSK5#,UCK5#,USK5# |
2 | ||
| 88266B - CLAMP, SKID CONTROL SENSOR, NO.1 | ||||
| 88266-0C030 |
GSK5#,UCK5#,USK5# |
1 | ||
| 88266C - CLAMP, SKID CONTROL SENSOR, NO.2 | ||||
| 88266-0C080 |
GSK5#,UCK5#,USK5# |
1 | ||
| 88266D - CLAMP, SKID CONTROL SENSOR, NO.3 | ||||
| 88266-0C040 |
GSK5#,UCK5#,USK5# |
1 | ||
| 89183A - SENSOR, YAWRATE | ||||
| 89180-0C050 |
UCK55,56,57,USK55,56,57 |
1 | ||
| 89516 - WIRE, SKID CONTROL SENSOR | ||||
| 89516-0C030 |
GSK5#,UCK5#,USK5# RH |
1 | ||
| 89516-0C040 |
GSK5#,UCK5#,USK5# LH |
1 | ||
| 89516 - WIRE, SKID CONTROL SENSOR | ||||
| 89516-0C030 |
GSK5#,UCK5#,USK5# RH |
1 | ||
| 89516-0C040 |
GSK5#,UCK5#,USK5# LH |
1 | ||
| 89516B - WIRE, SKID CONTROL SENSOR | ||||
| 89516-0C050 |
GSK5#,UCK5#,USK5# |
1 | ||
| 89542 - SENSOR, SPEED, FRONT RH | ||||
| 89542-0C020 |
GSK5#,UCK5#,USK5# |
1 | ||
| 89543 - SENSOR, SPEED, FRONT LH | ||||
| 89543-0C020 |
GSK5#,UCK5#,USK5# |
1 | ||
| 89545 - SENSOR, SPEED, REAR RH | ||||
| 89542-0C020 |
GSK5#,UCK5#,USK5# |
1 | ||
| 89546 - SENSOR, SPEED, REAR LH | ||||
| 89543-0C020 |
GSK5#,UCK5#,USK5# |
1 | ||
| Common parts | ||||
| 90080-11400 | ||||
| 90080-11403 | ||||
| 90105-A0064 | ||||
| 90110-06009 | ||||
| 90119-A0183 | ||||
| 90178-A0023 | ||||
| 90178-A0062 | ||||
| Linked diagrams | ||||
| 8401 | ||||
