USK56L-CRTLKA (2007)

Toyota Tundra

Production Jan 2007 - Apr 2009
Engine 3URFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 2 OF 2(0611-1308)DCB

Click highlighted areas on diagram

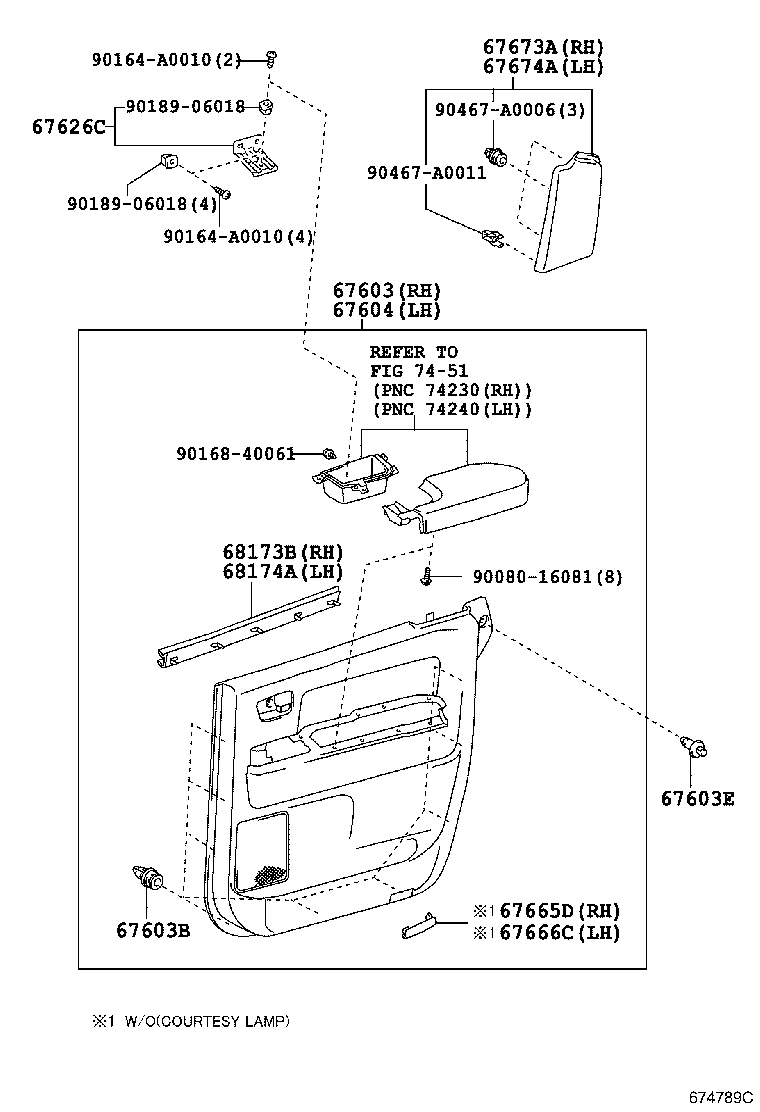

DOOR TRIM

diagram 67603 67603B 67603E 67604 67626C 67665D 67666C 67673A 67674A 68173B 68174A 7451 9008016081 90164A0010 90164A0010 9016840061 9018906018 9018906018 90467A0006 90467A0011
Part # Description Qty Price
67603 - BOARD SUB-ASSY, REAR DOOR TRIM, RH
67630-0C130C2

UCK51,56,USK51,56..DCB..L

BLACK,TRIM2#

 1
67630-0C130E0

GSK51,UCK51,52,56,57,USK51,52,56,57..DCB

DK. BROWN,TRIM4#

 1
67630-0C130C0

GSK51,UCK51,52,56,57,USK51,52,56,57..DCB

BLACK,TRIM1#

 1
67630-0C260C0

GSK51,UCK51,52,56,57,USK51,52,56,57..DCB..S

C-CAB DX GRADE PACKAGE,GRAY,TRIM1#

 1
67630-0C130C1

GSK51,UCK51,52,56,57,USK51,52,56,57..DCB..S

BLACK,TRIM2#

 1
67630-0C260E0

GSK51,UCK51,52,56,57,USK51,52,56,57..DCB..S

C-CAB DX GRADE PACKAGE,SAND BEIGE,TRIM4#

 1
67630-0C260C1

GSK51,UCK51,52,56,57,USK51,52,56,57..DCB..S

C-CAB DX GRADE PACKAGE,BLACK,TRIM2#

 1
67603B - CLIP(FOR REAR DOOR TRIM BOARD)
90467-A0005

GSK51,UCK51,52,56,57,USK51,52,56,57..DCB

 18
67603E - CLIP(FOR REAR DOOR TRIM BOARD)
90467-07076C0

GSK51,UCK51,52,56,57,USK51,52,56,57..L,S

BLACK,TRIM1#,2#

 2
90467-07076E9

GSK51,UCK51,52,56,57,USK51,52,56,57..L,S

DK. BROWN,TRIM4#

 2
67604 - BOARD SUB-ASSY, REAR DOOR TRIM, LH
67640-0C130C0

GSK51,UCK51,52,56,57,USK51,52,56,57..DCB

BLACK,TRIM1#

 1
67640-0C130E0

GSK51,UCK51,52,56,57,USK51,52,56,57..DCB

DK. BROWN,TRIM4#

 1
67640-0C130C1

GSK51,UCK51,52,56,57,USK51,52,56,57..DCB..S

BLACK,TRIM2#

 1
67640-0C130C2

UCK51,56,USK51,56..DCB..L

BLACK,TRIM2#

 1
67640-0C260C0

GSK51,UCK51,52,56,57,USK51,52,56,57..DCB..S

C-CAB DX GRADE PACKAGE,GRAY,TRIM1#

 1
67640-0C260C1

GSK51,UCK51,52,56,57,USK51,52,56,57..DCB..S

C-CAB DX GRADE PACKAGE,BLACK,TRIM2#

 1
67640-0C260E0

GSK51,UCK51,52,56,57,USK51,52,56,57..DCB..S

C-CAB DX GRADE PACKAGE,SAND BEIGE,TRIM4#

 1
67626C - BRACKET, REAR DOOR TRIM, NO.2
67626-0C020

GSK51,UCK51,52,56,57,USK51,52,56,57..L,S

 2
67665D - REFLECTOR, REAR DOOR TRIM, RH
67666-0C010

GSK51,UCK51,52,56,57,USK51,52,56,57..DCB..S

C-CAB DX GRADE PACKAGE

 1
67666C - REFLECTOR, REAR DOOR TRIM, LH
67666-0C010

GSK51,UCK51,52,56,57,USK51,52,56,57..DCB..S

C-CAB DX GRADE PACKAGE

 1
67673A - GARNISH, REAR DOOR FRAME, RH
67673-0C010C0

GSK51,UCK51,52,56,57,USK51,52,56,57..DCB

BLACK,TRIM1#,2#

 1
67673-0C010E0

GSK51,UCK51,52,56,57,USK51,52,56,57..DCB

DK. BROWN,TRIM4#

 1
67674A - GARNISH, REAR DOOR FRAME, LH
67674-0C010C0

GSK51,UCK51,52,56,57,USK51,52,56,57..DCB

BLACK,TRIM1#,2#

 1
67674-0C010E0

GSK51,UCK51,52,56,57,USK51,52,56,57..DCB

DK. BROWN,TRIM4#

 1
68173B - WEATHERSTRIP, REAR DOOR GLASS, INNER RH
68173-0C020

GSK51,UCK51,52,56,57,USK51,52,56,57..DCB

 1
68174A - WEATHERSTRIP, REAR DOOR GLASS, INNER LH
68174-0C020

GSK51,UCK51,52,56,57,USK51,52,56,57..DCB

 1
Common parts
90080-16081
90164-A0010
90168-40061
90189-06018
90467-A0006
90467-A0011
Linked diagrams
7451
