USK56L-CRTLKA (2007)
Toyota Tundra

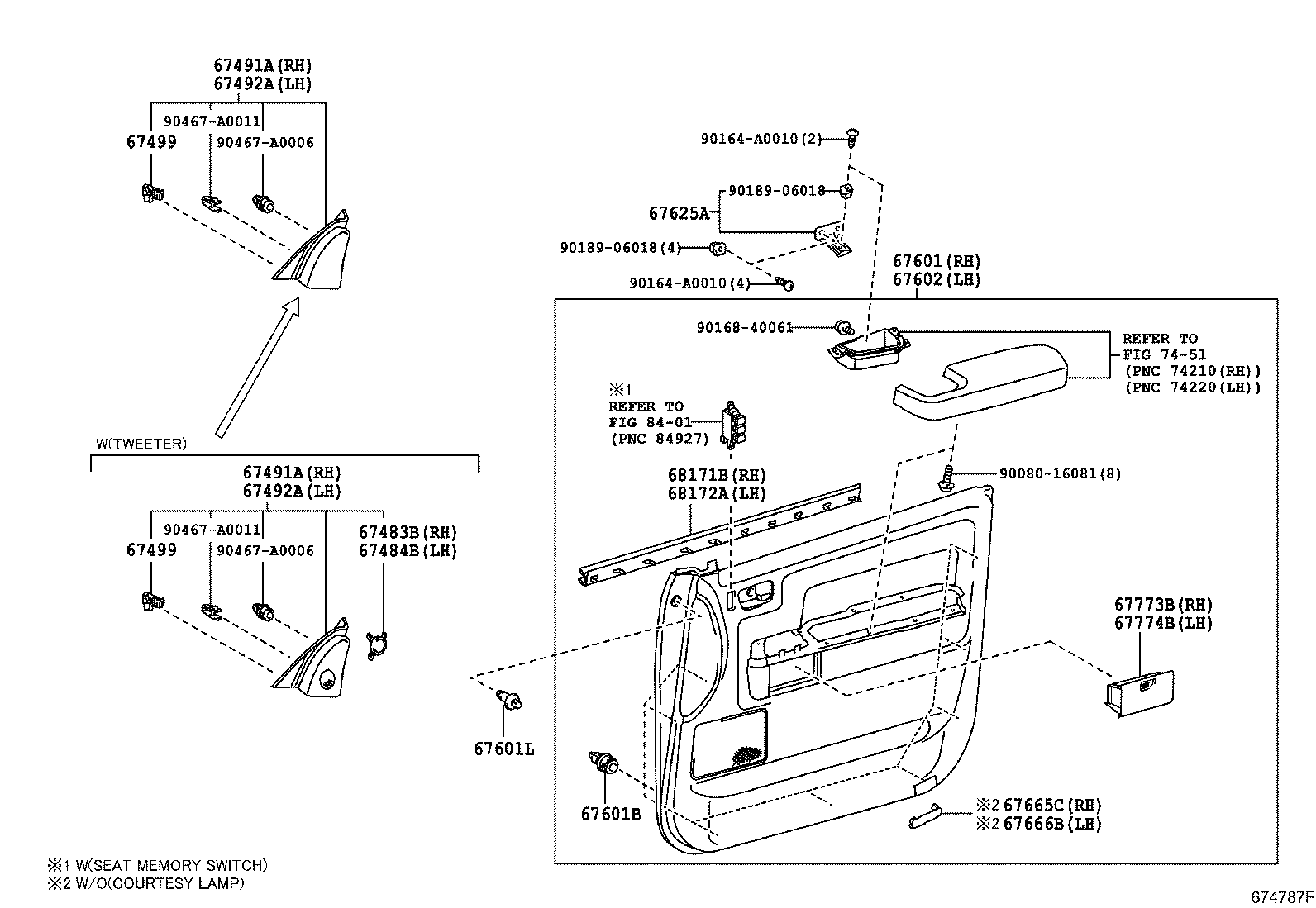

ILLUST NO. 2 OF 2(0611-1308)L,S
DOOR TRIM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67483B - RETAINER, FRONT DOOR FRONT LOWER FRAME SEAL, RH | ||||
| 67483-0C010 |
GSK51,UCK51,52,56,57,USK51,52,56,57..DCB..S AUDIO-AVN & CD CHANGER 8SPEAKER & 2TWEETER JBL |
1 | ||
| 67483-0C010 |
GSK51,UCK51,52,56,57,USK51,52,56,57..DCB..S AUDIO-AM/FM CD CHANGER 8SPEAKER & 2TWEETER JBL |
1 | ||
| 67483-0C010 |
UCK51,56,USK51,56..L |
1 | ||
| 67484B - RETAINER, FRONT DOOR FRONT LOWER FRAME SEAL, LH | ||||
| 67484-0C010 |
GSK51,UCK51,52,56,57,USK51,52,56,57..DCB..S AUDIO-AVN & CD CHANGER 8SPEAKER & 2TWEETER JBL |
1 | ||
| 67484-0C010 |
UCK51,56,USK51,56..L |
1 | ||
| 67484-0C010 |
GSK51,UCK51,52,56,57,USK51,52,56,57..DCB..S AUDIO-AM/FM CD CHANGER 8SPEAKER & 2TWEETER JBL |
1 | ||
| 67491A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, RH | ||||
| 67491-0C020C0 |
UCK51,56,USK51,56..L BLACK,TRIM1#,2# |
1 | ||
| 67491-0C020E0 |
GSK51,UCK51,52,56,57,USK51,52,56,57..DCB..S AUDIO-AM/FM CD CHANGER 8SPEAKER & 2TWEETER JBL,DK. BROWN,TRIM4# |
1 | ||
| 67491-0C020E0 |
GSK51,UCK51,52,56,57,USK51,52,56,57..DCB..S AUDIO-AVN & CD CHANGER 8SPEAKER & 2TWEETER JBL,DK. BROWN,TRIM4# |
1 | ||
| 67491-0C020C0 |
GSK51,UCK51,52,56,57,USK51,52,56,57..DCB..S AUDIO-AVN & CD CHANGER 8SPEAKER & 2TWEETER JBL,BLACK,TRIM1#,2# |
1 | ||
| 67491-0C020E0 |
UCK51,56,USK51,56..L DK. BROWN,TRIM4# |
1 | ||
| 67491-0C020C0 |
GSK51,UCK51,52,56,57,USK51,52,56,57..DCB..S AUDIO-AM/FM CD CHANGER 8SPEAKER & 2TWEETER JBL,BLACK,TRIM1#,2# |
1 | ||
| 67491-0C030C0 |
USK50;GSK51,UCK51,52,56,57,USK51,52,56,57..S BLACK,TRIM1#,2# |
1 | ||
| 67491-0C030C0 |
GSK5#,UCK50,51,55,56,USK51,55,56..D BLACK,TRIM1# |
1 | ||
| 67491A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, RH | ||||
| 67491-0C020C0 |
UCK51,56,USK51,56..L BLACK,TRIM1#,2# |
1 | ||
| 67491-0C020E0 |
GSK51,UCK51,52,56,57,USK51,52,56,57..DCB..S AUDIO-AM/FM CD CHANGER 8SPEAKER & 2TWEETER JBL,DK. BROWN,TRIM4# |
1 | ||
| 67491-0C020E0 |
GSK51,UCK51,52,56,57,USK51,52,56,57..DCB..S AUDIO-AVN & CD CHANGER 8SPEAKER & 2TWEETER JBL,DK. BROWN,TRIM4# |
1 | ||
| 67491-0C020C0 |
GSK51,UCK51,52,56,57,USK51,52,56,57..DCB..S AUDIO-AVN & CD CHANGER 8SPEAKER & 2TWEETER JBL,BLACK,TRIM1#,2# |
1 | ||
| 67491-0C020E0 |
UCK51,56,USK51,56..L DK. BROWN,TRIM4# |
1 | ||
| 67491-0C020C0 |
GSK51,UCK51,52,56,57,USK51,52,56,57..DCB..S AUDIO-AM/FM CD CHANGER 8SPEAKER & 2TWEETER JBL,BLACK,TRIM1#,2# |
1 | ||
| 67491-0C030C0 |
USK50;GSK51,UCK51,52,56,57,USK51,52,56,57..S BLACK,TRIM1#,2# |
1 | ||
| 67491-0C030C0 |
GSK5#,UCK50,51,55,56,USK51,55,56..D BLACK,TRIM1# |
1 | ||
| 67492A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, LH | ||||
| 67492-0C020C0 |
UCK51,56,USK51,56..L BLACK,TRIM1#,2# |
1 | ||
| 67492-0C020E0 |
UCK51,56,USK51,56..L DK. BROWN,TRIM4# |
1 | ||
| 67492-0C020E0 |
GSK51,UCK51,52,56,57,USK51,52,56,57..DCB..S AUDIO-AM/FM CD CHANGER 8SPEAKER & 2TWEETER JBL,DK. BROWN,TRIM4# |
1 | ||
| 67492-0C020C0 |
GSK51,UCK51,52,56,57,USK51,52,56,57..DCB..S AUDIO-AM/FM CD CHANGER 8SPEAKER & 2TWEETER JBL,BLACK,TRIM1#,2# |
1 | ||
| 67492-0C020E0 |
GSK51,UCK51,52,56,57,USK51,52,56,57..DCB..S AUDIO-AVN & CD CHANGER 8SPEAKER & 2TWEETER JBL,DK. BROWN,TRIM4# |
1 | ||
| 67492-0C020C0 |
GSK51,UCK51,52,56,57,USK51,52,56,57..DCB..S AUDIO-AVN & CD CHANGER 8SPEAKER & 2TWEETER JBL,BLACK,TRIM1#,2# |
1 | ||
| 67492-0C030C0 |
USK50;GSK51,UCK51,52,56,57,USK51,52,56,57..S BLACK,TRIM1#,2# |
1 | ||
| 67492-0C030C0 |
GSK5#,UCK50,51,55,56,USK51,55,56..D BLACK,TRIM1# |
1 | ||
| 67492A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, LH | ||||
| 67492-0C020C0 |
UCK51,56,USK51,56..L BLACK,TRIM1#,2# |
1 | ||
| 67492-0C020E0 |
UCK51,56,USK51,56..L DK. BROWN,TRIM4# |
1 | ||
| 67492-0C020E0 |
GSK51,UCK51,52,56,57,USK51,52,56,57..DCB..S AUDIO-AM/FM CD CHANGER 8SPEAKER & 2TWEETER JBL,DK. BROWN,TRIM4# |
1 | ||
| 67492-0C020C0 |
GSK51,UCK51,52,56,57,USK51,52,56,57..DCB..S AUDIO-AM/FM CD CHANGER 8SPEAKER & 2TWEETER JBL,BLACK,TRIM1#,2# |
1 | ||
| 67492-0C020E0 |
GSK51,UCK51,52,56,57,USK51,52,56,57..DCB..S AUDIO-AVN & CD CHANGER 8SPEAKER & 2TWEETER JBL,DK. BROWN,TRIM4# |
1 | ||
| 67492-0C020C0 |
GSK51,UCK51,52,56,57,USK51,52,56,57..DCB..S AUDIO-AVN & CD CHANGER 8SPEAKER & 2TWEETER JBL,BLACK,TRIM1#,2# |
1 | ||
| 67492-0C030C0 |
USK50;GSK51,UCK51,52,56,57,USK51,52,56,57..S BLACK,TRIM1#,2# |
1 | ||
| 67492-0C030C0 |
GSK5#,UCK50,51,55,56,USK51,55,56..D BLACK,TRIM1# |
1 | ||
| 67499 - RETAINER, FRONT DOOR LOWER FRAME BRACKET GARNISH | ||||
| 67771-58010 |
GSK5#,UCK5#,USK5# |
2 | ||
| 67499 - RETAINER, FRONT DOOR LOWER FRAME BRACKET GARNISH | ||||
| 67771-58010 |
GSK5#,UCK5#,USK5# |
2 | ||
| 67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH | ||||
| 67610-0C400C1 |
UCK51,56,USK51,56..L BLACK,TRIM1# |
1 | ||
| 67610-0C370C0 |
GSK5#,UCK50,51,55,56,USK50,51,55,56..D WITHOUT(SR-5 PACKAGE),BLACK,TRIM1# |
1 | ||
| 67610-0C400C0 |
UCK51,56,USK51,56..L BLACK,TRIM2# |
1 | ||
| 67610-0C400C1 |
GSK51,UCK51,52,56,57,USK51,52,56,57..DCB..S AUDIO-AM/FM CD CHANGER 8SPEAKER & 2TWEETER JBL,BLACK,TRIM1# |
1 | ||
| 67610-0C500C0 |
GSK51,UCK51,52,56,57,USK51,52,56,57..S BLACK,TRIM1# |
1 | ||
| 67610-0C400E0 |
UCK51,56,USK51,56..L DK. BROWN,TRIM4# |
1 | ||
| 67610-0C400C1 |
GSK51,UCK51,52,56,57,USK51,52,56,57..DCB..S AUDIO-AVN & CD CHANGER 8SPEAKER & 2TWEETER JBL,BLACK,TRIM1# |
1 | ||
| 67610-0C500C1 |
GSK51,UCK51,52,56,57,USK51,52,56,57..S BLACK,TRIM2# |
1 | ||
| 67610-0C400E0 |
GSK51,UCK51,52,56,57,USK51,52,56,57..DCB..S AUDIO-AVN & CD CHANGER 8SPEAKER & 2TWEETER JBL,DK. BROWN,TRIM4# |
1 | ||
| 67610-0C400C2 |
GSK51,UCK51,52,56,57,USK51,52,56,57..DCB..S AUDIO-AM/FM CD CHANGER 8SPEAKER & 2TWEETER JBL,BLACK,TRIM2# |
1 | ||
| 67610-0C400E0 |
GSK51,UCK51,52,56,57,USK51,52,56,57..DCB..S AUDIO-AM/FM CD CHANGER 8SPEAKER & 2TWEETER JBL,DK. BROWN,TRIM4# |
1 | ||
| 67610-0C420E0 |
GSK5#,UCK50,51,55,56,USK50,51,55,56..D DK. BROWN,TRIM4# |
1 | ||
| 67610-0C400C2 |
GSK51,UCK51,52,56,57,USK51,52,56,57..DCB..S AUDIO-AVN & CD CHANGER 8SPEAKER & 2TWEETER JBL,BLACK,TRIM2# |
1 | ||
| 67610-0C420C0 |
GSK5#,UCK50,51,55,56,USK50,51,55,56..D BLACK,TRIM1# |
1 | ||
| 67610-0C170E0 |
GSK51,UCK51,52,56,57,USK51,52,56,57..DCB..S C-CAB DX GRADE PACKAGE,SAND BEIGE,TRIM4# |
1 | ||
| 67610-0C500E0 |
GSK51,UCK51,52,56,57,USK51,52,56,57..S DK. BROWN,TRIM4# |
1 | ||
| 67610-0C170C0 |
GSK51,UCK51,52,56,57,USK51,52,56,57..DCB..S C-CAB DX GRADE PACKAGE,GRAY,TRIM1# |
1 | ||
| 67610-0C170C1 |
GSK51,UCK51,52,56,57,USK51,52,56,57..DCB..S C-CAB DX GRADE PACKAGE,BLACK,TRIM2# |
1 | ||
| 67601B - CLIP(FOR FRONT DOOR TRIM BOARD) | ||||
| 90467-A0005 |
GSK51,UCK51,52,56,57,USK51,52,56,57..L,S |
18 | ||
| 90467-A0005 |
GSK5#,UCK50,51,55,56,USK50,51,55,56..D |
20 | ||
| 67601L - CLIP(FOR FRONT DOOR TRIM BOARD) | ||||
| 90467-07076C0 |
USK50;GSK51,UCK51,52,56,57,USK51,52,56,57..L,S BLACK,TRIM1#,2# |
2 | ||
| 90467-07076E9 |
GSK5#,UCK5#,USK5# DK. BROWN,TRIM4# |
2 | ||
| 90467-07076C0 |
GSK5#,UCK50,51,55,56,USK51,55,56..D BLACK,TRIM1# |
2 | ||
| 67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH | ||||
| 67620-0C400C2 |
GSK51,UCK51,52,56,57,USK51,52,56,57..DCB..S AUDIO-AVN & CD CHANGER 8SPEAKER & 2TWEETER JBL,BLACK,TRIM2# |
1 | ||
| 67620-0C400C1 |
GSK51,UCK51,52,56,57,USK51,52,56,57..DCB..S AUDIO-AM/FM CD CHANGER 8SPEAKER & 2TWEETER JBL,BLACK,TRIM1# |
1 | ||
| 67620-0C400E0 |
UCK51,56,USK51,56..L DK. BROWN,TRIM4# |
1 | ||
| 67620-0C370C0 |
GSK5#,UCK50,51,55,56,USK50,51,55,56..D WITHOUT(SR-5 PACKAGE),BLACK,TRIM1# |
1 | ||
| 67620-0C400C2 |
GSK51,UCK51,52,56,57,USK51,52,56,57..DCB..S AUDIO-AM/FM CD CHANGER 8SPEAKER & 2TWEETER JBL,BLACK,TRIM2# |
1 | ||
| 67620-0C400E0 |
GSK51,UCK51,52,56,57,USK51,52,56,57..DCB..S AUDIO-AVN & CD CHANGER 8SPEAKER & 2TWEETER JBL,DK. BROWN,TRIM4# |
1 | ||
| 67620-0C400C1 |
GSK51,UCK51,52,56,57,USK51,52,56,57..DCB..S AUDIO-AVN & CD CHANGER 8SPEAKER & 2TWEETER JBL,BLACK,TRIM1# |
1 | ||
| 67620-0C400E0 |
GSK51,UCK51,52,56,57,USK51,52,56,57..DCB..S AUDIO-AM/FM CD CHANGER 8SPEAKER & 2TWEETER JBL,DK. BROWN,TRIM4# |
1 | ||
| 67620-0C400C1 |
UCK51,56,USK51,56..L BLACK,TRIM1# |
1 | ||
| 67620-0C420E0 |
GSK5#,UCK50,51,55,56,USK50,51,55,56..D DK. BROWN,TRIM4# |
1 | ||
| 67620-0C400C0 |
UCK51,56,USK51,56..L BLACK,TRIM2# |
1 | ||
| 67620-0C440C0 |
UCK51,56,USK51,56..L POWER MEMORY PACKAGE,BLACK,TRIM2# |
1 | ||
| 67620-0C440E0 |
UCK51,56,USK51,56..L POWER MEMORY PACKAGE,DK. BROWN,TRIM4# |
1 | ||
| 67620-0C420C0 |
GSK5#,UCK50,51,55,56,USK50,51,55,56..D BLACK,TRIM1# |
1 | ||
| 67620-0C520C0 |
GSK51,UCK51,52,56,57,USK51,52,56,57..S BLACK,TRIM1# |
1 | ||
| 67620-0C170C1 |
GSK51,UCK51,52,56,57,USK51,52,56,57..DCB..S C-CAB DX GRADE PACKAGE,BLACK,TRIM2# |
1 | ||
| 67620-0C440C1 |
UCK51,56,USK51,56..L POWER MEMORY PACKAGE,BLACK,TRIM1# |
1 | ||
| 67620-0C170E0 |
GSK51,UCK51,52,56,57,USK51,52,56,57..DCB..S C-CAB DX GRADE PACKAGE,SAND BEIGE,TRIM4# |
1 | ||
| 67620-0C520E0 |
GSK51,UCK51,52,56,57,USK51,52,56,57..S DK. BROWN,TRIM4# |
1 | ||
| 67620-0C520C1 |
GSK51,UCK51,52,56,57,USK51,52,56,57..S BLACK,TRIM2# |
1 | ||
| 67620-0C170C0 |
GSK51,UCK51,52,56,57,USK51,52,56,57..DCB..S C-CAB DX GRADE PACKAGE,GRAY,TRIM1# |
1 | ||
| 67625A - BRACKET, FRONT DOOR TRIM, NO.1 | ||||
| 67625-0C020 |
GSK5#,UCK5#,USK5# |
2 | ||
| 67665C - REFLECTOR, FRONT DOOR TRIM, RH | ||||
| 67666-0C010 |
GSK5#,UCK50,51,55,56,USK50,51,55,56..D WITHOUT(SR-5 PACKAGE) |
1 | ||
| 67666-0C010 |
GSK51,UCK51,52,56,57,USK51,52,56,57..DCB..S C-CAB DX GRADE PACKAGE |
1 | ||
| 67666B - REFLECTOR, FRONT DOOR TRIM, LH | ||||
| 67666-0C010 |
GSK5#,UCK50,51,55,56,USK50,51,55,56..D WITHOUT(SR-5 PACKAGE) |
1 | ||
| 67666-0C010 |
GSK51,UCK51,52,56,57,USK51,52,56,57..DCB..S C-CAB DX GRADE PACKAGE |
1 | ||
| 67773B - POCKET, FRONT DOOR TRIM, NO.2 RH | ||||
| 67773-0C010E0 |
UCK51,56,USK51,56..L REDROCK,TRIM2# |
1 | ||
| 67773-0C010B0 |
GSK51,UCK51,52,56,57,USK51,52,56,57..L,S GRAY,TRIM1# |
1 | ||
| 67773-0C010E1 |
GSK51,UCK51,52,56,57,USK51,52,56,57..L,S SAND BEIGE,TRIM4# |
1 | ||
| 67773-0C010C0 |
GSK51,UCK51,52,56,57,USK51,52,56,57..S BLACK,TRIM2# |
1 | ||
| 67774B - POCKET, FRONT DOOR TRIM, NO.2 LH | ||||
| 67774-0C010B0 |
GSK51,UCK51,52,56,57,USK51,52,56,57..L,S GRAY,TRIM1# |
1 | ||
| 67774-0C010C0 |
GSK51,UCK51,52,56,57,USK51,52,56,57..S BLACK,TRIM2# |
1 | ||
| 67774-0C010E0 |
UCK51,56,USK51,56..L REDROCK,TRIM2# |
1 | ||
| 67774-0C010E1 |
GSK51,UCK51,52,56,57,USK51,52,56,57..L,S SAND BEIGE,TRIM4# |
1 | ||
| 68171B - WEATHERSTRIP, FRONT DOOR GLASS, INNER RH | ||||
| 68171-0C030 |
GSK51,UCK51,52,56,57,USK51,52,56,57..L,S |
1 | ||
| 68171-0C040 |
GSK5#,UCK50,51,55,56,USK50,51,55,56..D |
1 | ||
| 68172A - WEATHERSTRIP, FRONT DOOR GLASS, INNER LH | ||||
| 68172-0C030 |
GSK51,UCK51,52,56,57,USK51,52,56,57..L,S |
1 | ||
| 68172-0C040 |
GSK5#,UCK50,51,55,56,USK50,51,55,56..D |
1 | ||
| Common parts | ||||
| 90080-16081 | ||||
| 90164-A0010 | ||||
| 90168-40061 | ||||
| 90189-06018 | ||||
| 90467-A0006 | ||||
| 90467-A0011 | ||||
| Linked diagrams | ||||
| 7451 | ||||
| 8401 | ||||
