USK56L-CRTLKA (2007)
Toyota Tundra
ILLUST NO. 1 OF 3(0611-1308)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55301 - PANEL SUB-ASSY, INSTRUMENT | ||||
| 55301-0C030E0 |
GSK5#,UCK5#,USK5# DK. BROWN,TRIM4# |
1 | ||
| 55301-0C030C0 |
GSK5#,UCK50,51,55,56,USK50,51,55,56..D BLACK,TRIM1# |
1 | ||
| 55301-0C030C0 |
GSK51,UCK51,52,56,57,USK51,52,56,57..L,S BLACK,TRIM1#,2# |
1 | ||
| 55317A - PANEL, INSTRUMENT SIDE, RH | ||||
| 55317-0C020C0 |
GSK5#,UCK50,51,55,56,USK51,55,56..D BLACK,TRIM1# |
1 | ||
| 55317-0C020C0 |
USK50;GSK51,UCK51,52,56,57,USK51,52,56,57..L,S BLACK,TRIM1#,2# |
1 | ||
| 55317-0C020E0 |
GSK5#,UCK5#,USK5# DK. BROWN,TRIM4# |
1 | ||
| 55318C - PANEL, INSTRUMENT SIDE, LH | ||||
| 55318-0C020C0 |
USK50;GSK51,UCK51,52,56,57,USK51,52,56,57..L,S BLACK,TRIM1#,2# |
1 | ||
| 55318-0C020E0 |
GSK5#,UCK5#,USK5# DK. BROWN,TRIM4# |
1 | ||
| 55318-0C020C0 |
GSK5#,UCK50,51,55,56,USK51,55,56..D BLACK,TRIM1# |
1 | ||
| 55328 - PIN, INSTRUMENT PANEL, NO.1 | ||||
| 55328-30140 |
GSK5#,UCK5#,USK5# |
2 | ||
| 55328 - PIN, INSTRUMENT PANEL, NO.1 | ||||
| 55328-30140 |
GSK5#,UCK5#,USK5# |
2 | ||
| 55328A - STAY, INSTRUMENT PANEL, NO.3 | ||||
| 55328-22060 |
GSK5#,UCK5#,USK5# |
3 | ||
| 55328A - STAY, INSTRUMENT PANEL, NO.3 | ||||
| 55328-22060 |
GSK5#,UCK5#,USK5# |
3 | ||
| 55328A - STAY, INSTRUMENT PANEL, NO.3 | ||||
| 55328-22060 |
GSK5#,UCK5#,USK5# |
3 | ||
| 55331 - REINFORCEMENT, INSTRUMENT PANEL | ||||
| 55330-0C030 |
GSK5#,UCK5#,USK5# |
1 | ||
| 55345A - CLIP, INSTRUMENT PANEL, NO.1 | ||||
| 55345-30050 |
GSK5#,UCK5#,USK5# |
2 | ||
| 55345-0C020 |
GSK5#,UCK5#,USK5# |
2 | ||
| 55345A - CLIP, INSTRUMENT PANEL, NO.1 | ||||
| 55345-30050 |
GSK5#,UCK5#,USK5# |
2 | ||
| 55345-0C020 |
GSK5#,UCK5#,USK5# |
2 | ||
| 55394B - BOLT, INSTRUMENT PANEL | ||||
| 55394-51011 |
GSK5#,UCK5#,USK5# |
2 | ||
| 55409A - PANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER | ||||
| 55472-0C010C0 |
GSK5#,UCK50,51,55,56,USK51,55,56..D BLACK,TRIM1# |
1 | ||
| 55472-0C010E0 |
GSK5#,UCK5#,USK5# DK. BROWN,TRIM4# |
1 | ||
| 55472-0C010C0 |
USK50;GSK51,UCK51,52,56,57,USK51,52,56,57..L,S BLACK,TRIM1#,2# |
1 | ||
| 55409F - PANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.2 | ||||
| 55473-0C010C0 |
USK50;GSK51,UCK51,52,56,57,USK51,52,56,57..L,S BLACK,TRIM1#,2# |
1 | ||
| 55473-0C010C0 |
GSK5#,UCK50,51,55,56,USK51,55,56..D BLACK,TRIM1# |
1 | ||
| 55473-0C010E0 |
GSK5#,UCK5#,USK5# DK. BROWN,TRIM4# |
1 | ||
| 55474E - PANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.3 | ||||
| 55474-0C010C0 |
GSK5#,UCK50,51,55,56,USK51,55,56..D BLACK,TRIM1# |
1 | ||
| 55474-0C010C0 |
USK50;GSK51,UCK51,52,56,57,USK51,52,56,57..L,S BLACK,TRIM1#,2# |
1 | ||
| 55474-0C010E0 |
GSK5#,UCK5#,USK5# DK. BROWN,TRIM4# |
1 | ||
| 73960A - AIR BAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR | ||||
| 73960-0C010 |
GSK5#,UCK5#,USK5# |
1 | ||
| Common parts | ||||
| 90080-11353 | ||||
| 90080-11549 | ||||
| 90080-11627 | ||||
| 90080-11658 | ||||
| 90080-15073 | ||||
| 90080-18062 | ||||
| 90105-A0071 | ||||
| 90119-A0001 | ||||
| 90159-50105 | ||||
| 90159-50384 | ||||
| 90178-A0023 | ||||
| 90183-A0002 | ||||
| 90467-10201 | ||||
| 90467-A0011 | ||||
| 94334-15000 | ||||
| Linked diagrams | ||||
| 8202 | ||||

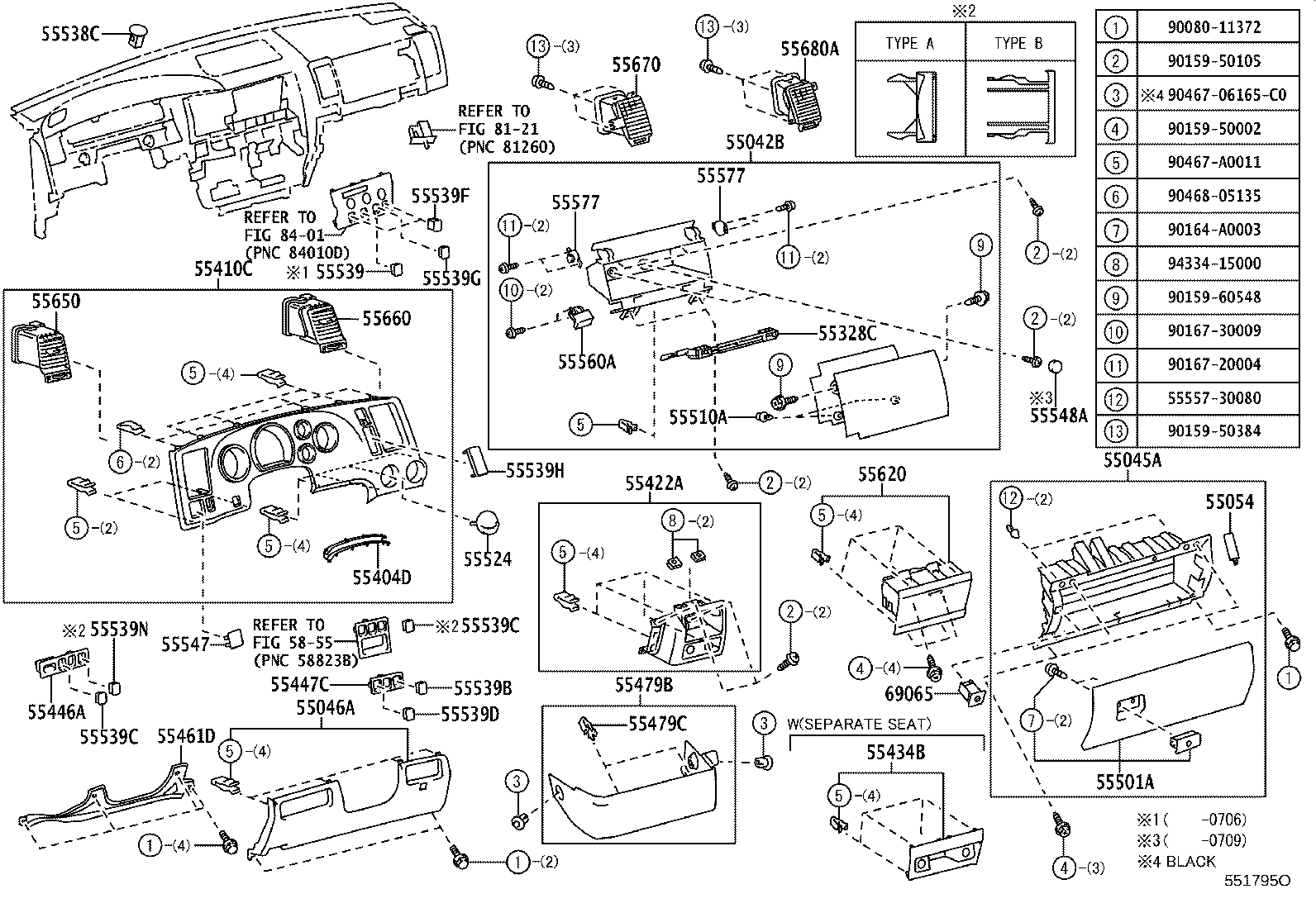

ILLUST NO. 2 OF 3(0611-0808)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55042B - DOOR SUB-ASSY, INSTRUMENT PANEL BOX, NO.2 | ||||
| 55042-0C010C0 |
GSK51,UCK51,52,56,57,USK51,52,56,57..L,S BLACK,TRIM1#,2# |
1 | ||
| 55042-0C010C0 |
GSK5#,UCK50,51,55,56,USK50,51,55,56..D BLACK,TRIM1# |
1 | ||
| 55042-0C010E0 |
GSK5#,UCK5#,USK5# DK. BROWN,TRIM4# |
1 | ||
| 55042-0C011C0 |
GSK5#,UCK50,51,55,56,USK51,55,56..D BLACK,TRIM1# |
1 | ||
| 55042-0C011E0 |
GSK5#,UCK5#,USK5# DK. BROWN,TRIM4# |
1 | ||
| 55042-0C011C0 |
USK50;GSK51,UCK51,52,56,57,USK51,52,56,57..L,S BLACK,TRIM1#,2# |
1 | ||
| 55045A - PANEL SUB-ASSY, INSTRUMENT PANEL FINISH, LOWER RH | ||||
| 55045-0C010B1 |
GSK51,UCK51,52,56,57,USK51,52,56,57..L,S GRAY,TRIM1# |
1 | ||
| 55045-0C010E3 |
GSK51,UCK51,52,56,57,USK51,52,56,57..L,S SAND BEIGE,TRIM4# |
1 | ||
| 55045-0C020B1 |
GSK5#,UCK50,51,55,56,USK50,51,55,56..D GRAY,TRIM1# |
1 | ||
| 55045-0C010C1 |
GSK51,UCK51,52,56,57,USK51,52,56,57..S BLACK,TRIM2# |
1 | ||
| 55045-0C010E2 |
UCK51,56,USK51,56..L REDROCK,TRIM2# |
1 | ||
| 55045-0C020E1 |
GSK5#,UCK50,51,55,56,USK50,51,55,56..D SAND BEIGE,TRIM4# |
1 | ||
| 55046A - PANEL SUB-ASSY, INSTRUMENT PANEL FINISH, LOWER LH | ||||
| 55046-0C070E0 |
UCK51,56,USK51,56..L REDROCK,TRIM2# |
1 | ||
| 55046-0C070B0 |
GSK5#,UCK5#,USK5# GRAY,TRIM1# |
1 | ||
| 55046-0C070E1 |
GSK5#,UCK5#,USK5# SAND BEIGE,TRIM4# |
1 | ||
| 55046-0C070C0 |
USK50,52,57..HTWC;USK51,56..DCB..HTWC..S BLACK,TRIM2# |
1 | ||
| 55046-0C070C0 |
USK56,57..HTWCF..S;GSK51,UCK51,52,56,57..S;USK51,56..CMAX..HTWC..S BLACK,TRIM2# |
1 | ||
| 55046-0C071E0 |
UCK51,56,USK51,56..L REDROCK,TRIM2# |
1 | ||
| 55046-0C071C0 |
USK50;GSK51,UCK51,52,56,57,USK51,52,56,57..S BLACK,TRIM2# |
1 | ||
| 55046-0C071B0 |
GSK5#,UCK5#,USK5# GRAY,TRIM1# |
1 | ||
| 55046-0C071E1 |
GSK5#,UCK5#,USK5# SAND BEIGE,TRIM4# |
1 | ||
| 55054 - STOPPER SUB-ASSY, GLOVE COMPARTMENT DOOR | ||||
| 55054-35010 |
GSK5#,UCK5#,USK5# |
1 | ||
| 55328C - PIN, INSTRUMENT PANEL, NO.2 | ||||
| 55328-0C040 |
GSK5#,UCK5#,USK5# |
1 | ||
| 55404D - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH | ||||
| 55404-0C020 |
GSK5#,UCK5#,USK5# |
1 | ||
| 55410C - PANEL ASSY, INSTRUMENT CLUSTER FINISH | ||||
| 55410-0C030 |
GSK5#,UCK50,51,55,56,USK50,51,55,56..D WITHOUT(SR-5 PACKAGE) |
1 | ||
| 55410-0C030 |
GSK51,UCK51,52,56,57,USK51,52,56,57..DCB..S C-CAB DX GRADE PACKAGE |
1 | ||
| 55410-0C020 |
GSK5#,UCK5#,USK5# |
1 | ||
| 55422A - PANEL, INSTRUMENT CLUSTER FINISH, LOWER | ||||
| 55422-0C010 |
GSK51,UCK51,52,56,57,USK51,52,56,57..S NUMBER OF PASSENGER-FRONT:2 REAR:3 |
1 | ||
| 55422-0C010 |
GSK51,UCK51,52,56,57,USK51,52,56,57..HTWC..S FRONT SEAT-*DRS:8WAY POWER & *PAS:4WAY MANUAL SEAT |
1 | ||
| 55422-0C010 |
GSK51,UCK51,52,56,57,USK51,52,56,57..HTWC..S FRONT SEAT-*DRS:8WAY MANUAL & *PAS:4WAY MANUAL SEAT |
1 | ||
| 55422-0C020 |
GSK5#,UCK50,51,55,56,USK50,51,55,56..D WITHOUT(SR-5 PACKAGE) |
1 | ||
| 55422-0C020 |
GSK51,UCK51,52,56,57,USK51,52,56,57..DCB..S C-CAB DX GRADE PACKAGE |
1 | ||
| 55434B - PANEL, INSTRUMENT PANEL FINISH, LOWER CENTER | ||||
| 55434-0C010C0 |
UCK51,56,USK51,56..L BLACK,TRIM1#,2# |
1 | ||
| 55434-0C010C0 |
GSK51,UCK51,52,56,57,USK51,52,56,57..S NUMBER OF PASSENGER-FRONT:2 REAR:3,BLACK,TRIM1#,2# |
1 | ||
| 55434-0C010E0 |
GSK51,UCK51,52,56,57,USK51,52,56,57..S NUMBER OF PASSENGER-FRONT:2 REAR:3,DK. BROWN,TRIM4# |
1 | ||
| 55434-0C010E0 |
UCK51,56,USK51,56..L DK. BROWN,TRIM4# |
1 | ||
| 55446A - BASE, SWITCH HOLE, NO.1 | ||||
| 55446-0C020 |
GSK5#,UCK5#,USK5# |
1 | ||
| 55447C - BASE, SWITCH HOLE, NO.2 | ||||
| 55447-0C011 |
GSK5#,UCK5#,USK5# |
1 | ||
| 55447-0C010 |
GSK5#,UCK5#,USK5# |
1 | ||
| 55461D - INSERT, INSTRUMENT PANEL SAFETY PAD, NO.1 | ||||
| 55461-0C030 |
UCK51,56..L POWER MEMORY PACKAGE |
1 | ||
| 55461-0C030 |
USK5#;UCK51,56..CMAX |
1 | ||
| 55479B - COVER, INSTRUMENT, LOWER CENTER | ||||
| 55479-0C040C0 |
GSK51,UCK51,52,56,57,USK51,52,56,57..DCB..HTWC..S FRONT SEAT-*DRS:8WAY POWER & *PAS:4WAY MANUAL SEAT,BLACK,TRIM1#,2# |
1 | ||
| 55479-0C040C0 |
GSK51,UCK51,52,56,57,USK51,52,56,57..DCB..S BLACK,TRIM1#,2# |
1 | ||
| 55479-0C040C0 |
GSK5#,UCK50,51,55,56,USK50,51,55,56..D BLACK,TRIM1# |
1 | ||
| 55479-0C040C0 |
GSK51,UCK51,52,56,57,USK51,52,56,57..DCB..S NUMBER OF PASSENGER-FRONT:2 REAR:3,BLACK,TRIM1#,2# |
1 | ||
| 55479-0C040E0 |
GSK51,UCK51,52,56,57,USK51,52,56,57..DCB..HTWC..S FRONT SEAT-*DRS:8WAY MANUAL & *PAS:4WAY MANUAL SEAT,DK. BROWN,TRIM4# |
1 | ||
| 55479-0C040E0 |
GSK51,UCK51,52,56,57,USK51,52,56,57..DCB..HTWC..S FRONT SEAT-*DRS:8WAY POWER & *PAS:4WAY MANUAL SEAT,DK. BROWN,TRIM4# |
1 | ||
| 55479-0C040C0 |
GSK51,UCK51,52,56,57,USK51,52,56,57..DCB..HTWC..S FRONT SEAT-*DRS:8WAY MANUAL & *PAS:4WAY MANUAL SEAT,BLACK,TRIM1#,2# |
1 | ||
| 55479-0C040E0 |
GSK51,UCK51,52,56,57,USK51,52,56,57..DCB..S NUMBER OF PASSENGER-FRONT:2 REAR:3,DK. BROWN,TRIM4# |
1 | ||
| 55479C - CLIP(FOR INSTRUMENT LOWER COVER) | ||||
| 90467-10201 |
GSK51,UCK51,52,56,57,USK51,52,56,57..HTWC..S FRONT SEAT-*DRS:8WAY POWER & *PAS:4WAY MANUAL SEAT |
2 | ||
| 90467-10201 |
GSK51,UCK51,52,56,57,USK51,52,56,57..S NUMBER OF PASSENGER-FRONT:2 REAR:3 |
2 | ||
| 90467-10201 |
GSK51,UCK51,52,56,57,USK51,52,56,57..HTWC..S FRONT SEAT-*DRS:8WAY MANUAL & *PAS:4WAY MANUAL SEAT |
2 | ||
| 55501A - DOOR SUB-ASSY, GLOVE COMPARTMENT | ||||
| 55501-0C010C0 |
GSK51,UCK51,52,56,57,USK51,52,56,57..S BLACK,TRIM2# |
1 | ||
| 55501-0C010E1 |
GSK5#,UCK5#,USK5# SAND BEIGE,TRIM4# |
1 | ||
| 55501-0C010E0 |
UCK51,56,USK51,56..L REDROCK,TRIM2# |
1 | ||
| 55501-0C010B0 |
GSK5#,UCK5#,USK5# GRAY,TRIM1# |
1 | ||
| 55510A - CUSHION(FOR GLOVE COMPARTMENT DOOR) | ||||
| 90541-05026 |
GSK5#,UCK5#,USK5# |
2 | ||
| 55539 - COVER, SPARE SWITCH HOLE | ||||
| 55539-0C110 |
GSK5#,UCK5#,USK5# |
1 | ||
| 55539B - COVER, SPARE SWITCH HOLE, NO.2 | ||||
| 55539-0C070 |
GSK5#,UCK5#,USK5#..DCB,RCB |
1 | ||
| 55539-0C140 |
GSK5#,UCK5#,USK5#..DCB,RCB |
1 | ||
| 55539C - COVER, SPARE SWITCH HOLE | ||||
| 55539-52060C0 |
USK51,56..S NUMBER OF PASSENGER-FRONT:2 REAR:3&TOWING PACKAGE-WITH,BLACK,TYPE A:REFER ILLUST. |
4 | ||
| 55539-0C070 |
USK51,56..S NUMBER OF PASSENGER-FRONT:2 REAR:3&TOWING PACKAGE-WITH,TYPE B:REFER ILLUST. |
1 | ||
| 55539-52060C0 |
USK51,56..L TOWING PACKAGE-WITH,BLACK,TYPE A:REFER ILLUST. |
4 | ||
| 55539-0C070 |
USK51,56..L TOWING PACKAGE-WITH,TYPE B:REFER ILLUST. |
1 | ||
| 55539C - COVER, SPARE SWITCH HOLE | ||||
| 55539-52060C0 |
USK51,56..S NUMBER OF PASSENGER-FRONT:2 REAR:3&TOWING PACKAGE-WITH,BLACK,TYPE A:REFER ILLUST. |
4 | ||
| 55539-0C070 |
USK51,56..S NUMBER OF PASSENGER-FRONT:2 REAR:3&TOWING PACKAGE-WITH,TYPE B:REFER ILLUST. |
1 | ||
| 55539-52060C0 |
USK51,56..L TOWING PACKAGE-WITH,BLACK,TYPE A:REFER ILLUST. |
4 | ||
| 55539-0C070 |
USK51,56..L TOWING PACKAGE-WITH,TYPE B:REFER ILLUST. |
1 | ||
| 55539D - COVER, SPARE SWITCH HOLE | ||||
| 55539-0C100 |
GSK5#,UCK5#,USK5# |
1 | ||
| 55539G - COVER, SPARE SWITCH HOLE | ||||
| 55539-0C110 |
GSK5#,UCK5#,USK5# |
1 | ||
| 55539H - COVER, SPARE SWITCH HOLE | ||||
| 55539-0C040 |
GSK5#,UCK50,51,55,56,USK50,51,55,56..D WITHOUT(SR-5 PACKAGE) |
1 | ||
| 55539-0C040 |
GSK51,UCK51,52,56,57,USK51,52,56,57..DCB..S C-CAB DX GRADE PACKAGE |
1 | ||
| 55539N - COVER, SPARE SWITCH HOLE | ||||
| 55539-52060C0 |
GSK5#,UCK5#,USK5# BLACK,TYPE A:REFER ILLUST. |
2 | ||
| 55539-0C070 |
GSK5#,UCK5#,USK5# TYPE B:REFER ILLUST. |
1 | ||
| 55547 - COVER, REMOTE CONTROL MIRROR HOLE | ||||
| 55547-AA010 |
USK51,52,56,57..DCB..HTWC..S OUTSIDE REAR VIEW MIRROR-MANUAL |
1 | ||
| 55547-AA010 |
GSK5#,UCK50,51,55,56..D WITHOUT(SR-5 PACKAGE) |
1 | ||
| 55547-AA010 |
GSK51,UCK51,52,56,57..DCB..S C-CAB DX GRADE PACKAGE |
1 | ||
| 55547-AA010 |
USK50,51,55..D;USK56..HTWC..D;USK56,57..(DCB,RCB)..SR5..HTWCF OUTSIDE REAR VIEW MIRROR-MANUAL |
1 | ||
| 55548A - COVER, INSTRUMENT PANEL HOLE | ||||
| 55548-47010 |
GSK5#,UCK5#,USK5# |
2 | ||
| 55560A - LOCK ASSY, GLOVE COMPARTMENT DOOR | ||||
| 55560-0C020E0 |
GSK5#,UCK5#,USK5# DK. BROWN,TRIM4# |
1 | ||
| 55560-0C020C0 |
GSK5#,UCK5#,USK5# BLACK,TRIM1#,2# |
1 | ||
| 55577 - SPRING, GLOVE COMPARTMENT DOOR LOCK, NO.2 | ||||
| 55577-0C010 |
GSK5#,UCK5#,USK5# |
1 | ||
| 55577 - SPRING, GLOVE COMPARTMENT DOOR LOCK, NO.2 | ||||
| 55577-0C010 |
GSK5#,UCK5#,USK5# |
1 | ||
| 55620 - HOLDER ASSY, INSTRUMENT PANEL CUP | ||||
| 55620-0C020C0 |
GSK51,UCK51,52,56,57,USK51,52,56,57..S BLACK,TRIM1#,2# |
1 | ||
| 55620-0C020C0 |
GSK5#,UCK50,51,55,56,USK50,51,55,56..D BLACK,TRIM1# |
1 | ||
| 55650 - REGISTER ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55650-0C020 |
GSK5#,UCK5#,USK5# |
1 | ||
| 55660 - REGISTER ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55660-0C020 |
GSK5#,UCK5#,USK5# |
1 | ||
| 55670 - REGISTER ASSY, INSTRUMENT PANEL, NO.3 | ||||
| 55670-0C010 |
GSK5#,UCK5#,USK5# |
1 | ||
| 55680A - REGISTER ASSY, INSTRUMENT PANEL, NO.4 | ||||
| 55680-0C030 |
GSK5#,UCK5#,USK5# |
1 | ||
| 69065 - CYLINDER SUB-ASSY, AIR BAG CUT OFF SW | ||||
| 69065-0C020 |
GSK5#,UCK50,51,55,56,USK50,51,55,56..D |
1 | ||
| 69065-0C020 |
GSK5#,UCK50,51,55,56,USK50,51,55,56..HTWC..D AIR BAG MANUAL ON-OFF SWITCH-WITH(DOP-DRIVER ONLY) |
1 | ||
| Common parts | ||||
| 55557-30080 | ||||
| 90080-11372 | ||||
| 90159-50002 | ||||
| 90159-50105 | ||||
| 90159-50384 | ||||
| 90159-60548 | ||||
| 90164-A0003 | ||||
| 90167-20004 | ||||
| 90167-30009 | ||||
| 90467-06165C0 | ||||
| 90467-A0011 | ||||
| 90468-05135 | ||||
| 94334-15000 | ||||
| Linked diagrams | ||||
| 5855 | ||||
| 8121 | ||||
| 8401 | ||||
ILLUST NO. 2 OF 3(0808-0904)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55042B - DOOR SUB-ASSY, INSTRUMENT PANEL BOX, NO.2 | ||||
| 55042-0C010C0 |
GSK51,UCK51,52,56,57,USK51,52,56,57..L,S BLACK,TRIM1#,2# |
1 | ||
| 55042-0C010C0 |
GSK5#,UCK50,51,55,56,USK50,51,55,56..D BLACK,TRIM1# |
1 | ||
| 55042-0C010E0 |
GSK5#,UCK5#,USK5# DK. BROWN,TRIM4# |
1 | ||
| 55042-0C011C0 |
GSK5#,UCK50,51,55,56,USK51,55,56..D BLACK,TRIM1# |
1 | ||
| 55042-0C011E0 |
GSK5#,UCK5#,USK5# DK. BROWN,TRIM4# |
1 | ||
| 55042-0C011C0 |
USK50;GSK51,UCK51,52,56,57,USK51,52,56,57..L,S BLACK,TRIM1#,2# |
1 | ||
| 55045A - PANEL SUB-ASSY, INSTRUMENT PANEL FINISH, LOWER RH | ||||
| 55045-0C010B1 |
GSK51,UCK51,52,56,57,USK51,52,56,57..L,S GRAY,TRIM1# |
1 | ||
| 55045-0C010E3 |
GSK51,UCK51,52,56,57,USK51,52,56,57..L,S SAND BEIGE,TRIM4# |
1 | ||
| 55045-0C020B1 |
GSK5#,UCK50,51,55,56,USK50,51,55,56..D GRAY,TRIM1# |
1 | ||
| 55045-0C010C1 |
GSK51,UCK51,52,56,57,USK51,52,56,57..S BLACK,TRIM2# |
1 | ||
| 55045-0C010E2 |
UCK51,56,USK51,56..L REDROCK,TRIM2# |
1 | ||
| 55045-0C020E1 |
GSK5#,UCK50,51,55,56,USK50,51,55,56..D SAND BEIGE,TRIM4# |
1 | ||
| 55046A - PANEL SUB-ASSY, INSTRUMENT PANEL FINISH, LOWER LH | ||||
| 55046-0C070E0 |
UCK51,56,USK51,56..L REDROCK,TRIM2# |
1 | ||
| 55046-0C070B0 |
GSK5#,UCK5#,USK5# GRAY,TRIM1# |
1 | ||
| 55046-0C070E1 |
GSK5#,UCK5#,USK5# SAND BEIGE,TRIM4# |
1 | ||
| 55046-0C070C0 |
USK50,52,57..HTWC;USK51,56..DCB..HTWC..S BLACK,TRIM2# |
1 | ||
| 55046-0C070C0 |
USK56,57..HTWCF..S;GSK51,UCK51,52,56,57..S;USK51,56..CMAX..HTWC..S BLACK,TRIM2# |
1 | ||
| 55046-0C071E0 |
UCK51,56,USK51,56..L REDROCK,TRIM2# |
1 | ||
| 55046-0C071C0 |
USK50;GSK51,UCK51,52,56,57,USK51,52,56,57..S BLACK,TRIM2# |
1 | ||
| 55046-0C071B0 |
GSK5#,UCK5#,USK5# GRAY,TRIM1# |
1 | ||
| 55046-0C071E1 |
GSK5#,UCK5#,USK5# SAND BEIGE,TRIM4# |
1 | ||
| 55054 - STOPPER SUB-ASSY, GLOVE COMPARTMENT DOOR | ||||
| 55054-35010 |
GSK5#,UCK5#,USK5# |
1 | ||
| 55328C - PIN, INSTRUMENT PANEL, NO.2 | ||||
| 55328-0C040 |
GSK5#,UCK5#,USK5# |
1 | ||
| 55404D - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH | ||||
| 55404-0C020 |
GSK5#,UCK5#,USK5# |
1 | ||
| 55410C - PANEL ASSY, INSTRUMENT CLUSTER FINISH | ||||
| 55410-0C030 |
GSK5#,UCK50,51,55,56,USK50,51,55,56..D WITHOUT(SR-5 PACKAGE) |
1 | ||
| 55410-0C030 |
GSK51,UCK51,52,56,57,USK51,52,56,57..DCB..S C-CAB DX GRADE PACKAGE |
1 | ||
| 55410-0C020 |
GSK5#,UCK5#,USK5# |
1 | ||
| 55411G - PANEL, INSTRUMENT CLUSTER FINISH, NO.1 | ||||
| 55403-0C010 |
GSK51,UCK51,52,56,57,USK51,52,56,57..DCB..S C-CAB DX GRADE PACKAGE |
1 | ||
| 55403-0C010 |
GSK5#,UCK50,51,55,56,USK50,51,55,56..D WITHOUT(SR-5 PACKAGE) |
1 | ||
| 55403-0C020 |
GSK5#,UCK5#,USK5# |
1 | ||
| 55422A - PANEL, INSTRUMENT CLUSTER FINISH, LOWER | ||||
| 55422-0C010 |
GSK51,UCK51,52,56,57,USK51,52,56,57..S NUMBER OF PASSENGER-FRONT:2 REAR:3 |
1 | ||
| 55422-0C010 |
GSK51,UCK51,52,56,57,USK51,52,56,57..HTWC..S FRONT SEAT-*DRS:8WAY POWER & *PAS:4WAY MANUAL SEAT |
1 | ||
| 55422-0C010 |
GSK51,UCK51,52,56,57,USK51,52,56,57..HTWC..S FRONT SEAT-*DRS:8WAY MANUAL & *PAS:4WAY MANUAL SEAT |
1 | ||
| 55422-0C020 |
GSK5#,UCK50,51,55,56,USK50,51,55,56..D WITHOUT(SR-5 PACKAGE) |
1 | ||
| 55422-0C020 |
GSK51,UCK51,52,56,57,USK51,52,56,57..DCB..S C-CAB DX GRADE PACKAGE |
1 | ||
| 55434B - PANEL, INSTRUMENT PANEL FINISH, LOWER CENTER | ||||
| 55434-0C010C0 |
UCK51,56,USK51,56..L BLACK,TRIM1#,2# |
1 | ||
| 55434-0C010C0 |
GSK51,UCK51,52,56,57,USK51,52,56,57..S NUMBER OF PASSENGER-FRONT:2 REAR:3,BLACK,TRIM1#,2# |
1 | ||
| 55434-0C010E0 |
GSK51,UCK51,52,56,57,USK51,52,56,57..S NUMBER OF PASSENGER-FRONT:2 REAR:3,DK. BROWN,TRIM4# |
1 | ||
| 55434-0C010E0 |
UCK51,56,USK51,56..L DK. BROWN,TRIM4# |
1 | ||
| 55446A - BASE, SWITCH HOLE, NO.1 | ||||
| 55446-0C020 |
GSK5#,UCK5#,USK5# |
1 | ||
| 55447C - BASE, SWITCH HOLE, NO.2 | ||||
| 55447-0C011 |
GSK5#,UCK5#,USK5# |
1 | ||
| 55447-0C010 |
GSK5#,UCK5#,USK5# |
1 | ||
| 55461D - INSERT, INSTRUMENT PANEL SAFETY PAD, NO.1 | ||||
| 55461-0C030 |
UCK51,56..L POWER MEMORY PACKAGE |
1 | ||
| 55461-0C030 |
USK5#;UCK51,56..CMAX |
1 | ||
| 55479B - COVER, INSTRUMENT, LOWER CENTER | ||||
| 55479-0C040C0 |
GSK51,UCK51,52,56,57,USK51,52,56,57..DCB..HTWC..S FRONT SEAT-*DRS:8WAY POWER & *PAS:4WAY MANUAL SEAT,BLACK,TRIM1#,2# |
1 | ||
| 55479-0C040C0 |
GSK51,UCK51,52,56,57,USK51,52,56,57..DCB..S BLACK,TRIM1#,2# |
1 | ||
| 55479-0C040C0 |
GSK5#,UCK50,51,55,56,USK50,51,55,56..D BLACK,TRIM1# |
1 | ||
| 55479-0C040C0 |
GSK51,UCK51,52,56,57,USK51,52,56,57..DCB..S NUMBER OF PASSENGER-FRONT:2 REAR:3,BLACK,TRIM1#,2# |
1 | ||
| 55479-0C040E0 |
GSK51,UCK51,52,56,57,USK51,52,56,57..DCB..HTWC..S FRONT SEAT-*DRS:8WAY MANUAL & *PAS:4WAY MANUAL SEAT,DK. BROWN,TRIM4# |
1 | ||
| 55479-0C040E0 |
GSK51,UCK51,52,56,57,USK51,52,56,57..DCB..HTWC..S FRONT SEAT-*DRS:8WAY POWER & *PAS:4WAY MANUAL SEAT,DK. BROWN,TRIM4# |
1 | ||
| 55479-0C040C0 |
GSK51,UCK51,52,56,57,USK51,52,56,57..DCB..HTWC..S FRONT SEAT-*DRS:8WAY MANUAL & *PAS:4WAY MANUAL SEAT,BLACK,TRIM1#,2# |
1 | ||
| 55479-0C040E0 |
GSK51,UCK51,52,56,57,USK51,52,56,57..DCB..S NUMBER OF PASSENGER-FRONT:2 REAR:3,DK. BROWN,TRIM4# |
1 | ||
| 55479C - CLIP(FOR INSTRUMENT LOWER COVER) | ||||
| 90467-10201 |
GSK51,UCK51,52,56,57,USK51,52,56,57..HTWC..S FRONT SEAT-*DRS:8WAY POWER & *PAS:4WAY MANUAL SEAT |
2 | ||
| 90467-10201 |
GSK51,UCK51,52,56,57,USK51,52,56,57..S NUMBER OF PASSENGER-FRONT:2 REAR:3 |
2 | ||
| 90467-10201 |
GSK51,UCK51,52,56,57,USK51,52,56,57..HTWC..S FRONT SEAT-*DRS:8WAY MANUAL & *PAS:4WAY MANUAL SEAT |
2 | ||
| 55501A - DOOR SUB-ASSY, GLOVE COMPARTMENT | ||||
| 55501-0C010C0 |
GSK51,UCK51,52,56,57,USK51,52,56,57..S BLACK,TRIM2# |
1 | ||
| 55501-0C010E1 |
GSK5#,UCK5#,USK5# SAND BEIGE,TRIM4# |
1 | ||
| 55501-0C010E0 |
UCK51,56,USK51,56..L REDROCK,TRIM2# |
1 | ||
| 55501-0C010B0 |
GSK5#,UCK5#,USK5# GRAY,TRIM1# |
1 | ||
| 55510A - CUSHION(FOR GLOVE COMPARTMENT DOOR) | ||||
| 90541-05026 |
GSK5#,UCK5#,USK5# |
2 | ||
| 55539B - COVER, SPARE SWITCH HOLE, NO.2 | ||||
| 55539-0C070 |
GSK5#,UCK5#,USK5#..DCB,RCB |
1 | ||
| 55539-0C140 |
GSK5#,UCK5#,USK5#..DCB,RCB |
1 | ||
| 55539C - COVER, SPARE SWITCH HOLE | ||||
| 55539-52060C0 |
USK51,56..S NUMBER OF PASSENGER-FRONT:2 REAR:3&TOWING PACKAGE-WITH,BLACK,TYPE A:REFER ILLUST. |
4 | ||
| 55539-0C070 |
USK51,56..S NUMBER OF PASSENGER-FRONT:2 REAR:3&TOWING PACKAGE-WITH,TYPE B:REFER ILLUST. |
1 | ||
| 55539-52060C0 |
USK51,56..L TOWING PACKAGE-WITH,BLACK,TYPE A:REFER ILLUST. |
4 | ||
| 55539-0C070 |
USK51,56..L TOWING PACKAGE-WITH,TYPE B:REFER ILLUST. |
1 | ||
| 55539C - COVER, SPARE SWITCH HOLE | ||||
| 55539-52060C0 |
USK51,56..S NUMBER OF PASSENGER-FRONT:2 REAR:3&TOWING PACKAGE-WITH,BLACK,TYPE A:REFER ILLUST. |
4 | ||
| 55539-0C070 |
USK51,56..S NUMBER OF PASSENGER-FRONT:2 REAR:3&TOWING PACKAGE-WITH,TYPE B:REFER ILLUST. |
1 | ||
| 55539-52060C0 |
USK51,56..L TOWING PACKAGE-WITH,BLACK,TYPE A:REFER ILLUST. |
4 | ||
| 55539-0C070 |
USK51,56..L TOWING PACKAGE-WITH,TYPE B:REFER ILLUST. |
1 | ||
| 55539D - COVER, SPARE SWITCH HOLE | ||||
| 55539-0C100 |
GSK5#,UCK5#,USK5# |
1 | ||
| 55539G - COVER, SPARE SWITCH HOLE | ||||
| 55539-0C110 |
GSK5#,UCK5#,USK5# |
1 | ||
| 55539H - COVER, SPARE SWITCH HOLE | ||||
| 55539-0C040 |
GSK5#,UCK50,51,55,56,USK50,51,55,56..D WITHOUT(SR-5 PACKAGE) |
1 | ||
| 55539-0C040 |
GSK51,UCK51,52,56,57,USK51,52,56,57..DCB..S C-CAB DX GRADE PACKAGE |
1 | ||
| 55539N - COVER, SPARE SWITCH HOLE | ||||
| 55539-52060C0 |
GSK5#,UCK5#,USK5# BLACK,TYPE A:REFER ILLUST. |
2 | ||
| 55539-0C070 |
GSK5#,UCK5#,USK5# TYPE B:REFER ILLUST. |
1 | ||
| 55547 - COVER, REMOTE CONTROL MIRROR HOLE | ||||
| 55547-AA010 |
USK51,52,56,57..DCB..HTWC..S OUTSIDE REAR VIEW MIRROR-MANUAL |
1 | ||
| 55547-AA010 |
GSK5#,UCK50,51,55,56..D WITHOUT(SR-5 PACKAGE) |
1 | ||
| 55547-AA010 |
GSK51,UCK51,52,56,57..DCB..S C-CAB DX GRADE PACKAGE |
1 | ||
| 55547-AA010 |
USK50,51,55..D;USK56..HTWC..D;USK56,57..(DCB,RCB)..SR5..HTWCF OUTSIDE REAR VIEW MIRROR-MANUAL |
1 | ||
| 55560A - LOCK ASSY, GLOVE COMPARTMENT DOOR | ||||
| 55560-0C020E0 |
GSK5#,UCK5#,USK5# DK. BROWN,TRIM4# |
1 | ||
| 55560-0C020C0 |
GSK5#,UCK5#,USK5# BLACK,TRIM1#,2# |
1 | ||
| 55577 - SPRING, GLOVE COMPARTMENT DOOR LOCK, NO.2 | ||||
| 55577-0C010 |
GSK5#,UCK5#,USK5# |
1 | ||
| 55577 - SPRING, GLOVE COMPARTMENT DOOR LOCK, NO.2 | ||||
| 55577-0C010 |
GSK5#,UCK5#,USK5# |
1 | ||
| 55620 - HOLDER ASSY, INSTRUMENT PANEL CUP | ||||
| 55620-0C020C0 |
GSK51,UCK51,52,56,57,USK51,52,56,57..S BLACK,TRIM1#,2# |
1 | ||
| 55620-0C020C0 |
GSK5#,UCK50,51,55,56,USK50,51,55,56..D BLACK,TRIM1# |
1 | ||
| 55650 - REGISTER ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55650-0C020 |
GSK5#,UCK5#,USK5# |
1 | ||
| 55660 - REGISTER ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55660-0C020 |
GSK5#,UCK5#,USK5# |
1 | ||
| 55670 - REGISTER ASSY, INSTRUMENT PANEL, NO.3 | ||||
| 55670-0C010 |
GSK5#,UCK5#,USK5# |
1 | ||
| 55680A - REGISTER ASSY, INSTRUMENT PANEL, NO.4 | ||||
| 55680-0C030 |
GSK5#,UCK5#,USK5# |
1 | ||
| 69065 - CYLINDER SUB-ASSY, AIR BAG CUT OFF SW | ||||
| 69065-0C020 |
GSK5#,UCK50,51,55,56,USK50,51,55,56..D |
1 | ||
| 69065-0C020 |
GSK5#,UCK50,51,55,56,USK50,51,55,56..HTWC..D AIR BAG MANUAL ON-OFF SWITCH-WITH(DOP-DRIVER ONLY) |
1 | ||
| Common parts | ||||
| 55557-30080 | ||||
| 90080-11372 | ||||
| 90159-50002 | ||||
| 90159-50105 | ||||
| 90159-50384 | ||||
| 90159-60548 | ||||
| 90164-A0003 | ||||
| 90167-20004 | ||||
| 90167-30009 | ||||
| 90467-06165C0 | ||||
| 90467-A0011 | ||||
| 90468-05135 | ||||
| 94334-15000 | ||||
| Linked diagrams | ||||
| 5855 | ||||
| 8121 | ||||
| 8401 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
