USK56L-CRTLKA (2007)

Toyota Tundra

Production Jan 2007 - Apr 2009
Engine 3URFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0611-0904)

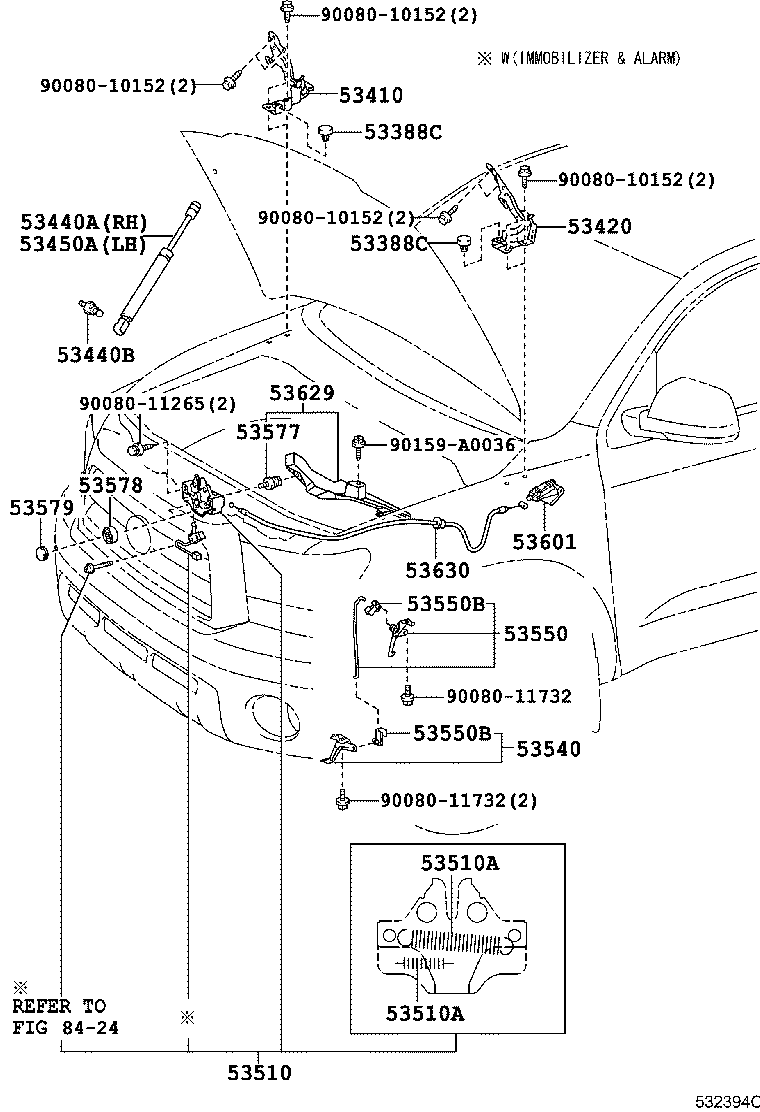

Click highlighted areas on diagram

diagram 53388C 53388C 53410 53420 53440A 53440B 53450A 53510 53510A 53510A 53540 53550 53550B 53550B 53577 53578 53579 53601 53629 53630 8424 9008010152 9008010152 9008010152 9008010152 9008011265 9008011732 9008011732 90159A0036
Part # Description Qty Price
53388C - CUSHION, HOOD, REAR
53388-22090

GSK5#,UCK5#,USK5#

 2
53388C - CUSHION, HOOD, REAR
53388-22090

GSK5#,UCK5#,USK5#

 2
53410 - HINGE ASSY, HOOD, RH
53410-0C020

GSK5#,UCK5#,USK5#

 1
53420 - HINGE ASSY, HOOD, LH
53420-0C020

GSK5#,UCK5#,USK5#

 1
53440A - SUPPORT ASSY, HOOD, RH
53440-0C020

GSK5#,UCK5#,USK5#

 1
53440B - BOLT, HOOD SUPPORT, NO.1
68961-0C030

GSK5#,UCK5#,USK5#

 2
53450A - SUPPORT ASSY, HOOD, LH
53450-0C020

GSK5#,UCK5#,USK5#

 1
53510 - LOCK ASSY, HOOD
53510-0E010

UCK51,56,USK51,56..L

 1
53510A - SPRING, TENSION(FOR HOOD LOCK)
90084-50002

GSK5#,UCK5#,USK5#

WD=1.8,CW=5

 1
90084-50003

GSK5#,UCK5#,USK5#

WD=2.3,CW=10

 1
53510A - SPRING, TENSION(FOR HOOD LOCK)
90084-50002

GSK5#,UCK5#,USK5#

WD=1.8,CW=5

 1
90084-50003

GSK5#,UCK5#,USK5#

WD=2.3,CW=10

 1
53540 - LEVER ASSY, AUXILIARY CATCH RELEASE
53540-0C030

GSK5#,UCK5#,USK5#

 1
53550 - HOOK ASSY, HOOD AUXILIARY CATCH
53550-0C040

GSK5#,UCK5#,USK5#

 1
53550B - SNAP, HOOD AUXILIARY CATCH HOOK CONTROL LINK
69759-0C010

GSK5#,UCK5#,USK5#

 2
53550B - SNAP, HOOD AUXILIARY CATCH HOOK CONTROL LINK
69759-0C010

GSK5#,UCK5#,USK5#

 2
53577 - BOLT, HOOD LOCK
53577-0C010

GSK5#,UCK5#,USK5#..(DCB,RCB)..HTWC

 1
53578 - NUT, HOOD LOCK
53578-0E010

GSK5#,UCK5#,USK5#

 2
53579 - CAP, HOOD LOCK NUT
53579-0E010

GSK5#,UCK5#,USK5#

 2
53601 - LEVER SUB-ASSY, HOOD LOCK CONTROL
53601-0C010E1

GSK5#,UCK5#,USK5#

SAND BEIGE,TRIM4#

 1
53601-0C010B0

GSK5#,UCK5#,USK5#

GRAY,TRIM1#

 1
53601-0C010E0

UCK51,56,USK51,56..L

REDROCK,TRIM2#

 1
53601-0C010C0

USK50;GSK51,UCK51,52,56,57,USK51,52,56,57..S

BLACK,TRIM2#

 1
53629 - COVER, HOOD LOCK CONTROL CABLE
53629-0C010

GSK5#,UCK5#,USK5#

 1
53630 - CABLE ASSY, HOOD LOCK CONTROL
53630-0C020

GSK5#,UCK5#,USK5#

 1
Common parts
90080-10152
90080-11265
90080-11732
90159-A0036
Linked diagrams
8424
