USK56L-CRTLKA (2007)
Toyota Tundra

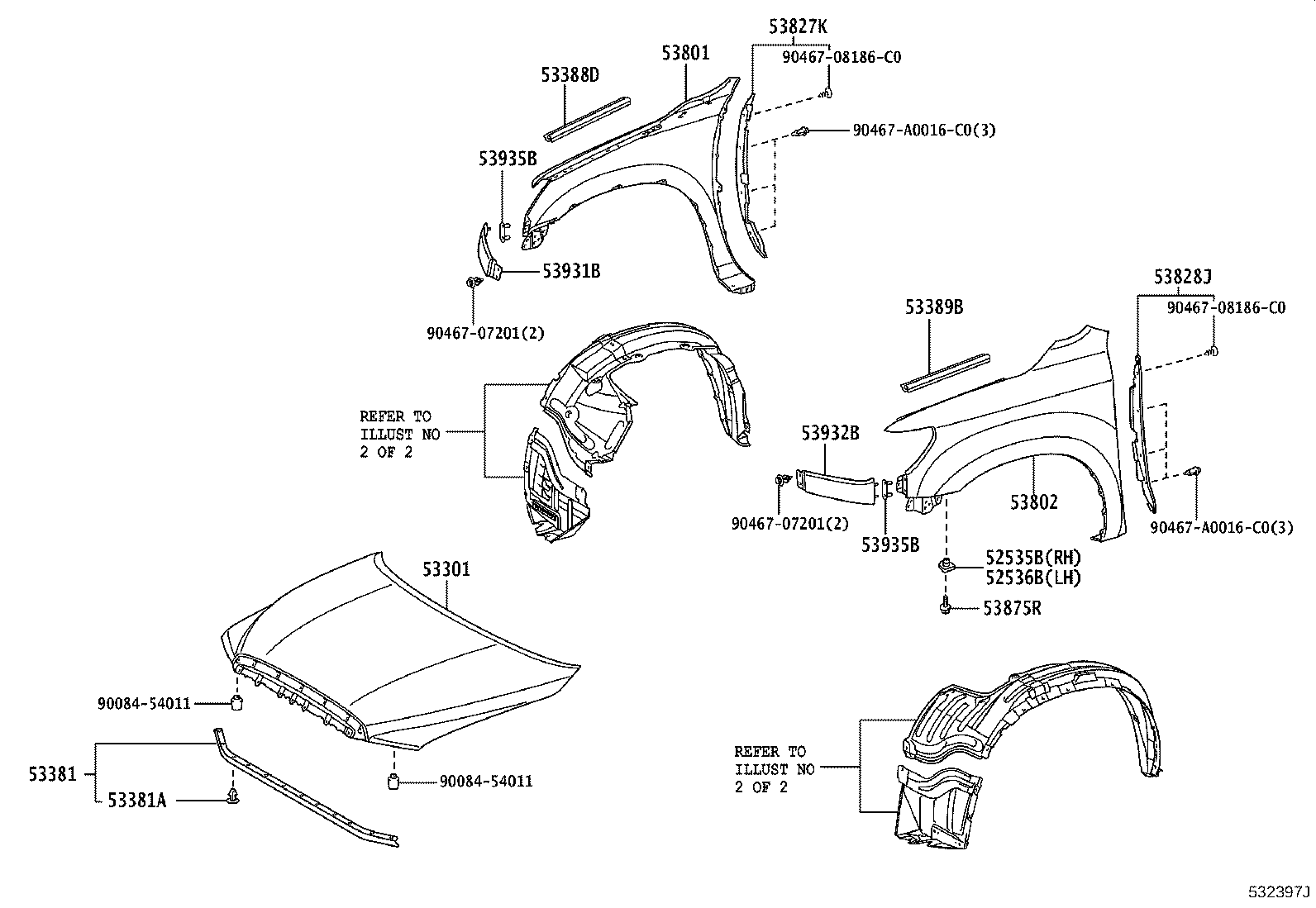

ILLUST NO. 1 OF 2(0611-1308)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52535B - RETAINER, FRONT BUMPER SIDE, RH | ||||
| 52535-30150 |
GSK5#,UCK5#,USK5# |
1 | ||
| 52536B - RETAINER, FRONT BUMPER SIDE, LH | ||||
| 52535-30150 |
GSK5#,UCK5#,USK5# |
1 | ||
| 53301 - HOOD SUB-ASSY | ||||
| 53301-0C040 |
GSK5#,UCK5#,USK5# |
1 | ||
| 53381 - SEAL, HOOD TO RADIATOR SUPPORT | ||||
| 53381-0C020 |
GSK5#,UCK5#,USK5# |
1 | ||
| 53381A - CLIP(FOR HOOD TO RADIATOR SUPPORT SEAL) | ||||
| 90467-08011 |
GSK5#,UCK5#,USK5# |
12 | ||
| 53388D - SEAL, HOOD TO FRONT FENDER, RH | ||||
| 53388-0C020 |
GSK5#,UCK5#,USK5# |
1 | ||
| 53389B - SEAL, HOOD TO FRONT FENDER, LH | ||||
| 53389-0C010 |
GSK5#,UCK5#,USK5# |
1 | ||
| 53801 - FENDER SUB-ASSY, FRONT RH | ||||
| 53801-0C220 |
GSK5#,UCK5#,USK5# |
1 | ||
| 53802 - FENDER SUB-ASSY, FRONT LH | ||||
| 53802-0C200 |
GSK5#,UCK5#,USK5# |
1 | ||
| 53827K - PROTECTOR, FRONT FENDER SIDE PANEL, RH | ||||
| 53827-0C010 |
GSK5#,UCK5#,USK5# |
1 | ||
| 53828J - PROTECTOR, FRONT FENDER SIDE PANEL, LH | ||||
| 53828-0C010 |
GSK5#,UCK5#,USK5# |
1 | ||
| 53875R - SCREW, NO.3 | ||||
| 90080-15077 |
GSK5#,UCK5#,USK5# |
2 | ||
| 53931B - PANEL, FRONT END, RH | ||||
| 53931-0C901 |
GSK5#,UCK5#,USK5# |
1 | ||
| 53932B - PANEL, FRONT END, LH | ||||
| 53932-0C901 |
GSK5#,UCK5#,USK5# |
1 | ||
| 53935B - PROTECTOR, FRONT END PANEL | ||||
| 53935-0C010 |
GSK5#,UCK5#,USK5# |
2 | ||
| 53935B - PROTECTOR, FRONT END PANEL | ||||
| 53935-0C010 |
GSK5#,UCK5#,USK5# |
2 | ||
| Common parts | ||||
| 90084-54011 | ||||
| 90467-07201 | ||||
| 90467-08186C0 | ||||
| 90467-A0016C0 | ||||

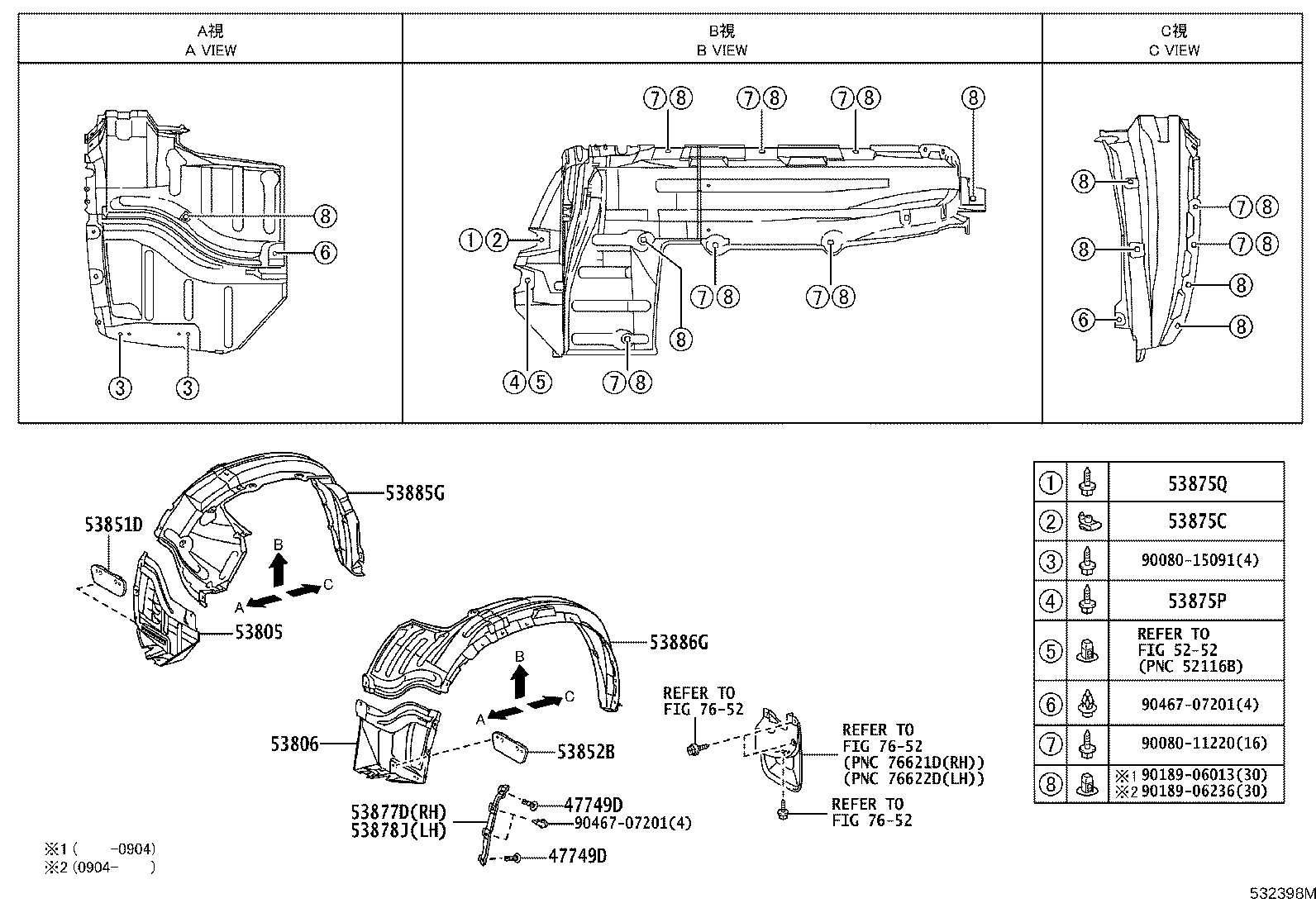

ILLUST NO. 2 OF 2(0611-1308)
RESIN BUMPER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47749D - CLIP, PIN HOLD | ||||
| 47749-08010 |
USK55,56..HTWCF;USK56..HTWC..(L,S);GSK51,UCK51,52,56,57,USK51,52,57..L,S |
4 | ||
| 47749-08010 |
GSK5#,UCK50,51,55,56,USK50,51,55,56..D WITHOUT(SR-5 PACKAGE) |
4 | ||
| 47749-08010 |
GSK5#,UCK50,51,55,56,USK50,51,55,56..HTWC..D |
4 | ||
| 47749D - CLIP, PIN HOLD | ||||
| 47749-08010 |
USK55,56..HTWCF;USK56..HTWC..(L,S);GSK51,UCK51,52,56,57,USK51,52,57..L,S |
4 | ||
| 47749-08010 |
GSK5#,UCK50,51,55,56,USK50,51,55,56..D WITHOUT(SR-5 PACKAGE) |
4 | ||
| 47749-08010 |
GSK5#,UCK50,51,55,56,USK50,51,55,56..HTWC..D |
4 | ||
| 53805 - SHIELD SUB-ASSY, FRONT FENDER SPLASH, RH | ||||
| 53805-0C020 |
GSK5#,UCK50,51,55,56,USK50,51,55,56..D |
1 | ||
| 53805-0C010 |
USK55,56..HTWCF;USK56..HTWC..(L,S);GSK51,UCK51,52,56,57,USK51,52,57..L,S |
1 | ||
| 53805-0C010 |
GSK51,UCK51,56,USK51,56..D WITHOUT(SR-5 PACKAGE) |
1 | ||
| 53805-0C020 |
USK56..DCB..HTWC..S;USK55,56..(DCB,RCB)..SR5..HTWCF;GSK51,UCK51,52,56,57,USK51,52,57..DCB..S FRONT BUMPER-CHROME PLATED & RESIN(BLACK) |
1 | ||
| 53805-0C020 |
USK56..HTWC..S;USK55,56..SR5..HTWCF;GSK51,UCK51,52,56,57,USK51,52,57..S FRONT BUMPER-CHROME PLATED & RESIN(COLOR) |
1 | ||
| 53805-0C010 |
GSK5#,UCK50,51,55,56,USK50,51,55,56..HTWC..D |
1 | ||
| 53805-0C020 |
GSK5#,UCK50,51,55,56,USK50,51,55,56..HTWC..D FRONT BUMPER-CHROME PLATED & RESIN(COLOR) |
1 | ||
| 53805-0C020 |
GSK5#,UCK50,51,55,56,USK50,51,55,56..HTWC..D FRONT BUMPER-CHROME PLATED & RESIN(BLACK) |
1 | ||
| 53806 - SHIELD SUB-ASSY, FRONT FENDER SPLASH, LH | ||||
| 53806-0C010 |
GSK51,UCK51,56,USK51,56..D WITHOUT(SR-5 PACKAGE) |
1 | ||
| 53806-0C020 |
GSK5#,UCK50,51,55,56,USK50,51,55,56..D |
1 | ||
| 53806-0C020 |
USK56..HTWC..S;USK55,56..SR5..HTWCF;GSK51,UCK51,52,56,57,USK51,52,57..S FRONT BUMPER-CHROME PLATED & RESIN(COLOR) |
1 | ||
| 53806-0C020 |
USK56..DCB..HTWC..S;USK55,56..(DCB,RCB)..SR5..HTWCF;GSK51,UCK51,52,56,57,USK51,52,57..DCB..S FRONT BUMPER-CHROME PLATED & RESIN(BLACK) |
1 | ||
| 53806-0C020 |
GSK5#,UCK50,51,55,56,USK50,51,55,56..HTWC..D FRONT BUMPER-CHROME PLATED & RESIN(COLOR) |
1 | ||
| 53806-0C010 |
GSK5#,UCK50,51,55,56,USK50,51,55,56..HTWC..D |
1 | ||
| 53806-0C010 |
USK55,56..HTWCF;USK56..HTWC..(L,S);GSK51,UCK51,52,56,57,USK51,52,57..L,S |
1 | ||
| 53806-0C020 |
GSK5#,UCK50,51,55,56,USK50,51,55,56..HTWC..D FRONT BUMPER-CHROME PLATED & RESIN(BLACK) |
1 | ||
| 53851D - PAD, FRONT WHEEL OPENING EXTENSION, RH | ||||
| 53851-0C040 |
GSK5#,UCK5#,USK5# |
1 | ||
| 53852B - PAD, FRONT WHEEL OPENING EXTENSION, LH | ||||
| 53852-0C010 |
GSK5#,UCK5#,USK5# |
1 | ||
| 53875C - CLIP, FRONT FENDER LINER | ||||
| 90467-05138 |
GSK5#,UCK50,51,55,56,USK50,51,55,56..D WITHOUT(SR-5 PACKAGE) |
2 | ||
| 90467-05138 |
GSK5#,UCK50,51,55,56,USK50,51,55,56..HTWC..D |
2 | ||
| 90467-05138 |
USK55,56..HTWCF;USK56..HTWC..(L,S);GSK51,UCK51,52,56,57,USK51,52,57..L,S |
2 | ||
| 53875P - SCREW, NO.1 | ||||
| 90159-A0010 |
GSK5#,UCK50,51,55,56,USK50,51,55,56..D |
2 | ||
| 90159-A0010 |
USK56..HTWC..S;USK55,56..SR5..HTWCF;GSK51,UCK51,52,56,57,USK51,52,57..S FRONT BUMPER-CHROME PLATED & RESIN(COLOR) |
2 | ||
| 90159-A0010 |
GSK5#,UCK50,51,55,56,USK50,51,55,56..HTWC..D CLEARANCE & BACK SONAR-WITH(FRONT & REAR) |
2 | ||
| 90159-A0010 |
GSK5#,UCK50,51,55,56,USK50,51,55,56..HTWC..D FRONT BUMPER-CHROME PLATED & RESIN(COLOR) |
2 | ||
| 90159-A0010 |
GSK5#,UCK50,51,55,56,USK50,51,55,56..HTWC..D FRONT BUMPER-CHROME PLATED & RESIN(BLACK) |
2 | ||
| 90159-A0010 |
USK55,56..HTWCF;USK56..HTWC..(L,S);GSK51,UCK51,52,56,57,USK51,52,57..L,S CLEARANCE & BACK SONAR-WITH(FRONT & REAR) |
2 | ||
| 90159-A0010 |
USK56..DCB..HTWC..S;USK55,56..(DCB,RCB)..SR5..HTWCF;GSK51,UCK51,52,56,57,USK51,52,57..DCB..S FRONT BUMPER-CHROME PLATED & RESIN(BLACK) |
2 | ||
| 53875Q - SCREW, NO.2 | ||||
| 90159-A0008 |
GSK5#,UCK50,51,55,56,USK50,51,55,56..HTWC..D |
2 | ||
| 90159-A0010 |
GSK5#,UCK50,51,55,56,USK50,51,55,56..D |
2 | ||
| 90159-A0010 |
USK56..DCB..HTWC..S;USK55,56..(DCB,RCB)..SR5..HTWCF;GSK51,UCK51,52,56,57,USK51,52,57..DCB..S FRONT BUMPER-CHROME PLATED & RESIN(BLACK) |
2 | ||
| 90159-A0010 |
GSK5#,UCK50,51,55,56,USK50,51,55,56..HTWC..D FRONT BUMPER-CHROME PLATED & RESIN(COLOR) |
2 | ||
| 90159-A0010 |
GSK5#,UCK50,51,55,56,USK50,51,55,56..HTWC..D FRONT BUMPER-CHROME PLATED & RESIN(BLACK) |
2 | ||
| 90159-A0010 |
USK56..HTWC..S;USK55,56..SR5..HTWCF;GSK51,UCK51,52,56,57,USK51,52,57..S FRONT BUMPER-CHROME PLATED & RESIN(COLOR) |
2 | ||
| 90159-A0008 |
GSK51,UCK51,56,USK51,56..D WITHOUT(SR-5 PACKAGE) |
2 | ||
| 90080-15094 |
GSK5#,UCK5#,USK5# |
2 | ||
| 90159-A0008 |
USK55,56..HTWCF;USK56..HTWC..(L,S);GSK51,UCK51,52,56,57,USK51,52,57..L,S |
2 | ||
| 53877D - BRACKET, FRONT FENDER LINER, RH | ||||
| 53877-0C010 |
GSK5#,UCK50,51,55,56,USK50,51,55,56..D WITHOUT(SR-5 PACKAGE) |
1 | ||
| 53877-0C010 |
USK55,56..HTWCF;USK56..HTWC..(L,S);GSK51,UCK51,52,56,57,USK51,52,57..L,S |
1 | ||
| 53877-0C010 |
GSK5#,UCK50,51,55,56,USK50,51,55,56..HTWC..D |
1 | ||
| 53878J - BRACKET, FRONT FENDER LINER, LH | ||||
| 53878-0C010 |
USK55,56..HTWCF;USK56..HTWC..(L,S);GSK51,UCK51,52,56,57,USK51,52,57..L,S |
1 | ||
| 53878-0C010 |
GSK5#,UCK50,51,55,56,USK50,51,55,56..D WITHOUT(SR-5 PACKAGE) |
1 | ||
| 53878-0C010 |
GSK5#,UCK50,51,55,56,USK50,51,55,56..HTWC..D |
1 | ||
| 53885G - SEAL SUB-ASSY, FENDER APRON MUDGUARD, RH | ||||
| 53807-0C010 |
GSK5#,UCK5#,USK5# |
1 | ||
| 53886G - SEAL, FENDER APRON MUDGUARD, LH | ||||
| 53808-0C011 |
GSK5#,UCK5#,USK5# |
1 | ||
| Common parts | ||||
| 90080-11220 | ||||
| 90080-15091 | ||||
| 90189-06013 | ||||
| 90189-06236 | ||||
| 90467-07201 | ||||
| Linked diagrams | ||||
| 5252 | ||||
| 7652 | ||||

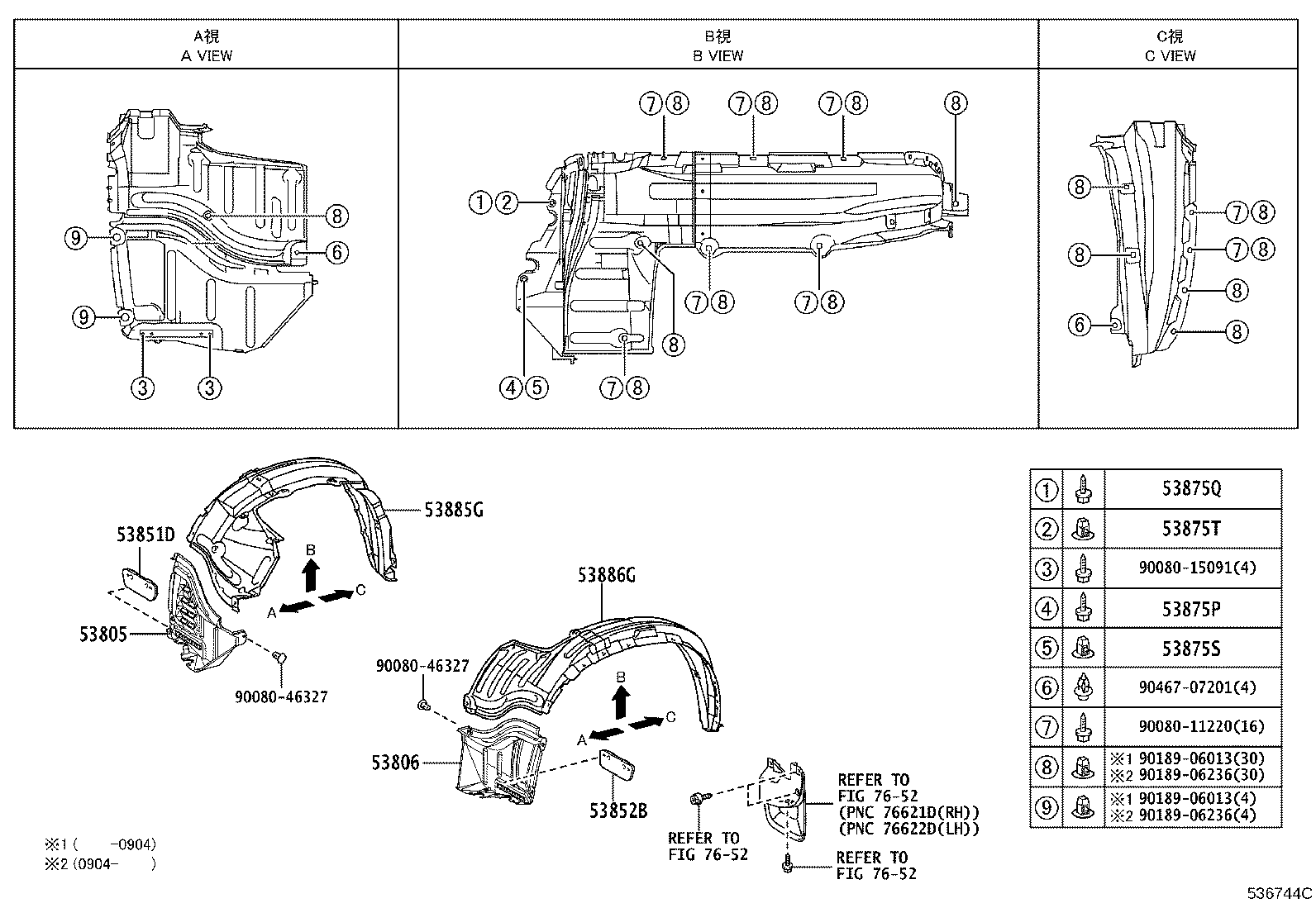

ILLUST NO. 2 OF 2(0611-1308)
STEEL BUMPER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53805 - SHIELD SUB-ASSY, FRONT FENDER SPLASH, RH | ||||
| 53805-0C020 |
GSK5#,UCK50,51,55,56,USK50,51,55,56..D |
1 | ||
| 53805-0C010 |
USK55,56..HTWCF;USK56..HTWC..(L,S);GSK51,UCK51,52,56,57,USK51,52,57..L,S |
1 | ||
| 53805-0C010 |
GSK51,UCK51,56,USK51,56..D WITHOUT(SR-5 PACKAGE) |
1 | ||
| 53805-0C020 |
USK56..DCB..HTWC..S;USK55,56..(DCB,RCB)..SR5..HTWCF;GSK51,UCK51,52,56,57,USK51,52,57..DCB..S FRONT BUMPER-CHROME PLATED & RESIN(BLACK) |
1 | ||
| 53805-0C020 |
USK56..HTWC..S;USK55,56..SR5..HTWCF;GSK51,UCK51,52,56,57,USK51,52,57..S FRONT BUMPER-CHROME PLATED & RESIN(COLOR) |
1 | ||
| 53805-0C010 |
GSK5#,UCK50,51,55,56,USK50,51,55,56..HTWC..D |
1 | ||
| 53805-0C020 |
GSK5#,UCK50,51,55,56,USK50,51,55,56..HTWC..D FRONT BUMPER-CHROME PLATED & RESIN(COLOR) |
1 | ||
| 53805-0C020 |
GSK5#,UCK50,51,55,56,USK50,51,55,56..HTWC..D FRONT BUMPER-CHROME PLATED & RESIN(BLACK) |
1 | ||
| 53806 - SHIELD SUB-ASSY, FRONT FENDER SPLASH, LH | ||||
| 53806-0C010 |
GSK51,UCK51,56,USK51,56..D WITHOUT(SR-5 PACKAGE) |
1 | ||
| 53806-0C020 |
GSK5#,UCK50,51,55,56,USK50,51,55,56..D |
1 | ||
| 53806-0C020 |
USK56..HTWC..S;USK55,56..SR5..HTWCF;GSK51,UCK51,52,56,57,USK51,52,57..S FRONT BUMPER-CHROME PLATED & RESIN(COLOR) |
1 | ||
| 53806-0C020 |
USK56..DCB..HTWC..S;USK55,56..(DCB,RCB)..SR5..HTWCF;GSK51,UCK51,52,56,57,USK51,52,57..DCB..S FRONT BUMPER-CHROME PLATED & RESIN(BLACK) |
1 | ||
| 53806-0C020 |
GSK5#,UCK50,51,55,56,USK50,51,55,56..HTWC..D FRONT BUMPER-CHROME PLATED & RESIN(COLOR) |
1 | ||
| 53806-0C010 |
GSK5#,UCK50,51,55,56,USK50,51,55,56..HTWC..D |
1 | ||
| 53806-0C010 |
USK55,56..HTWCF;USK56..HTWC..(L,S);GSK51,UCK51,52,56,57,USK51,52,57..L,S |
1 | ||
| 53806-0C020 |
GSK5#,UCK50,51,55,56,USK50,51,55,56..HTWC..D FRONT BUMPER-CHROME PLATED & RESIN(BLACK) |
1 | ||
| 53851D - PAD, FRONT WHEEL OPENING EXTENSION, RH | ||||
| 53851-0C040 |
GSK5#,UCK5#,USK5# |
1 | ||
| 53852B - PAD, FRONT WHEEL OPENING EXTENSION, LH | ||||
| 53852-0C010 |
GSK5#,UCK5#,USK5# |
1 | ||
| 53875P - SCREW, NO.1 | ||||
| 90159-A0010 |
GSK5#,UCK50,51,55,56,USK50,51,55,56..D |
2 | ||
| 90159-A0010 |
USK56..HTWC..S;USK55,56..SR5..HTWCF;GSK51,UCK51,52,56,57,USK51,52,57..S FRONT BUMPER-CHROME PLATED & RESIN(COLOR) |
2 | ||
| 90159-A0010 |
GSK5#,UCK50,51,55,56,USK50,51,55,56..HTWC..D CLEARANCE & BACK SONAR-WITH(FRONT & REAR) |
2 | ||
| 90159-A0010 |
GSK5#,UCK50,51,55,56,USK50,51,55,56..HTWC..D FRONT BUMPER-CHROME PLATED & RESIN(COLOR) |
2 | ||
| 90159-A0010 |
GSK5#,UCK50,51,55,56,USK50,51,55,56..HTWC..D FRONT BUMPER-CHROME PLATED & RESIN(BLACK) |
2 | ||
| 90159-A0010 |
USK55,56..HTWCF;USK56..HTWC..(L,S);GSK51,UCK51,52,56,57,USK51,52,57..L,S CLEARANCE & BACK SONAR-WITH(FRONT & REAR) |
2 | ||
| 90159-A0010 |
USK56..DCB..HTWC..S;USK55,56..(DCB,RCB)..SR5..HTWCF;GSK51,UCK51,52,56,57,USK51,52,57..DCB..S FRONT BUMPER-CHROME PLATED & RESIN(BLACK) |
2 | ||
| 53875Q - SCREW, NO.2 | ||||
| 90159-A0008 |
GSK5#,UCK50,51,55,56,USK50,51,55,56..HTWC..D |
2 | ||
| 90159-A0010 |
GSK5#,UCK50,51,55,56,USK50,51,55,56..D |
2 | ||
| 90159-A0010 |
USK56..DCB..HTWC..S;USK55,56..(DCB,RCB)..SR5..HTWCF;GSK51,UCK51,52,56,57,USK51,52,57..DCB..S FRONT BUMPER-CHROME PLATED & RESIN(BLACK) |
2 | ||
| 90159-A0010 |
GSK5#,UCK50,51,55,56,USK50,51,55,56..HTWC..D FRONT BUMPER-CHROME PLATED & RESIN(COLOR) |
2 | ||
| 90159-A0010 |
GSK5#,UCK50,51,55,56,USK50,51,55,56..HTWC..D FRONT BUMPER-CHROME PLATED & RESIN(BLACK) |
2 | ||
| 90159-A0010 |
USK56..HTWC..S;USK55,56..SR5..HTWCF;GSK51,UCK51,52,56,57,USK51,52,57..S FRONT BUMPER-CHROME PLATED & RESIN(COLOR) |
2 | ||
| 90159-A0008 |
GSK51,UCK51,56,USK51,56..D WITHOUT(SR-5 PACKAGE) |
2 | ||
| 90080-15094 |
GSK5#,UCK5#,USK5# |
2 | ||
| 90159-A0008 |
USK55,56..HTWCF;USK56..HTWC..(L,S);GSK51,UCK51,52,56,57,USK51,52,57..L,S |
2 | ||
| 53875S - GROMMET, NO.1 | ||||
| 90189-06177 |
USK56..HTWC..S;USK55,56..SR5..HTWCF;GSK51,UCK51,52,56,57,USK51,52,57..S FRONT BUMPER-CHROME PLATED & RESIN(COLOR) |
2 | ||
| 90189-06177 |
GSK5#,UCK50,51,55,56,USK50,51,55,56..HTWC..D FRONT BUMPER-CHROME PLATED & RESIN(COLOR)&CLEARANCE & BACK SONAR-WITH(FRONT & REAR) |
2 | ||
| 90189-06177 |
GSK5#,UCK50,51,55,56,USK50,51,55,56..HTWC..D FRONT BUMPER-CHROME PLATED & RESIN(COLOR) |
2 | ||
| 90189-06177 |
GSK5#,UCK50,51,55,56,USK50,51,55,56..D |
2 | ||
| 90189-06177 |
GSK5#,UCK50,51,55,56,USK50,51,55,56..HTWC..D FRONT BUMPER-CHROME PLATED & RESIN(BLACK) |
2 | ||
| 90189-06177 |
USK56..HTWC..S;USK55,56..SR5..HTWCF;GSK51,UCK51,52,56,57,USK51,52,57..S FRONT BUMPER-CHROME PLATED & RESIN(COLOR)&CLEARANCE & BACK SONAR-WITH(FRONT & REAR) |
2 | ||
| 90189-06177 |
USK56..DCB..HTWC..S;USK55,56..(DCB,RCB)..SR5..HTWCF;GSK51,UCK51,52,56,57,USK51,52,57..DCB..S FRONT BUMPER-CHROME PLATED & RESIN(BLACK) |
2 | ||
| 53875T - GROMMET, NO.2 | ||||
| 90189-06028 |
USK56..DCB..HTWC..S;USK55,56..(DCB,RCB)..SR5..HTWCF;GSK51,UCK51,52,56,57,USK51,52,57..DCB..S FRONT BUMPER-CHROME PLATED & RESIN(BLACK) |
2 | ||
| 90189-06028 |
GSK5#,UCK50,51,55,56,USK50,51,55,56..D |
2 | ||
| 90189-06028 |
USK56..HTWC..S;USK55,56..SR5..HTWCF;GSK51,UCK51,52,56,57,USK51,52,57..S FRONT BUMPER-CHROME PLATED & RESIN(COLOR)&CLEARANCE & BACK SONAR-WITH(FRONT & REAR) |
2 | ||
| 90189-06028 |
GSK5#,UCK50,51,55,56,USK50,51,55,56..HTWC..D FRONT BUMPER-CHROME PLATED & RESIN(BLACK) |
2 | ||
| 90189-06028 |
GSK5#,UCK50,51,55,56,USK50,51,55,56..HTWC..D FRONT BUMPER-CHROME PLATED & RESIN(COLOR) |
2 | ||
| 90189-06028 |
USK56..HTWC..S;USK55,56..SR5..HTWCF;GSK51,UCK51,52,56,57,USK51,52,57..S FRONT BUMPER-CHROME PLATED & RESIN(COLOR) |
2 | ||
| 90189-06028 |
GSK5#,UCK50,51,55,56,USK50,51,55,56..HTWC..D FRONT BUMPER-CHROME PLATED & RESIN(COLOR)&CLEARANCE & BACK SONAR-WITH(FRONT & REAR) |
2 | ||
| 53885G - SEAL SUB-ASSY, FENDER APRON MUDGUARD, RH | ||||
| 53807-0C010 |
GSK5#,UCK5#,USK5# |
1 | ||
| 53886G - SEAL, FENDER APRON MUDGUARD, LH | ||||
| 53808-0C011 |
GSK5#,UCK5#,USK5# |
1 | ||
| Common parts | ||||
| 90080-11220 | ||||
| 90080-15091 | ||||
| 90080-46327 | ||||
| 90189-06013 | ||||
| 90189-06236 | ||||
| 90467-07201 | ||||
| Linked diagrams | ||||
| 7652 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
